1771-OAD
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.

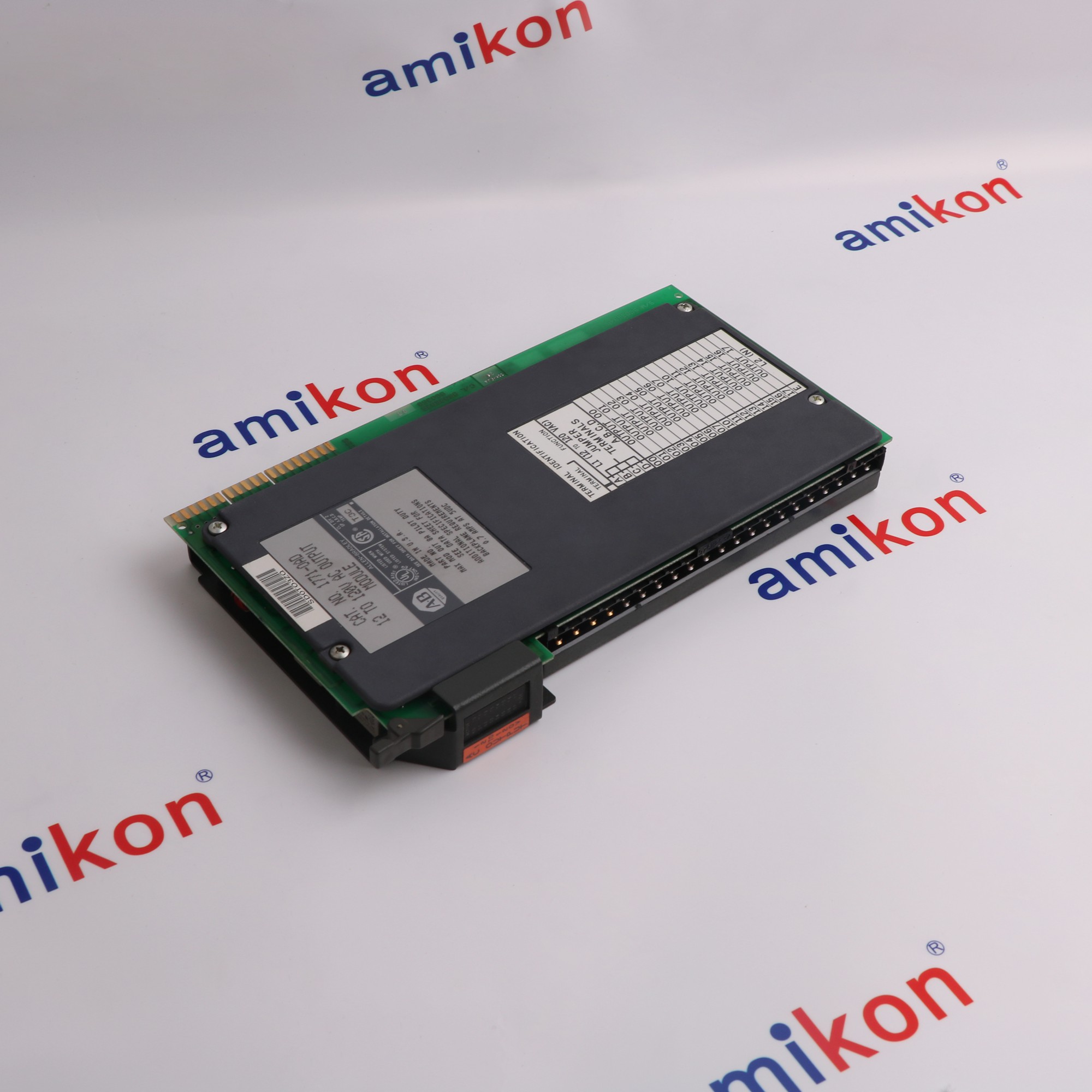

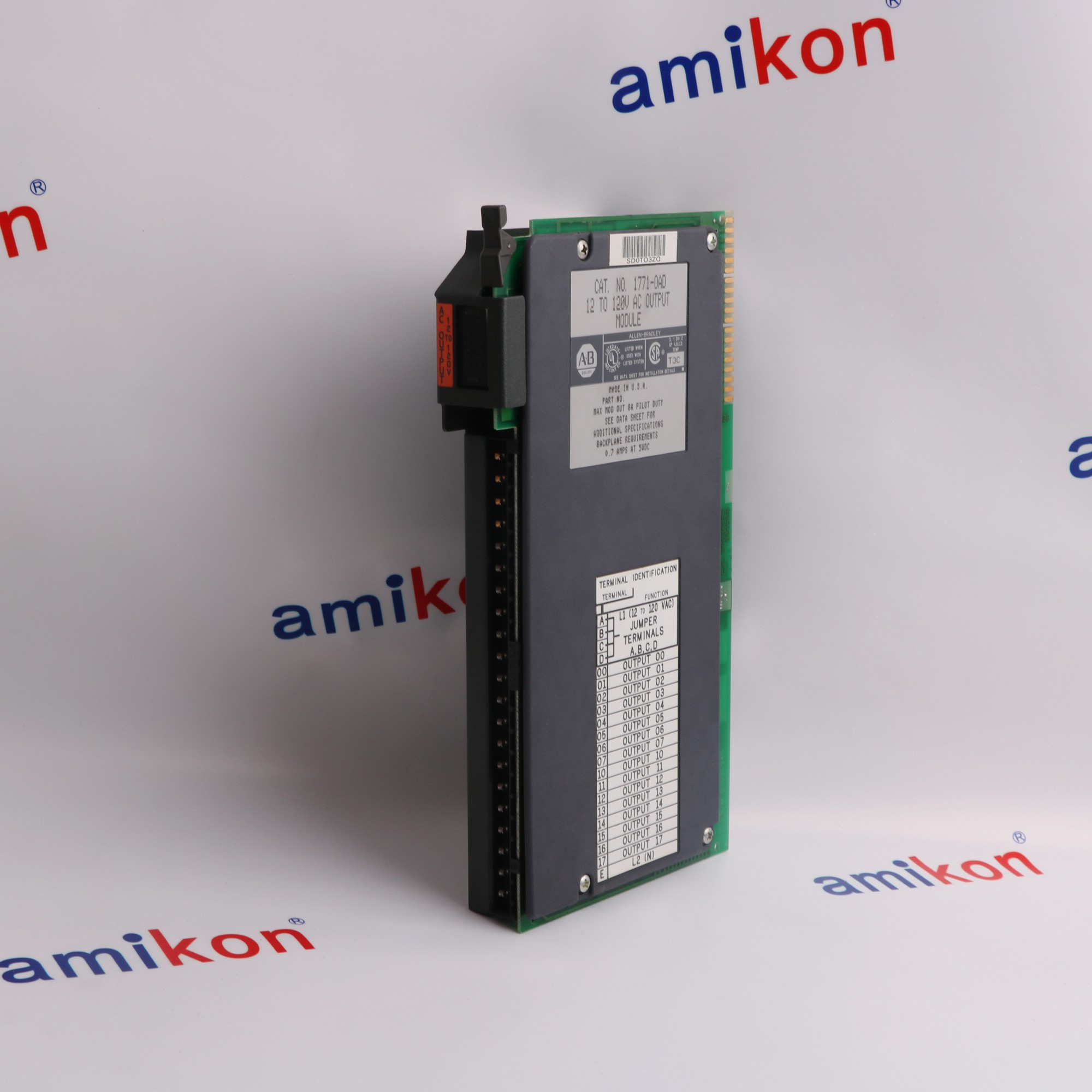

Product Information
Product Describe
1771OAD
OUTPUT MODULE
PLC-5
DIGITAL
16 POINT
12-120 VAC
50/60 HZ
0.7 AMP @ 5 VDC
OUTPUT MODULE
PLC-5
DIGITAL
16 POINT
12-120 VAC
50/60 HZ
0.7 AMP @ 5 VDC
Technical specifications for 1771-OAD
-
Product Model1771-OAD
-
Spare Model1771OAD
-
Product Parameters1771 16 Point Digital Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.8x15x25.5cm
-
ManufacturerAllen-Bradley
-
Weight0.78 kg
-
Outputs per Module16
-
Output Voltage Range10 to 138V ac @ 47 - 63Hz
-
Output Current Rating2A per output – not to exceed 8A per module
-
Minimum Load Current5mA per output
-
Off State Leakage Current (max.)3.0mA per output @ 138V ac
-
Power Dissipation13 Watts (max.), 1.5 Watts (min.)
-
Thermal Dissipation48.0 BTU/hr (max.), 5.13 BTU/hr (min.)
-
Backplane Current295mA
-
Operational Temperature0°C to 60°C (32°F to 140°F)
-
Storage Temperature–40°C to 85°C (–40°F to 185°F)
-
Relative Humidity5 to 95% (without condensation)
-

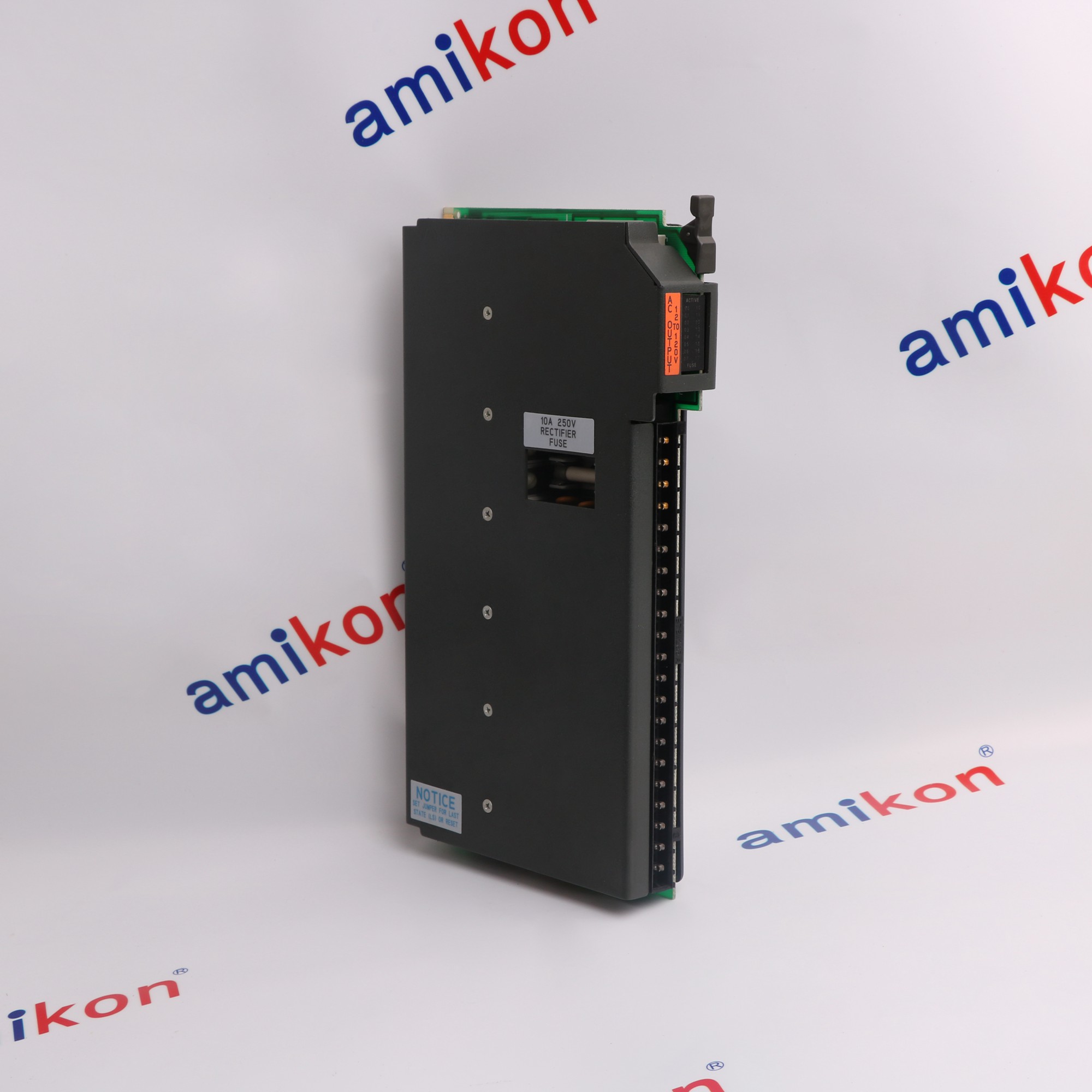

Fuse10A, 250V rectifier fuse (1/4 x 1-1/4 inch), Littelfuse PN 322010
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1771-OAD?+The Allen-Bradley 1771-OAD is a 16-channel, 12-120V AC digital output module for the PLC-5/1771 I/O family, designed for switching loads like solenoids and motor starters.
-
What type of loads can 1771-OAD control?+It is for AC-powered loads such as solenoids, motor starters, and indicator lights.
-
Does the 1771-OAD employ zero-crossing technology?+Yes, it employs zero-crossing switching technology to minimize contact stress and electrical noise.
-
What is the power dissipation?+The power dissipation is 13 Watts maximum and 1.5 Watts minimum.
-
What is the backplane current draw?+It draws approximately 0.7 AMP (or 295mA depending on series) at 5 VDC
Get a quick price fo 1771-OAD
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring Instructions
Features:
- 16-Point AC Output Module
- Wide AC Voltage Range (12-120V AC)
- Dual Fuse-Blown Indication Modes
- Comprehensive Status Indicators
- Field Wiring Arm Compatibility
The 1771-OAD Allen-Bradley OUTPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1771-OAD OUTPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Allen-Bradley 1771-OAD module is a 12 to120 Volts AC output module. This module uses zero-crossing technology, which allows it to turn on when the output voltage is less than the specified voltage, usually at 40 to 50 Volts AC. It also greatly reduces pressure on contacts and other devices which may be sensitive to the current surge. The 1771-OAD module is compatible with some Allen-Bradley chassis, excluding the 1771-A1, 1771-A2, and the 1771-A4. The output range of this module is from 10 to 138 Volts AC at a frequency of 47 to 63 Hertz, and its output current rating is 2 Amps. The minimum load current of this module is 5 mA, the maximum OFF state leakage current is 3.0 mA at 138 Volts AC. The power dissipation of this module is 13 Watts maximum and 1.5 Watts minimum. Its thermal dissipation is 48.0 BTU/hour at maximum and 5.13 BTU/hour at minimum. When using the Allen-Bradley 1771-OAD module with a device that includes a single diode that is in a series with the load, place the shunt resistor (39 KOhm, 1 Watt) throughout the charge. This resistor enables proper output operation. The shunt resistor can cause the LED indicator to light up when the output is switched off. If this happens, use an incandescent lamp in place of the LED. The 1771-OAD module receives power that is supplied through an Allen-Bradley 1771 I/O chassis backplane from the chassis power supply. It requires 295 mA of this supply output current. Add this to the requirements of all the other modules on the I/O chassis to prevent overloading the backplane chassis and/or the power supply casing.
- Industrial Automation & Process Control:Monitors/processes field device inputs for PLC-5 systems
- Sensor & Switch Monitoring:Interfaces ON/OFF devices (sensors, limit switches, pushbuttons) to PLC
- Motion Control Systems:Used in high-speed industrial control applications
- Material Handling:Frequently used in conveyor systems
- Machine Monitoring:Data acquisition for machine status in manufacturing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Pivot the Arm: Attach the 1771-WH field-wiring arm to the pivot bar at the bottom of the chassis before wiring.
Terminal Connections:
Outputs: Connect one side of each load to terminals 00 through 17.
L1 (Hot): Connect the AC line power to the common terminal on the wiring arm (typically terminal A or designated supply pins).
L2 (Neutral): Connect the other side of your loads and the module's common terminal (E) to the AC neutral line.
Leakage Management: Because the triac outputs have a small leakage current, high-impedance loads like small LEDs or relay coils may "flicker" or stay on. In these cases, place a 2.5K ohm, 10W resistor in parallel with the load to bleed off the leakage.
