Bently Nevada

Fan monitor

Frequency Range:10 Hz to 1 kHz
Alarm Outputs:2x programmable
Accuracy:±1% of full scale
Power Supply:90-250V AC
Power Consumption:≤15W
Output Signals:4-20mA
Isolation:1500V AC input/output

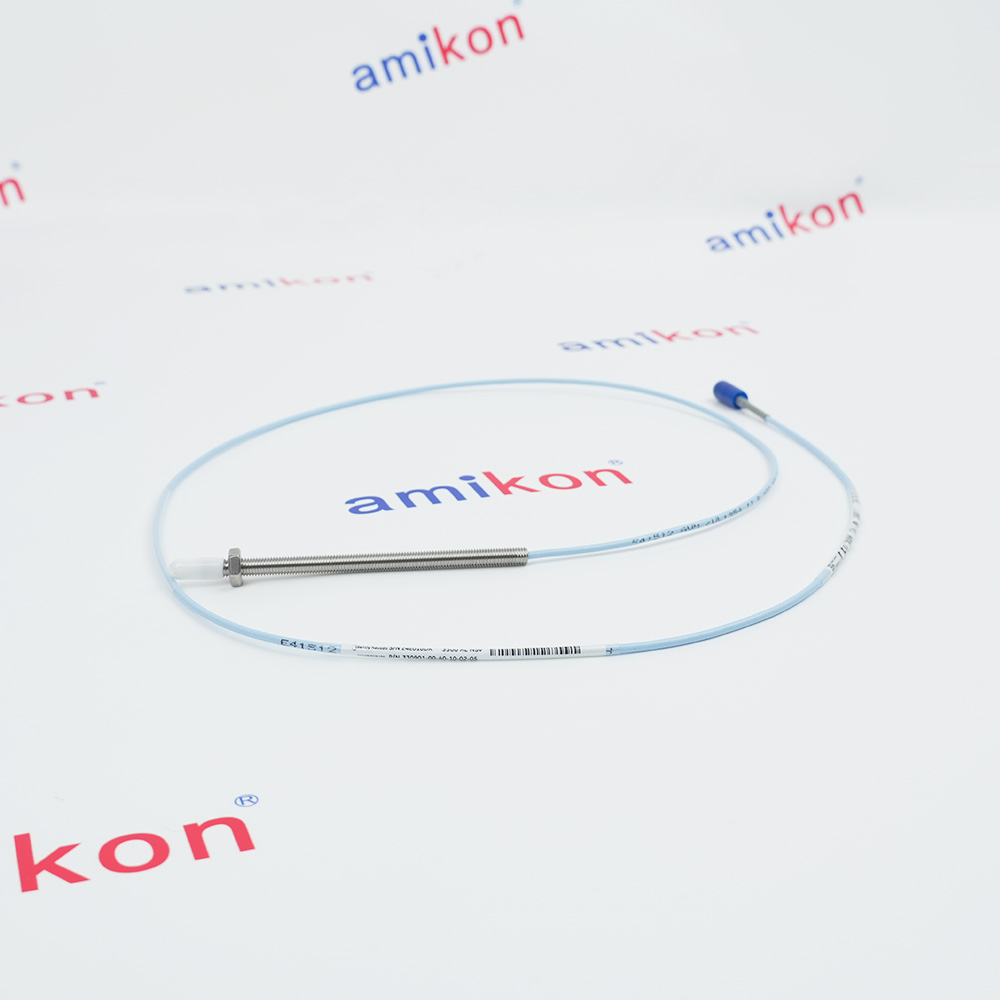

3300 XL 8 mm Proximity Probes

330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 80 mm
Minimum case length: 160 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL Standard Extension Cable

3301300700005
EXTENSION CORD
070 7.0 meters (22.9 feet)
00 Standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Probe

3300 XL Standard Extension Cable
045 4.5 meters (14.8 feet)
03 Armored cable with connectorprotector
00 Not required

Interconnect Cable

16710-14
Interconnect Cable
3-conductor

3300 XL 11 mm Proximitor Sensor

51 5.0 meter (16.4 feet) systemlength
DIN mount
00 Not required

Velomitor XA Piezo-Velocity Sensor

Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
VelocityRange:1270 mm/s (50 in/s) peak
Transverse Sensitivity:Less than 5% of sensitivity
Amplitude Linearity:±2% to 152 mm/s (6 in/s) peak
MountingTorque:45 N-m (33 ft-lb) maximum

Proximitor/Seismic I/O Module

Radial Vibration
Thrust Position
Differential Expansion
Shaft Absolute
Eccentricity
Acceleration
Velocity

Accelerometers

02 ¼-28 to M8 x 1.25 Stainless Steel
00 No Approvals
Broadband ElectricalNoise:350 µg
Output Bias Voltage: 8 to 12 VDC
Excitation Voltage:18 to 28 VDC
Constant CurrentExcitation: 2 to 20 mA

Interconnect Cable

Coaxial, shielded
300 V AC/DC
10 feet (3.05 meters)
9-pin D-subminiature (D-Sub)
male connectors at both ends

3300 NSv Reverse Mount Probe

330906-02-12-CC-DD-EE 3/8-24 UNF threads
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

Process Variable Monitor

+/-10 Vdc I/O : -10 Vdc to +10 Vdc
4-20 mA Barrier I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption:7.0 Watts, typical
Accuracy:Within ±0.33% of full-scaletypical, ±1% maximum

Velocity Monitor

Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity
Signal:Accepts from 1 to 4 proximityprobe signals.
Special inhibit:Contact closure5 Vdc @ 390μA typical
Powerconsumption: 7.7 watts, nominal

Velomitor Piezo-velocity Sensors

03 1/4 - 28 UNF
00 Not required
Connector 2-pin Mil-C-5015hermetically-sealed
316Lstainless steel shell

3300 XL 11 mm Proximitor Sensor

50 5.0 meter(16.4 feet) systemlength
panel mount
05 Multiple approvals

Hydro Monitor

Powerconsumption 7.7 watts, typical
Multimodepositive inputI/O 50 kΩ
Direct filter0.104 Hz to 500 Hz
Rotor speed is 25 to 1,500 cpm.
Gap filter -3 dB at 0.05 Hz
Direct filter -3dB at 1.2 Hz

Velomitor Piezo-velocity Sensor

Sensitivity3.94mV/mm/s (100 mV/in/s)±5%
Velocity Range 1270 mm/s (50 in/s) peak.
TransverseSensitivityLess than 5% of sensitivity
AmplitudeLinearity±2% to 152 mm/s (6 in/s)peak.
Output BiasVoltage-12 ±3.0 VDC
overtemperature referenced toPin A
DynamicOutputImpedanceLess than 2400 Ω
Grounding Case isolated

High Voltage DC PIM

High Voltage DC PIM
1.9/7.5 AMP
95-125 VAC
190-250 VAC
47/63 HZ

TRANSMITTER

TRANSMITTER
SEISMIC
01
0 25.4 MM/S
10 HZ TO 1 KHZ

3300 XL Standard Extension Cable

085 8.5 meters (27.9 feet)
01 Armored cable
05 CSA, ATEX, IECEx  Approvals

3300 XL Standard Extension Cable

080 8.0 meters (26.2 feet)
12 FluidLoc cable with connectorprotector
05 CSA, ATEX, IECEx  Approvals
3300 XL Standard Extension Cable

3300 XL 8 mm Proximity Probes

330103   3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 200 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 NSv Extension Cable

3300 NSv Extension Cable
0 4 5 4.5 metres (14.8 feet)
0 0 Without stainless steelarmor

Velomitor Interconnect Cable

Voltage Rating:  ≤ 300V
Temperature Range: -40°C to +85°C
Capacitance:< 100 pF/m

3300 NSv Reverse Mount Probe

330907-05-30- CC-DD-EE M10X1 threads
10 1.0 meter (39 in)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
