- 3300 XL 8mm Proximity Transducer
- 330101-00-20-20-02-05
In Stock
Ships by Saturday, July 18
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-20-20-02-05
-
Product Model330101-00-20-20-02-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size18x18x1.6cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option2.0 in
-
Total Length Option2.0 meters (6.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

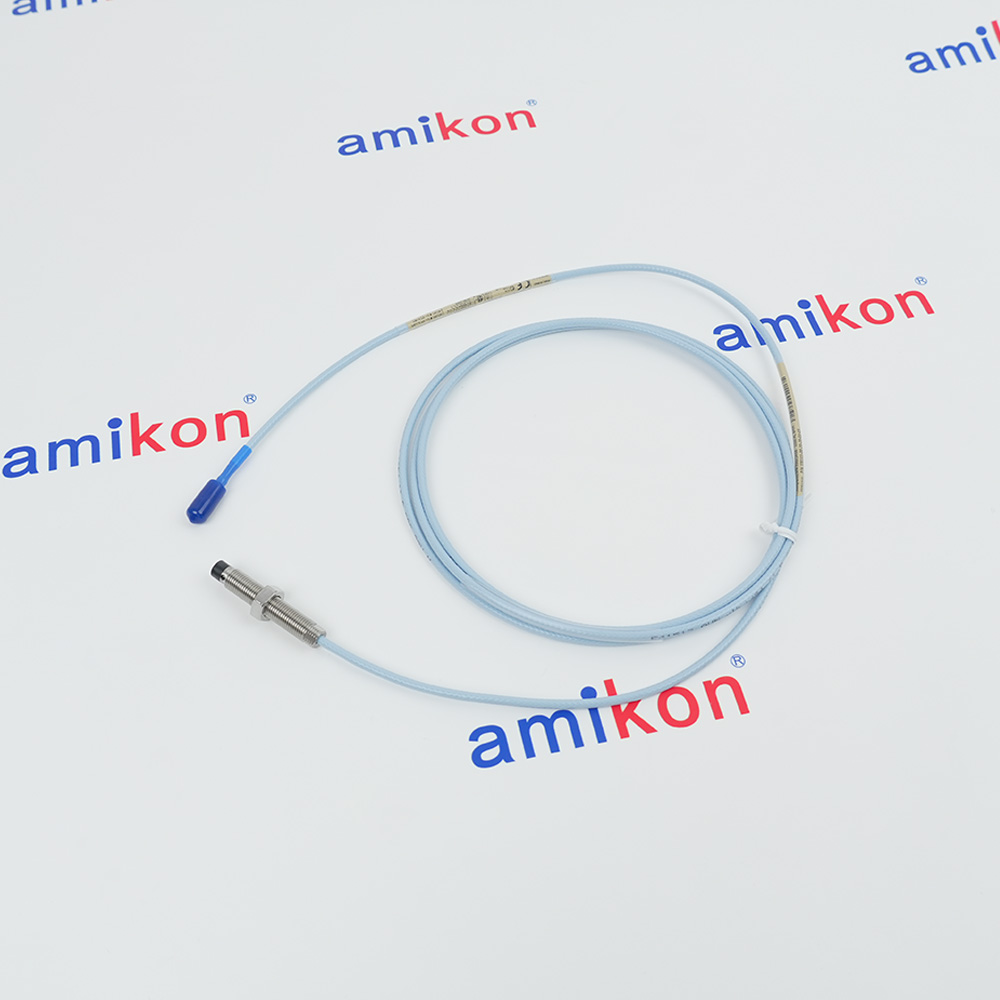

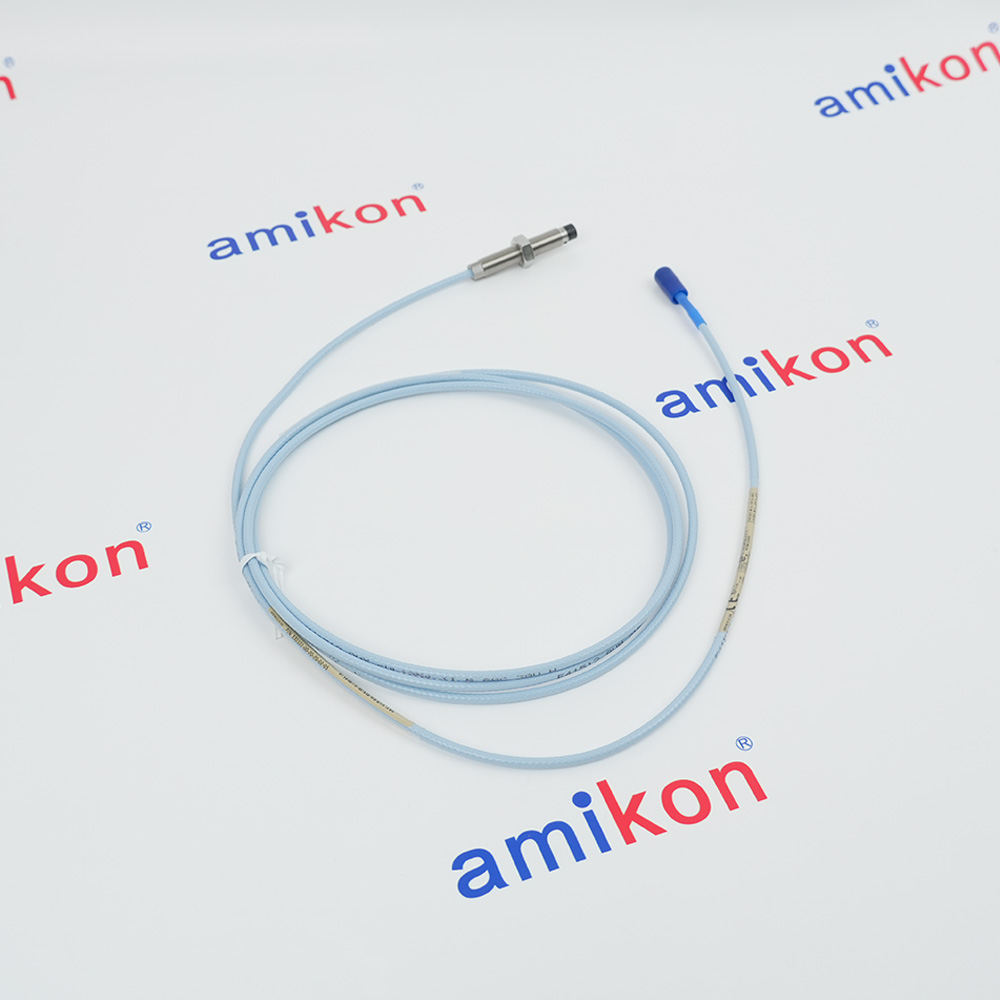

The Bently Nevada 330101-00-20-20-02-05 is a 3300 XL 8 mm Proximity Probe designed for use within the 3300 XL 8 mm Proximity Transducer System. The probe provides non-contact measurement of shaft vibration, radial displacement, axial position, eccentricity, and speed on rotating machinery. It is widely used in machinery protection and condition monitoring systems for turbines, compressors, pumps, motors, generators, and other critical rotating equipment.
This model features a 3/8-24 UNF mounting thread, 5.0-meter probe cable length, and unarmored cable construction, making it suitable for standard industrial installations where additional mechanical cable protection is not required. When combined with a compatible extension cable and Proximitor® sensor, the probe forms a calibrated transducer system compliant with API 670 requirements.
This model features a 3/8-24 UNF mounting thread, 5.0-meter probe cable length, and unarmored cable construction, making it suitable for standard industrial installations where additional mechanical cable protection is not required. When combined with a compatible extension cable and Proximitor® sensor, the probe forms a calibrated transducer system compliant with API 670 requirements.
Alternative Names
330101 00 20 20 02 05
33O1O1-OO-2O-2O-O2-O5
330I0I-00-20-20-02-05
330101-00-Z0-20-02-05
330I0I-OO-2O-2O-O2-O5
330101-00-20-20-02-00
330101-00-20-20-02-CN
330101-00-20-20-02-BR
330101-00-20-20-02-RU
Information
Overview
Manuals
Application Notes
Product Applications
Installation Guidelines
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 330101-00-20-20-02-05 Bently Nevada 3300 XL 8 mm proximity probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-20-02-05 3300 XL 8 mm proximity probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space.
The 3300 XL Proximitor Sensor incorporatesnumerous improvements over previousdesigns. Its physical packaging allows you touse it in high-density DIN-rail installations. Youcan also mount the sensor in a traditionalpanel mount configuration, where it shares anidentical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting basefor either option provides electrical isolationand eliminates the need for separate isolatorplates. The 3300 XL Proximitor Sensor is highlyimmune to radio frequency interference,allowing you to install it in fiberglass housingswithout adverse effects from nearby radiofrequency signals. The 3300 XL ProximitorSensor’s improved RFI/EMI immunity satisfiesEuropean CE mark approvals without requiringspecial shielded conduit or metallic housings,resulting in lower installation costs andcomplexity
- Gas Turbines: Used in large units (200MW+) to monitor shaft vibration and thrust
- Steam Turbines: Monitors differential expansion and bearing housing performance
- Hydroelectric Plants: Tracks rotor movement and vibration in turbine generators
- Centrifugal & Process Gas Compressors: Ideal for high-speed compressors in refinery and pipeline operations
- Pumps: Monitors critical feed and process pumps to prevent mechanical seal or bearing failure
- Electric Motors: Large industrial motors used in mining, pulp and paper, or water treatment
- Gearboxes: Monitors shaft alignment and vibration in heavy-duty gear systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread Size: This model uses a 3/8-24 UNF thread.
Max Thread Engagement: Ensure engagement is roughly 1.5 times the nominal thread diameter to prevent binding.
Target Size: For accurate measurement, the flat target should ideally be at least 13 mm (0.5 in) in diameter.
Linear Range: 0 to 80 mils (2.0 mm).
Recommended Gap: Set to -9 Vdc (approximately 1.27 mm / 50 mils) for radial vibration monitoring.
Cross-talk Prevention: Maintain at least 38 mm (1.5 in) separation between probe tips for radial measurements to avoid interference.
Technical notes
The probe tip material is polyphenylene sulfide (PPS), molded to the probe body using a patented TipLoc method that provides a robust bond. The probe case is constructed from AISI 303 or 304 stainless steel. A Viton® O-ring provides effective differential pressure sealing between the probe tip and case. The maximum thread engagement is 0.563 inches. The probe is supplied with a standard M17 or 9/16-inch lock nut and two 10-24 UNC-2A mounting screws with pre-drilled safety wire holes.
FAQs
-
What is 330101-00-20-20-02-05?
+The Bently Nevada 330101-00-20-20-02-05 is a 3300 XL 8 mm proximity probe designed for vibration and position monitoring in rotating machinery like turbines and compressors -
What is the function of this probe 330101-00-20-20-02-05?
+It uses eddy current technology to measure the static (position) and dynamic (vibration) displacement between the probe tip and a conductive surface. -
What is the total length of the 330101-00-20-20-02-05 system?
+The “00-20” configuration indicates a cable length of 20 feet (6 meters), which is the standard configuration for the 3300 XL system. -
Is it interchangeable with older systems?
+Yes, the 3300 XL 8 mm components allow for complete interchangeability with Proximitor Sensors and extension cables without needing individual component matching or bench calibration. -
What is the ideal gap voltage for setup?
+For the 3300 XL series, the normal gap voltage should be between -9 V and -11 V DC when the probe is properly positioned within its linear range.
