- 3300 XL 8mm Proximity Transducer
- 330101-00-25-05-01-05
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.

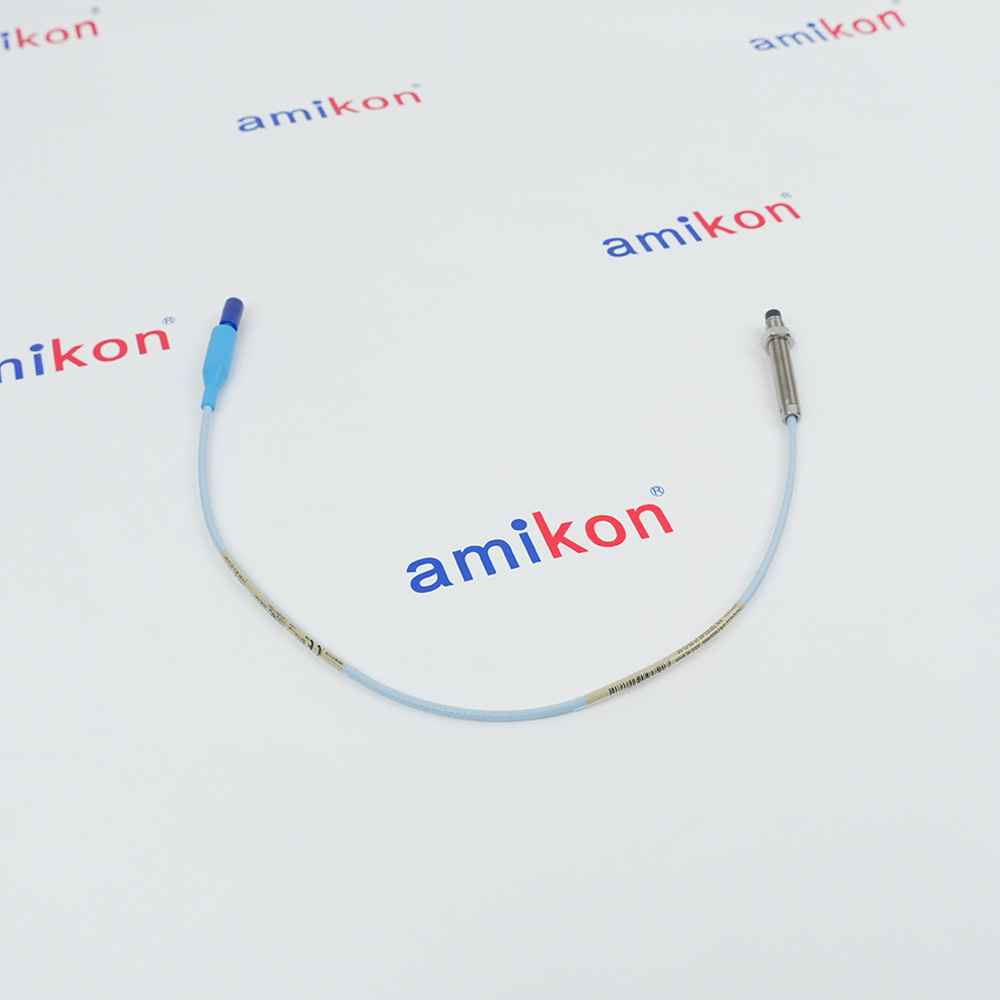

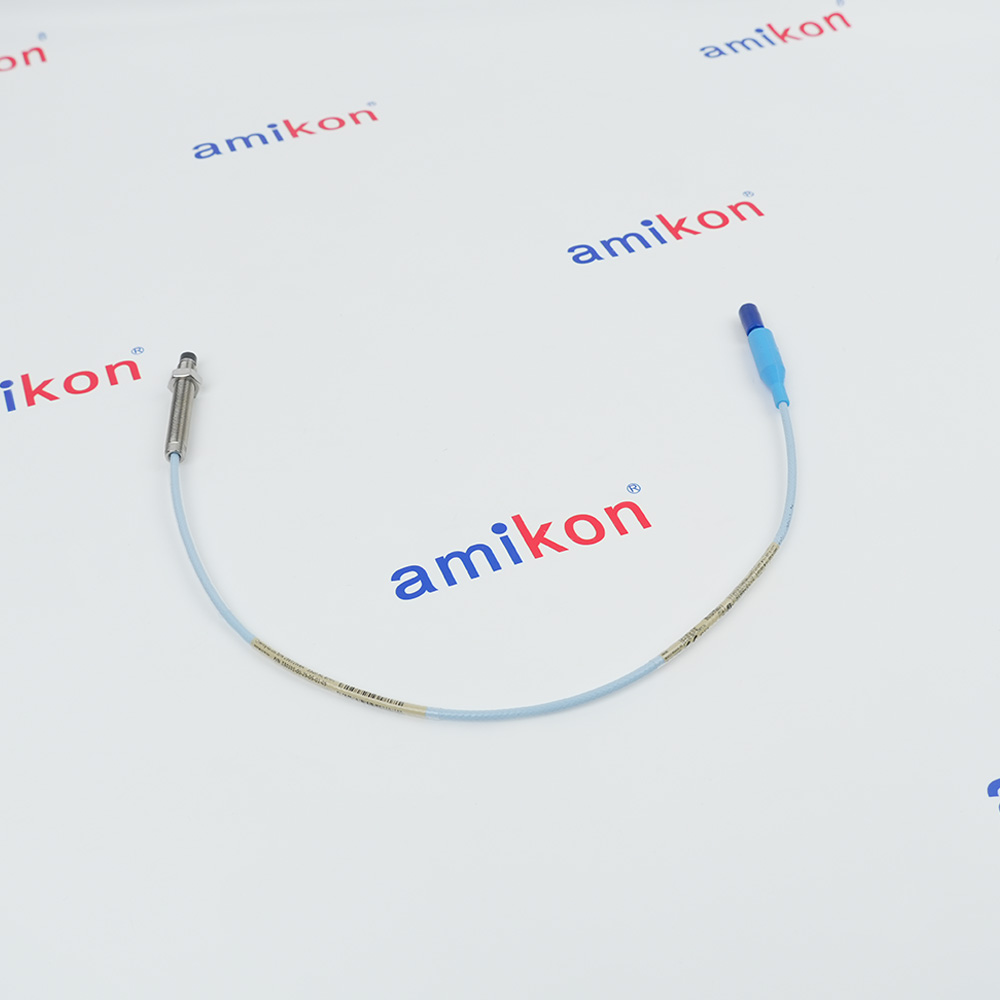

Technical specifications for 330101-00-25-05-01-05
-
Product Model330101-00-25-05-01-05
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.5x1.3x65cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option2.5 in
-
Total Length Option0.5 meter (1.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector with connectorprotector, standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description
330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 2.5 in
05 0.5 meter (1.6 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
05 CSA, ATEX, IECEx Approvals
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 2.5 in
05 0.5 meter (1.6 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
05 CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation & Mounting
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components
The 330101-00-25-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-25-05-01-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body. The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.You can also order 3300 XL 8 mm probes andextension cables with an optional FluidLoccable option. This option prevents oil and otherliquids from leaking out of the machine throughthe cable’s interior.
- Centrifugal Air Compressors: High-speed rotating equipment where space for sensors is limited
- Refrigeration Compressors: Specialized industrial cooling units
- Process Gas Compressors: Systems handling various industrial gases; the probe's chemical resistance makes it ideal for these environments
- Turbo Expanders: High-speed turbines used in gas processing
- Electric Motors & Generators: Specifically those with tight internal clearances or small fluid-film bearings
- Pumps & Fans: Centrifugal or positive displacement pumps where mounting between bearing pads is required
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hole Preparation: The probe uses 3/8-24 UNF threads. Prepare the mounting hole using a 0.332 in (Drill Size) and a Q (Tap Drill Size).
Reverse Mounting: Thread the probe into the machine case or a probe adapter. The maximum thread engagement should not exceed 0.562 inches to prevent the tip from bottoming out.
Gapping: For standard AISI 4140 steel targets, the probe should be gapped at 1.27 mm (50 mils), which is the center of its linear range (-9 Vdc).
Tightening Torque: The recommended torque for the 3/8-24 probe case is 11.3 N·m (100 in·lb)
FAQs
-
What is 330101-00-25-05-01-05?+The Bently Nevada 330101-00-25-05-01-05 is a 3300 XL 8 mm Proximity Probe for high-precision vibration and position monitoring in critical rotating machinery. It operates on the eddy current principle to measure static (position) and dynamic (vibration) values.
-
Does this probe require special calibration?+No, the 3300 XL 8 mm Proximity Transducer System supports complete interchangeability, eliminating the need to match or bench calibrate individual components such as probes, extension cables, and Proximitor sensors.
-
What is the 330101-00-25-05-01-05 operating temperature range?+The standard probe tip operates between -52°C to +177°C (-62°F to +350°F). For extreme environments, extended range versions are available that can withstand up to +260°C at the connector.
-
Is this probe interchangeable with other systems?+The 3300 XL 8 mm system is designed for complete interchangeability. You can swap probes, extension cables, and Proximitor sensors without needing to match or bench-calibrate individual components.
