Technical specifications for 330190-085-00-05
-
Product Model330190-085-00-05
-
Product Parameters3300 XL Extended Temperature Range(ETR) Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20x20x2.5cm
-
ManufacturerBently Nevada
-
Weight0.25 kg
-
Cable Length Option8.5 meters (27.9 feet)
-
Cable OptionStandard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

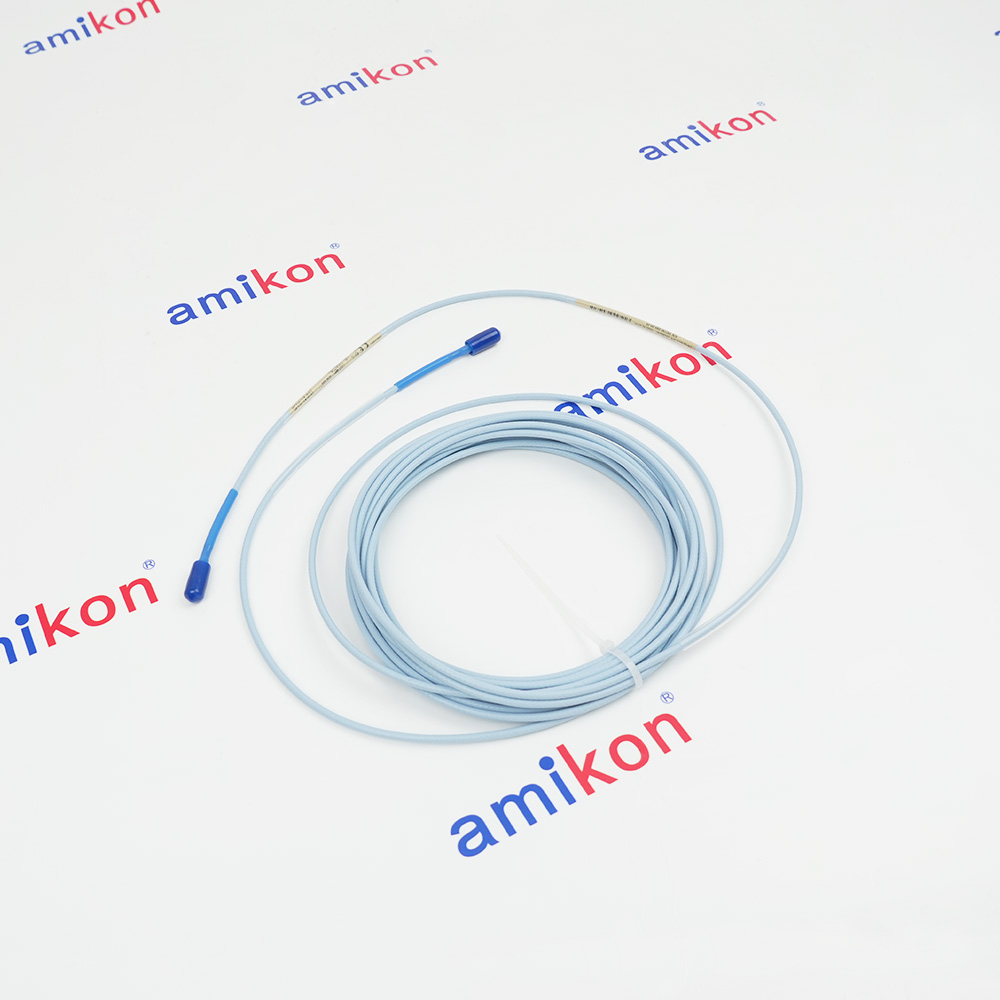

The 330190-085-00-05 is a 3300XL Extended Temperature Range (ETR) Extension Cable that serves as an integral component of the 3300XL 8mm Proximity Transducer System, providing a reliable electrical connection between the 3300XL 8mm probe and the 3300XL Proximitor Sensor in high-temperature applications. The 330190-085-00-05 delivers an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate static (position) and dynamic (vibration) measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
An extended temperature range (ETR) probeand ETR extension cable are available forapplications in which either the probe lead orextension cable may exceed the standard 177˚C(350˚F) temperature specification. The ETRprobe has an extended temperature rating forup to 218˚C (425˚F). The ETR extension cablerating is up to 260˚C (500˚F). Both the ETR probeand cable are compatible with standardtemperature probes and cables, for example,you can utilize an ETR probe with the 330130extension cable. The ETR system uses thestandard 3300 XL Proximitor Sensor. Note thatwhen you use any ETR component as part ofyour system, the ETR component limits thesystem accuracy to the accuracy of the ETRsystem.
An extended temperature range (ETR) probeand ETR extension cable are available forapplications in which either the probe lead orextension cable may exceed the standard 177˚C(350˚F) temperature specification. The ETRprobe has an extended temperature rating forup to 218˚C (425˚F). The ETR extension cablerating is up to 260˚C (500˚F). Both the ETR probeand cable are compatible with standardtemperature probes and cables, for example,you can utilize an ETR probe with the 330130extension cable. The ETR system uses thestandard 3300 XL Proximitor Sensor. Note thatwhen you use any ETR component as part ofyour system, the ETR component limits thesystem accuracy to the accuracy of the ETRsystem.
Information
Overview
Manuals
Application Notes
Product Applications
Cable Routing & Insertion Protocols
Features:
- 8.5 Meter ETR Extension Cable
- Extended Temperature Rating up to 260°C (500°F)
- Compatible with Standard and ETR Probes
- CSA, ATEX, and IECEx Hazardous Area Approvals
- Full Interchangeability Within 3300XL 8mm System
The 330190-085-00-05 is also backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components, providing flexibility for system upgrades, maintenance, and replacement in existing installations. For example, you can utilize an ETR probe with the 330190-085-00-05 extension cable for applications where the probe lead or extension cable may exceed standard temperature specifications.
The 330190-085-00-05 Bently Nevada 3300 XL Extended Temperature Range (ETR) Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330190-085-00-05 3300 XL Extended Temperature Range (ETR) Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The cable uses a 75 Ω triaxial construction with FEP (Fluoroethylene Propylene) insulation, providing high electrical parameter stability across the full operating temperature range. The ETR variant extends the upper temperature limit to +260 °C (+500 °F), compared to +177 °C (+350 °F) for standard cables. The lower temperature limit remains at –52 °C (–62 °F).
The 8.5-meter cable length is factory-calibrated to pair with a 0.5-meter probe, forming a 9.0-meter total measurement circuit. This precise electrical length ensures the Proximitor sensor output maintains its specified linear sensitivity without distortion. The cable carries CSA, ATEX, and IECEx hazardous area approvals, making it suitable for use in classified industrial environments.
Gold-plated brass ClickLoc connectors are used at both ends. The male connector mates with the probe's female connector; the female connector mates with the Proximitor sensor's male connector. Connector protectors are recommended to prevent liquid ingress at the junction points. Silicone tape is included with each cable for sealing connections; this is not recommended for applications exposing the probe-to-extension cable junction to turbine oil.
- Oil & Gas: Implemented on offshore rigs, pipeline stations, and petrochemical facilities
- Power Generation: Safeguards generator trains across thermal, nuclear, and combined-cycle plants
- Chemical Manufacturing: Monitors mixers, reactors, and blowers in volatile environments
- Water/Wastewater: Supports heavy-duty pumping stations for municipal/industrial processing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Conduit Protection: Route the coaxial cable through dedicated metallic conduits to protect it from mechanical impact and electromagnetic interference (EMI).
Pulling Technique: When pulling the cable through a conduit, attach the pull rope or fish tape to the cable jacket. Never pull by the connector, as this will stress the internal pins.
Bend Radius: Maintain a minimum static bend radius of 25 mm. Bending the cable tighter than this will cause dielectric compression and shift the impedance.
Cable Support: Secure the cable at intervals not exceeding 500 mm to prevent vibration-induced movement at the connector junctions.
Alternative Names
330190-085-00-O5
330190-085-OO-05
330190-0B5-00-05
330190-O85-00-05
33019O-085-00-05
330I90-085-00-05
33O190-085-00-05
330190 085 00 05
330190 085 00 O5
330190 085 OO 05
330190 O85 00 05
330190 0B5 00 05
33019O 085 00 05
330I90 085 00 05
33O190 085 00 05
330190-085-00-00
330190-085-00-CN
Technical notes
The 330190-085-00-05 is specifically designed for applications in which either the probe lead or extension cable may exceed the standard 177°C (350°F) temperature specification. The 330190-085-00-05 features an Extended Temperature Range (ETR) extension cable rating of up to 260°C (500°F), making the 330190-085-00-05 ideal for demanding industrial environments where elevated temperatures are present. The ETR probe has an extended temperature rating of up to 218°C (425°F), and both the ETR probe and the 330190-085-00-05 ETR extension cable are compatible with standard temperature probes and cables.
FAQs
-
what is the The 330190-085-00-05？
+The 330190-085-00-05 is a Bently Nevada 3300 XL Extended Temperature Range (ETR) Extension Cable. It is used in 8mm proximity transducer systems to measure vibration and shaft position in critical rotating machinery -
Is this cable compatible with standard 3300 XL systems?
+Yes, it is designed for the 3300 XL 8mm proximity transducer system but specifically features the -
Where is this cable typically deployed?
+It is ideal for high-heat industrial zones. Common locations include gas turbine enclosures, high-temperature fluid pumps, steam turbine casings, and industrial compression systems. -
Are ETR components interchangeable with standard 3300 XL components?
+Yes. As long as the total electrical length equals 9 meters, you can connect this ETR cable to a standard 3300 XL probe and standard 3300 XL Proximitor sensor without manual bench calibration.
