- 3300 XL 8mm Proximity Transducer
- 330101-00-77-15-02-CN

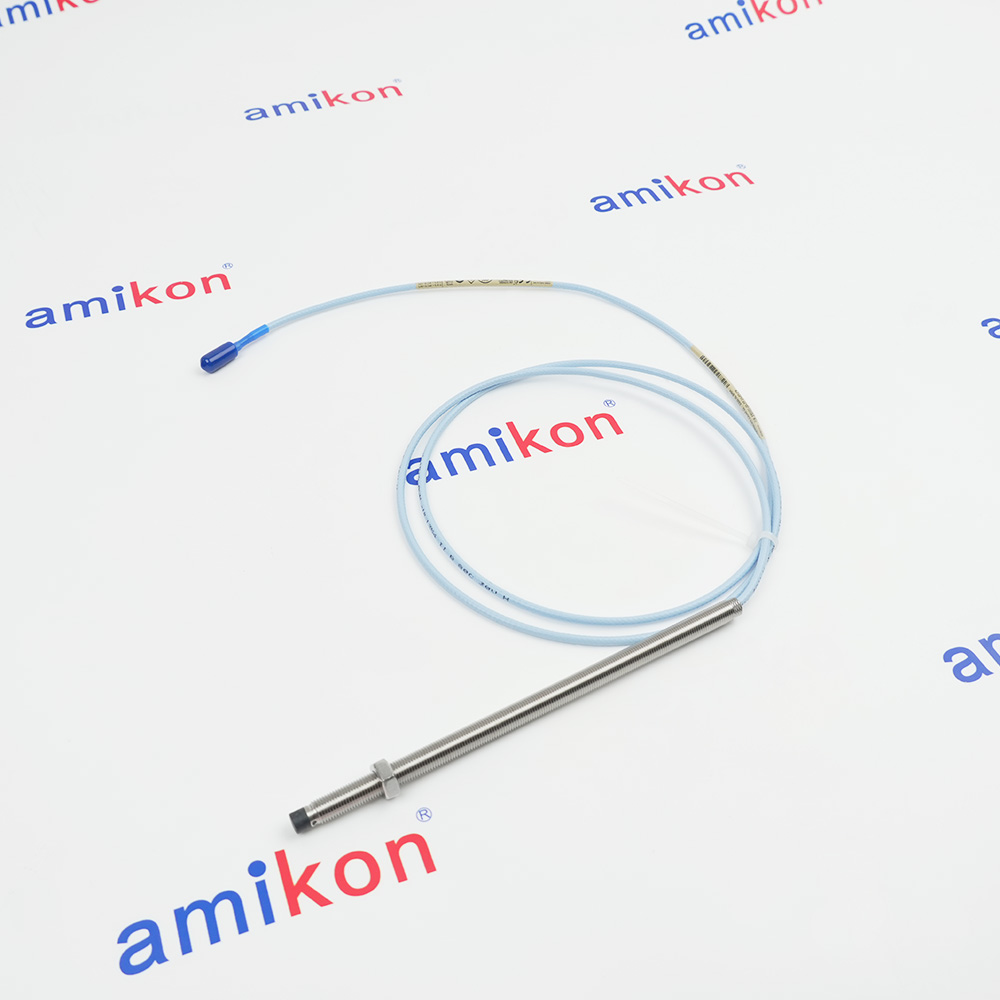

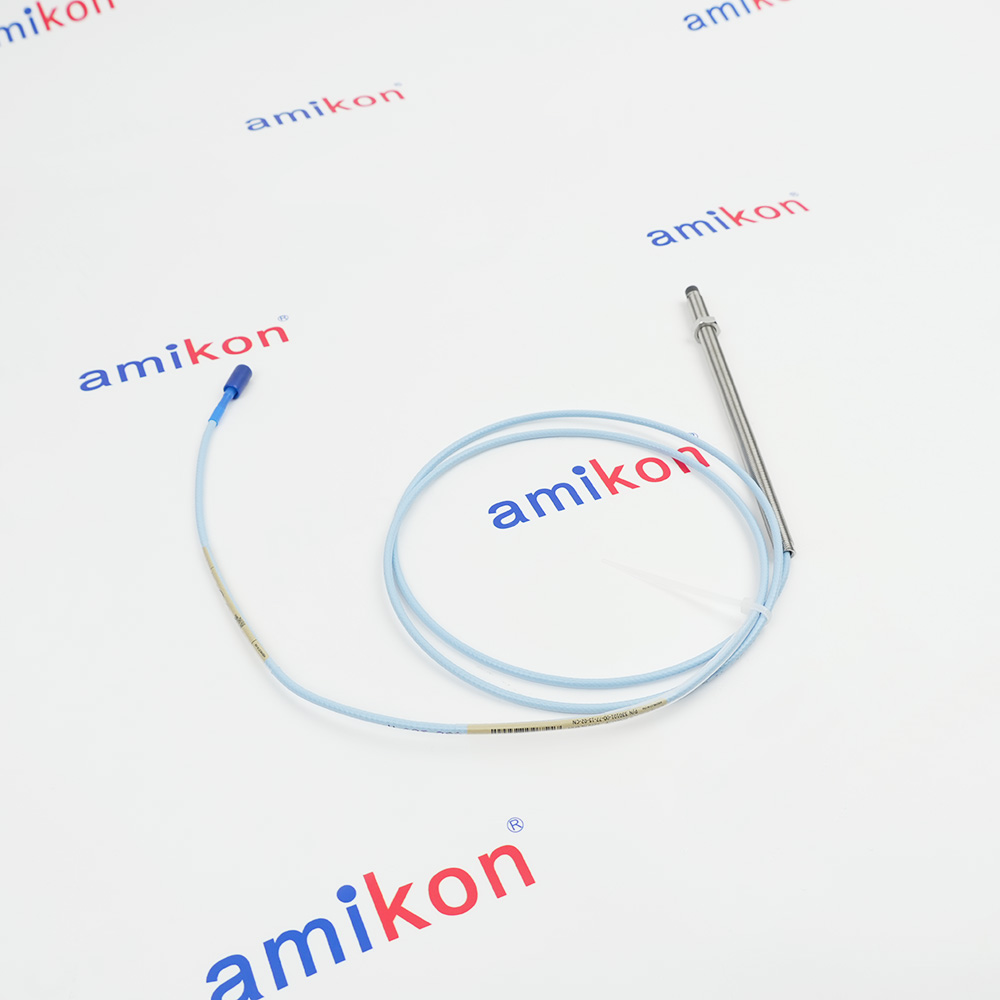

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-77-15-02-CN
-
Product Model330101-00-77-15-02-CN
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size25x17x2cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option7.7 in
-
Total Length Option1.5 meter (4.9 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description
330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 7.7 in
15 1.5 meter (4.9 feet)
02 Miniature coaxial ClickLocconnector
standard cable
CN CSA, ATEX, IECEx Approvals
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 7.7 in
15 1.5 meter (4.9 feet)
02 Miniature coaxial ClickLocconnector
standard cable
CN CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 330101-00-77-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-77-15-02-CN 3300 XL 8mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
3300 XL8 mm components are bothelectrically and physically interchangeablewith non-XL 33005 mm and8 mmcomponents. Although the packaging of the3300 XL Proximitor Sensor differs from itspredecessor, its design fits in the same 4-holemounting pattern when used with the 4-holemounting base, and will fit within the samemounting space specifications (whenminimum permissible cable bend radius isobserved).
- Power Generation: Used in large steam and gas turbines, generators, and exciter units
- Oil & Gas: Monitoring centrifugal and axial compressors, process gas pumps, and expanders
- Water & Wastewater: Deployed on large pumps, fans, and blowers
- General Industry: Critical gearboxes and large motors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Install the probe in a bracket or housing that allows for adjustment. For differential expansion applications, a sliding bracket may be used to verify the transducer system throughout its linear range.
Gapping the Probe: Adjust the physical distance between the probe tip and the target (standard AISI 4140 steel).
Ideal Gap: Set to 1.27 mm (50 mils).
Voltage Target: This gap should yield an initial output of -9 V DC.
Linear Range: Operates linearly between 0.25 mm and 2.3 mm (10 to 90 mils)
FAQs
-
What is the 330101-00-77-15-02-CN ?+The Bently Nevada 330101-00-77-15-02-CN is a specific configuration of the 3300 XL 8 mm Proximity Probe, a key component in vibration monitoring systems for rotating machinery.
-
Do you provide warranty as standard?+We provide a full 12-month warranty for the 330101-00-77-15-02-CN. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
-
What is the 330101-00-77-15-02-CN probe used for?+It is used in the 3300 XL proximity system to monitor the vibration and position of rotating machinery such as turbines, pumps, and motors.
-
How does it work?+The probe uses the eddy current principle to measure the gap between the probe tip and a conductive shaft, providing both static (position) and dynamic (vibration) data.
-
What is the 330101-00-77-15-02-CN required gap voltage?+The gap voltage for Bently Nevada vibration probes is generally set around -10V DC.
