- 3300 XL 8mm Proximity Transducer
- 330104-00-12-10-02-05
In Stock
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330104-00-12-10-02-05
-
Product Model330104-00-12-10-02-05
-
Product Parameters3300 XL 8 mm Probe, M10 x 1 thread,with armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.8x1.6x118cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option120 mm
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

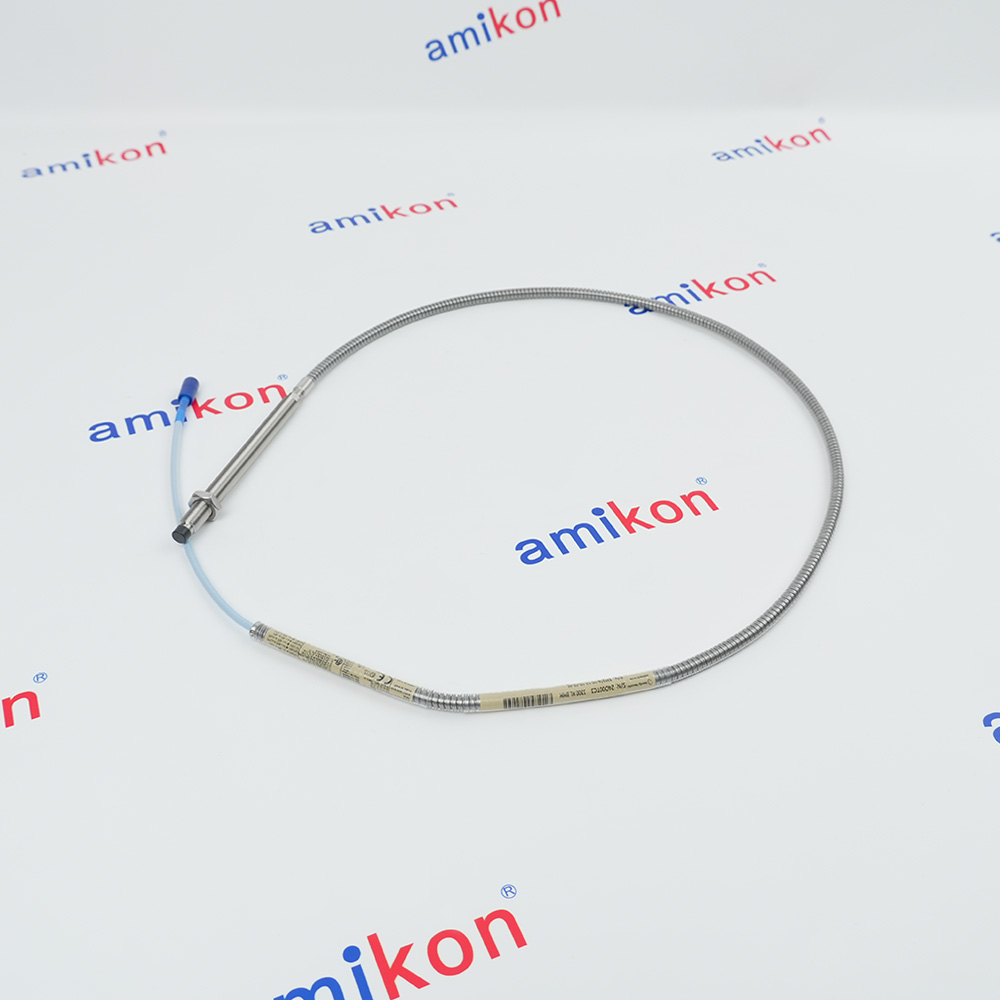

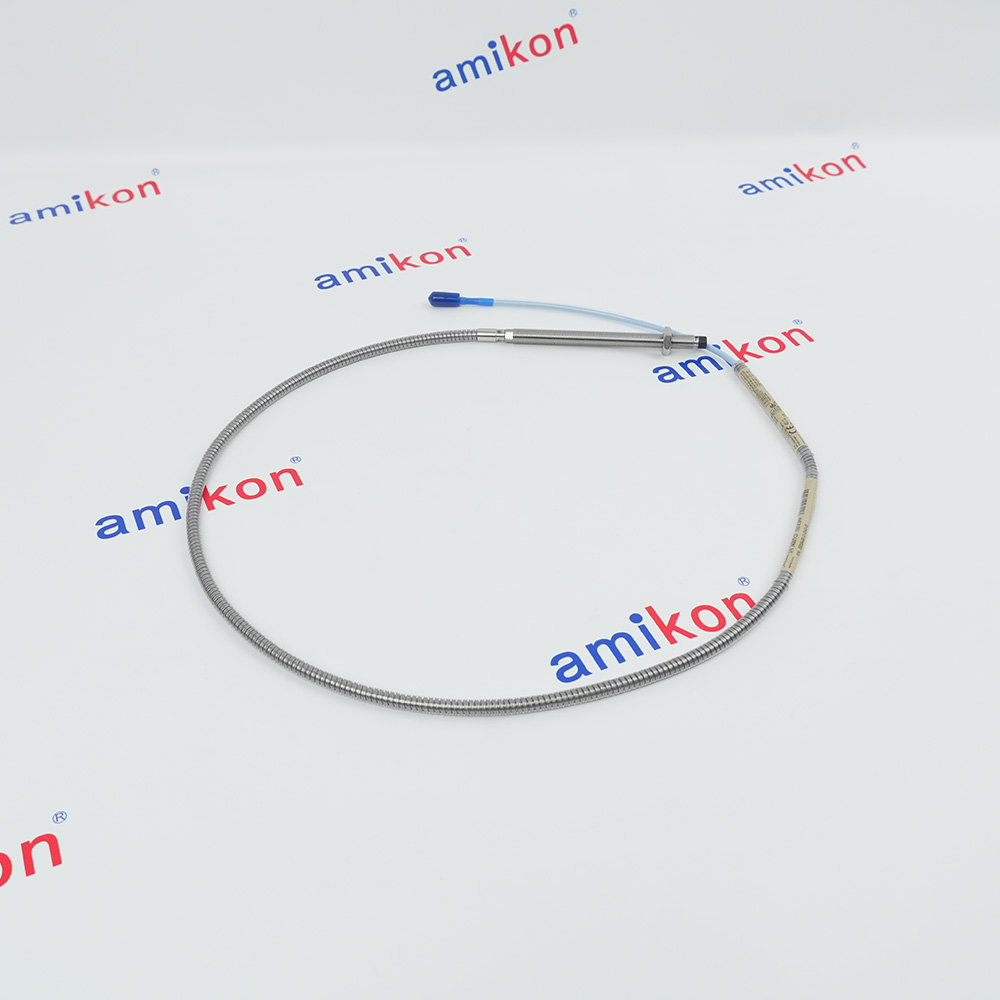

The BENTLY NEVADA 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe is a non-contact eddy-current displacement sensor used to monitor the position and movement of conductive machine components, typically rotating shafts. It forms part of the complete Bently Nevada 3300 XL 8 mm Proximity Transducer System, which includes the proximity probe, a compatible extension cable, and a 3300 XL Proximitor Sensor.
This probe uses an M10 × 1 metric threaded mounting configuration and is equipped with an armored cable assembly. The 00 option specifies a 0.0 in / 0 mm unthreaded length, while the 12 option specifies a 1.2 in / 30 mm overall case length. The 10 option specifies a 1.0 m / 3.3 ft total probe length. The 02 option specifies a miniature coaxial ClickLoc connector with standard cable, while the final 05 approval option corresponds to the multiple-approval configuration.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
This probe uses an M10 × 1 metric threaded mounting configuration and is equipped with an armored cable assembly. The 00 option specifies a 0.0 in / 0 mm unthreaded length, while the 12 option specifies a 1.2 in / 30 mm overall case length. The 10 option specifies a 1.0 m / 3.3 ft total probe length. The 02 option specifies a miniature coaxial ClickLoc connector with standard cable, while the final 05 approval option corresponds to the multiple-approval configuration.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Key Installation Steps
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system’sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements
The 330104-00-12-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body. The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.You can also order 3300 XL 8 mm probes andextension cables with an optional FluidLoccable option. This option prevents oil and otherliquids from leaking out of the machine throughthe cable’s interior.
- Power Generation Plants:Monitors cooling tower fans in fossil/hydro plants
- Petrochemical & Refining Facilities:Critical for fin-fans; hazardous area approved (-04)
- Chemical Manufacturing:Monitors agitators, mixers & slow-speed reactor cooling
- Steel & Metal Smelters:Large ventilation/cooling fans managing extreme temps
- Pulp & Paper Mills:Slow-speed fans & high-humidity wastewater aerators
- Food & Beverage Processing:Large-scale refrigeration for temperature-controlled lines
- Mining & Mineral Processing:Ventilation fans in mines & cooling for processing machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread & Case: Ensure the mounting hole is tapped for an M10 x 1 thread. The overall case length is 120 mm (4.7 in) with 0 mm unthreaded length.
Gapping: For standard AISI 4140 steel targets, the probe should typically be gapped at 1.27 mm (50 mils) to stay within the linear range.
Clearance: Maintain a minimum separation of at least 40 mm (1.6 in) for axial or 38 mm (1.5 in) for radial measurements between probe tips to prevent cross-talk.
Alternative Names
330104-00-12-10-02-O5
330104-00-12-10-0Z-05
330104-00-12-10-O2-05
330104-00-12-1O-02-05
330104-00-12-I0-02-05
330104-00-1Z-10-02-05
330104-00-I2-10-02-05
330104-OO-12-10-02-05
3301O4-00-12-10-02-05
330I04-00-12-10-02-05
33O104-00-12-10-02-05
330104 00 12 10 02 05
330104 00 12 10 02 O5
330104 00 12 10 0Z 05
330104 00 12 10 O2 05
330104 00 12 1O 02 05
330104 00 12 I0 02 05
330104 00 IZ 10 02 05
330104 OO 12 10 02 05
3301O4 00 12 10 02 05
330I04 00 12 10 02 05
33O104 00 12 10 02 05
330104-00-12-10-02-00
330104-00-12-10-02-CN
330104-00-12-10-02-BR
Technical notes
The 330104-00-12-10-02-05 carries CSA, ATEX, and IECEx agency approvals (option -05), making it suitable for use in hazardous area environments. The 330104-00-12-10-02-05 operates within a temperature range of -52°C to +177°C (-62°F to +350°F) for standard applications, and is fully interchangeable with other 3300 XL 8 mm system components, eliminating the need to match or bench calibrate individual components.
FAQs
-
What is 330104-00-12-10-02-05?
+Bently Nevada 330104-00-12-10-02-05 is a 3300 XL 8 mm proximity probe, frequently used for monitoring shaft vibration and position in industrial machinery. -
What is the function of the 330104-00-12-10-02-05 probe?
+It is an eddy current sensor that provides a voltage output proportional to the distance between the probe tip and a conductive surface, used to measure static (position) and dynamic (vibration) values. -
Does the probe require special shielding?
+No, the 3300 XL Proximitor Sensor has high RFI/EMI immunity, often allowing installation without special shielded conduit or metal housings, satisfying European CE mark requirements. -
What is the operating temperature range?
+The probe is stable from -35°C to +177°C (-31°F to +350°F).
