- 3300 XL NSV Proximity Transducer

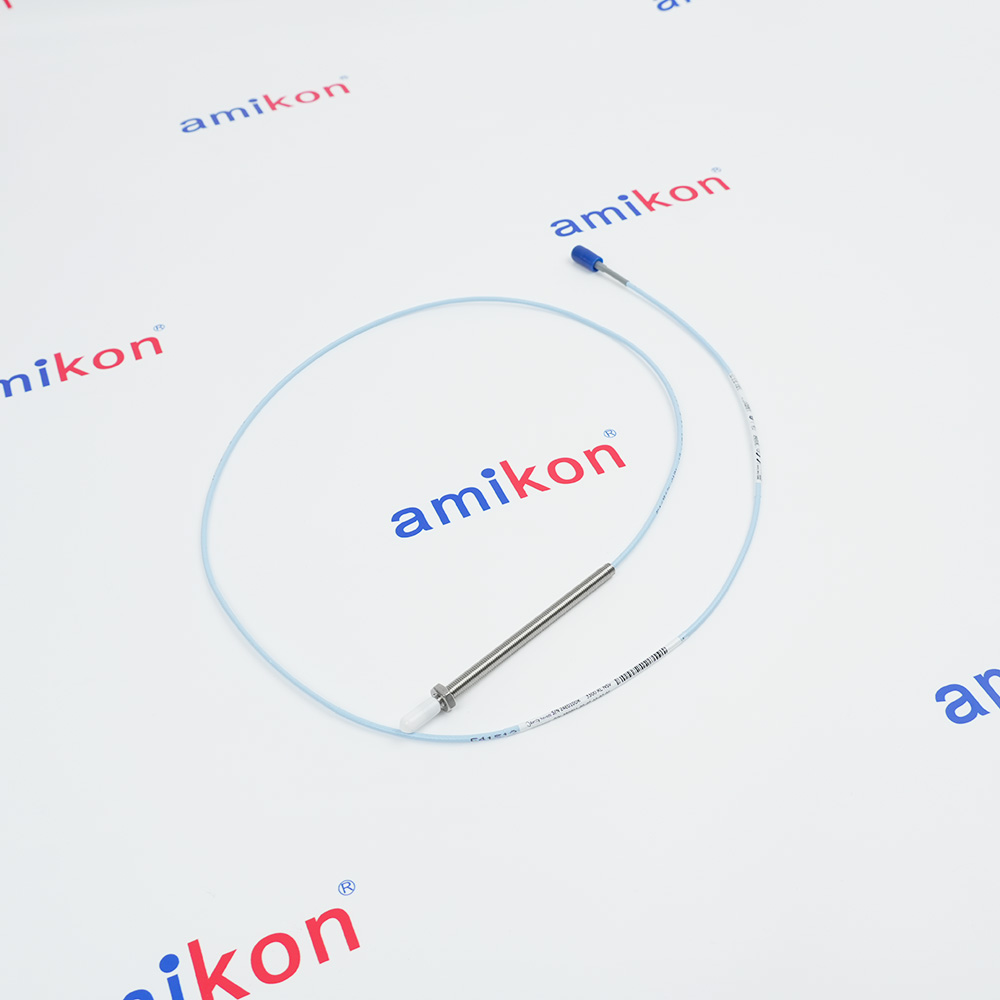

- 330901-00-40-10-02-05
In Stock
Ships by Thursday, July 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330901-00-40-10-02-05
-
Product Model330901-00-40-10-02-05
-
Product Parameters3300 NSv Probe, 1/4-28 UNF thread,without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.2x1x117cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option4.0 in
-
Total Length Option1.0 meter (39 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionMultiple Approvals
Description
The Bently Nevada 330901-00-40-10-02-05 is a 3300NSv Proximity Probe with 1/4-28 UNF thread and without armor, as a core component of the 3300XL NSv Proximity Transducer System. The 330901-00-40-10-02-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 330901-00-40-10-02-05 are for areas where counter bore, side view, or rear view restrictions limit the use of standard Bently Nevada 3300 and 3300XL 5mm and 8mm Transducer Systems.
The 330901-00-40-10-02-05 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330901-00-40-10-02-05 is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals).
The 330901-00-40-10-02-05 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System. The 1.5mm (60 mils) of linear range of the 330901-00-40-10-02-05 exceeds the linear range of the 3000-series 190 Transducer System.
The 330901-00-40-10-02-05 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330901-00-40-10-02-05 is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals).
The 330901-00-40-10-02-05 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System. The 1.5mm (60 mils) of linear range of the 330901-00-40-10-02-05 exceeds the linear range of the 3000-series 190 Transducer System.
Alternative Names
330901-00-40-10-02-O5
330901-00-40-10-0Z-05
330901-00-40-10-O2-05
330901-00-40-1O-02-05
330901-00-40-I0-02-05
330901-00-4O-10-02-05
330901-OO-40-10-02-05
33090I-00-40-10-02-05
3309O1-00-40-10-02-05
33O901-00-40-10-02-05
330901 00 40 10 02 05
330901 00 40 10 02 O5
330901 00 40 10 0Z 05
330901 00 40 10 O2 05
330901 00 40 1O 02 05
330901 00 40 I0 02 05
330901 00 4O 10 02 05
330901 OO 40 10 02 05
33090I 00 40 10 02 05
3309O1 00 40 10 02 05
33O901 00 40 10 02 05
330901-00-40-10-02-00
Information
Overview
Manuals
Application Notes
Product Applications
Physical Installation & Gapping
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System.Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring3300 XL NSv Proximity Transducer SystemDatasheet147385 Rev. Rsystem with 3300 XL NSv ProximitorSensor.Upgrades from the 3000-series or 7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.
The 330901-00-40-10-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-40-10-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 330906-02-12-05-02-05 is a 3300 NSv Reverse Mount Proximity Probe designed for machinery condition monitoring, specifically for applications with small shafts, limited side-view, or tight space constraints, such as fluid-filmed bearing machines. It is part of the 3300 XL NSv Transducer System and works with a 3300 XL NSv Proximitor Sensor.
The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced sideview and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.
- Centrifugal Air Compressors:Internal high-speed shafts where space is at a premium
- Refrigeration Compressors:Large-scale industrial chilling and HVAC units
- Process Gas Compressors:Enhanced chemical resistance vs. older 3300 RAM models
- Small Hydrodynamic Bearing Machines:Precise radial/axial monitoring on small-diameter fluid-film bearings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: This probe has a 1/4-28 UNF thread and a 4.0-inch case length. Ensure the mounting hole is properly tapped and clear of debris.
Recommended Gap Setting: Set the probe gap to 1.0 mm (40 mils) for optimal performance.
Linear Range: The system's linear range is 1.5 mm (60 mils), typically beginning at 0.25 mm (10 mils) from the target.
Gap Voltage: Using a voltmeter at the Proximitor Sensor, adjust the probe until the output voltage is typically between -8 VDC and -12 VDC (or approximately -1 to -13 Vdc across the full range).
Technical notes
The 330901-00-40-10-02-05 features gold-plated brass ClickLoc connectors that lock into place and prevent the connection from loosening during operation. Bently Nevada's patented CableLoc design on the 330901-00-40-10-02-05 provides 220N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection of the 330901-00-40-10-02-05, as well as on the cable-to-Proximitor Sensor connection, to prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.
FAQs
-
What is 330901-00-40-10-02-05?
+The Bently Nevada 330901-00-40-10-02-05 is a 3300 NSv Proximity Probe, part of the 3300 XL NSv system used for measuring shaft vibration and position on smaller machines. -
What applications is the 330901-00-40-10-02-05 probe suitable for?
+The 3300 NSv (near-surface) probe is designed for space-constrained mechanical equipment such as centrifugal air compressors, refrigeration compressors, and small process gas compressors. -
What is the typical probe length?
+This model has an unthreaded length of 0.0 inches and an overall case length of 4.0 inches. -
What is the operating temperature of 330901-00-40-10-02-05?
+This probe is designed to operate within a temperature range of -35°C to +177°C (-31°F to +350°F).
