- 3300 XL NSV Proximity Transducer
- 330905-00-25-05-12-CN
In Stock
Ships by Saturday, June 20
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330905-00-25-05-12-CN
-
Product Model330905-00-25-05-12-CN
-
Product Parameters3300 NSv Probe, M10X1 thread,without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.8x1.6x66cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option250 mm
-
Total Length Option0.5 meter (20 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector,FluidLoc cable
-
Agency Approval OptionMultiple Approval
Description

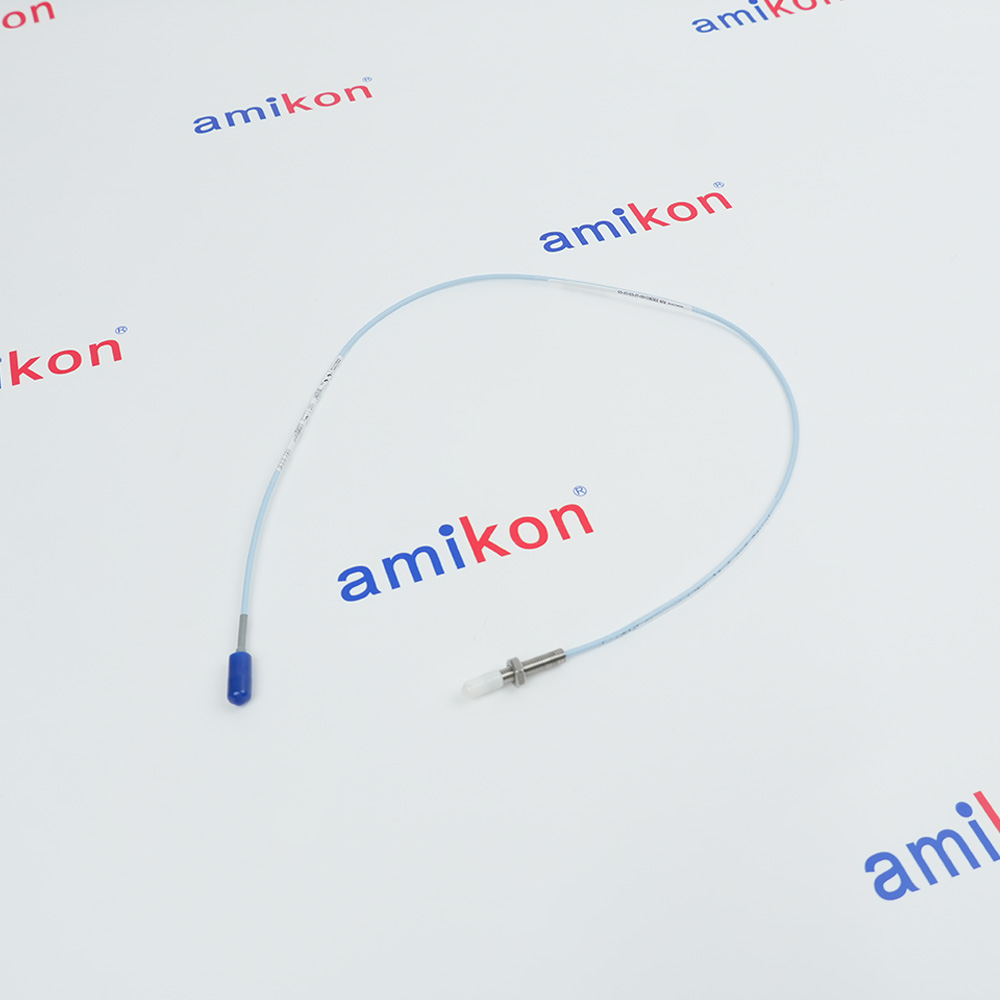

330905-00-25-05-12-CN is a 3300 NSv proximity probe with M10×1 metric thread and without armor, intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements where standard Bently Nevada 3300 and 3300XL 5 mm and 8 mm transducer systems cannot fit.
330905-00-25-05-12-CN features a 0 mm unthreaded length and 250 mm overall case length in a compact metric configuration, making it suitable for areas where counter bore, sideview, or rearview restrictions limit the use of larger proximity probe systems, while maintaining the mechanical robustness required for industrial machinery monitoring.
Alternative Names
330905 00 25 05 12 CN
33O9O5-OO-25-O5-12-CN
330905-00-25-05-I2-CN
330905-00-25-05-12-00
330905-00-25-05-12-05
330905-00-25-05-12-BR
330905-00-25-05-12-RU
Information
Overview
Manuals
Engineering Considerations
Product Applications
Clearances & Proximity Spacing
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable and Proximitor Sensor with NSv components.
The 330905-00-25-05-12-CN Bently Nevada 3300 NSv Probe, M10X1 thread,without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330905-00-25-05-12-CN 3300 NSv Probe, M10X1 thread,without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
System Scale Factor: The system has a nominal sensitivity of 7.87 V/mm (200 mV/mil).
Linear Measurement Range: The overall linear window spans 1.5 mm (60 mils), beginning roughly 0.25 mm (10 mils) from the target face and extending out to 1.75 mm (70 mils).
Target Material Default: The 3300 XL NSv Proximitor Sensor comes pre-calibrated to AISI 4140 steel. If your target rotor or thrust collar is a different alloy, the output sensitivity must be adjusted or compensated to avoid calculation
- Centrifugal Air Compressors:Tight-clearance multi-stage integral gear compressors
- Refrigeration Compressors:Compact-shaft industrial chilling/HVAC systems
- Process Gas Compressors:Small turbo-expanders & tight-seal gas systems
- Small Pumps & Motors:High-speed pumps, small turbines & narrow shafts
- Oil & Fluid Barrier Protection:FluidLoc cable prevents wicking into junction boxes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Shaft Diameter Constraints: Standard X-Y radial configurations require a minimum shaft diameter of 30 mm (1.2 inches). If shafts are between 20 mm and 30 mm, the two probes must be offset axially by 23 mm (0.9 inches).
Cross-Talk Avoidance: To prevent the electromagnetic fields of adjacent sensors from distorting one another, maintain a strict minimum separation of 23 mm (0.9 inches) between radial vibration tips, and 25 mm (1.0 inch) between axial thrust tips.
Technical notes
330905-00-25-05-12-CN incorporates a 0.5 meter total cable length with the FluidLoc cable option, which prevents oil and other liquids from leaking out of the machine through the cable's interior, and is equipped with gold-plated brass ClickLoc connectors that lock into place to prevent the connection from loosening, with a connector protector recommended for the probe-to-extension cable connection.
FAQs
-
What is the 330905-00-25-05-12-CN?
+The Bently Nevada 330905-00-25-05-12-CN is a miniature 3300 NSv Proximity Probe designed for high-precision vibration and displacement measurements in tight spaces or on small shafts. -
What is the correct gap voltage?
+For the 3300 NSv system, the ideal static DC gap voltage is typically between -8 VDC and -12 VDC. This range ensures a linear output and optimal signal quality. -
What is the ClickLoc connector?
+It is a miniature coaxial connector designed by Bently Nevada to provide a secure, locked connection that cannot be easily pulled loose during operation. -
What is the target gap voltage for installation?
+The typical target gap voltage range required to achieve a linear, accurate reading with the 3300 NSv system is -8 VDC to -12 VDC. Installers must measure this static DC voltage using a voltmeter during setup to ensure the probe tip is spaced perfectly from the target shaft.
