- 3300 XL NSV Proximity Transducer

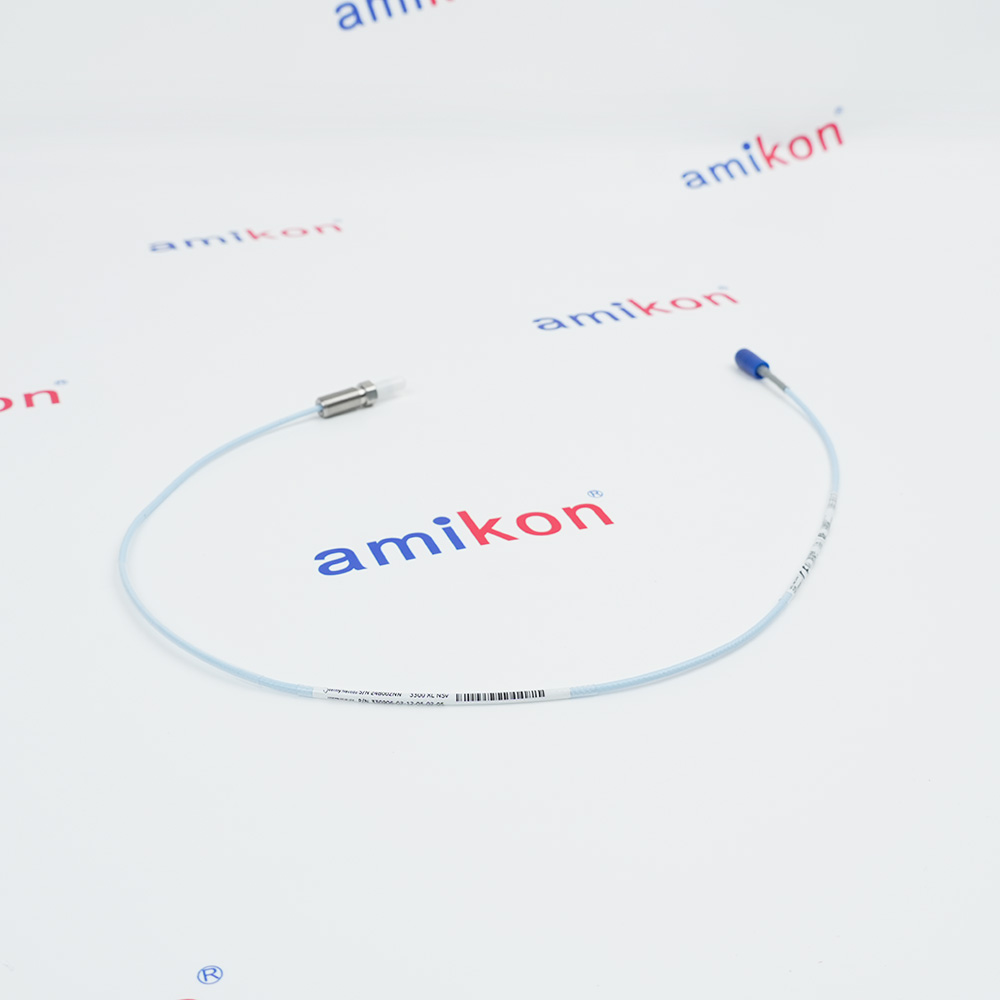

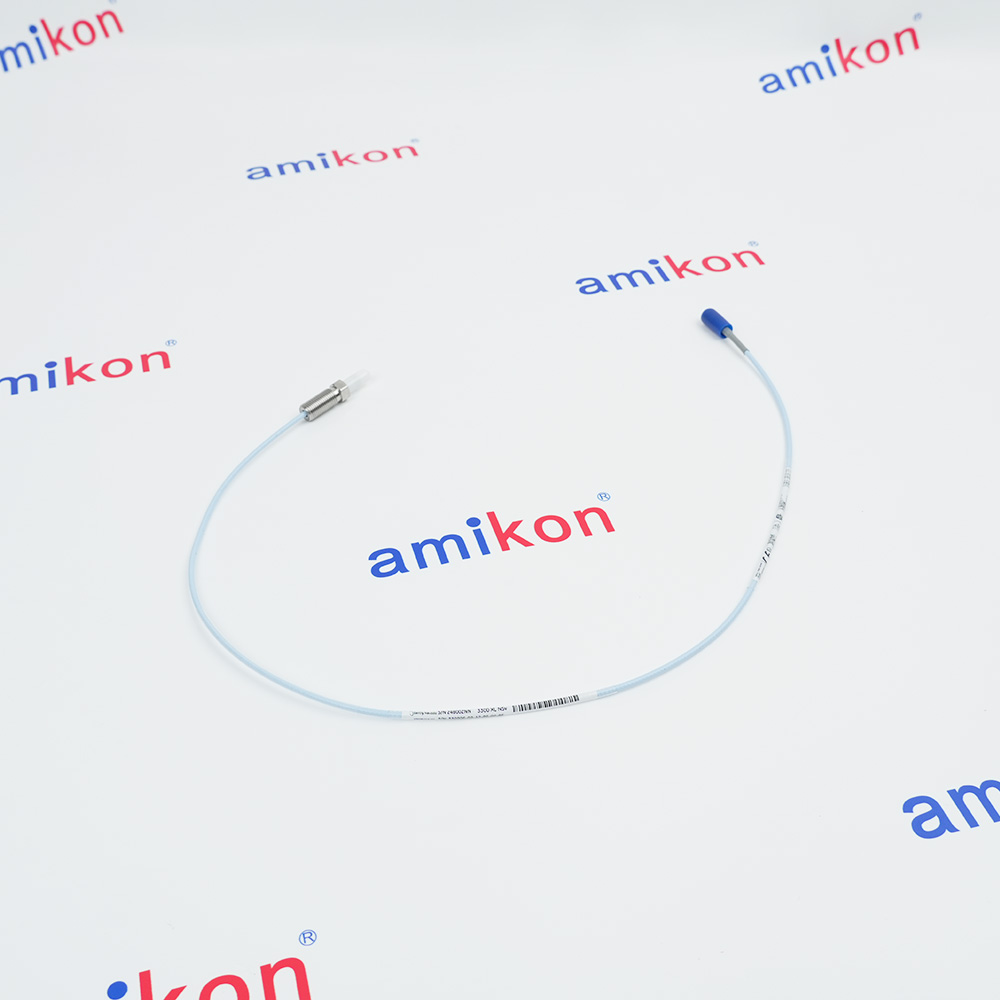

- 330906-02-12-05-02-05
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330906-02-12-05-02-05
-
Product Model330906-02-12-05-02-05
-
Product Parameters3300 NSv Reverse Mount Probe
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1x0.9x67.5cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Total Length Option0.5 meter (20 in)
-
Connector OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionMultiple Approvals
-
Proximitor SensorMaterial A380 aluminum
-
Frequency Response0 to 10 kHz: +0, -3 dBtypical, with up to 305meters (1000 feet) of fieldwiring
Description
330906-02-12-CC-DD-EE 3/8-24 UNF threads
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
05Multiple Approvals
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
05Multiple Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Installation and Technical Instructions
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System.Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring3300 XL NSv Proximity Transducer SystemDatasheet147385 Rev. Rsystem with 3300 XL NSv ProximitorSensor.Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.
The 330906-02-12-05-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330906-02-12-05-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced sideview and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.
The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
- Centrifugal Air Compressors:Internal high-speed shafts where space is at a premium
- Refrigeration Compressors:Large-scale industrial chilling and HVAC units
- Process Gas Compressors:Enhanced chemical resistance vs. older 3300 RAM models
- Small Hydrodynamic Bearing Machines:Precise radial/axial monitoring on small-diameter fluid-film bearings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Designed for reverse mounting (the probe is installed from the back side of the machine casing or a supporting bracket).
Gap Setting: The typical gap voltage range for proper operation is -9 V to -11 V DC, with a nominal operating gap of 1.0 mm (40 mils).
Minimum Target Size: The target should be at least 8.9 mm (0.35 in) in diameter.
Connector Protectors: It is strongly recommended to use connector protectors at the probe-to-extension cable connection to prevent liquids from entering the connectors.
FAQs
-
What is the 330906-02-12-05-02-05?+It is a 3300 NSv (Non-contacting Special velocity) Reverse Mount Probe, designed for smaller shafts or applications with limited space (e.g., fluid-filmed bearing machines).
-
What is the linear range of 330906-02-12-05-02-05?+The linear range of the 3300 NSv system is 1.5 mm (60 mils).
-
Is it compatible with older systems?+Yes, it is designed to replace 3300 RAM Transducer Systems and 3000-series 190 systems.
-
What is the operating temperature of 330907-05-30-05-02-05?+The operating temperature range of this probe is -34°C to +177°C (-30°F to +351°F).
