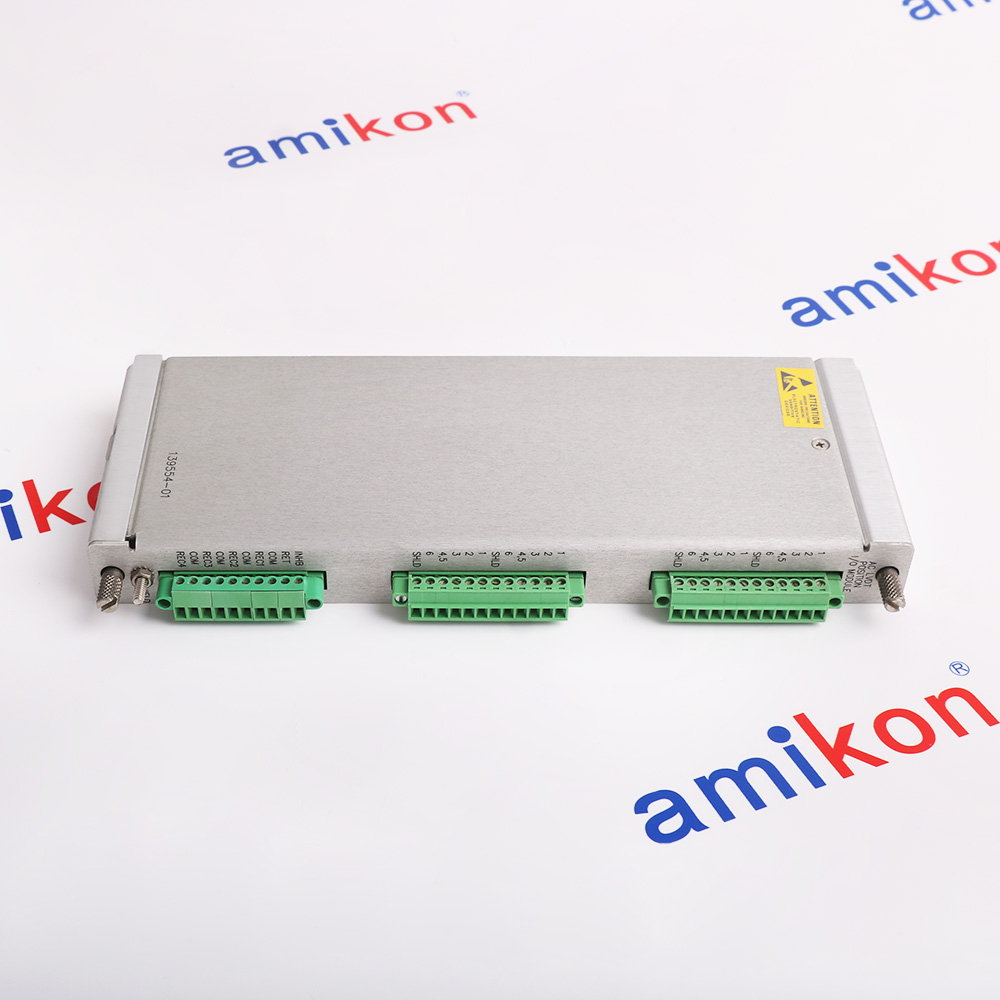

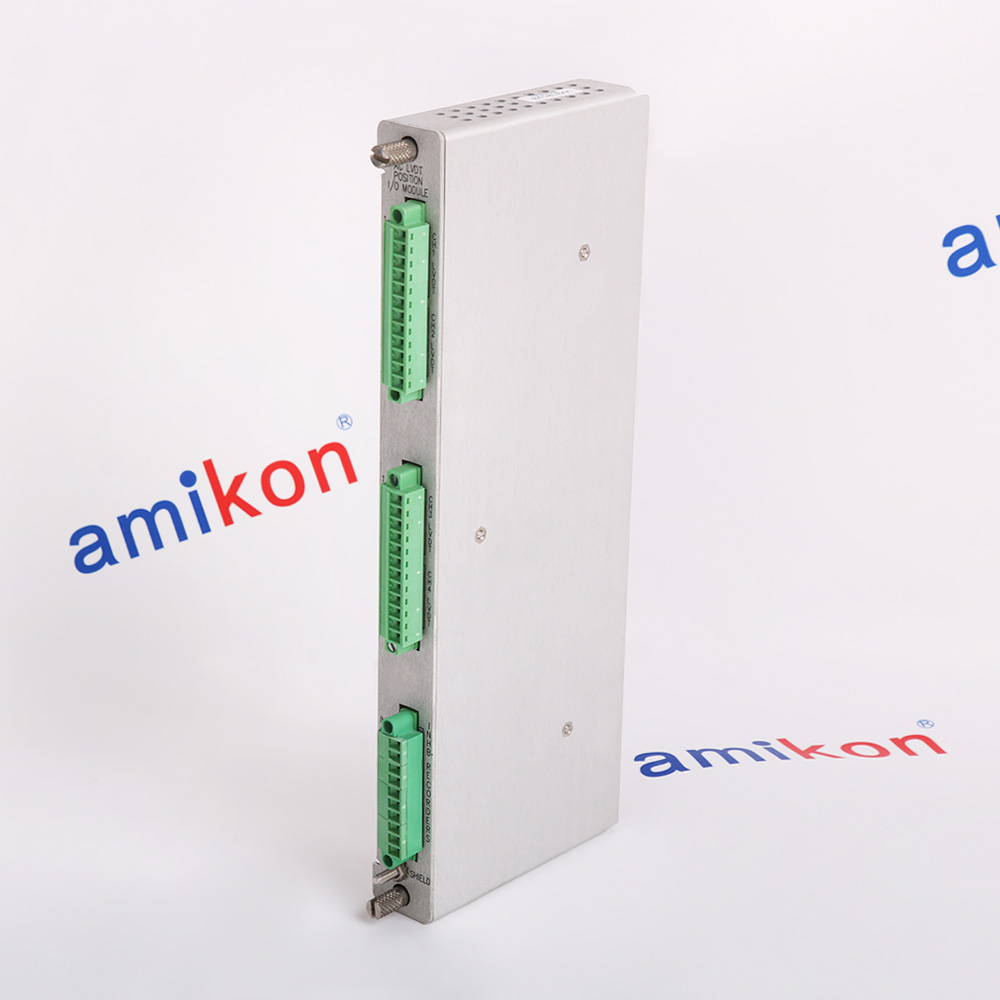

Technical specifications for 139554-01
-
Product Model139554-01
-
Product ParametersLVDT Position I/O Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.3x11.2x24cm
-
ManufacturerBently Nevada
-
Weight0.4 kg
-
Frequency Range50 Hz – 10 kHz
-
Accuracy±0.25% of full scale (typical)
-
Resolution16-bit (high precision)
-
Operating Temperature-30°C to +65°C (-22°F to +149°F)
-
Humidity0–95% RH (non-condensing)
Description
The Bently Nevada 139554-01 is an AC LVDT Position I/O Module developed for the 3500 Series Machinery Protection System. Installed behind the 3500/45 Position Monitor, the module provides the electrical interface for AC Linear Variable Differential Transformer (LVDT) sensors used in continuous position measurement and machinery monitoring applications.
This module accepts signals from up to four AC LVDT transducers, conditions the input signals, and transfers the processed data to the associated 3500/45 Position Monitor through the system backplane. The monitor evaluates the measured values against configured alarm and danger setpoints while transmitting position information to the 3500 monitoring system
This module accepts signals from up to four AC LVDT transducers, conditions the input signals, and transfers the processed data to the associated 3500/45 Position Monitor through the system backplane. The monitor evaluates the measured values against configured alarm and danger setpoints while transmitting position information to the 3500 monitoring system
Information
Overview
Manuals
Application Notes
Product Applications
Module Installation
Features:
- Bently Nevada 139554-01 AC LVDT Position I/O Module
- Supports AC Linear Variable Differential Transformer (LVDT) sensors
- Designed for the 3500/45 Position Monitor
- Up to 4 AC LVDT input channels
- Typical power consumption: 8.5 W
This module accepts signals from up to four AC LVDT transducers, conditions the input signals, and transfers the processed data to the associated 3500/45 Position Monitor through the system backplane. The monitor evaluates the measured values against configured alarm and danger setpoints while transmitting position information to the 3500 monitoring system.
The 139554-01 Bently Nevada Position I/OModule with InternalTerminations for usewith AC LVDTs may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 139554-01 Position I/OModule with InternalTerminations for usewith AC LVDTs Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 139554-01 incorporates internal terminations, allowing field wiring to connect directly to the module without requiring an external termination block. This configuration reduces cabinet wiring complexity and is well suited for installations where field connections are located close to the monitoring rack. For applications requiring remote field wiring, the corresponding external termination version is 139567-01.
When installed in a 3500/45 Position Monitor, the module supports a variety of position-monitoring functions depending on system configuration. These include valve position, differential expansion, case expansion, and other linear displacement measurements using AC LVDT sensors. Configuration is performed through the 3500 Rack Configuration Software, allowing each channel to be assigned to its required monitoring function.
- Valve Monitoring: Tracks precise opening/closing of steam and gas turbine control valves
- Shaft/Rotor Displacement: Monitors axial position and differential expansion in large turbines/compressors
- Asset Protection: Processes sensor data against Alert/Danger setpoints to drive system alarms
- Oil & Gas: Upstream, midstream pipelines, and downstream refining processe
- Power Generation: Combined-cycle, hydroelectric, and nuclear facilities
- Industrial Manufacturing: Heavy BOP equipment where unscheduled downtime is cost-prohibitive
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Backplane Interface: The 139554-01 is a rear-mounted I/O module designed exclusively for the Bently Nevada 3500 Monitoring System rack.
Alignment: Ensure the associated 3500/45 monitor module is inserted into the front of the rack. The 139554-01 module slides directly into the rear side of the backplane, directly behind its corresponding main monitor module.
Engagement: Push the module straight into the guide rails until it securely docks with the backplane connector.
Alternative Names
139554-0I
139554-O1
139554 01
139554 0I
139554 OI
Technical notes
The module conditions input signals with multiple filter options including a direct filter (0.104 Hz to 500 Hz), a gap filter (-3 dB at 0.05 Hz), and a not 1X filter (0.25 to 128× rotor speed). Measurement accuracy is ±0.33% typical and ±1% maximum for direct/gap and 1X parameters, ±0.33% typical and ±3% maximum for NX parameters, and ±1% typical for composite measurements.
FAQs
-
What is 139554-01?
+The Bently Nevada 139554-01 is an AC LVDT Position I/O Module with internal terminations -
What system is the 139554-01 used with?
+It is designed exclusively to function as part of the 3500/45 Position Monitor system, which is a four-channel device that accepts inputs from various transducers to continuously monitor machine position. -
What types of transducers does it support?
+While categorized as an AC LVDT module, the overarching 3500/45 system also supports proximity transducers, Rotary Position Transducers (RPTs), DC LVDTs, and rotary potentiometers. -
What are the electrical output specs for the AC LVDT transducer supply?
+The monitor supplies a 2.3 Vrms, 3400 Hz sine wave to power connected AC LVDT sensors.
