PRODUCT DESCRIPTION

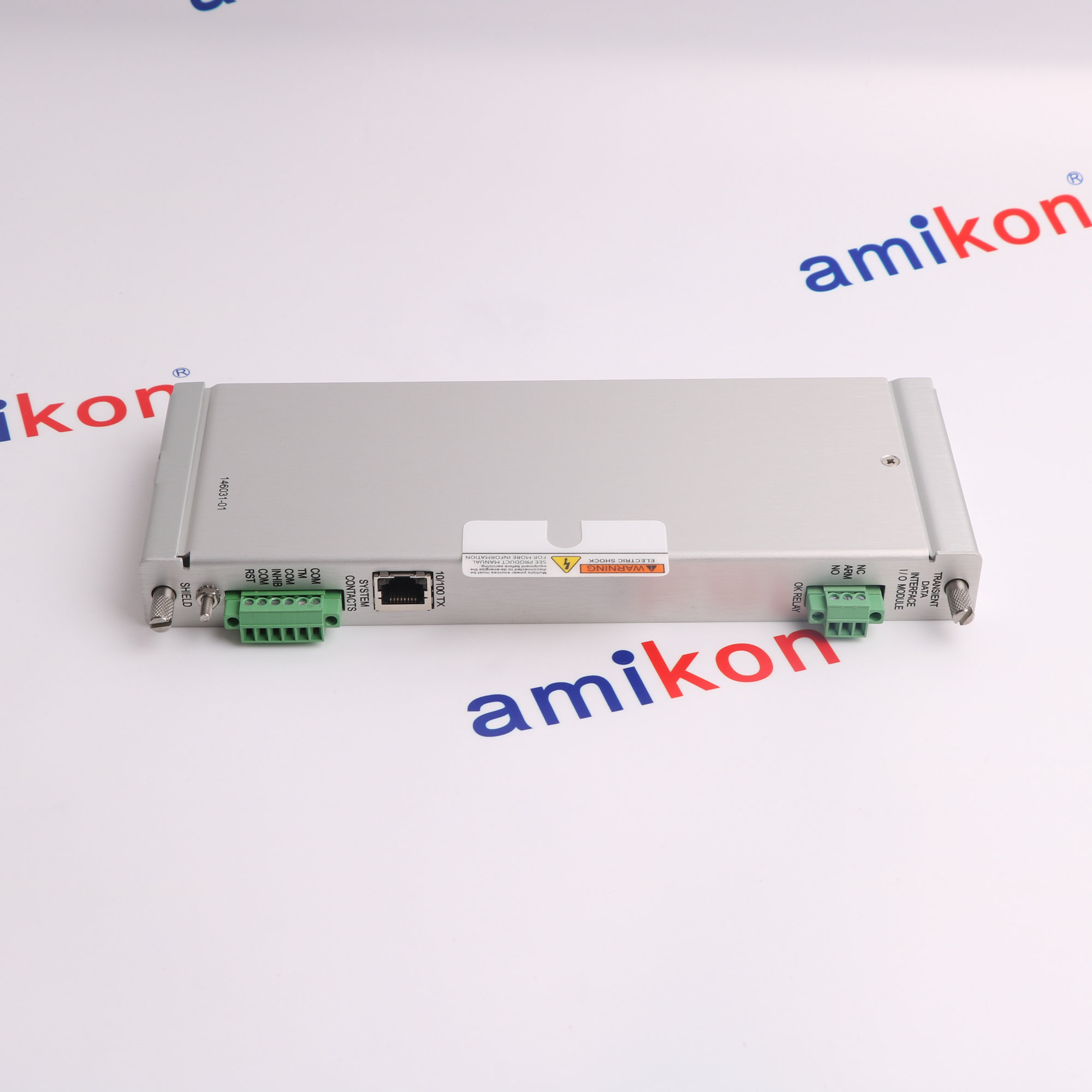

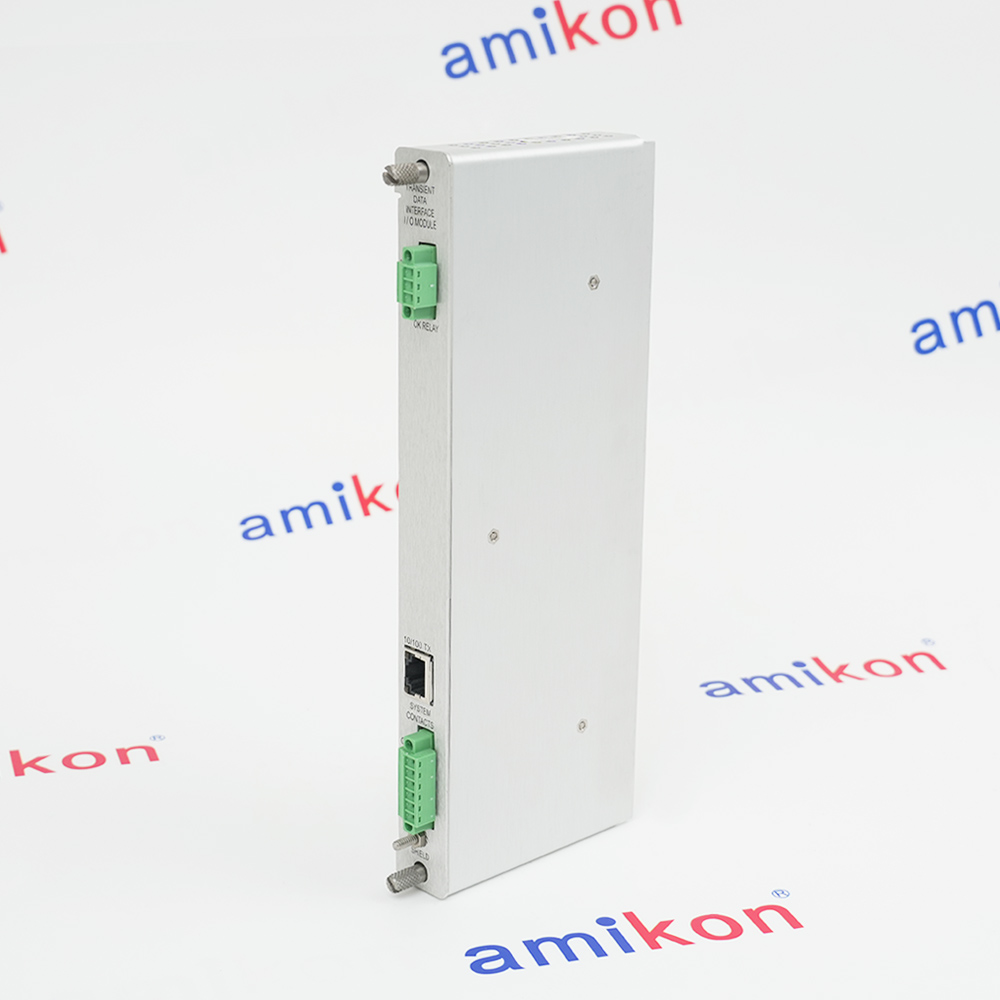

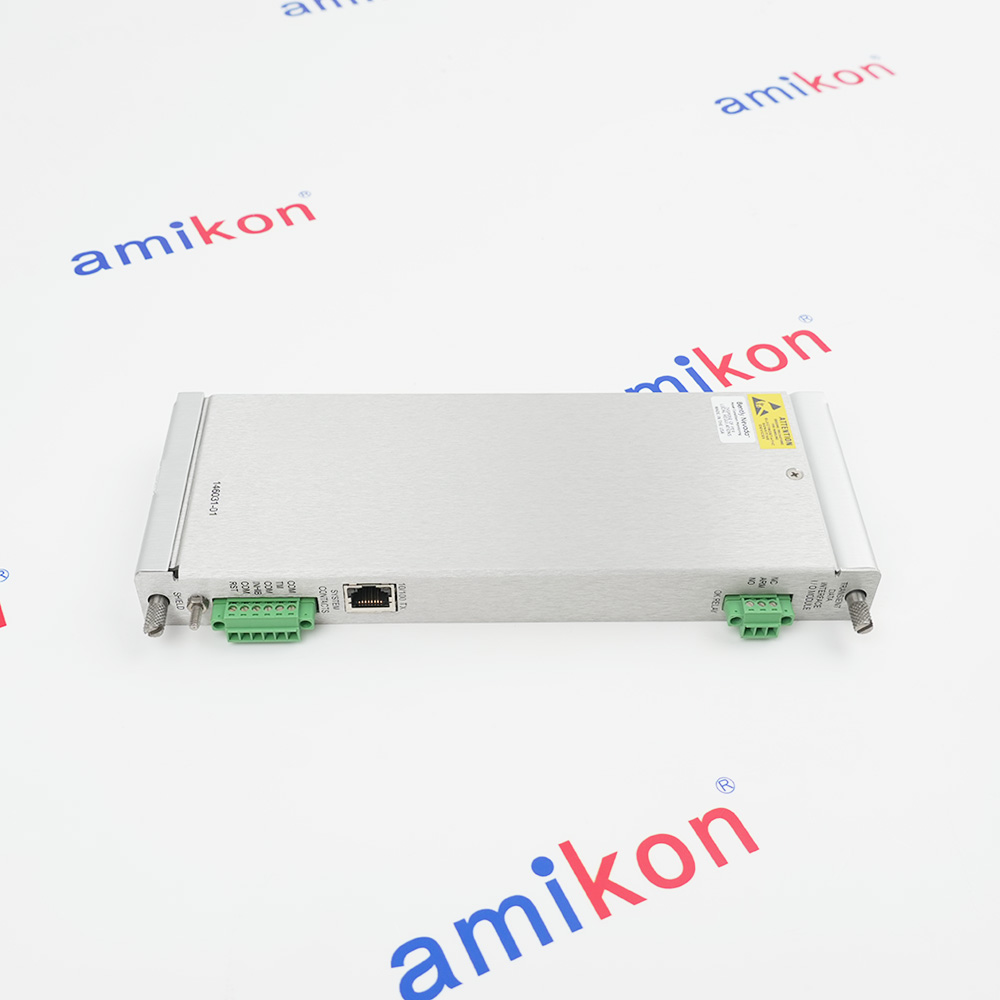

146031-01 Copper Ethernet I/O module
Bently Nevada 146031-01 is a Copper Ethernet I/O module for the Bently Nevada 3500/22M TDI system. Provide the 3500/22M TDI with an autosensing 10Base-T or 100Base-TX copper link through the documented shielded RJ-45 network connection. Carry BN TDI protocol data between the rack and System 1 condition monitoring software while preserving the approved network addressing and topology. Confirm the exact article, installed interfaces and controlled commissioning record before ordering.
BEFORE YOU BUY
Confirm the complete Copper Ethernet I/O module
ACTUAL APPLICATIONS
Application context for 146031-01
Manufacturer documentation places the Copper Ethernet I/O Module in practical vibration applications. The three cases below describe different operating tasks in which 146031-01 performs its documented product-family role with the configured companion equipment.
- 01 · OIL & GAS
Track compressor shaft vibration with Copper Ethernet
During operation of the radial probes and compressor bearings, 146031-01 performs its assigned control role as a Copper Ethernet I/O Module. During speed increase, the system uses this function to measure shaft motion relative to the bearing, helping it reveal changes in rotor dynamic behavior. - 02 · WATER & WASTEWATER
Supervise motor-pump alignment with Copper Ethernet
For the coordinated operation of the couplings, motor bearings and pump housings, 146031-01 operates in its approved product-family role as a Copper Ethernet I/O Module. During post-overhaul run, the system uses this function to evaluate coupled-machine vibration at operating speed, helping it confirm the train returns to its reference condition. - 03 · MINING & METALS
Supervise crusher bearing monitoring with Copper Ethernet
Inside the crusher shafts and bearing pedestals, 146031-01 serves its documented function as a Copper Ethernet I/O Module. During ore-grade transition, the system uses this function to track bearing response as crushing load changes, helping it support planned attention to a degrading bearing.
Technical specifications for 146031-01
-
Product Model146031-01
-
Product ParametersCopper Ethernet I/O module
-
In stock1 unit
-
ManufacturerBently Nevada
-
I/O Module Variant10Base-T/100Base-TX copper Ethernet
-
Associated TDI3500/22M Transient Data Interface
-
Network ConnectorRJ-45 shielded copper interface
-
Ethernet StandardsIEEE 802.3 compliant operation
-
Supported Data Rates10 or 100 Mbit/s autosensing
-
Communication ProtocolsBN Host and BN TDI protocols
-
Maximum Cable Length100 m copper network segment
-
OK Relay FunctionNormally energized rack status relay
-
Standard Relay Rating5 A at 24 V DC
-
Maximum Switched Power120 W or 600 VA
-
Operating Temperature-30°C to +65°C
-
Storage Temperature-40°C to +85°C
-
Humidity Limit95% noncondensing environment
-
Rack Space RequirementOne full-height rear slot
-
I/O Module Dimensions24.13 × 2.44 × 9.91 cm
View all additional
Alternative Names
146031-01
146031-01
10/100Base-TX TDI I/O module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match 146031-01 to the installed Bently Nevada 3500/22M TDI system
Bently Nevada 146031-01 is a Copper Ethernet I/O module documented for the Bently Nevada 3500/22M TDI system. Provide the 3500/22M TDI with an autosensing 10Base-T or 100Base-TX copper link through the documented shielded RJ-45 network connection.
Carry BN TDI protocol data between the rack and System 1 condition monitoring software while preserving the approved network addressing and topology. Confirm ieee 802.3 compliant operation, 10 or 100 mbit/s autosensing, mechanical location and the approved system configuration before connection.
Use BN Host Protocol over Ethernet for 3500 configuration, data acquisition and display software within the documented 100 m cable limit. Use qualified personnel, retain the official manufacturer instructions at the work location and save the final commissioning results with the equipment record.
Features:
- Exact identity: 146031-01
- Product class: Copper Ethernet I/O module
- Family: Bently Nevada 3500/22M TDI system
The Bently Nevada 146031-01 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete 146031-01 configuration before exchange
Replace 146031-01 only after matching the full product identity, ieee 802.3 compliant operation, 10 or 100 mbit/s autosensing and installed system role. A similar family name or partial article number does not establish direct interchangeability.
Photograph the module label, rack or control-unit position, every connector, cable route, shield, earth point and companion module before removal. Compare the documented electrical and communication limits against the saved project or rack configuration.
After installation, restore the controlled configuration and complete the model-specific checks described in the official manufacturer document. Record status indications, diagnostics, signal or communication results and the final acceptance evidence before release.
Features:
- Match exact 146031-01 identity
- Confirm 10 or 100 Mbit/s autosensing
- Record 120 W or 600 VA
The Bently Nevada 146031-01 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Technical values prepared for 146031-01
- Bently Nevada manufacturer pages attached
- Exact identity required before installation
Documentation for Bently Nevada 146031-01 must match the installed system and complete product identity; confirm manual applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size24.13 × 2.44 × 9.91 cm
-
Shipping weight0.2 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8517620090
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
