PRODUCT DESCRIPTION

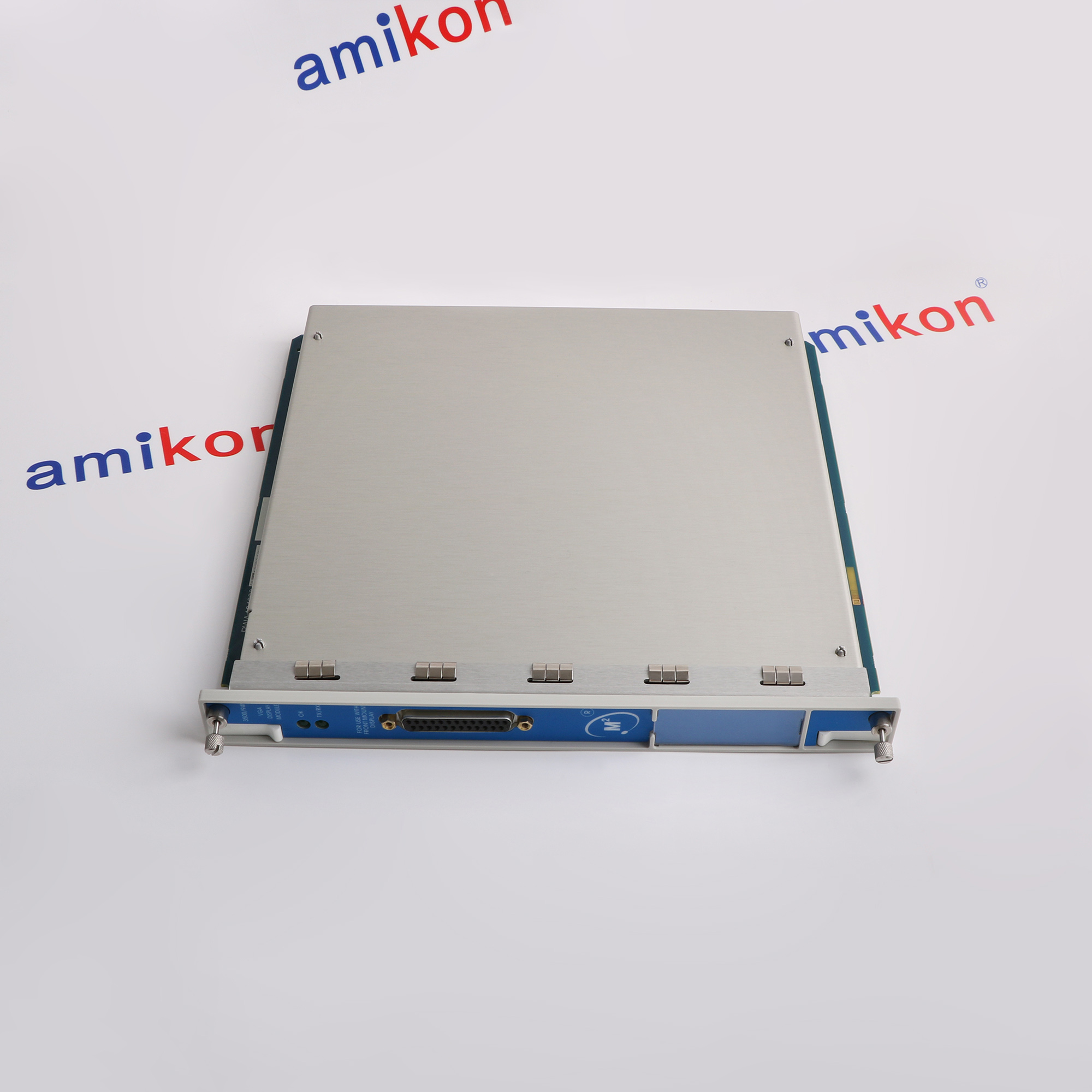

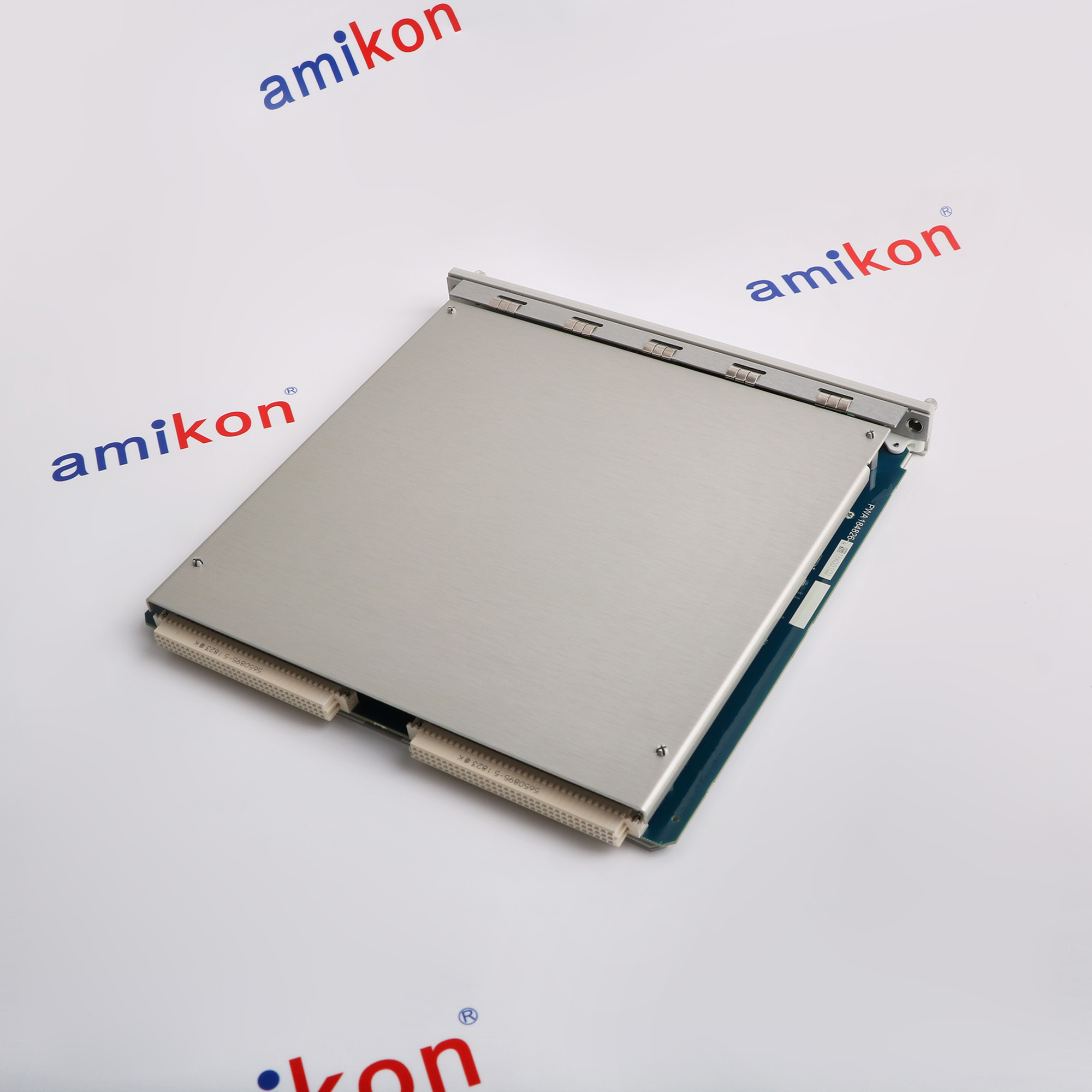

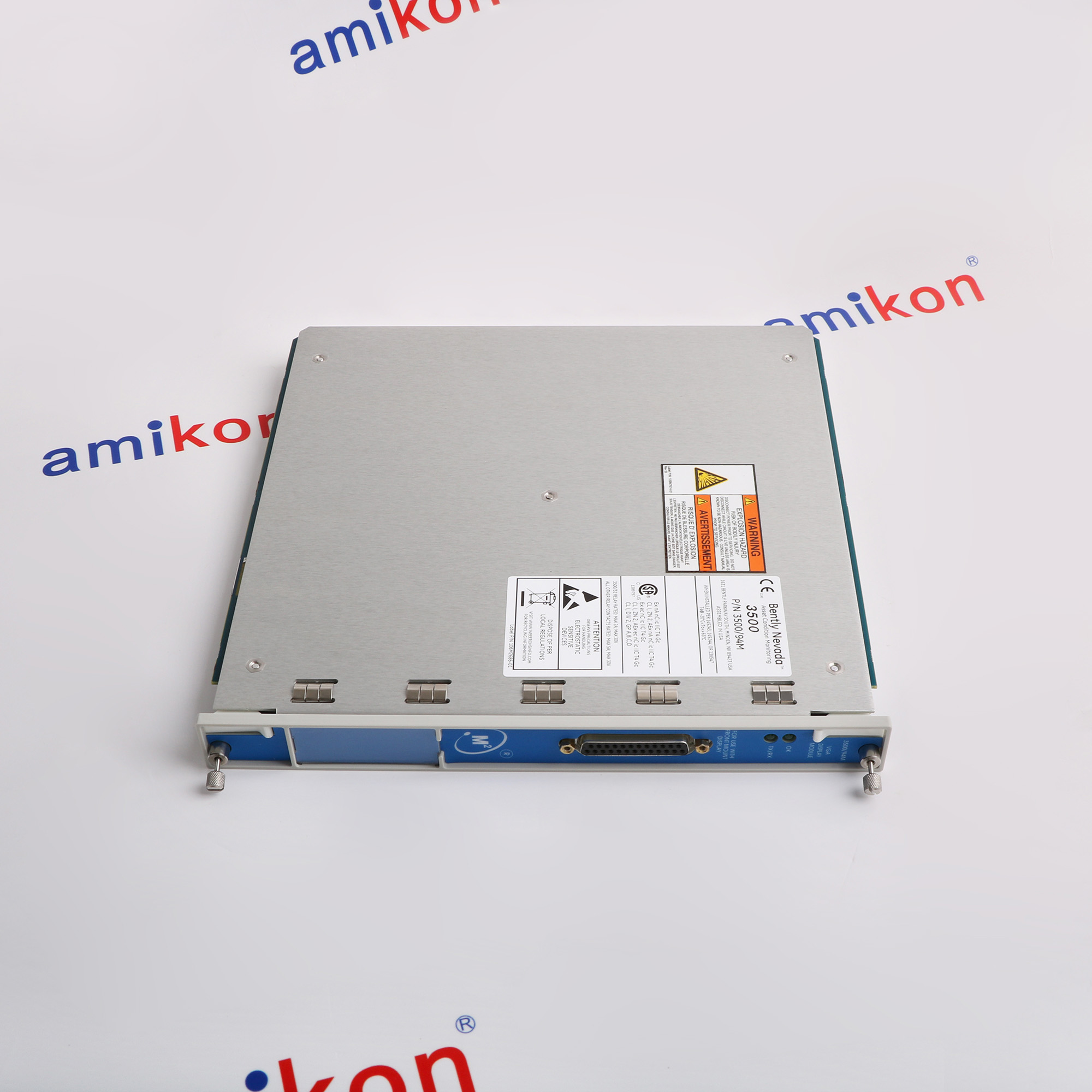

VGA system display module
Bently Nevada 3500/94M 184826-01 is a VGA display module associated with the 3500/94M display system. The module provides a local display interface for rack data, alarms and system events. Configurable screens can group measurements by machine train. The separate I/O, touch screen and power arrangement must match the chosen installation.
The official spare table identifies 184826-01 as the 3500/94M main module. The part does not include a confirmed touch screen, router box or KVM extension. Verify those separately selected components and the installed rack interface.
The official spare table identifies 184826-01 as the 3500/94M main module. The part does not include a confirmed touch screen, router box or KVM extension. Verify those separately selected components and the installed rack interface.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500/94M display system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · LOCAL STATUS
Machine-train data at the rack
System and alarm event lists, channel measurements and status can be organised on configured screens. This provides operator access to existing monitoring data rather than a new measurement input. -
02 · MULTIPLE RACKS
Shared display with an optional router
A supported router box allows selection among up to four racks. Every rack still requires its own VGA module and associated I/O, with the documented cable-distance limit. -
03 · REMOTE DISPLAY
Extended viewing with supported hardware
A suitable fiber KVM extension permits remote viewing beyond standard VGA cable distance. Its components are not automatically approved for hazardous locations and require the stated installation conditions.
Technical specifications for 3500/94M 184826-01
-
Product Model3500/94M 184826-01
-
Spare Model3500/94M
-
Product ParametersVGA system display module
-
In stock4 units
-
ManufacturerBently Nevada
-
Module function3500 system VGA display processing
-
Power consumption4.6 W maximum
-
Custom display pagesUp to nine
-
Supported screensDocumented 10-inch or 15-inch VGA touch display
-
Display cable distanceUp to 6 m using standard cables
-
Multiple-rack optionUp to four racks per display using optional router box
-
Required rack interface3500/22 TDI
-
Minimum Rack Configuration version5.6
-
Minimum display-module firmware4.06, revision C
-
Storage temperature-40 to +85 deg C
-
Humidity95%, noncondensing
-
Rack allocationOne full-height front slot
View all additional
Alternative Names
3500/94M 184826 01
3500/94M 184826-01 VGA display module
Bently Nevada 3500/94M 184826-01
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
VGA SYSTEM DISPLAY MODULE
Integrating 3500/94M 184826-01
The module provides a local display interface for rack data, alarms and system events. Configurable screens can group measurements by machine train. The separate I/O, touch screen and power arrangement must match the chosen installation.
The 3500/94M requires a 3500/22 TDI, firmware 1.71 or newer, and the specified display-module and rack software versions. The source lists supported display models; a VGA connector alone does not establish driver, power or hazardous-area compatibility.
Follow manual 122M3218 and select the correct front or rear cable arrangement. The touch display requires its own power supply. Disconnect only with power removed or the area known to be nonhazardous. KVM transmitter and receiver require a safe area or approved enclosure.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/94M 184826-01 VGA display module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/94M 184826-01 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
The 3500/94M requires a 3500/22 TDI, firmware 1.71 or newer, and the specified display-module and rack software versions. The source lists supported display models; a VGA connector alone does not establish driver, power or hazardous-area compatibility.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/94M 184826-01 VGA display module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/94M 184826-01 VGA display module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.5x25.2x24cm
-
Shipping weight0.78 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/94M 184826-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/94M 184826-01 identified?
The official spare table identifies 184826-01 as the 3500/94M main module. The part does not include a confirmed touch screen, router box or KVM extension. Verify those separately selected components and the installed rack interface. -
What is the function of this component?
The module provides a local display interface for rack data, alarms and system events. Configurable screens can group measurements by machine train. The separate I/O, touch screen and power arrangement must match the chosen installation. -
Which installed equipment must be matched?
The 3500/94M requires a 3500/22 TDI, firmware 1.71 or newer, and the specified display-module and rack software versions. The source lists supported display models; a VGA connector alone does not establish driver, power or hazardous-area compatibility. -
Where is this component used?
System and alarm event lists, channel measurements and status can be organised on configured screens. This provides operator access to existing monitoring data rather than a new measurement input. -
What must be checked during installation?
Follow manual 122M3218 and select the correct front or rear cable arrangement. The touch display requires its own power supply. Disconnect only with power removed or the area known to be nonhazardous. KVM transmitter and receiver require a safe area or approved enclosure. -
Can a router replace the VGA module in other racks?
No. Each rack requires its own 3500/94M module and I/O. The optional router shares the display, not the rack-side processing hardware. -
Does the 6 m cable limit also define the maximum KVM distance?
No. Standard VGA cables are limited to 6 m. The supported single-mode fiber KVM arrangement can extend the display up to 10 km under its documented installation conditions; it is separately selected hardware.
