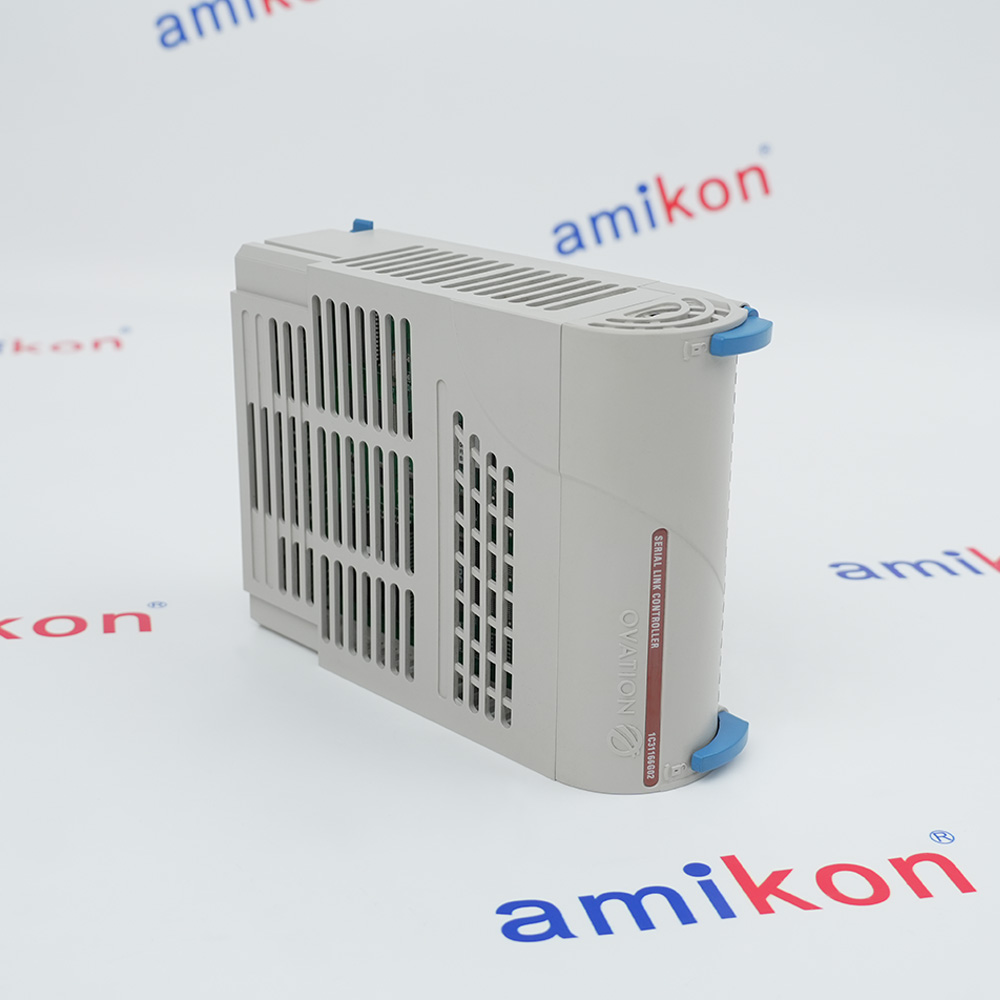

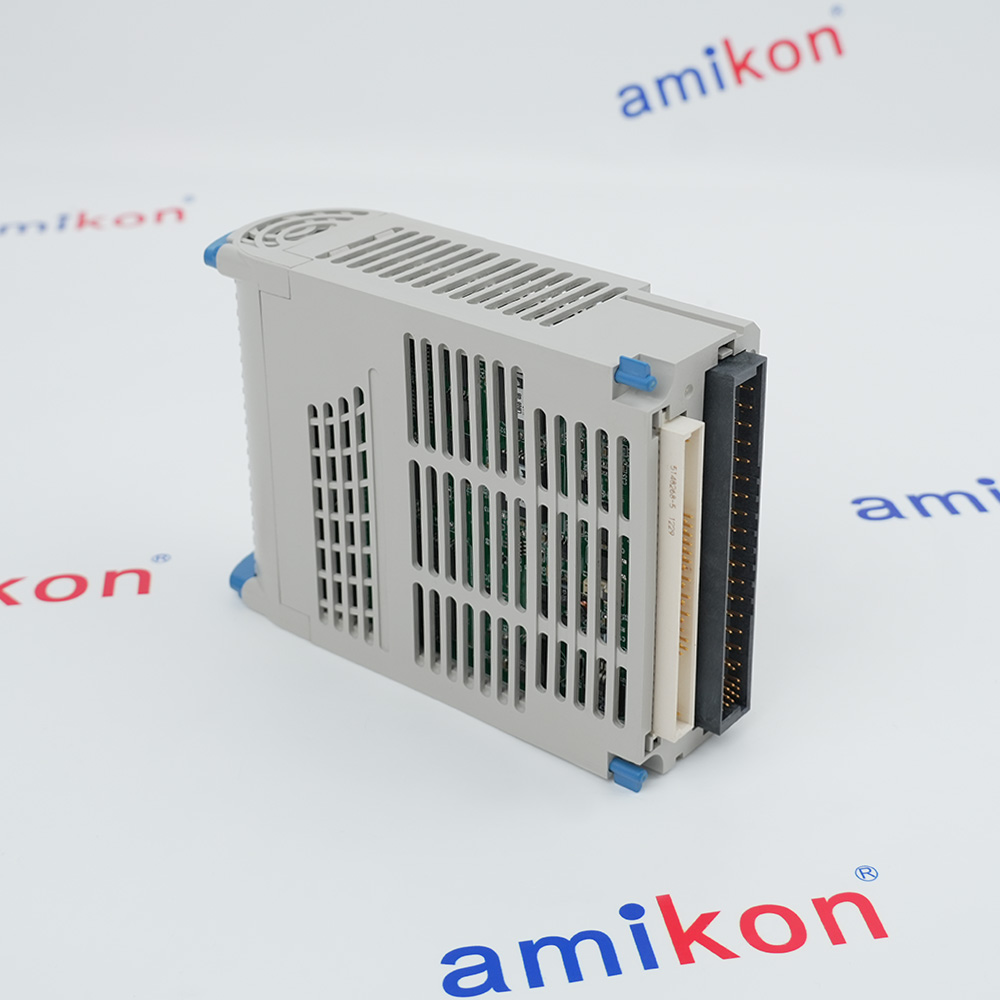

- 1C31166G02
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 1C31166G02
-
Product Model1C31166G02
-
Product ParametersSERIAL LINK CONTROLLER
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12x5x16.5cm
-
ManufacturerEmerson
-
Weight0.32 kg
-
Module TypeEMOD + PMOD
-
Supported CPUR1120 CPU
-
Data Transfer Rate – RS-485Up to 3.125 Mbps
-
Power Supply24 VDC
-
Power Consumption5 W
-
Input Voltage Range0 – 55 VDC
-
Operating Temperature–40 °C to +70 °C (–40 °F to +158 °F)
-
Storage Temperature–55 °C to +85 °C (–67 °F to +185 °F)
-
Humidity5 % to 95 % non-condensing
Description
1C31166G02
DISCONTINUED BY MANUFACTURER
SERIAL LINK CONTROLLER
RS485
4 WIRE
EMOD+PMOD
R1120 CPU
DISCONTINUED BY MANUFACTURER
SERIAL LINK CONTROLLER
RS485
4 WIRE
EMOD+PMOD
R1120 CPU
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Communication Termination
Features:
- Serial Link Controller
- EMOD ASSY, LINK CONTROLLER (R1120 CPU)
- Up to 3.125 Mbps
The 1C31166G02 Ovation Serial Link Controller Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Ovation 1C31166G02 Serial Link Controller Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Emerson Ovation 1C31166G02 is a Serial Link Controller module used within the Ovation Distributed Control System (DCS) to facilitate communication between the DCS network and external serial devices. It is a vital component for integrating PLCs, intelligent field devices, and other subsystems.Commonly utilized in power generation and water/wastewater treatment for process control.
- Steam and Gas Turbines:Governor sync speed/load.
- Generator Protection Relays:SEL/GE Multilin fault data to DCS
- Excitation Systems:AVR loop monitoring/adjust
- Boiler Management Systems:Flame scanner & burner sequencer interlock
- Compressor Skids:Bently vibration, temp, surge data
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminal Blocks: Attach serial cables to the matching Personality Module (PMOD) or standard terminal block connected to the base.
RS-485 Pinouts: For 4-wire or 2-wire networks, verify that the TX +,TX -, RX +, and RX - lines align precisely with your target machinery endpoints.
Shield Grounding: Ground cable shields at one end only (typically at the cabinet entry point) to eliminate ground loop interference.
Termination Resistors: Install 120 2 end-of-line termination resistors on long-distance RS-485 loops to prevent signal reflections.
FAQs
-
What is the 1C31166G02 module?
+It is a Emerson Ovation DCS Serial Link Controller. -
What is the function of this module?
+It acts as a link controller, enabling communication between the DCS network and other components like PLCs, input/output modules, and robotics controllers. -
What is the specific application of the 1C31166G02?
+It is an EMOD ASSY (Electronic Module Assembly) link controller commonly used with R1120 CPU systems.
