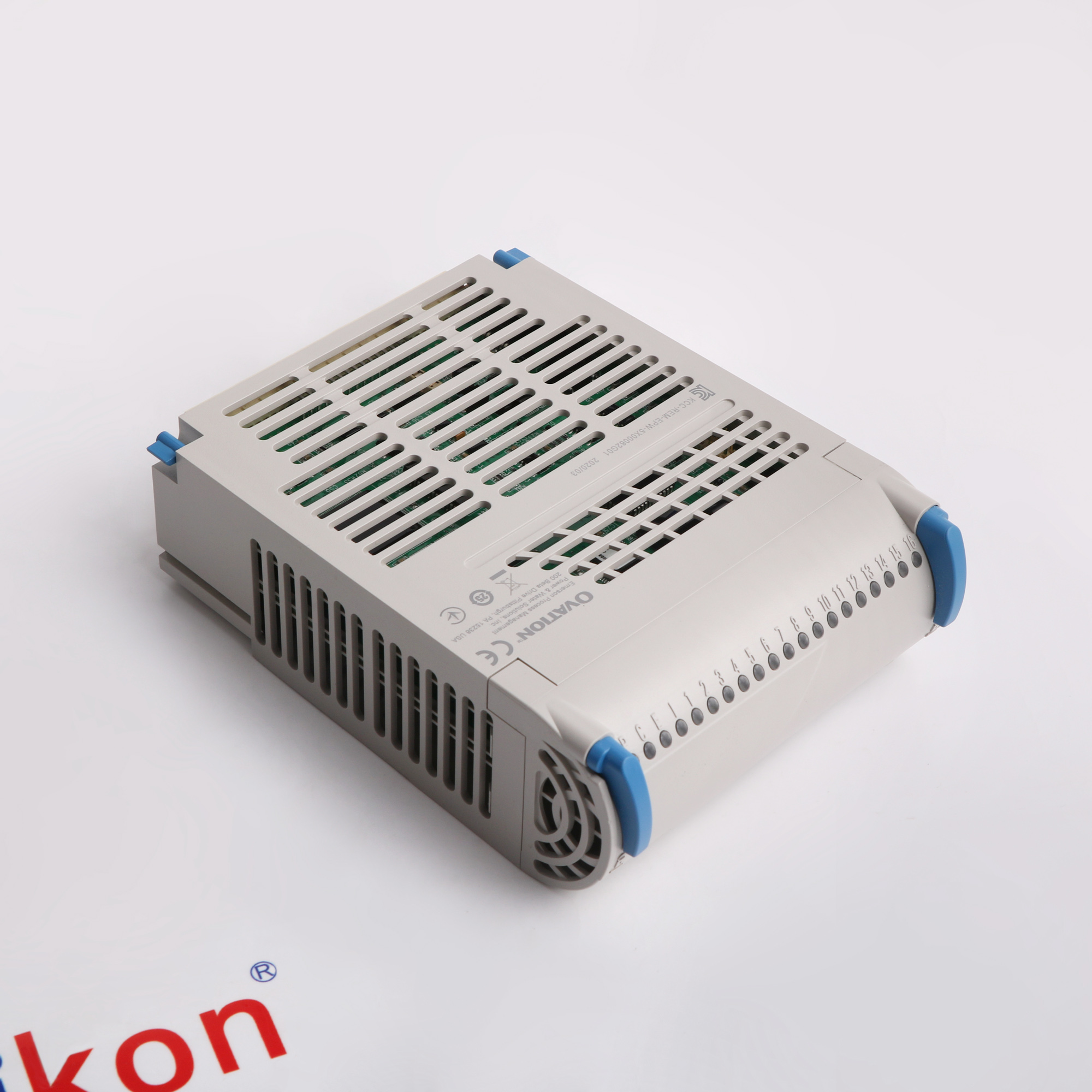

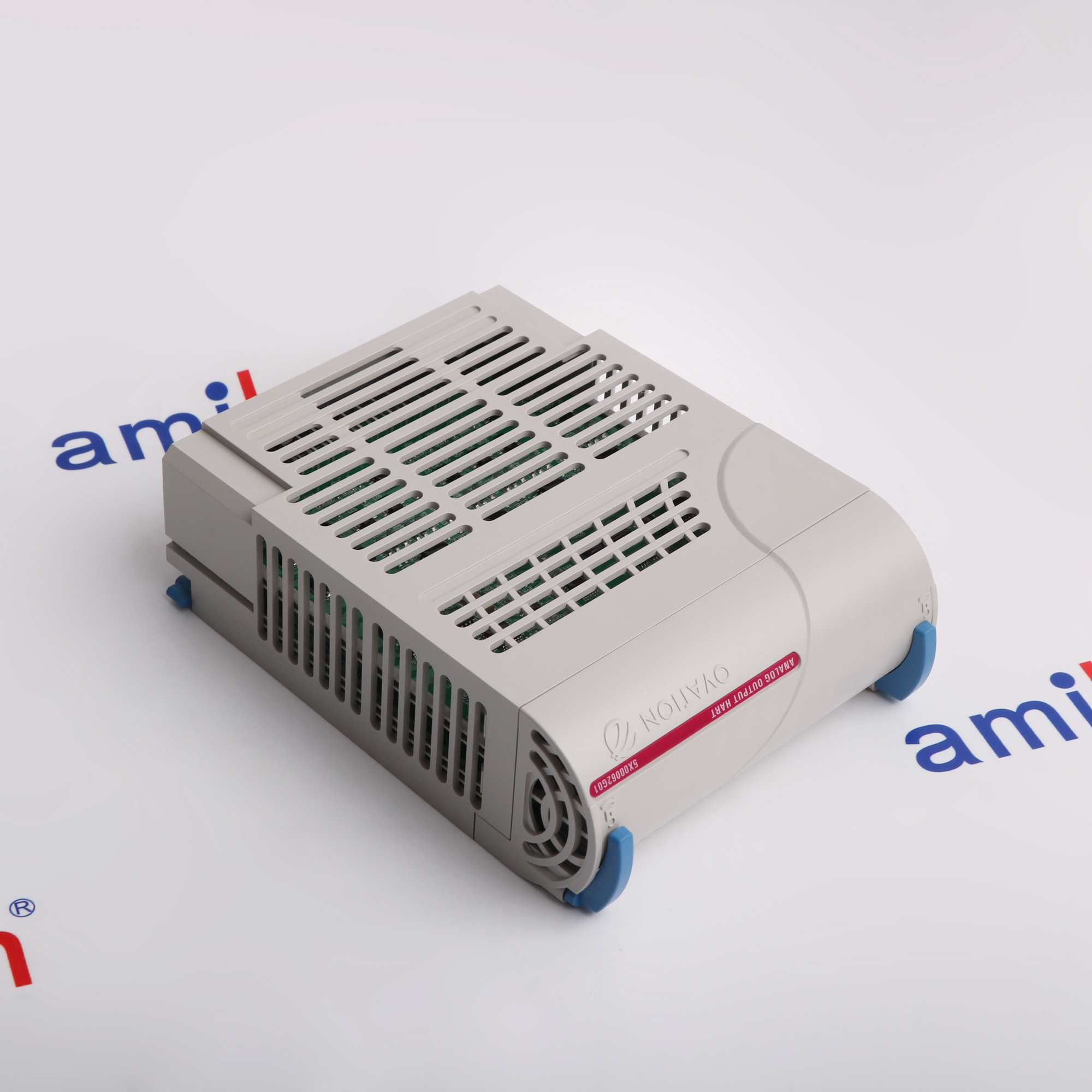

      Emerson 5X00062G01
      Emerson 5X00062G01
      Emerson 5X00062G01
      Emerson 5X00062G01
      Emerson 5X00062G01
      Emerson 5X00062G01
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Thursday, November 12

      5X00062G01

      HART analog output electronics module

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          5X00062G01 HART analog output electronics module

          Westinghouse 5X00062G01 is the electronics portion of the Ovation eight-channel HART analog output assembly. It generates multiplexed 4–20 mA signals and exchanges HART digital information with compatible output devices through the same field loops.

          The assembly uses 14-bit conversion and updates each channel every 24 ms. A separate 5X00063G01 personality module provides passive field circuitry and auxiliary-supply fusing. Field channels share their auxiliary supply and ground, while a 1000 V isolation barrier separates the field circuitry from the logic side.
          BEFORE YOU BUY

          Confirm the complete hart analog output electronics module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for 5X00062G01

          5X00062G01 is used in the following application areas within compatible Ovation HART analog output configurations.
          • 01 · POWER GENERATION

            Thermal Electricity and Hydroelectric Power Generation

            Combined-Cycle Power GenerationPumped-Storage Hydropower
          • 02 · WATER & WASTEWATER

            Municipal Water Supply and Industrial Wastewater Treatment

            Drinking Water TreatmentWastewater Resource Recovery
          • 03 · RENEWABLE ENERGY

            Renewable Electricity and Low-Carbon Energy Development

            Solar Power GenerationOnshore Wind Energy

          Technical specifications for 5X00062G01

          • Product Model
            5X00062G01
          • Product Parameters
            HART analog output electronics module
          • In stock
            1 unit
          • Manufacturer
            Emerson
          • Output channels
            8 multiplexed channels
          • Control signal
            4 to 20 mA
          • D/A resolution
            14 bits
          • Channel update interval
            24 ms per channel
          • Accuracy over temperature
            0.25% of span
          • Field-to-logic isolation
            1000 V AC/DC for 1 minute
          • Channel-to-channel isolation
            None; common auxiliary supply and ground
          • Output compliance
            20 mA into 700 ohm at 21.6 V DC
          • Microcontroller clock
            16 MHz
          • Main supply power
            24 V DC; 1.2 W typical, 2.5 W maximum
          • Auxiliary supply
            24 V DC, -5% / +6.25%
          • Auxiliary power demand
            6 W typical; 7.2 W maximum
          • Open-loop diagnostics
            8 pass/fail bits in register 0xC
          • Operating temperature
            0 to 60 °C
          • Relative humidity
            0 to 95%, non-condensing
          View all additional
          Ask for Quote

          Alternative Names

          5X00062G01 Ovation HAO electronics module Westinghouse eight-channel HART output electronics
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 5X00062G01 hart analog output electronics module

          Install the electronics module with its matching HART personality module and the applicable CE or non-CE terminal arrangement. The eight channels share the external 24 V auxiliary supply; the supply budget must cover the field-side demand independently of the main logic supply.
          HART frequency-shift-keyed communication is superimposed on each analog loop without changing its mean control current. AMS Device Manager can use the additional device information, while the controller retains the 4–20 mA control signal. Open-loop feedback is reported through eight pass/fail bits in register 0xC.
          The assembly uses 14-bit conversion and updates each channel every 24 ms. A separate 5X00063G01 personality module provides passive field circuitry and auxiliary-supply fusing. Field channels share their auxiliary supply and ground, while a 1000 V isolation barrier separates the field circuitry from the logic side.

          Features:

          • Eight HART loops with 24 ms updates
          • Separate main and auxiliary power budgets
          • Register 0xC open-loop feedback
          The 5X00062G01 hart analog output electronics module requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify 5X00062G01 hart analog output electronics module

          Check that the item being replaced is the electronics module, rather than the 5X00063G01 personality module. Preserve the channel mapping, terminal arrangement and auxiliary-supply polarity. The 700 ohm compliance figure applies at the documented 21.6 V DC supply condition.
          Prove analog output values and HART communication separately after replacement. Review Module Power OK, Communication OK, External Error and Internal Error indicators; a loop fault can arise from the field circuit or personality-module fuse even when the electronics communicates normally.
          Eight pass/fail bits are stored in hexadecimal register 0xC.

          Features:

          • Electronics/personality identity separation
          • Field-current and HART communication tests
          • CE-specific termination comparison
          The 5X00062G01 hart analog output electronics module requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the 5X00062G01 hart analog output electronics module must be checked for document applicability before installation or commissioning.

          Also searched as

          5X00119G01 1C31166G02 5X00419G02 5X00500G01 5X00501G01

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            12.0 x 5.0 x 16.5 cm
            Shipping weight
            0.32 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538909100
            Origin
            United States
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 5X00062G01

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Does 5X00062G01 contain the passive field termination circuitry?

            The passive circuitry is in 5X00063G01; 5X00062G01 contains the eight-channel HART output electronics.

          • How often is each analog output refreshed?

            The onboard microcontroller updates each of the eight channels once every 24 ms.

          • Are the HART output channels individually isolated?

            No. They share an auxiliary supply and ground; the documented isolation is between the field and logic circuitry.

          • What does the 14-bit specification describe on this HAO module?

            It is the D/A conversion resolution used for the analog output channels.

          • What loading condition supports a 20 mA output into 700 ohm?

            The documented output compliance is 20 mA into 700 ohm with a 21.6 V DC supply.

          • Where are open-loop indications available to the controller?

            Eight pass/fail bits are stored in hexadecimal register 0xC.

          • How can a spare-parts order avoid receiving the HAO personality module?

            Specify electronics module 5X00062G01 and list 5X00063G01 separately only when its replacement is also required.

          • Can existing HART channel assignments be supplied with an MRO inquiry?

            Yes. Channel maps, loop loads and auxiliary-supply details help check the requested electronics against the installed assembly.
