I/O terminal block

Brand:GE Fanuc
Series:Field Control
Part Number:IC670CHS002
Type of Component:I/O Terminal Block
Number of Terminals:37
Maximum Current on Terminals:10 Amperes
Hot Swap Compatible:Yes
Number of Modules per Block:2 modules

I/O Carrier Module

Series:Field Control
Part Number:IC670CHS001
Type of Component:I/O Base, Barrier Style
Number of Terminals:37
Product Description:I/O Carrier Module
Carrier module terminals:Barrier style
Terminal Torque:8 pounds on an inch
No. of Terminals:37 terminals
No of wires per terminal:up to Two (2) wires
Compatible BIU Version:Bus Interface Unit version 2.1
Tightening torque:8 in-lb.
Mounting DIN:Rail / Panel mount
Mounting orientation:Horizontal

I/O EXPANSION CABLE

Brand:GE Fanuc
Series:Field Control
Part Number:IC670CBL002
Type of Component:Expansion connection cable
ESD Protection:Braided drain wire connected to ground or chassis
Length in Centimeters:54.61
Length in Inches:21
Number of Cables per Field Control Station:1

ANALOG INPUT MODULE

Brand:GE Fanuc
Series:Field Control
Part Number:IC670ALG630
Number of Channels:8
Thermocouple Types:J, K, T, E, S R, B, N, G, C, D, Platinel II
Converter Resolution:15 bits + sign
Maximum Voltage Between Channels:250 VAC
Current Drawn from BIU Power Supply:195 mA maximum

Analog Output Module

Series:Field Control
Manufacturer:GE Fanuc
Wiring configuration:Single-ended
Part Number:IC670ALG330
Output signal, nominal:0-20 mA
Product Type:Output Module
Output signal, range:0.0-20.48 mA
Signal Type:Analog
Current or Voltage Outputs:Current Outputs
Conversion resolution:16 bits
Number of Channels:8
Output load capacitance:2000 pF, maximum
Current Range:0 to 20.48 milliamps
Output load inductance:0.5H, maximum
Number of LEDs:1
Update time:1.5mS typical
Magnitude data size:14 bits
Linearity:1 LSB resolution value
Supply Voltage range:18-30 VDC
Nominal supply voltage:24 VDC
Current draw from Bus Interface Unit (BIU):85 mA
Current drawn from external power:250 mA

Analog Output Module

Series:Field Control
Manufacturer:GE Fanuc
Part Number:IC670ALG320
Wiring configuration:Single-ended
Description:Analog output module
Current:4-20 mA
No of Channels:Four (4) Current / Voltage Source outputs
Voltage:0-10 Volts
Output signals:0-20 mA; 4-20 mA; 0-10 VDC; 0-12.5 VDC
ADC Conversion resolution:12 bits
Output Data:4 words
Isolation:1500 VAC for 1 minute, 250 VAC continuous
External Power supply:20-29 VDC, 5 % maximum ripple
Isolation to Ground and Logic:1500 Volts AC
Nominal Supply voltage:24 VDC
Digital Resolution:12 bits, typical
Linearity:1 LSB resolution value
Current Drawn from BIU power supply:51 mA, maximum
Input Types:Isolated and Differential
Output grouping:Single group
Output wiring:Single-ended

ANALOG INPUT MODULE

Series:Field Control
Manufacturer:GE Fanuc
Part Number:IC670ALG240
Description:Analog input module
Channels:16
Input Current:0-25 milliamperes
Wiring configuration:Single-ended
Frequency:50/60 Hertz
Input signal, nominal:0-20 mA
Input signal, range:0.0-20.48 mA
Ripple:10% max.
Maximum current input:35 mA
Common Mode Rejection:86 dB
ADC Conversion resolution:16 bits
Hardware Filter:RC 2nd order
External Power supply:20-28 VDC
Nominal Supply voltage:24 VDC
Input grouping:Single group

CURRENT SOURCE ANALOG INPUT MODULE

Series:Field Control
Manufacturer:GE Fanuc
Part Number:IC670ALG230
No. of channels:Eight (8)
Description:Input module
Wiring configuration:Single-ended
Input signal, nominal:0-20 mA
Isolation to Case:250 Volts AC continuous
Input signal, range:0.0-25 mA mA
Input Impedance:2.87 kiloohms
Analog resolution:5.0 µA
On-state Voltage:15-30 Volts DC
Conversion resolution:12 bits
Off-state Voltage:0-5 Volts DC
External Power supply:18-30 VDC
Current from BIU:100 milliamperes
Analog resolution:5.0 microAmps
Nominal Supply voltage:24 VDC
Input Impedance:249.75 to 250.25 Ohms
Input grouping:Single group

Genius Block I/O module

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660TSS100
Product Type:Terminal assembly
Storage Temperature:-40 to 212 degrees Fahrenheit
Relative Humidity:5 to 95%
Vibration:5 to 10 Hertz

Genius I/O module

IC660ELS100
ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK
115 VAC / 125 VDC
8 CIRCUIT
ISOLATED

Genius Network Interface module

Series:Genius I-O
Series:PC Interface Module (PCIM)
Part Number:IC660ELB912
Memory Requirement:16 Kbytes
Status LEDs:GENI OK, COMMS OK
Communication protocol:Genius Protocol
No. of supported devices:30 per daughtercard
Compatibility:IBM PC/ AT/ XT
LEDs indicators:GENI OK; COMMS OK

Electronic Assembly

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660EBA100
Type:Electronic Assembly
Main equipment:Analog I/O block
Maximum power:10 VA
Frequency:47-63 Hertz
Resolution:12 bit plus sign
Update frequency:4 ms
Diagnostics:Yes
Heat Dissipation:6 Watts

Electronic Assembly

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660EBA026
Type:Electronic Assembly
Main equipment:Analog output block
Power supply voltage:18-56V DC
Maximum current:600 mA
Ripple:10% max.
Resolution:6 uA
Update frequency:25 ms
Diagnostics:Yes

ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660EBA023
Application:Genius I/O Block System
Operating Voltage:18 to 56 Volts DC
Group Isolation:300 Volts
Power Rating:9.0 Watts
Internal CJC:0 to 60 Degrees Celsius
External CJC Range:-25 to +150 Degrees Celsius
LEDs:2 LEDs
Built-in Diagnostics:Yes

SERIES SIX GENIUS I/O BUS CONTROLLER

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660CBB902
Description:Series 6 PLC Bus Controller
Configuration:CPU or Handheld Monitor
Max I/O Capacity:31 I/O Devices
Phase Type:B
Max Connection Distance:2000 Feet

BUS SWITCHING MODULE

Brand:GE Fanuc
Series:Genius I-O
Part Number:IC660BSM120
Description:Genius I/O Bus Switching Module
Application:Genius I/O Serial Bus
I/O Capacity:8
Operating Temperature Range:0 to 60 Degrees Celsius
Configuration:Handheld Monitor and CPU configuration
Serial Bus Connectors:2

Output Module

Manufacturer:GE Fanuc Emerson
Series:Versamax
Part Number:IC655MDL580
Product:Output Module
Output Points:16 Outputs
LED Indicators:1 per Output
Output Type:Relay
Key Position:A3 and B1
Typical Supply Current:152 mA
Maximum Supply Current:180 mA

Relay Output Module

IC630MDL380
DISCONTINUED BY MANUFACTURER
RELAY OUTPUT MODULE
16 CIRCUITS
MDL380 SERIES
NORMALLY OPEN
5-265 VAC/VDC MAXIMUM
4 AMPS CONTINUOUS

Output Module

Manufacturer:GE Fanuc Emerson
Series:Series Three
Part Number:IC630MDL376
Product Type:Output Module
Output Type:Isolated Outputs
Number of Outputs:8 Outputs
Voltage Type:AC
Voltage Rating:115/230V AC
Approximate Weight:1.1 lbs
LED Indicators:Included

Communications Module

Series:Series Six
Part Number:IC600YB945
Product Type:Communication Module
Input Type:ASCII
Rated Supply Voltage:5 to 12 Volts DC
User Memory Capacity:20K bytes
Status Indicators:6 LEDs
Wire Gauge Size:24 AWG (minimum)
Operating Temperature:0 to 60°C (Maximum)
Storage Temperature:0 to 70°C (Maximum)
Humidity Tolerance:5 to 95% (non-condensing)
Cable Data Rate:Up to 19.2 kilobits per second

EXPANSION RACK I/O CABLE

Series:Series Six Plus
Part Number:IC600WD002
Product Type:Expansion Rack I/O Cable
Cable Length:2 feet (0.6 meters)
Compatible Systems:Series Six Plus PLCs
Jacket Color:Black
Removable Connector Shells:Yes

Memory Module

Series:Series Six
Part Number:IC600LR648
Product Type:Memory Module
Primary Memory Capacity:32K
Short-Term Memory Capacity:16K
Modular Design:Yes
Expandable:Yes
Solid-State Construction:Yes
Operating Temperature:0 to 60 degrees Celsius
Storage Temperature:0 to 70 degrees Celsius

Rack Module

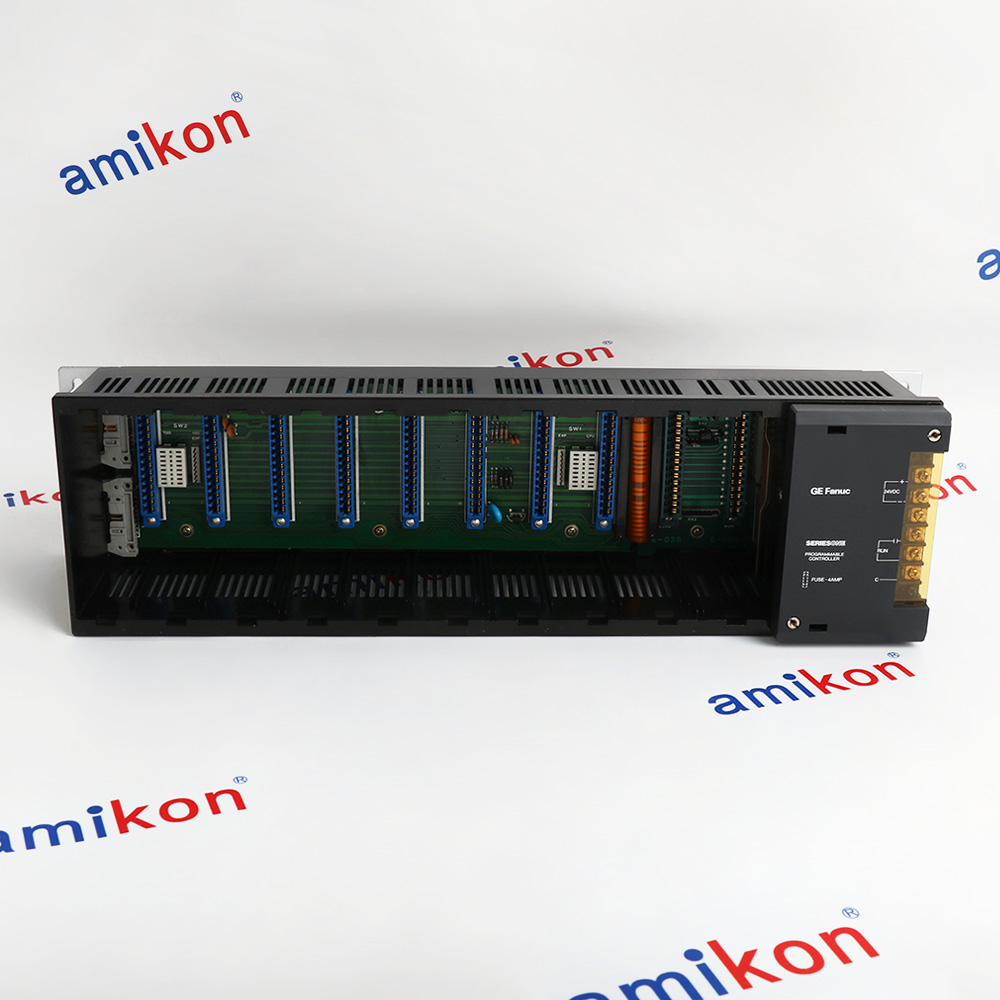

IC610CHS134A
DISCONTINUED BY MANUFACTURER
RACK
24VDC POWER SUPPLY (10 SLOTS)

INPUT MODULE

Series:Series Six
Part Number:IC600BF804
Product:Input Module
Input Voltage:115 Volts AC/DC
Number of Inputs:8
Input Groups:2 groups of 4 inputs
Power Voltage:5 Volts DC
Maximum Input Current:104 milliamps
Off to On Delay:10-20 milliseconds
On to Off Delay:20-50 milliseconds
Humidity Range:5-90%, non-condensing
Storage Temperature:-20 to 80°C (-4 to 176°F)
