IC693ALG391
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

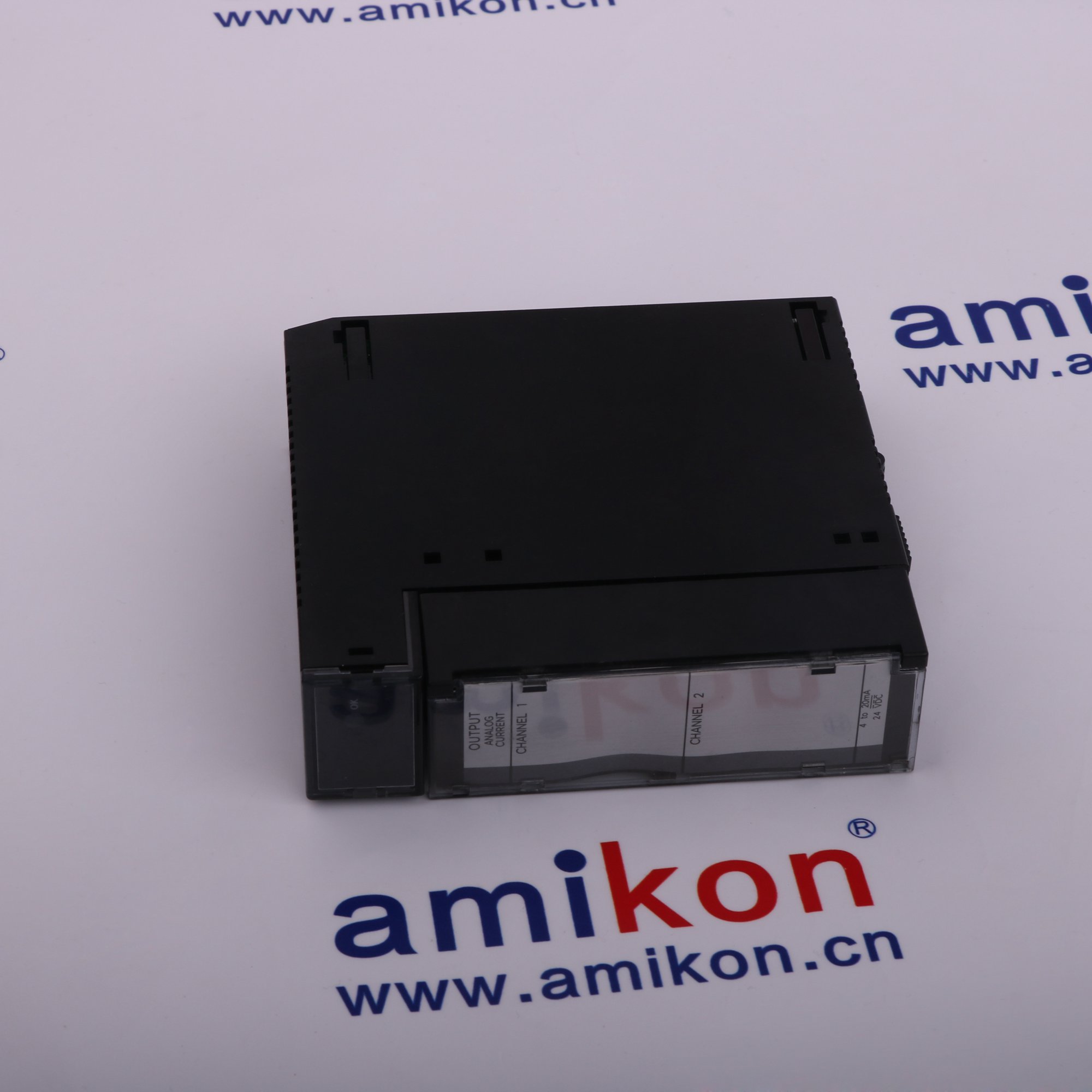

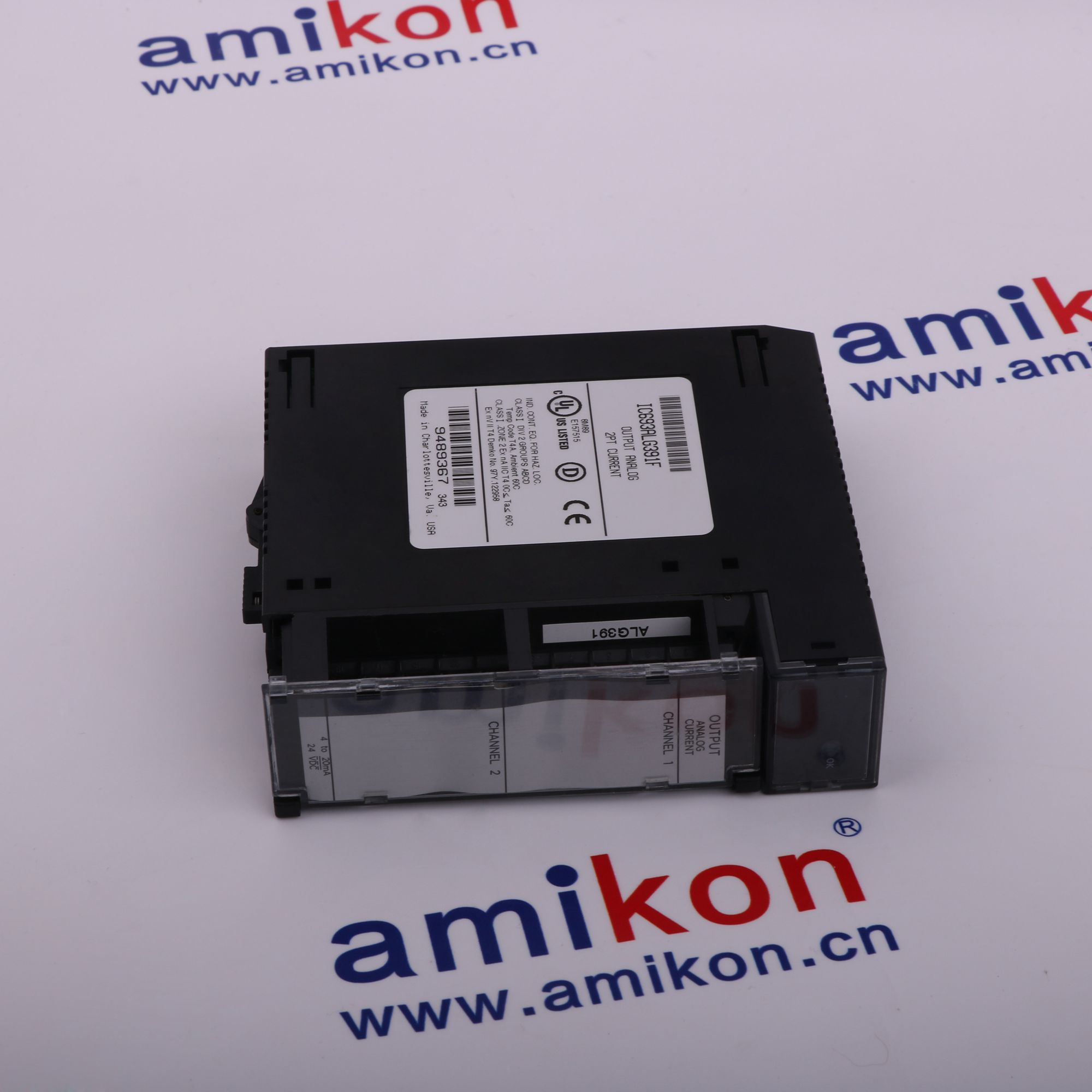

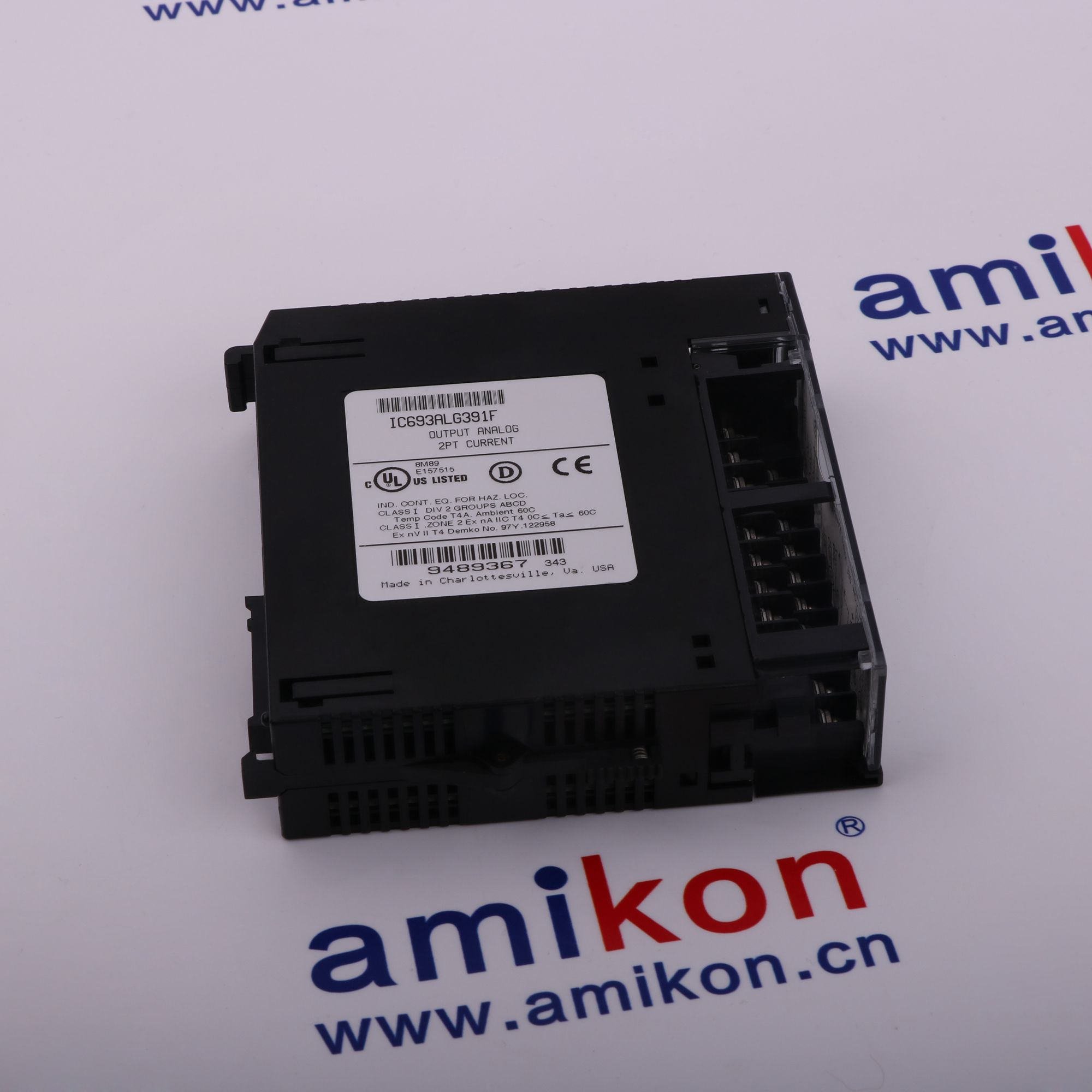

This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe
IC693ALG391
ANALOG CURRENT OUTPUT MODULE
2-CHANNEL
SERIES 90-30 PLC
24 VDC SUPPLY
0-20MA OUTPUT
0-5 VDC OUTPUT
ANALOG CURRENT OUTPUT MODULE
2-CHANNEL
SERIES 90-30 PLC
24 VDC SUPPLY
0-20MA OUTPUT
0-5 VDC OUTPUT
Specifications
-
Product ModelIC693ALG391
-
Product ParametersAnalog output module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Output Current Range4 to 20 mA and 0 to 20 mA
-
Output Voltage Range1 to 5 V and 0 to 5 V
-
CalibrationFactory calibrated to 4µA per count
-
Supply Voltage+24 VDC, from isolated +24 VDC on backplaneor user supplied voltage source, and +5 VDC frombackplane
-
External Supply Voltage Range20 to 30 VDC
-
4 to 20 mA4µA
-
0 to 20 mA5µA
-
1 to 5 V1 mV
-
0 to 5 V1.25 mV
-
Maximum Compliance Voltage25 V
-
User Load0 to 850 ohms
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the IC693ALG391？+The GE Fanuc/Emerson IC693ALG391 is a 2-channel analog current output module for the Series 90-30 PLC system.
-
What is the IC693ALG391 output range?+It supports current ranges of 4-20mA or 0-20mA.
-
What is the IC693ALG391 resolution?+The module has 12-bit resolution.
-
What is the IC693ALG391 voltage requirement?+It requires a +24 VDC supply, which can be derived from the PLC backplane or an external source.
-
What is the IC693ALG391 load capacity?+It handles a 0 to 850-ohm user load in current mode.
Get a quick price fo IC693ALG391
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
- Product Applications
- Driving remote sensors or control elements in oil refineries and pipeline monitoring systems
- Drive the proportional regulating valve, actuator and damping controller
- Deployed in oil and gas, metallurgical mining and food processing factories
- Send speed reference signals to frequency converters (VFDs) to precisely regulate the motor speeds of conveyors, pumps or fans.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Core Protection Features
Features:
- 2-Channel Analog Current Output module
- Series 90-30 Programmable Logic Controller provides two output channels
- Analog output module
The IC693ALG391 GE Analog output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693ALG391 Analog output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693ALG391 is a Series 90-30 PLC, analog output module providing 0-20 mA / 4-20 mA current output signal and 1-5VDC / 0-5 VDC voltage output signals. This module is formerly manufactured by GE Fanuc Automation, now under Emerson Automation. The module has Two (2) analog output channels with resolution of 4µA (1 LSB = 4µA) at 4-20mA; 5µA (1 LSB = 5µA) at 0 to 20 mA; 1 mV (1 LSB = 1 mV) at 1 to 5 V; 1.25 mV (1 LSB = 1.25 mV) at 0 to 5 V with backplane current draw of 30 mA from +5V supply and 215 mA from Isolated +24 VDC backplane supply or user supply.
Electrical Isolation: The module provides 1500 volts VAC of isolation between the field side and the PLC logic side. This protects the backplane and CPU from field-generated noise and potential electrical faults.
Power Supply Redundancy: Users can connect an external +24 VDC power supply (range 20–30 VDC) to the terminal board. This acts as a standby power source to maintain output values if the internal power supply fails, particularly when the "Hold-Last-State" option is active.
Compliance Voltage Limit: The module has a maximum compliance voltage of 25 V, ensuring it operates within safe limits for connected current loops.
Signal Integrity & Noise Rejection: To protect against electromagnetic interference (EMI), the module requires the use of twisted, shielded instrumentation cable grounded at the user terminal connector block.
