- IC693DNM200-BC

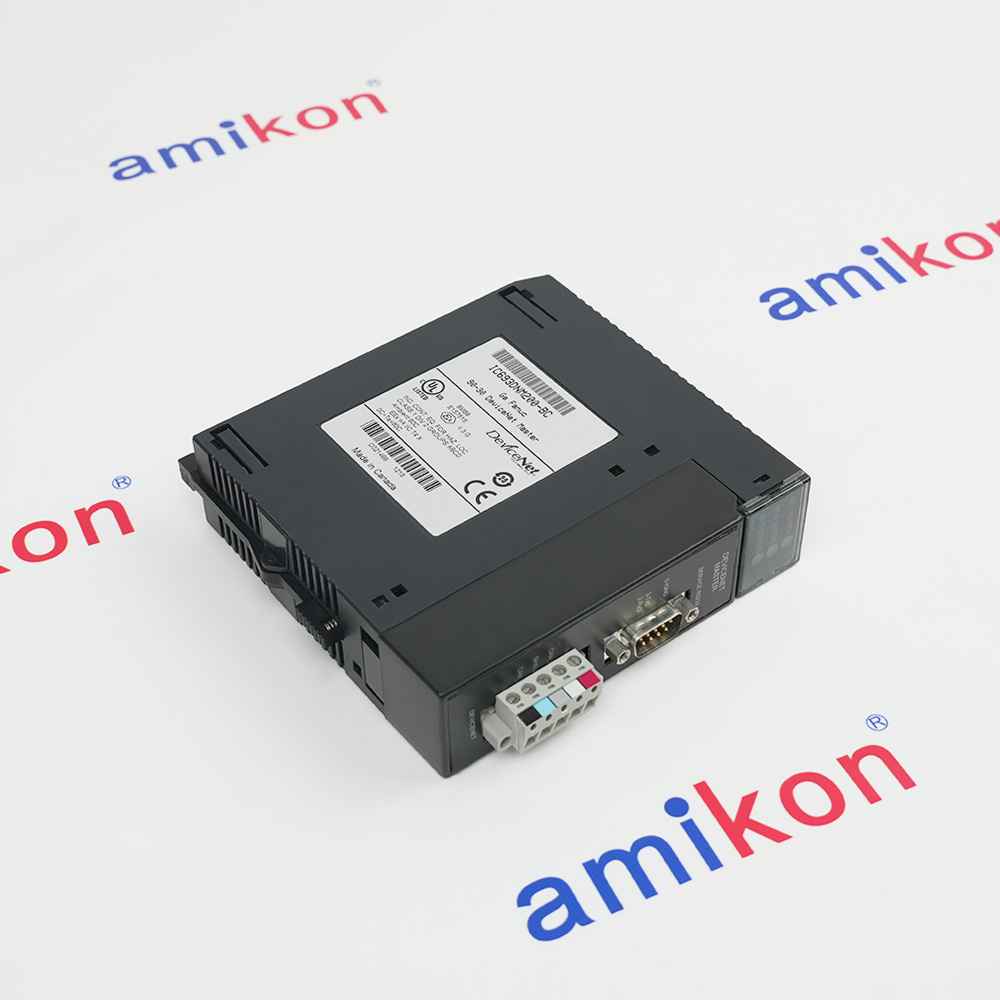

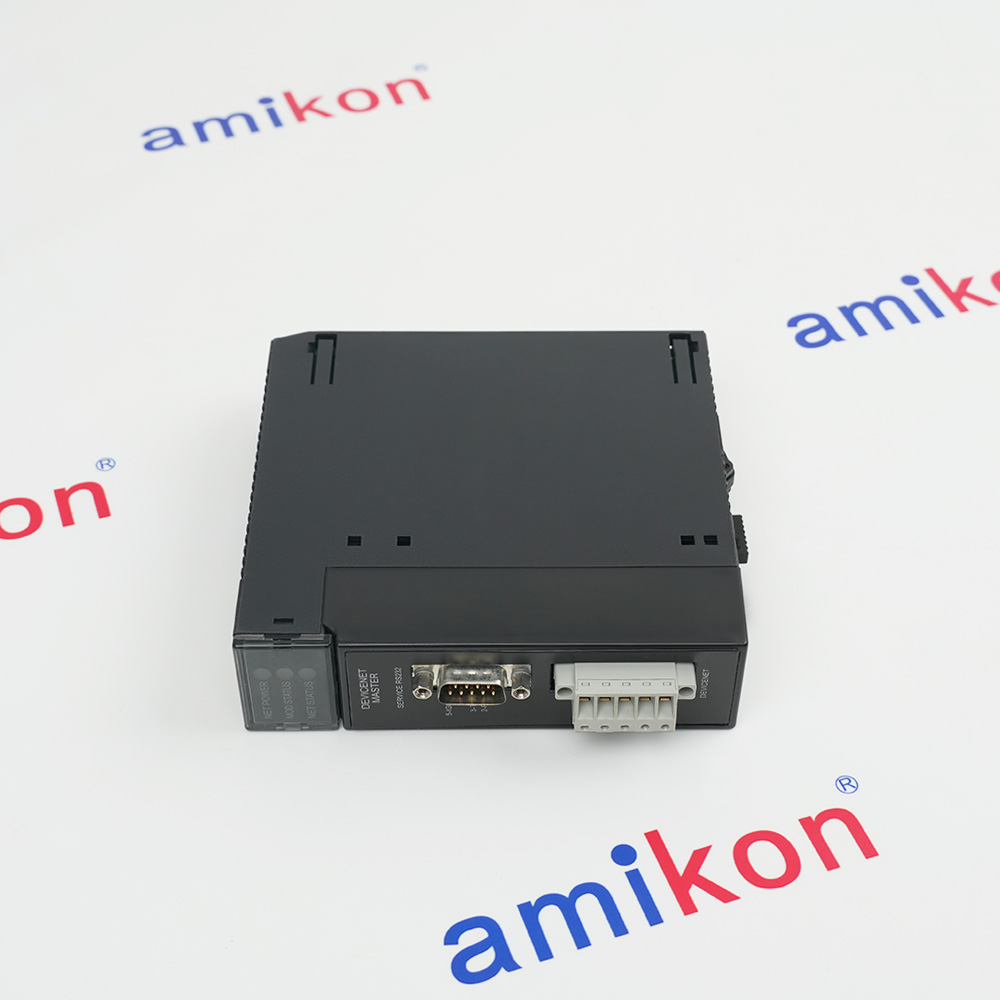

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IC693DNM200-BC
-
Product ModelIC693DNM200-BC
-
Spare ModelIC693DNM200
-
Product ParametersDeviceNet Master Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14.2x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.2 kg
-
CompatibilitySeries 90-30
-
Communication speed125K, 250K and 500K
-
Rated voltage12 to 24 Volts DC, positive logic
-
ON-state voltagedrop 0.3 Volts DC
-
Number of outputs32
-
No. of slavesup to 63 DeviceNet slaves
-
Data transfer per slave255 Input Bytes / 255 Output Bytes
Description
IC693DNM200
PLC MODULE
DEVICENET MASTER
SERIES 90-30
RS-232
32 OUTPUT POINTS
PLC MODULE
DEVICENET MASTER
SERIES 90-30
RS-232
32 OUTPUT POINTS
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Key Configuration Steps
Features:
- Support for all standard data rates (125K, 250K, 500K)
- Support for 255 bytes input data transfer and 255 bytes output data transfer per slave
- Support for 3972 bytes of input data transfer and 3972 bytes of output data transfer per master
- Configurable fault behavior on loss of communication
- Support for configuration of the global scan rate
The DeviceNet Master Module allows a control system CPU to send and receive data over a DeviceNet network. The module can act as master for up to 63 slaves on the DeviceNet network. It can also be configured to simultaneously function as a slave to another master on the bus.
The IC693DNM200-BC GE DeviceNet Master Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693DNM200-BC DeviceNet Master Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693DNM200 is a DeviceNet Master Module. This module is a single slot communication module that is part of the Series 90-30 Programmable Logic Controller (PLC) platform being manufactured by formerly by GE Fanuc, now under Emerson Automation. This module is provided with a single DeviceNet terminal. It also has One (1) RS232 9-pin D shell female port that is used as module service port. The IC693DNM200 supports all data rates of DeviceNet protocol particularly, 125K, 250K and 500K transmission rates. Up to 255 Bytes of input data and 255 Bytes of output data can be transferred by the master per slave device and up to 3972 bytes of input data and 3972 Bytes of output data can be transferred to this master module. Additionally, a total of 126 I/O connections can be established using this module as it is capable of communicating up to 63 slave devices, where each slave assignable with up to Two (2) I/O station. The module’s supported and configurable data connection are Polled, Strobe, Cyclic or COS. Explicit messaging, Unconnected Message Manager (UCMM) and One (1) Proxy connection per slave unit is also supported by this DeviceNet Master Module. In addition, this module can operate in dual mode, as Master and Slave simultaneously. Fault behavior specifically during communication loss can be configured to provide acceptable system reaction in the event of the said error. This module also comes with an upgradeable firmware, allowing module updates and bug fixes to be downloaded via the RS232 service port.
- Automotive Manufacturing Plants:Coordinates sensors & control systems in paint shops and assembly lines.
- Steel and Metal Processing Mills:Deployed for robust control in heavy industrial environments.
- Food and Beverage Facilities:Soft drink batch, brewery packaging, and coffee creamer plant control.
- Power and Energy Plants:Monitors critical equipment like valve anomalies and pump vibrations.
- Consumer Goods Factories:Integrated into automated systems for liquid detergents & specialty chemicals.
- Material and Building Product Factories:Used in plants producing architectural products, cement, and modular homes.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Module Placement: Install the module in any slot of a Series 90-30 main rack except slots 0 and 1.
Node Address & Baud Rate: Use the software to set the module's unique MAC ID (0–63) and baud rate (125K, 250K, or 500K).
Slave Configuration: You must configure at least one slave device for the module to report valid network status or firmware ID inputs.
Network Power: Ensure the DeviceNet network has external 12–24V DC power available before storing the hardware configuration, or the module may fail during the store process.
FAQs
-
What is the IC693DNM200-BC?
+The GE Fanuc/Emerson IC693DNM200 is a DeviceNet Master/Scanner module designed for the Series 90-30 PLC system, allowing it to act as a bridge between the PLC CPU and DeviceNet slave devices. -
What is the function of the IC693DNM200?
+It is a DeviceNet Master module that enables a Series 90-30 CPU to send and receive I/O data over a DeviceNet network. -
IC693DNM200 baud rates are supported?
+The module supports standard DeviceNet data rates: 125K, 250K, and 500K baud. -
IC693DNM200 Can it be installed in remote racks?
+No, the IC693DNM200 cannot be installed in remote or expansion racks; it must be in the main CPU rack.
