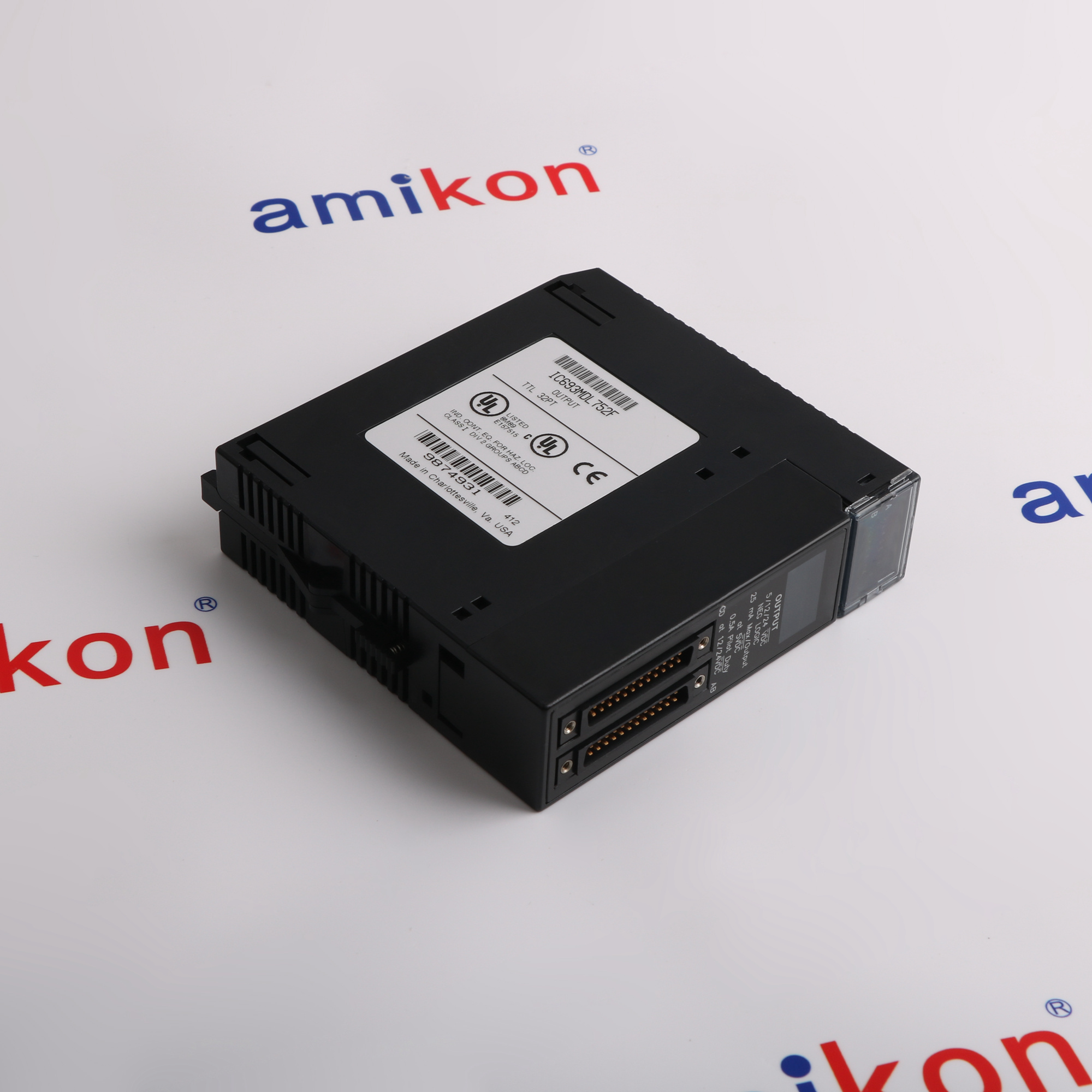

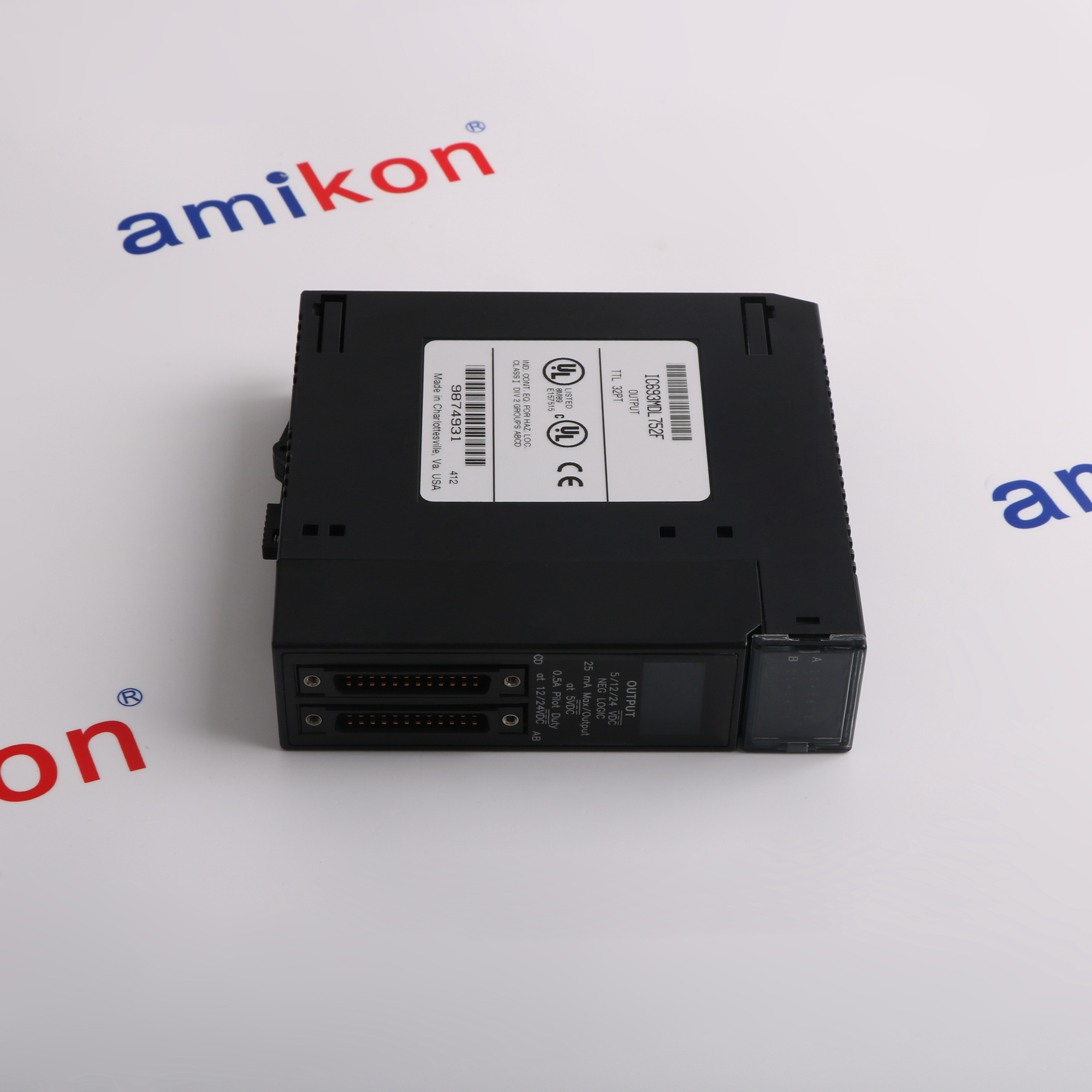

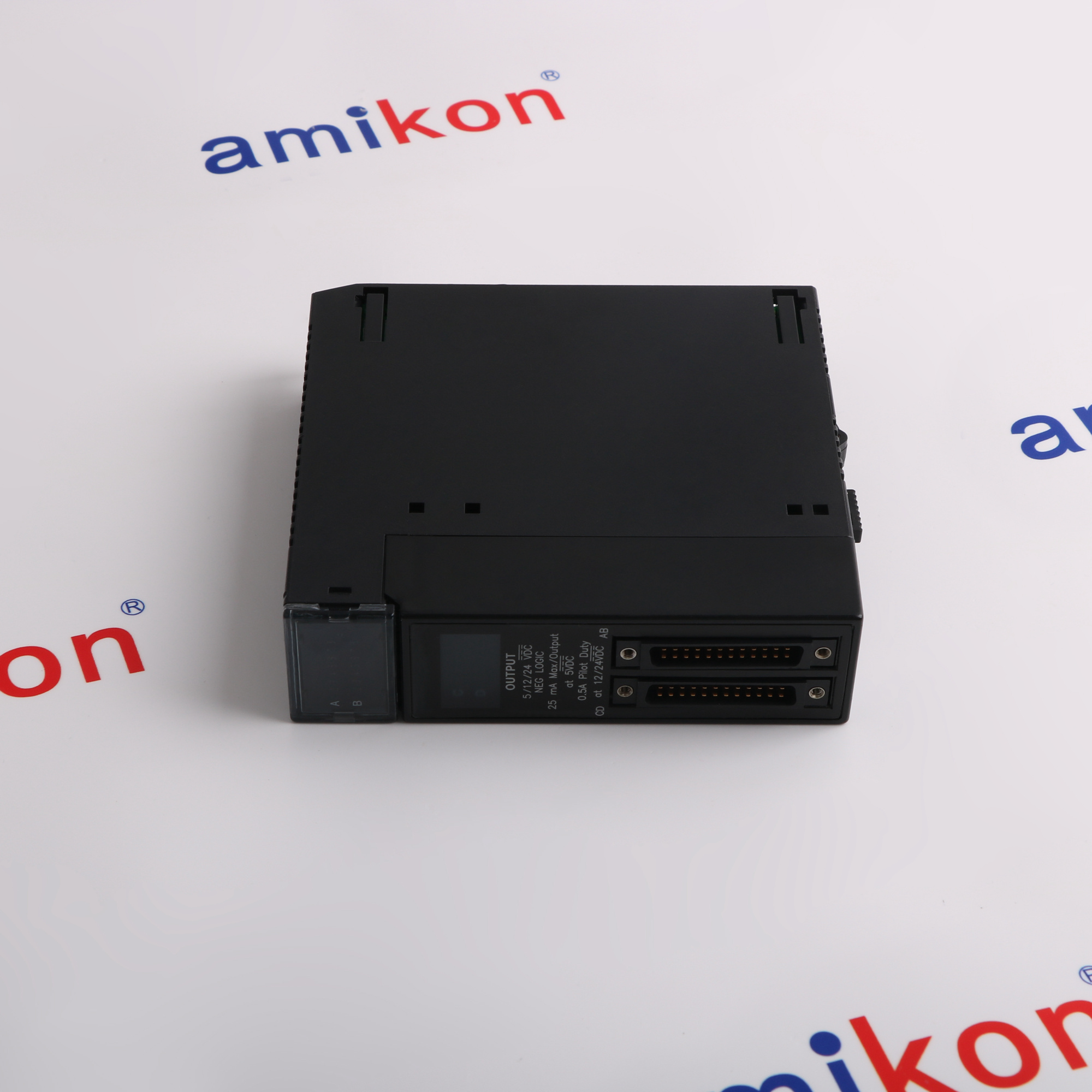

IC693MDL752
OUTPUT MODULE
32 POINT
NEGATIVE LOGIC
5/12/24 VDC
OUTPUT MODULE
32 POINT
NEGATIVE LOGIC
5/12/24 VDC
Technical specifications for IC693MDL752
-
Product ModelIC693MDL752
-
Product ParametersDiscrete Input module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.24 kg
-
Rated Voltage5, and 12 through 24 volts DC, negative logic
-
Output Voltage Range4.75 to 5.25 volts DC (TTL mode)10.2 to 28.8 volts DC (12/24V mode)
-
Outputs per Module32
-
Isolation1500 volts between field side and logic side250 volts between groups
-
Inrush Current4.6 amps for 10 ms
-
On-state (active low)0.4 volts DC
-
Voltage Drop0.24 volts DC
-
Off-state Leakage Current0.1 mA maximum
-
On Response Time0.5 ms maximum
-
Off Response Time0.5 ms maximum
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is IC693MDL752 ?+The GE IC693MDL752 is a 32-point, 5/24 VDC negative logic (sinking) output module for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system.
-
How are the outputs of IC693MDL752 organized?+The 32 outputs are divided into 4 independent groups, each with 8 points. Each group has its own common terminal.
-
How to reset the electronic fuse of IC693MDL752?+After clearing external faults, simply reconnect the module to the 24V power supply to reset the electronic fuse.
-
Can this module switch AC voltages?+No. It is designed strictly for DC voltage applications. Applying AC will destroy the module's solid-state components.
-
Is the IC693MDL752 hot-swappable?+No. You must power down the Series 90-30 PLC rack before removing or inserting the module to prevent damage.
Get a quick price fo IC693MDL752
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- 5/24 Volt DC (TTL) Negative Logic Output
- 32 Point Input
- Series 90-30Programmable Logic Controller
The module has two modes of operation. In the TTL mode, the outputs can switch user loadsacross +5 VDC (±5%) and are capable of sinking a maximum current of 25 mA per point. Inthe 12/24V mode, the outputs can switch user loads over the range of +12 through –24 VDC(+20%, –15%) and are capable of sinking a maximum current of 0.5A per point. Two pins areprovided on the user I/O connectors for each group common. Each pin has a current handlingcapability of 3 amperes. It is recommended that connections are made to both pins whenconnecting the common; however, it is a requirement for high current applications (between 3and 4 amperes).
The IC693MDL752 GE Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693MDL752 Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each group can be used in the mode of operation needed to satisfy the load requirements for aparticular application. For example, group A can drive TTL loads and group B can drive 12VDC loads, while group C and D can be reserved for driving 24 VDC loads. It is important tonote, however that the effects of electrical noise must be considered when mixing TTL andinductive-type loads.An internal pull-up resistor is provided for each point. The function of each resistor is topassively pull up the output to the user positive side power input (typically +5V for TTL mode)when the output point FET is OFF, thereby providing a high logic level for TTL applications.All 32 outputs are forced OFF when the CPU is stopped. Power to provide current to the loadsmust be provided by the user. The module also draws a minimum amount of power from theuser supply to provide gate drive to the output devices.Backplane isolation between the field side and logic side is provided by opto-couplers on themodule. No special fault or alarm diagnostics are reported. LED indicators (labeled A1 - A8,B1 - B8, C1 - C8, D1 - D8) at the top of the module provide the ON/OFF status of each outputpoint.
- Packaging & Bottling Lines:Monitors container/cap/label presence
- Material Handling & Conveyors:Item position tracking to trigger sorting/stopping
- Metal & Plastics Processing:Controls injection molding & extruders via gate/cycle monitoring
- Robotic Work Cells:PLC interface for FANUC robots: tending, palletizing & transfer
- Process Equipment:Manages water/boiler/chemical makeup systems
- Elevator & Lift Controls:Floor position & door status for safe transport
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety First: Turn off power to the PLC system before installing or removing modules.
Module Placement: Insert the IC693MDL752 into any available I/O slot in a GE Series 90-30 baseplate.
Wiring Connections: Connections are made via two 24-pin male connectors on the front of the module.
Connector 1 (Right - Front View): Channels 1-16 (Groups A and B).
Connector 2 (Left - Front View): Channels 17-32 (Groups C and D).
Connector Type: Use Fujitsu FCN-365P024-AU connectors or compatible pre-wired cables (IC693CBL327/328).
