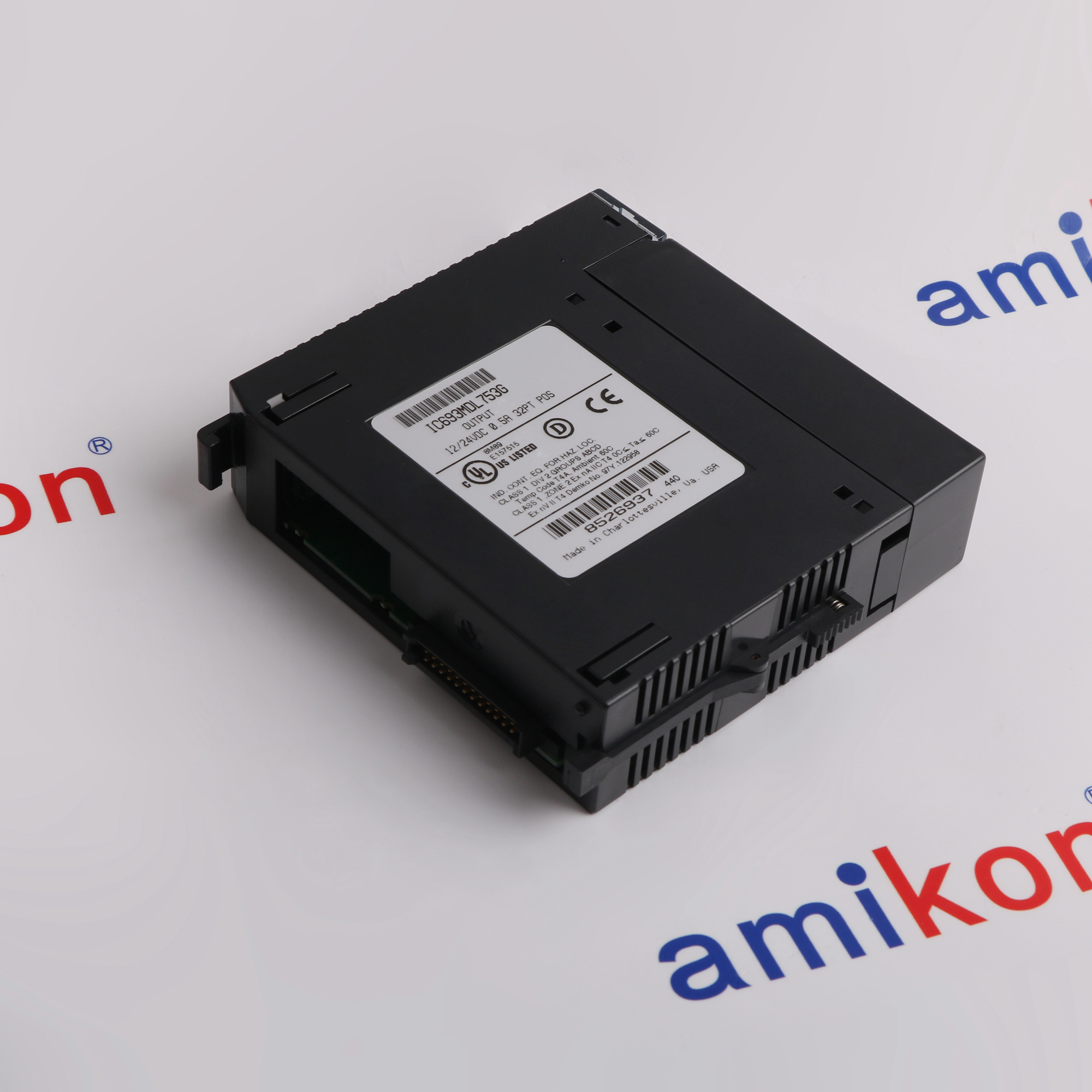

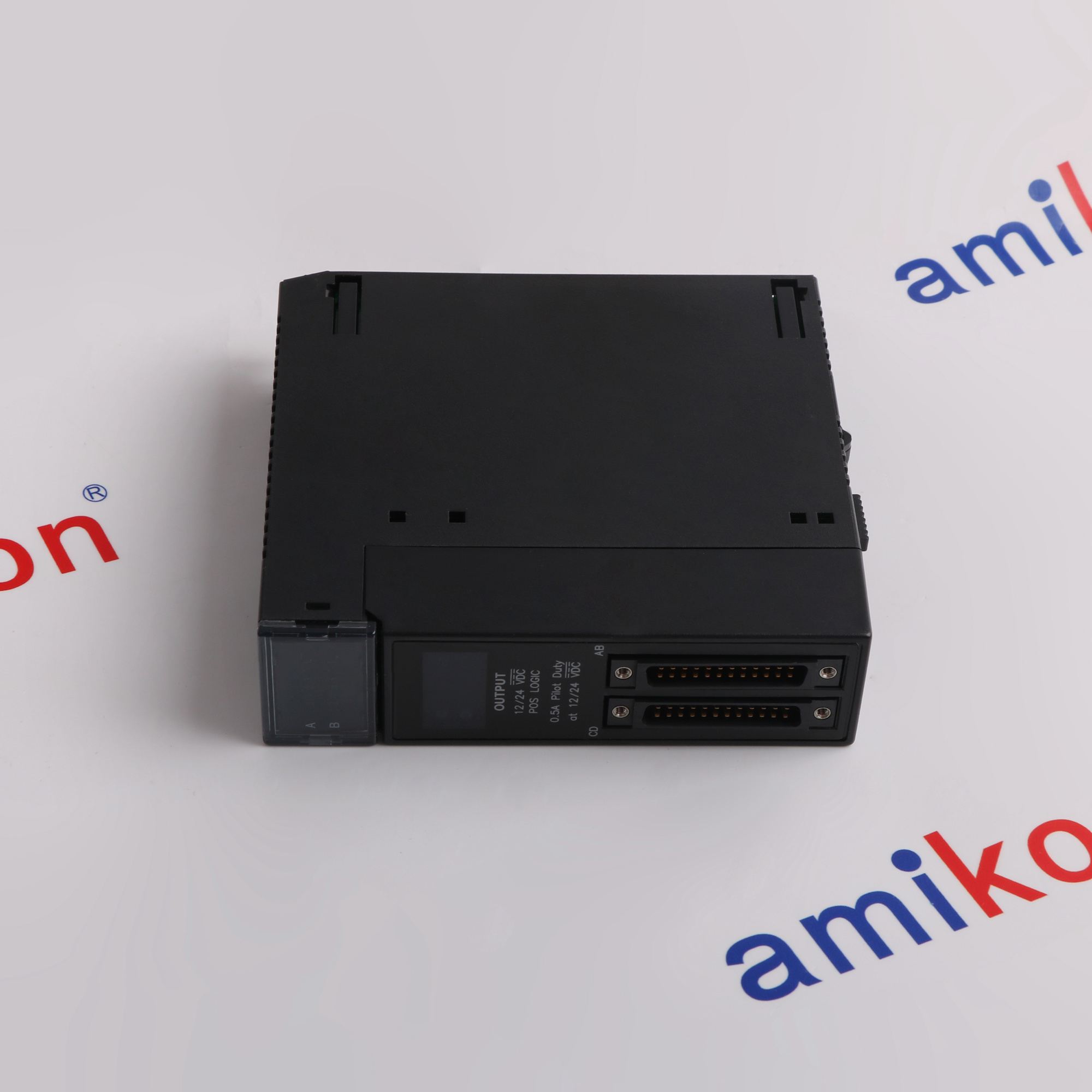

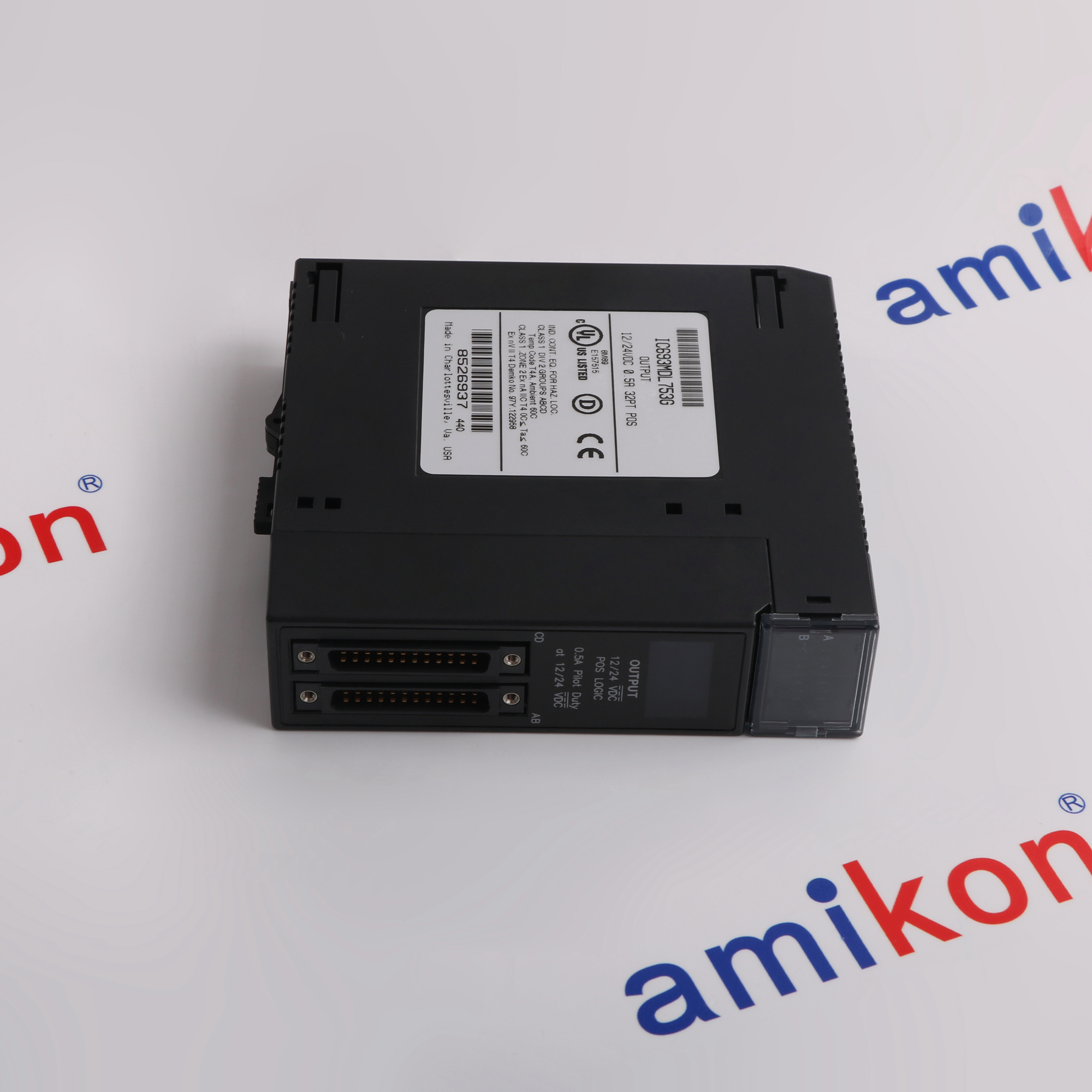

Technical specifications for IC693MDL753
-
Product ModelIC693MDL753
-
Product ParametersOutput Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.24 kg
-
Maximum inrush current5.4 A for 20 ms
-
Output point current draw16 milliamps
-
Output voltage range10.2-28.8 VDC
-
Module current draw260 milliamps
-
Output Voltage Drop0.3 volt, maximum
-
Product Lifecycle StatusDiscontinued/Obsolete
-
Output signal range12 to 24 volts DC (+20%, –15%)
-
Isolation1500 volts between field side and logic side; 250 Volts between groups
-
Output current0.5 Amperes per point; 4 Amperes per module; 3 Amperes per group common pin
Description
IC693MDL753
OUTPUT MODULE
32 POINT
LOGIC
POSITIVE
0.5 AMP
12/24 VDC
OUTPUT MODULE
32 POINT
LOGIC
POSITIVE
0.5 AMP
12/24 VDC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Wiring Guidelines
Features:
- Series 90-30
- 12/24 Volt DC, 0.5A Positive Logic Output
- Discrete output module
The IC693MDL753 GE Discrete output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693MDL753 Discrete output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693MDL753 is a digital output module from the Series 90-30 Programmable Logic Controller (PLC) family. This module has Thirty-Two (32) positive logic output channels, generating 102 - 28.8 output voltage range with nominal voltages of 12 - 24 VDC. The IC693MDL753 is formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. This module comes with output groupings specifically, Four (4) groups of Eight (8) outputs each. Each output group has 250 Volts isolation and 100 Volts between field side and logic side or optical isolation. The output current ratings of the IC693MDL753 are 0.5 Amperes per point with a maximum of 4 Amperes per group and a maximum of 3 Amperes per group common pin. It generates an inrush current of 5.4 Amperes for 10 ms while the On-state voltage drop of 0.3 VDC.
- Solenoid and Valve Actuation:Switches positive supply for hydraulic/pneumatic valves
- Relay and Contactor Control:Sourcing current to interposing relays & motor contactors.
- Industrial Annunciation and Alarms:Drives panel lights, LEDs, sirens & horns
- OEM Machinery Control:Multi-point digital sequencing in OEM control panels
- Clutch Brake Mechanisms:High-density on/off sequencing for clutch-brake units
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The IC693MDL753 is a 12/24 Volt DC, 0.5A Positive Logic (Sourcing) Output Module designed for the GE Fanuc (now Emerson) Series 90-30 Programmable Logic Controller (PLC). It provides 32 discrete outputs divided into four isolated groups.
Common Pins: Each group has its own dedicated common. Two pins are provided for each common; for high-current applications (3–4 Amps), both pins must be connected.
FAQs
-
What is IC693MDL753 ?
+The GE Fanuc IC693MDL753 is a 12/24V DC, 32-point positive logic (sourcing) discrete output module designed for the Series 90-30 PLC system. -
How are the IC693MDL753 outputs organized?
+The 32 outputs are arranged in four isolated groups (A, B, C, and D) of eight channels each. -
What is the IC693MDL753 current capacity?
+Each individual output point can handle up to 0.5 Amps. Each group is limited to a maximum of 4 Amps total, and each common pin can handle up to 3 Amps. -
What is the IC693MDL753 typical response time?
+The module has a maximum response time of 0.5 ms for both on-to-off and off-to-on signal transitions. -
What is the current consumption of the IC693MDL753?
+The IC693MDL753 has current consumption of 260 mA from 5VDC backplane specifically, 3 mA + 3 mA per point ON + 4.7 mA per LED indicator.
