- IS220PVIBH1AL
In Stock
Ships by Saturday, June 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IS220PVIBH1AL
-
Product ModelIS220PVIBH1AL
-
Product ParametersVibration Monitor I/O Pack
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock3 units
-
Estimated Shipping Size6x12.8x8.2cm
-
ManufacturerGeneral Electric
-
Weight0.45 kg
-
Operating Temp-40°C to +70°C
-
Humidity5–95% RH (non-condensing)
-
Vibration Resistance5g (10–500Hz)
-
Probe Excitation Voltage-24 VDC
-
Probe Current Limit12 mA per transducer
-
CMRR (50/60 Hz)-50 dB
Description

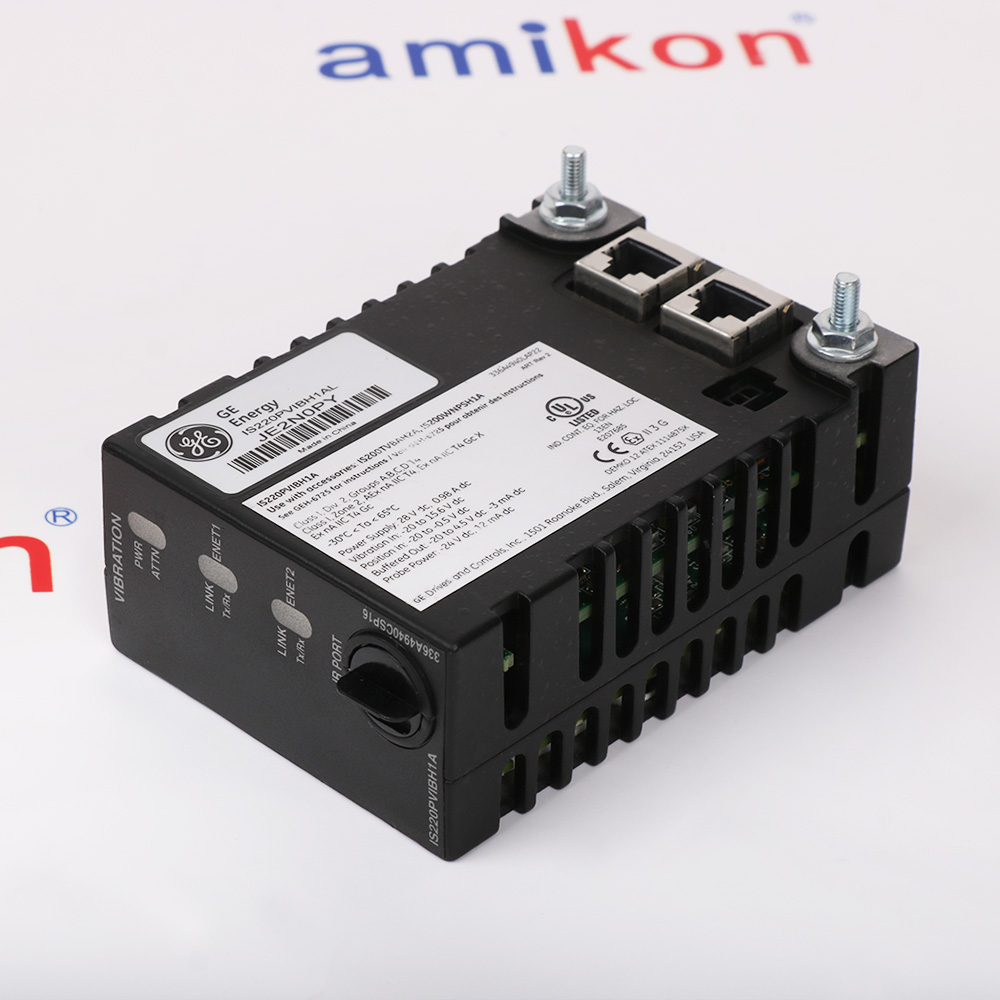

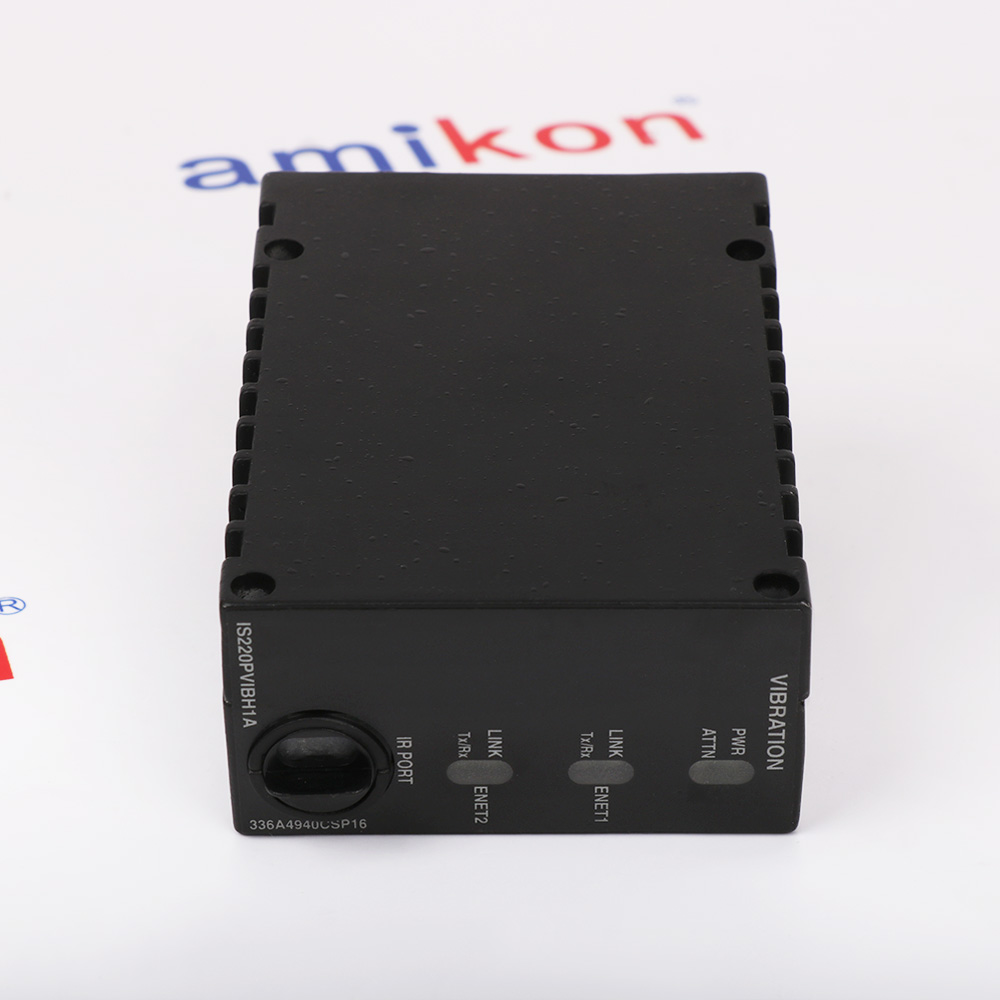

The GE IS220PVIBH1AL is a Vibration Monitor I/O Pack. The GE IS220PVIBH1AL is manufactured by GE for use in the Mark VI Series. The GE IS220PVIBH1AL is part of one of the final GE Mark product series to incorporate Speedtronic control system technology.
The GE IS220PVIBH1AL is a revised version. The original version of the GE IS220PVIBH1AL was the IS220PVIBH1 parent Vibration Monitor I/O Pack. The GE IS220PVIBH1AL incorporates updated hardware specifications compared to the parent version.
The GE IS220PVIBH1AL is a Vibration Monitor Pack. The main function of the GE IS220PVIBH1AL is to provide an electrical interfacing function between up to two I/O Ethernet networks and a vibration terminal board. The GE IS220PVIBH1AL contains a main processor board, a daughterboard, and an acquisition board.
The GE IS220PVIBH1AL is a revised version. The original version of the GE IS220PVIBH1AL was the IS220PVIBH1 parent Vibration Monitor I/O Pack. The GE IS220PVIBH1AL incorporates updated hardware specifications compared to the parent version.
The GE IS220PVIBH1AL is a Vibration Monitor Pack. The main function of the GE IS220PVIBH1AL is to provide an electrical interfacing function between up to two I/O Ethernet networks and a vibration terminal board. The GE IS220PVIBH1AL contains a main processor board, a daughterboard, and an acquisition board.
Alternative Names
IS220PVIBH1Al
IS22OPVIBH1AL
IS220PVIBHIAL
1S220PVIBHIAL
1S22OPVIBHIAl
ISZZ0PVIBH1AL
Information
Overview
Manuals
Engineering Considerations
Product Applications
I/O Pack Installation
Features:
- Thirteen-Channel Vibration and Proximity Signal Acquisition
- Dual Independent 10/100 Ethernet Ports for IONet Communication
- Sensor-Channel Specificity for Optimized Signal Processing
- Triple Modular Redundancy and Simplex Backup Protection Support
- Hardware Reset Circuit and Watchdog Timer
The GE IS220PVIBH1A supports accelerometer sensors. The GE IS220PVIBH1AL has sensor-channel specificity. Accelerometers on the GE IS220PVIBH1AL are used only with channels one, two, and three. Channels nine, ten, eleven, and twelve on the GE IS220PVIBH1AL are exclusively for supporting proximitors. Channel thirteen on the GE IS220PVIBH1AL can input a proximity-type or Keyphasor signal type.
The IS220PVIBH1AL GE Vibration Monitor I/O Pack may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS220PVIBH1AL Vibration Monitor I/O Pack Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE IS220PVIBH1A has a high-speed processor. The GE IS220PVIBH1A has two fully independent 10/100 Ethernet ports. The GE IS220PVIBH1A includes a hardware reset circuit. The GE IS220PVIBH1A includes a watchdog timer. The GE IS220PVIBH1A has internal sensor monitors for temperature.
The processor application code on the GE IS220PVIBH1A can contain logic for operation from single or dual Ethernet inputs. When operated from two Ethernet inputs on the GE IS220PVIBH1A, network paths are continuously active. Failure of one network on the GE IS220PVIBH1A will not disturb I/O pack operation. Failure of one network on the GE IS220PVIBH1A will be indicated via the operating network connection.
- Gas and Steam Power Plants:Prevents turbine failure during load drops
- Hydroelectric Power Generation:Turbine speed & generator grid sync
- Industrial Cogeneration Facilities:High-availability backup steam turbines
- Hazardous Environment Applications:Temperature extremes & strict isolation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Simplex Configuration: Plug a single PVIB pack directly into the DC-37 pin connector on the terminal board.TMR Configuration: Insert three PVIB I/O packs into their corresponding connectors for Triple Modular Redundant (TMR) setups.Mechanical Securing: Lock the packs into the mounting bracket using the threaded studs located adjacent to the Ethernet ports.Adjustment: Adjust the bracket position so that there is no right-angle force applied to the DC-37 connector. This alignment step is typically only required once during the product's lifetime.
Technical notes
The GE IS220PVIBH1AL has sensor-channel specificity. Accelerometers on the GE IS220PVIBH1AL are used only with channels one, two, and three. Channels nine, ten, eleven, and twelve on the GE IS220PVIBH1AL are exclusively for supporting proximitors. Channel thirteen on the GE IS220PVIBH1AL can input a proximity-type or Keyphasor signal type.
FAQs
-
Does it support network redundancy?
+Yes. The module is equipped with dual, fully independent 10/100 Mbps RJ45 Ethernet ports for network redundancy on the IONet. If one connection fails, communication is automatically maintained through the other. -
What terminal boards are compatible?
+It is specifically designed to interface with the GE TVBA vibration terminal board. -
Are there channel-specific sensor restrictions?
+Yes. Channels 1–3 support accelerometers, Proximitors, Velomitors, and seismic sensors. Channels 9–12 are reserved exclusively for Proximitor sensors. Channel 13 is dedicated to reading a Keyphasor or proximity-type pulse signal. -
What are the sampling rate and resolution specs?
+The module utilizes onboard digital signal processing via an FPGA, delivering a high-speed Analog-to-Digital (A/D) sampling rate of 80 kHz with a 14-bit resolution..
