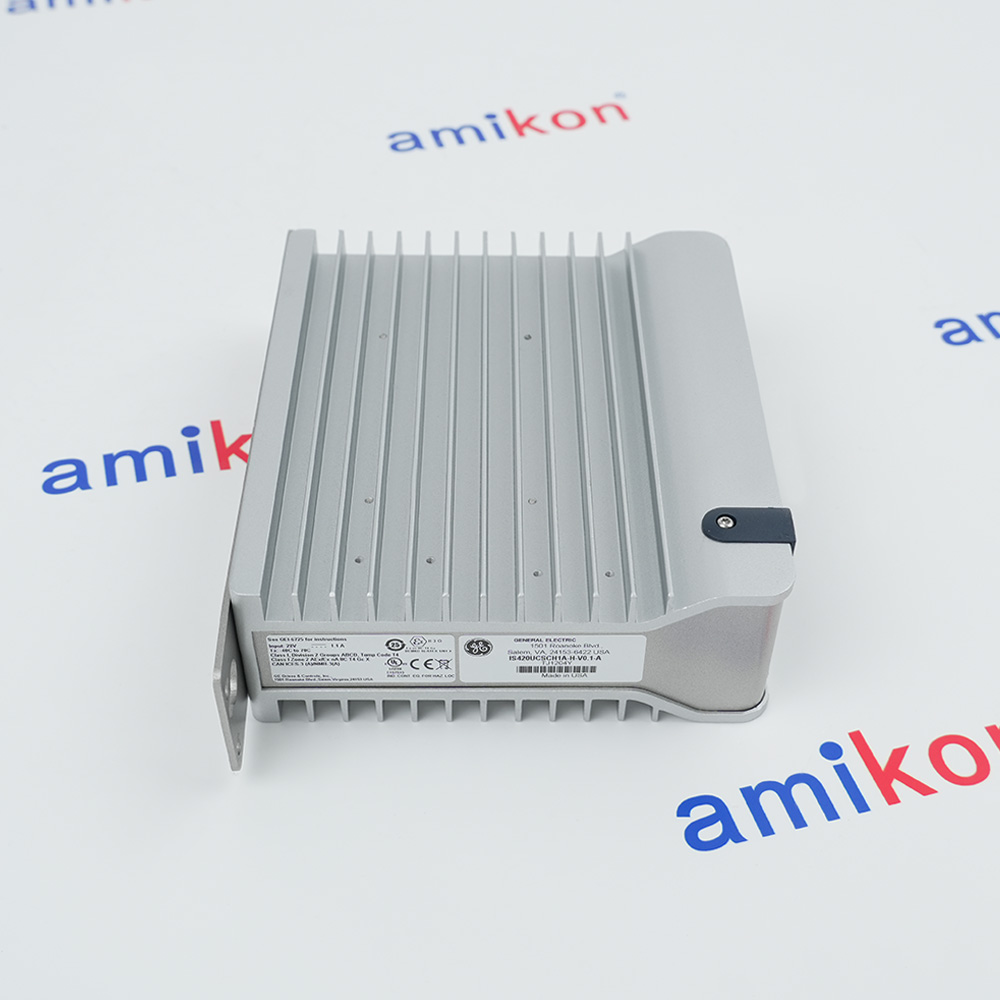

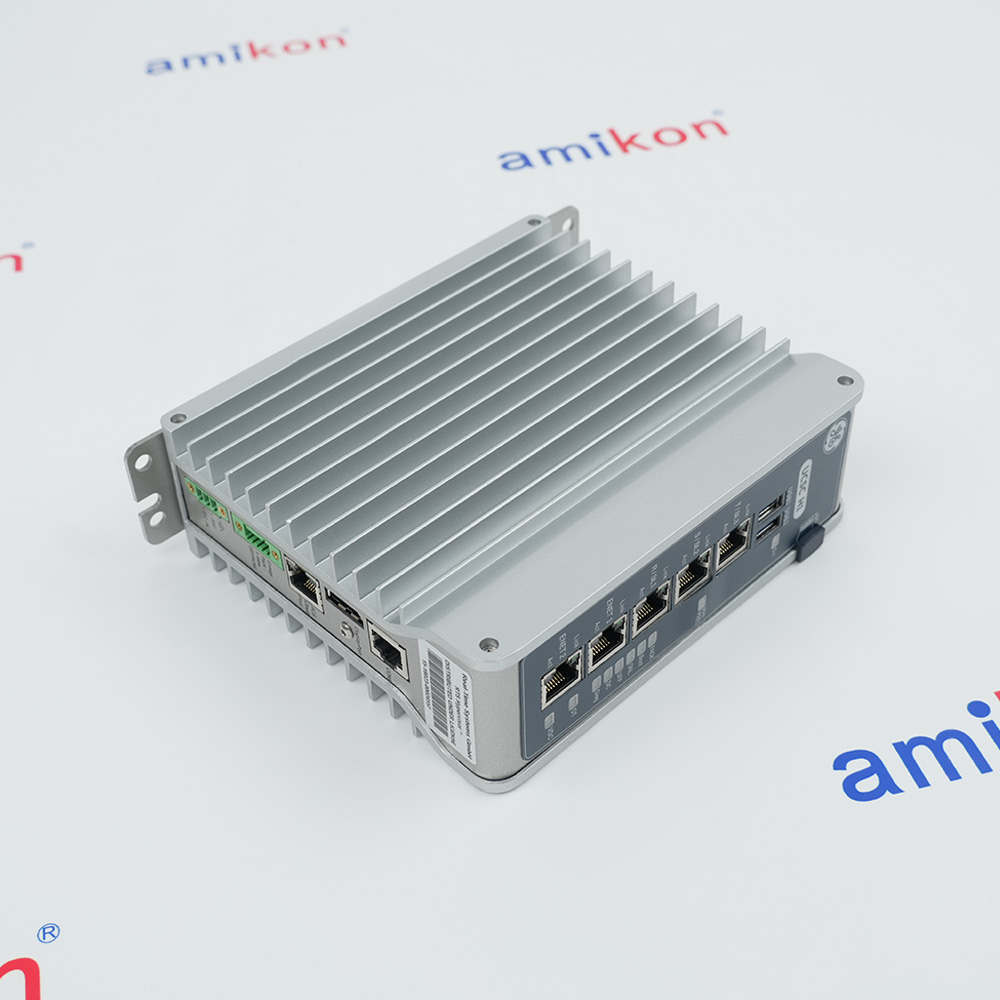

Technical specifications for IS420UCSCH1A-H-V0.1-A
-
Product ModelIS420UCSCH1A-H-V0.1-A
-
Product ParametersUCSC Controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x15.3x20.3cm
-
ManufacturerGeneral Electric
-
Weight1.52 kg
-
CPU Frequency1.2 Ghz
-
CPU Cores4
-
Mark VIe Cores2
-
L2 Cache2 M
-
Qnx Version6.5 or 7.1
-
ConsoleRJ-45(Adaptor sold separately)
-
Additional PortsUSB2.0 x2
-
Max Power Consumption31 W
-
Minimum Voltage18 V
-
Nominal Voltage24/28 V
-
Maximum Voltage30 V
-
Memory Size4 GB
Description
IS420UCSCH1A
Controller Module
UCSC Controller
AMD GX-412HCGE412GHCJ44JB
Controller Module
UCSC Controller
AMD GX-412HCGE412GHCJ44JB
Information
Overview
Manuals
Technical notes
Product Applications
Physical Mounting and Thermal Control
Features:
- Secure-by-Design Architecture with TPM & Measured Boot
- Embedded PROFINET & IONet Multi-Protocol Communication
- IEEE 1588 Precision Time Synchronization (±100 µs)
- Wide Operating Temperature Range
The IS420UCSCH1A-H-V0.1-A GE UCSE controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS420UCSCH1A-H-V0.1-A UCSE controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The UCSE Mark VIe controller is designed for high-speed,high-reliability industrial applications. It is loaded withsoftware specific to its application. As a turbine or balance ofplant (BoP) controller, it runs the Mark VIe firmware andblockware applications and utilizes Mark VIe IONet interfaces.IONet is a private special-purpose Ethernet that onlysupports Mark controls I/O packs and controllers. IEEE 1588protocol is used through the IONet interfaces to synchronizethe clock of the I/O modules and controllers to within ±100microseconds. External data is transferred to and from the IOPacks the controller over the IONet Ethernet interfaces. Thisincludes process inputs/outputs to the I/O modules. Unliketraditional controllers where I/O is on a backplane, the UCSEcontroller does not host any application I/O. In a redundantset, all I/O networks are attached to each controller,providing them with all input data. This hardware andsoftware architecture guarantees that no single point ofapplication input is lost if a controller is powered down formaintenance or repair.
- Gas and Steam Turbines:Fuel servo valves, gen sync & safety interlocks
- Combined-Cycle Power Plants:Manages HRSGs & balance-of-plant equipment
- Wind Energy Infrastructure:Pitch/yaw control & grid optimization for turbines
- Hydroelectric Power Facilities:Governor control with <0.25% speed regulation
- Oil & Gas Processing:Offshore & refinery mission-critical automation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Direct Sheet Metal Attachment: Secure the device directly to the back panel or a solid mounting base inside the cabinet using two to four mounting screws.Airflow Clearance: Leave a minimum of 100 mm (4 inches) of unobstructed air gap directly above and below the controller's cooling fins.Module Spacing: If mounting parallel units side-by-side (such as in Dual or TMR redundant configurations), maintain a minimum spacing of 50 mm (2 inches) between modules to prevent thermal derating.Temperature Tracking: Ensure the ambient temperature measured within 25 mm (1 inch) of any surface on the unit stays strictly within its specified operating envelope.
FAQs
-
What is the function of the IONet ports on this controller?+The IONet is a private, isolated Ethernet network used specifically for high-speed, secure communication between the controller, I/O packs, and other Mark VIe controls. It prevents standard office or external network traffic from interfering with the critical timing of turbine control loops
-
What is the IS420UCSCH1A-H-V0.1-A ?+The GE IS420UCSCH1A-H-V0.1-A is a UCSC Controller, It is primarily utilized in critical environments like power plants for precise, deterministic turbine control, system redundancy, and high-speed communications.
-
Can I expand the I/O port capacity of this controller?+Yes. While the standard module features a three-port Ethernet/I/O configuration, you can expand its capacity to 10 ports by coupling it with a seven-port expansion board (yielding a UCECH1x model)
-
What environmental limitations does it have?+It is engineered to operate in harsh industrial environments ranging from -20°C to +55°C, handling up to 95% non-condensing relative humidity.
