- IC695ALG600-DD

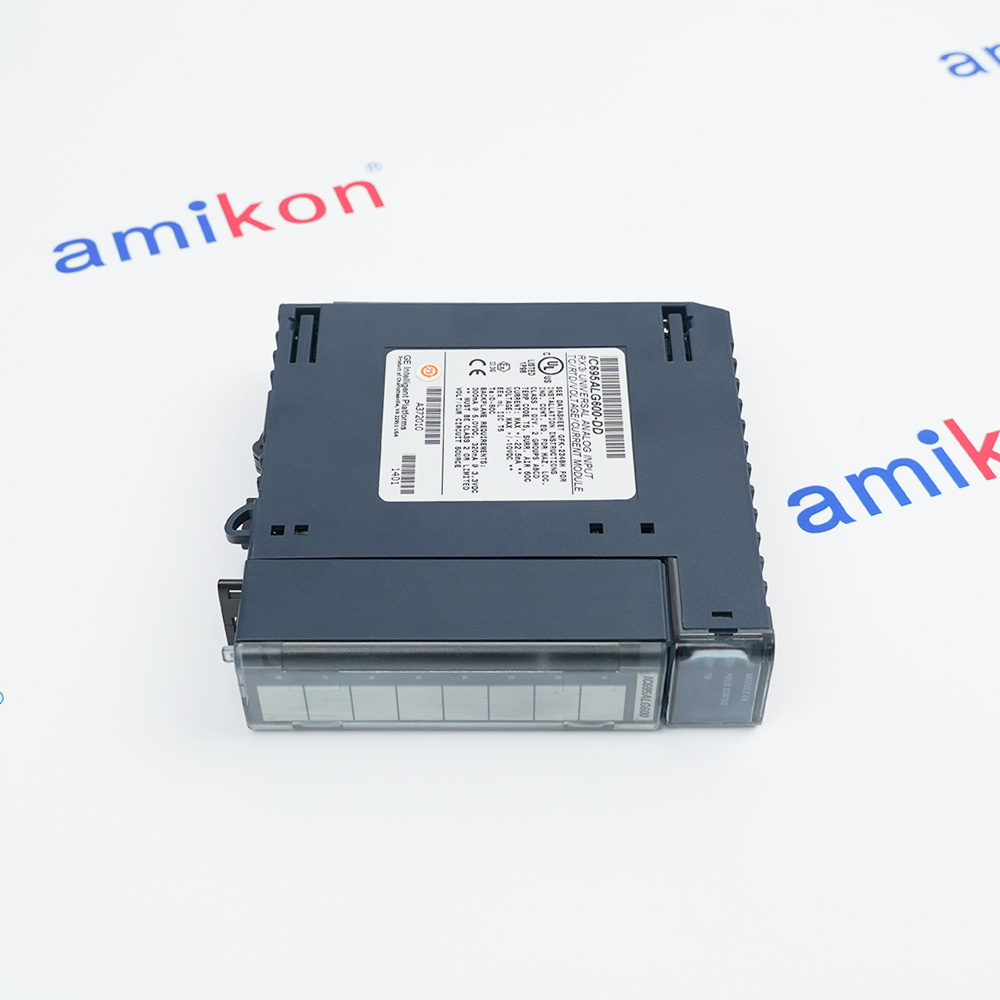

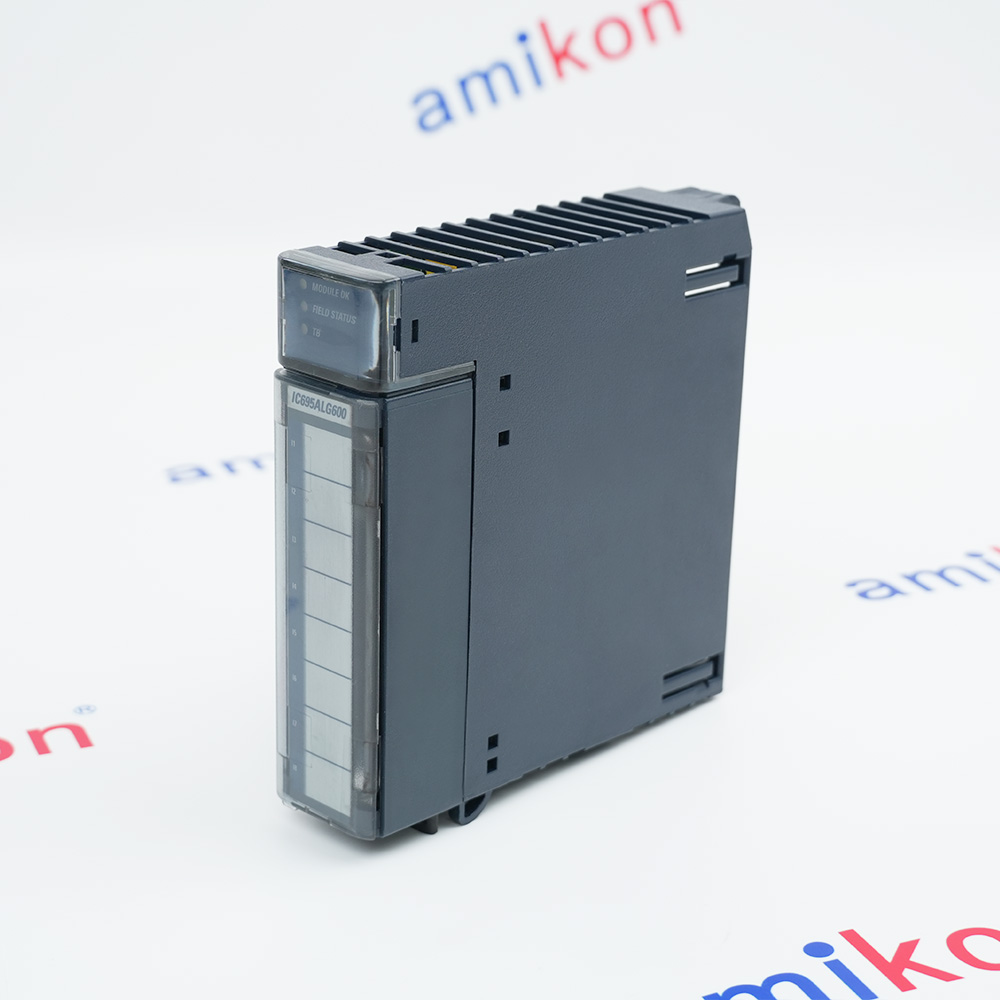

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IC695ALG600-DD
-
Product ModelIC695ALG600-DD
-
Spare ModelRX3i
-
Product ParametersUniversal Analog Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13.5x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Configurable Input Filter8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 1000Hz
-
ScalingFloating point user scaling
-
Max RTD Cable Impedance25 ohms
-
RTD Wire Length1000 ft max w/settling time of 1mSec
-
Input Impedance>1M ohm for Tc/V/RTD
-
Current Input Resistance249 ohms +/- 1%
-
Max Overvoltage+/-14.5VDC continuous
-
Max Overcurrent28mA continuous
-
Settling time to 5% of Full Scale<80mS
Description
IC695ALG600
ANALOG INPUT MODULE
UNIVERSAL
CONFIGURABLE FOR THERMOCOUPLE
RTD
RESISTIVE
CURRENT OR VOLTAGE
8 CHANNEL GENERAL PURPOSE
2 ISOLATED GROUPS: 4 CHANNELS PER GROUP
2CJC CHANNELS
COLD JUNTION COMPENSATION
ANALOG INPUT MODULE
UNIVERSAL
CONFIGURABLE FOR THERMOCOUPLE
RTD
RESISTIVE
CURRENT OR VOLTAGE
8 CHANNEL GENERAL PURPOSE
2 ISOLATED GROUPS: 4 CHANNELS PER GROUP
2CJC CHANNELS
COLD JUNTION COMPENSATION
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Installation
Features:
- Six hardware analog-to-digital filter frequencies, individually-selectableby channel
- Rapid channel acquisition times based on filter frequency
- Full autocalibration
- On-board error-checking
- Open-circuit detection for most input types
- Short-circuit detection for RTDs
- User-defined scaling
- High alarm, low alarm, high-high alarm, low-low alarm detection andreporting
- Module fault reporting
- Supports diagnostic point fault contacts in the logic program
- Module Status, Field Status, and TB LEDs
- CJC compensation on terminal block
- Temperature in Celsius or Fahrenheit
- Positive and negative Rate of Change Alarms
The IC695ALG600-DD GE ANALOG INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC695ALG600-DD ANALOG INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC695ALG600 is a universal analog input module from the PACSystems RX3i Programmable Automation Controller (PAC) platform. This module supports a variety of input signals such as voltage, current, resistance and supports Thermocouple and Resistance Temperature Detector (RTD). This module is now being manufactured by Emerson Automation, formerly by GE Intelligent Platforms (GE IP). The IC695ALG600 comes with Two (2) groups of Four (4) channels each and configurable to any combination on input signals. It supports 0–20 mA, 4–20 mA, +/-20 mA current signals; +50mV, +150 mV, 0–5 V, 1–5 V, 0–10 V, +10V voltage signals; 0 to 250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms resistance signals; PT 385 / 3916, N 618 / 672, NiFe 518, CU 426 RTD sensors; B, C, E, J, K, N, R, S, T Thermocouple inputs. The IC695ALG600 is installed to an RX3i universal backplane and requires at least version 2.80 firmware version or later. This module is configured using the Proficy Machine Edition (PME) version 5.0 SP1A LD-PLC Hotfix 1 or later. For termination of signals, this module requires use of Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) Terminal Block. Extended terminal blocks are recommended as these terminal blocks has slightly larger outer cover which can accommodate wires with thicker insulation and to accommodate shield wires. This module supports flash memory for future upgrades and status LED status indicators such as Module Status, Field Status, and TB LED indicators.
- Plastic Injection Molding: Precisely tracks melt temperatures and hydraulic pressures
- Boiler Control Systems: Manages fuel loading and steam pressure monitoring through voltage and current inputs
- Packaging Machinery: Handles high-speed data acquisition for sensors on automated lines
- Chemical Dosing Units: Uses 16-bit resolution for precise liquid flow and mixture control
- HVAC Chillers & Boilers: Uses RTD inputs for stable, long-term temperature sensing in commercial buildings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Backplane Requirements: This module must be installed in a PACSystems RX3i Universal Backplane (IC695 model numbers). It is not compatible with expansion or remote backplanes.
Terminal Blocks: Use high-density terminal blocks such as the Box-style (IC694TBB032) or Spring-style (IC694TBS032). Extended versions (TBB132/TBS132) are recommended for shielded or thicker wires.
Hot Swapping: The module supports Hot Insertion and Extraction
FAQs
-
What is the IC695ALG600-DD?
+The IC695ALG600-DD is an 8-channel Universal Analog Input module from the GE Fanuc RX3i PACSystems series. -
Does the IC695ALG600 require specific hardware for thermocouples?
+Yes, it provides 8 input channels and 2 dedicated Cold Junction Compensation (CJC) channels. The module supports internal CJC compensation, but requires the CJC terminals to be considered when configuring adjacent channels. -
Which terminal strip is required for this module?
+The IC695ALG600 requires a high-density terminal strip, specifically the IC694TBB032. -
What sensors does it support?
+It supports current (0-20mA, 4-20mA, ±20mA), voltage (±50mV to ±10V), resistance (up to 4000 Ohms), multiple RTDs (PT385, Ni672, etc.), and various thermocouples (B, C, E, J, K, N, R, S, T).
