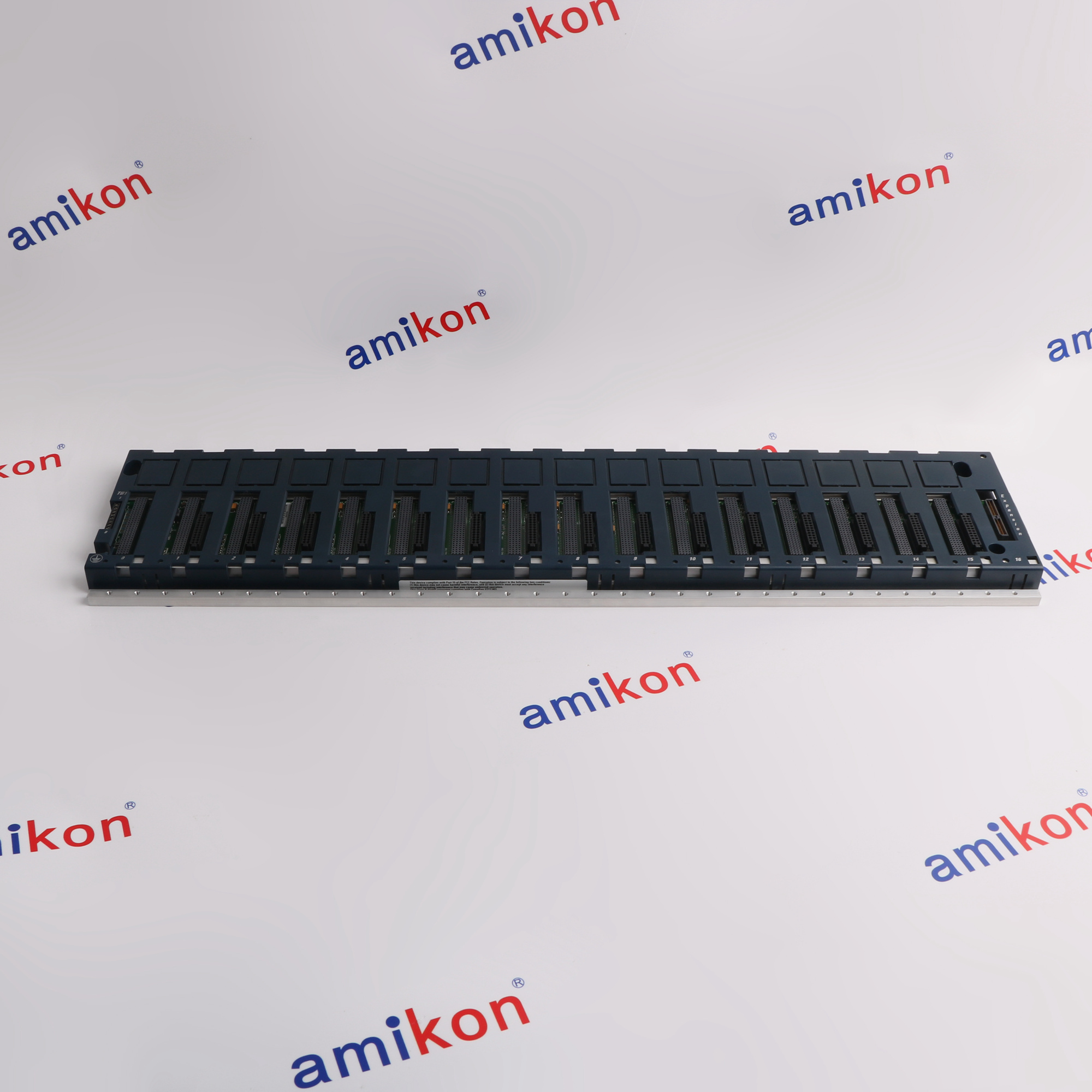

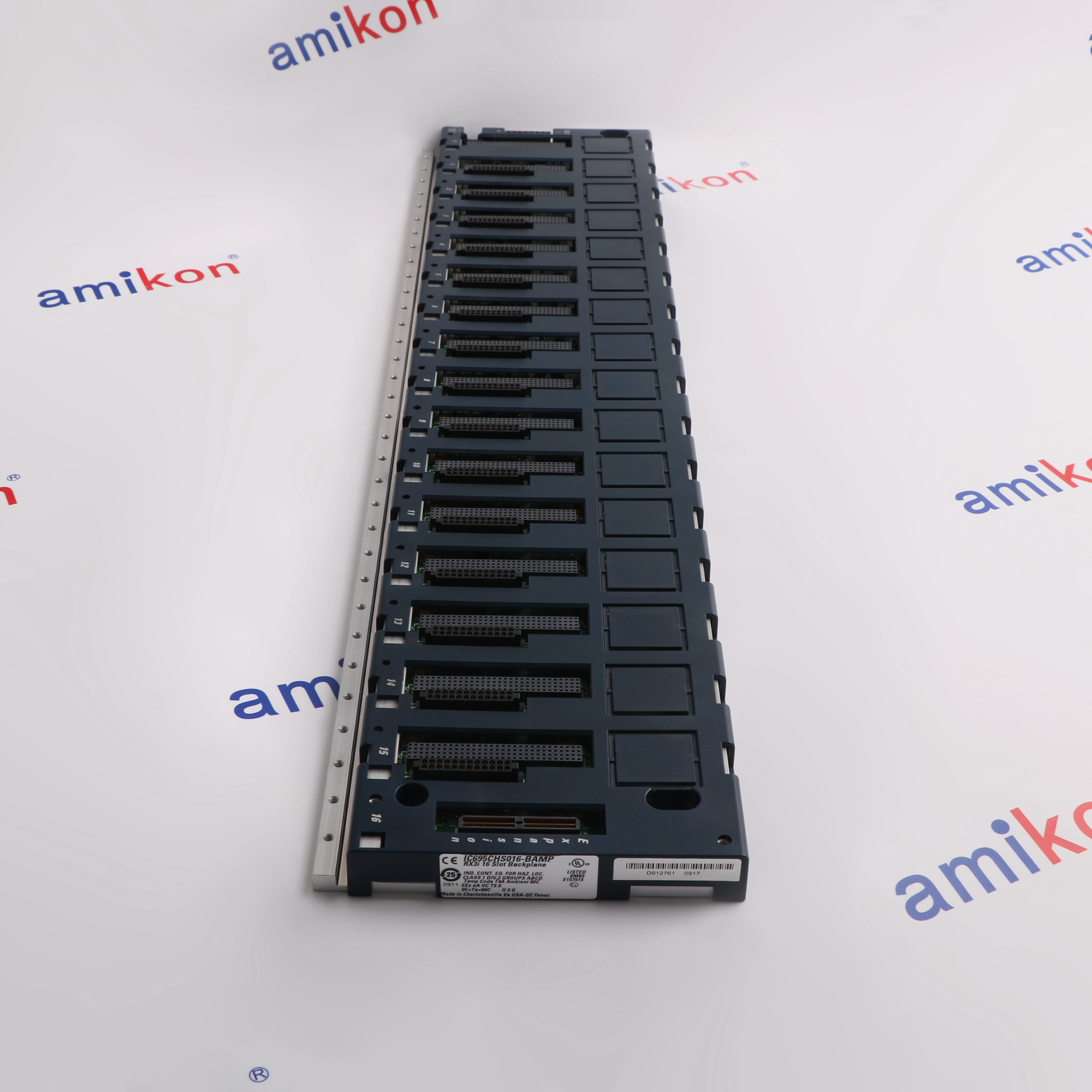

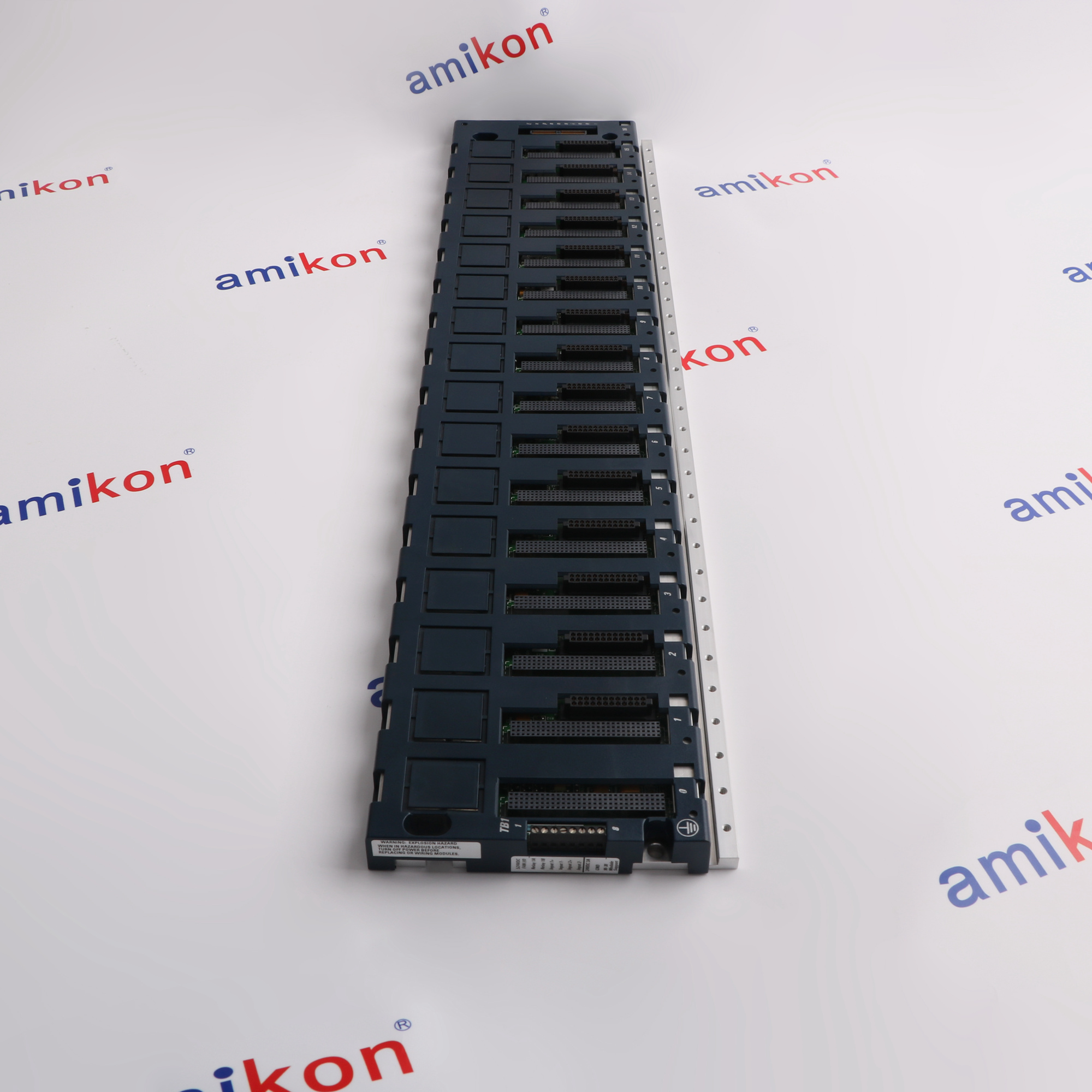

IC695CHS016
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe
Series:PACSystem RX3i
Manufacturer:Emerson Automation
Part Number:IC695CHS016
Product Description:Universal backplane
Grounding bar:Integrated
Module Hot-swap:Supported
Lifecycle status:Active
Mounting:Rack
No of slots:Sixteen (16)
Type:Universal backplane
Number of Slots:16
Input:+24 Volts
Recommended wire size:14 to 22 AWG
Enclosure:IP54 or greater
Manufacturer:Emerson Automation
Part Number:IC695CHS016
Product Description:Universal backplane
Grounding bar:Integrated
Module Hot-swap:Supported
Lifecycle status:Active
Mounting:Rack
No of slots:Sixteen (16)
Type:Universal backplane
Number of Slots:16
Input:+24 Volts
Recommended wire size:14 to 22 AWG
Enclosure:IP54 or greater
Specifications
-
Product ModelIC695CHS016
-
Product ParametersRX3i PACSystem option Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size60.5x14x2.1cm
-
ManufacturerGeneral Electric
-
weight2.06 kg
-
Installation clearance102 mm (4.0 in) on all sides
-
Required Protection for InstallationNEMA/UL Type 1 (IP20)
-
Minimum Required Clearance for Installation102 millimeters (4 inches) on all sides
-
Current rating600 mA at 3.3 VDC, 240 mA at 5 VDC
-
Internal Power Used240 milliamps at 5 Volts DC, 600 milliamps at 3.3 Volts DC
-
Input TerminalsTB1; Terminal 7: Isolated 24VDC Terminal 8: Isolated ground
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the IC695CHS016?+It is a 16-slot universal rack for the PACSystems RX3i series, designed to hold modules for the RX3i system.
-
What is the difference between this and the 90-30 rack?+The IC695CHS016 has significantly higher throughput than the 90-30 series IC693CHS391 rack and supports dual-bus technology (PCI and serial).
-
Does IC695CHS016 include a power supply?+No, the power supply is not included; it requires a separate RX3i power supply.
-
Where should the CPU be placed?+While it can be placed in other slots, the CPU is typically placed in Slot 1, and the power supply must be located to the right of the CPU.
-
What is the primary function of the IC695CHS016?+It serves as the physical and electrical base for the RX3i system, providing 16 slots for CPU modules, power supplies, and I/O modules.
Get a quick price fo IC695CHS016
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
- Product Applications
-
-
Industrial automation systems
-
Packaging machinery control
-
Material handling equipment control
-
Solutions for aluminium smelters
-
Hot rolling & Cold rolling
-
Iron- and steelmaking
-
Paint solutions
-
- What happens next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Need more info
Features:
- Terminal Strip on the left end for Isolated +24V input
- Backplane grounding point
- An integral grounding bar for connecting module/shield grounds
The IC695CHS016 GE PACSystem RX3i Universal backplane may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC695CHS016 PACSystem RX3i Universal backplane Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC695CHS016 is a Sixteen (16) slot universal backplane that is part of the PACsystem RX3i Programmable Automation Controller (PAC) series. This backplane from Emerson Automation is used to host Universal controller and I/O base modules and comes with integral support for Peripheral Component Interconnect (PCI) and High-speed serial bus, enabling support for RX3i modules as well as the legacy Series 90-30 PLC series.
The IC695CHS016 backplane may also be termed as chassis, rack or baseplate by some personnel. Whatever term is used, the IC695CHS016 provides module connectivity to the backplane, power distribution and hosts internal communication of each module. Additionally, this baseplate has the necessary interface for interconnection of local expansion base, allowing additional module to be installed and connect to the same bus that is hosted by the IC695CHS016.
