PRODUCT DESCRIPTION

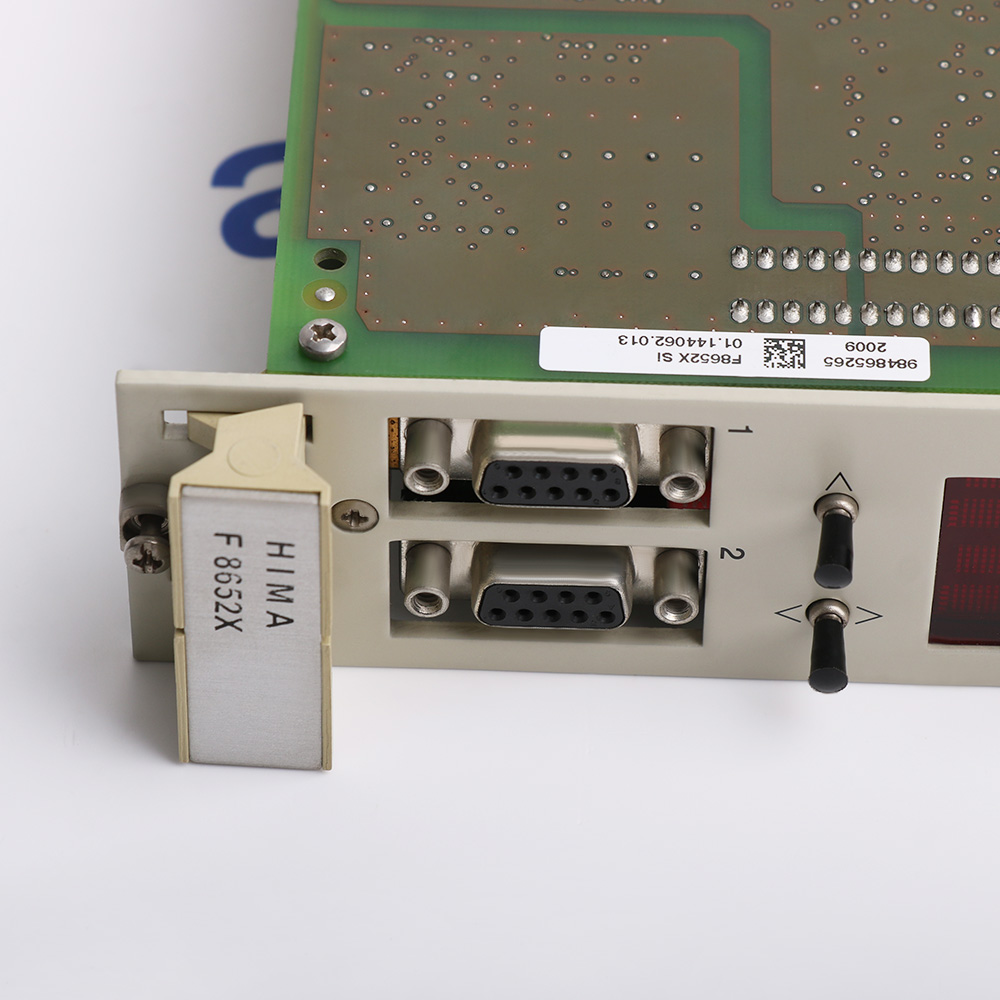

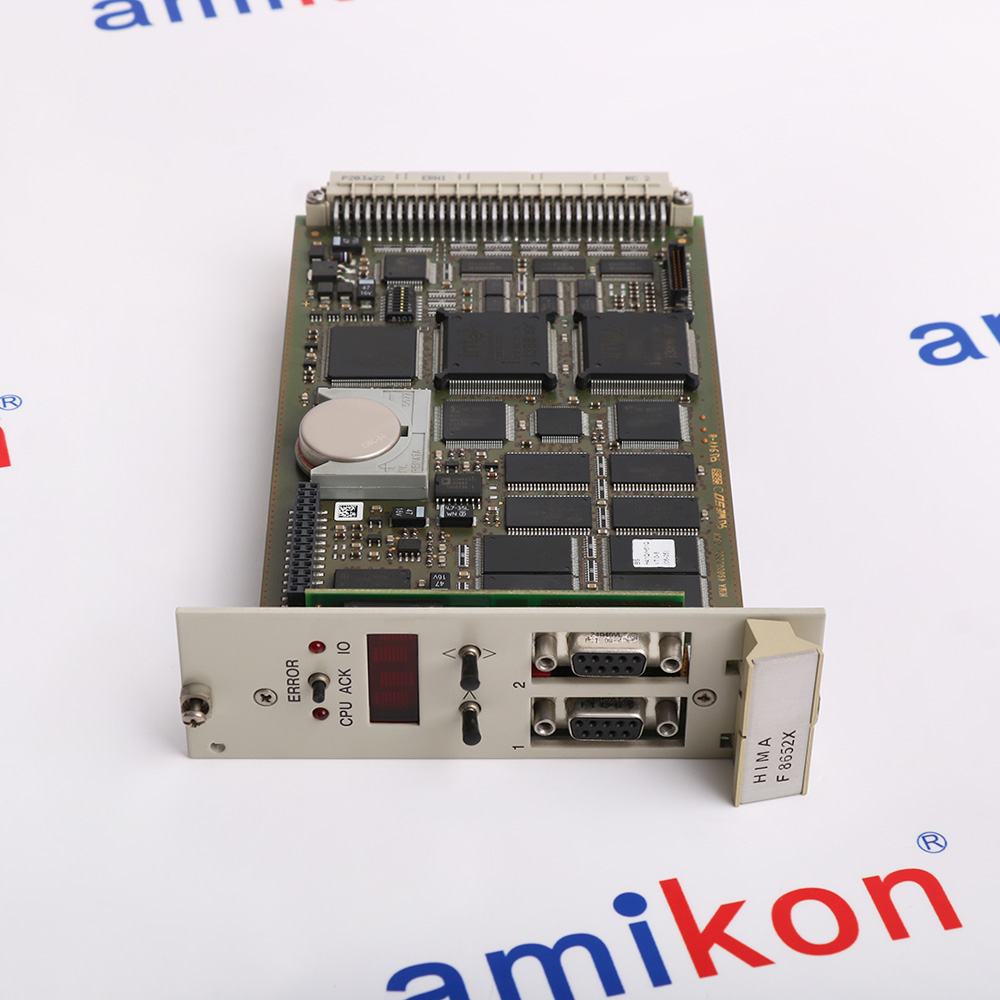

F8652X Central Module
HIMA F8652X is a safety-related central module for the H41q-MS, H41q-HS and H41q-HRS programmable electronic systems. It executes the configured safety program within a compatible and validated safety-control installation.
The module uses two synchronized 32-bit Intel 386EX processors with separate program and data memories. Two electrically isolated RS-485 interfaces, a four-digit diagnostic display and watchdog facilities support communication and fault supervision. Diagnostic processing accompanies program execution, while the approved I/O and validated system configuration determine the implemented protective functions.
The module uses two synchronized 32-bit Intel 386EX processors with separate program and data memories. Two electrically isolated RS-485 interfaces, a four-digit diagnostic display and watchdog facilities support communication and fault supervision. Diagnostic processing accompanies program execution, while the approved I/O and validated system configuration determine the implemented protective functions.
BEFORE YOU BUY
Confirm the complete central module
ACTUAL APPLICATIONS
Where F8652X Fits Across Major Industry Sectors
Uses span gas, power and manufacturing, subject to verified compatibility, operating conditions and project requirements.
-
01 · OIL & GAS
Petroleum Refining and Commercial Natural Gas Processing
Petroleum refining for commercial fuel and petrochemical material production.Natural gas liquefaction and processing for commercial energy supply. -
02 · POWER GENERATION
Electricity Generation and Industrial Energy Production Operations
Fossil fuel power generation for regional electricity supply markets.Industrial electricity production for continuous manufacturing and processing operations. -
03 · INDUSTRIAL MANUFACTURING
Industrial Material Processing and Commercial Product Manufacturing
Raw material processing for commercial industrial product manufacturing.Finished product assembly and packaging for industrial distribution markets.
Technical specifications for F8652X
-
Product ModelF8652X
-
Product ParametersCentral Module
-
In stock1 unit
-
ManufacturerHIMA
-
Synchronized Processor Count2
-
Processor ArchitectureIntel 386EX, 32 bit
-
Processor Clock25 MHz
-
Operating-system Memory per Processor1 MB Flash-EPROM
-
User-program Memory per Processor1 MB Flash-EPROM, utilization OS-dependent
-
Data Memory per Processor1 MB SRAM, utilization OS-dependent
-
Serial Interface Capacity2 electrically isolated RS-485 ports
-
Serial Connector9-pole
-
Diagnostic Display4-digit alphanumeric matrix
-
Watchdog Output Rating24 V DC, maximum 500 mA
-
Operating Supply5 V DC / 2 A
-
Serial Bus Station Range1–31
-
Functional Safety CapabilityUp to SIL 3 per IEC 61508
-
Unpowered Buffer Battery Life1,000 days at 25 ℃; 200 days at 60 ℃
-
General Diagnostic Indicators2 LEDs: CPU and I/O
View all additional
Alternative Names
F8652X
HIMA safety central module
HIMA H41q safety systems safety central module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match F8652X to the installed HIMA H51q safety control
HIMA F8652X is a central module for the HIMA H51q safety control. Its complete article identity determines the documented interface, operating role and approved host equipment.
Engineering should compare device role (Safety-related central module), supported controllers (H41q-MS, H41q-HS and H41q-HRS), device revision (01) with the installed equipment. Confirm connectors, wiring, addressing and configuration support before connection.
Use the applicable manufacturer documentation for the complete wiring and configuration sequence. Validate communication or signal response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact product identity: F8652X
- Product class: Central Module
- Model-specific configuration verified
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify the complete F8652X identity before exchange
Replace F8652X only after matching the complete article code, central module role, installed HIMA H51q safety control equipment and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive, network or instrument configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Match the complete F8652X identity
- Compare revision, interfaces and mating hardware
- Test diagnostics and field operation before service
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm in written quote
-
Shipping weightConfirm in written quote
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about F8652X
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which identifier should be quoted for F8652X?
Use the complete F8652X identifier, safety central module, quantity and clear nameplate photographs. -
What should be matched before installing F8652X?
Match the documented ratings, connections, revision and assigned role in HIMA H41q safety systems. -
What should incoming inspection cover for F8652X?
Inspect the label, housing, connectors, terminals and transport condition before use. -
Can a related HIMA H41q safety systems article replace F8652X?
Do not assume interchangeability; compare the full identity, ratings, interfaces and configured role. -
Which records should be captured before removing F8652X?
Record connector positions, wire labels, cabinet location, adjacent hardware and current diagnostics. -
Which configuration should be retained for F8652X?
Archive the applicable controller or monitoring configuration, addresses and diagnostic records. -
How should F8652X be commissioned after installation?
Restore verified wiring and configuration, then test the affected safety central module function under controlled conditions. -
Which documents should remain with the F8652X asset record?
Retain receiving inspection, nameplate images, connection records, test results and final acceptance evidence.
