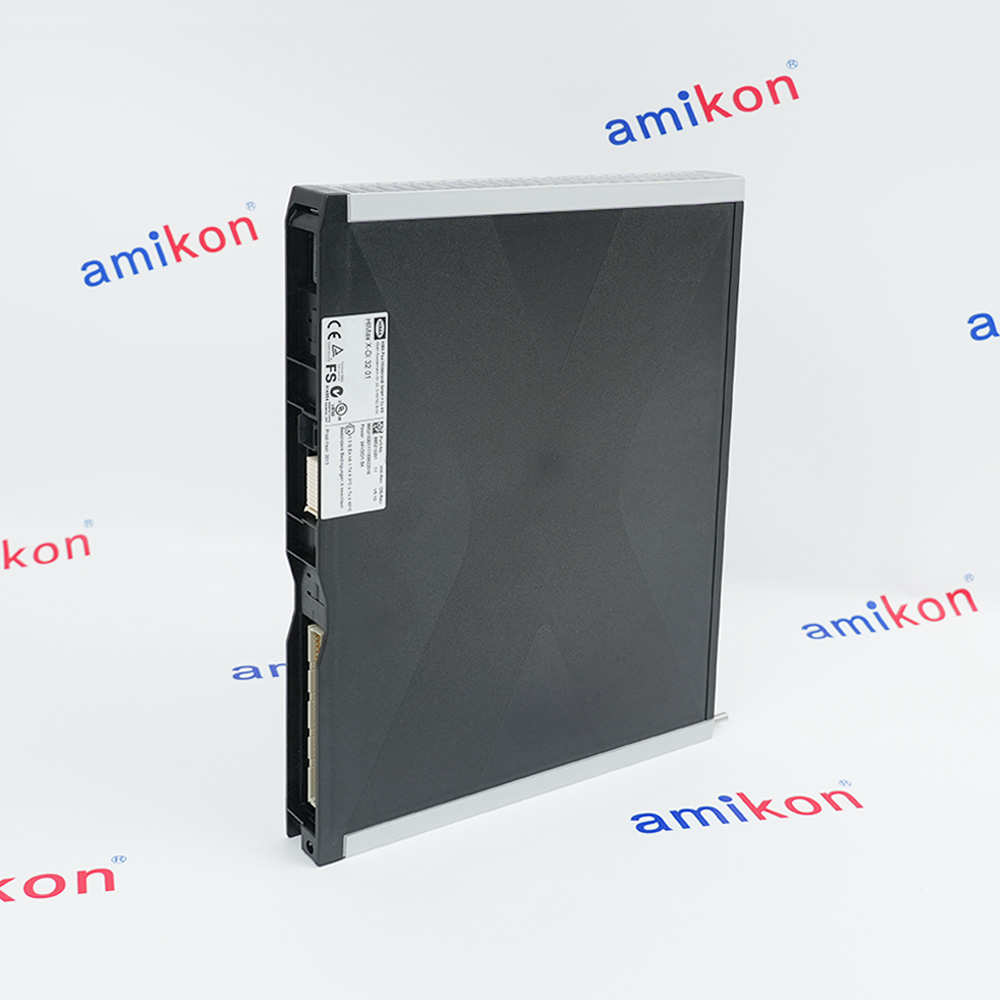

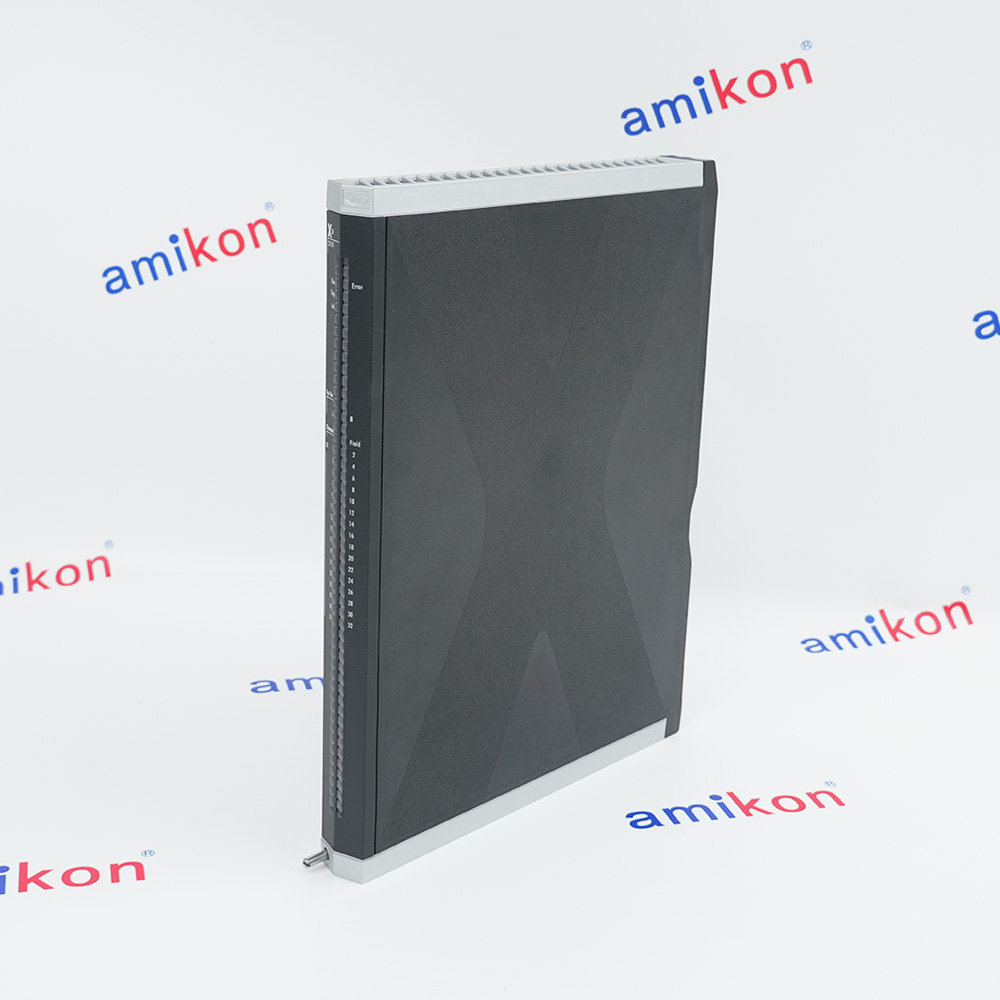

- HIMAX X-DI 32 01
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for HIMAX X-DI 32 01
-
Product ModelHIMAX X-DI 32 01
-
Spare ModelHIMAX X-DI3201
-
Product ParametersDigital inputs module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.8x24x31cm
-
ManufacturerHIMA
-
Weight1 kg
-
Operating voltage24 VDC
-
Operating data3.3 VDC / 0.05 A 24 VDC / 0.2 A
-
Ambient temperature0...+60 °C
-
Storage temperature-40...+85 °C
-
Space requirement6 RU, 4 HP
-
Number of inputs32
-
Supply5 x 20 V / 100 mA
Description
HIMAX X-DI3201
Digital inputs module
Module with 32 digital inputs
Cross-circuit between two parallel wires
Digital inputs module
Module with 32 digital inputs
Cross-circuit between two parallel wires
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Wiring
Features:
- Cross-circuit between two parallel wires
- Module with 32 digital inputs
- Comprehensive Fault Detection & Error Codes
- Robust Environmental & Electrical Specifications
The HIMAX X-DI3201 HIMA Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA HIMAX X-DI 32 01 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module is equipped with safety-related inputs.The module is equipped with safety-relatedinputs. These inputs are divided in 4 groups of 7 inputs and 1 group of 4 inputs (I29...I32). Each group is equipped with acommon short-circuit-proof supply LS+.If the module detects a fault on a digital input, the user program processes a low level inaccordance with the de-energized to trip principle. The module activates the ERR LED.In addition to the channel signal value, the user program must also consider the correspondingerror code.The error code allows the user to configure additional fault reactions in the user program.
- Safety Instrumented Systems (SIS): Used for emergency shutdown (ESD) in chemical plants and refineries
- Process Monitoring: High-density signal acquisition for monitoring reactor temperature and pressure
- Pipeline Management: Leak detection and monitoring pressure/flow in pipelines
- Fire & Gas Protection: Monitoring sensors in offshore oil & gas platforms
- Hazardous Material Management: Overfill prevention and monitoring tank levels
- Manufacturing & Power Plants: Critical parameter monitoring in power generation (nuclear/conventional) and pharmaceutical production.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Base Plate: The module can be inserted into any base plate slot, except for those reserved for system bus modules.
Connector Boards: It requires a connector board, such as the X-CB 015 03 (single) or X-CB 015 04 (redundant).
Field Termination Assembly (FTA): To connect to field devices, you typically use an FTA and a system cable. Termination boards like the HiCTB16-HIM-RAC-SP-DI320X from Pepperl+Fuchs are often used with these modules.
FAQs
-
What is the X-DI 32 01?
+It is a 32-channel digital input module used in the HIMax programmable electronic system (PES) to process 24 VDC digital signals. -
What safety levels does it support?
+It is certified by TÜV for safety-related applications up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat. 4 (EN 954-1), and PL e (EN ISO 13849-1). -
What are the input voltage/signal types of the HIMAX X-DI3201?
+It accepts 24VDC input, including two-wire or three-wire proximity switches (e.g., P+F type) and contacts. -
Does it support sensor supply?
+Yes, the module includes short-circuit-proof supplies. It typically provides eight supply outputs (S1+ to S8+), each capable of feeding multiple input channels.
