- 8C-PDILA1 51454471-175

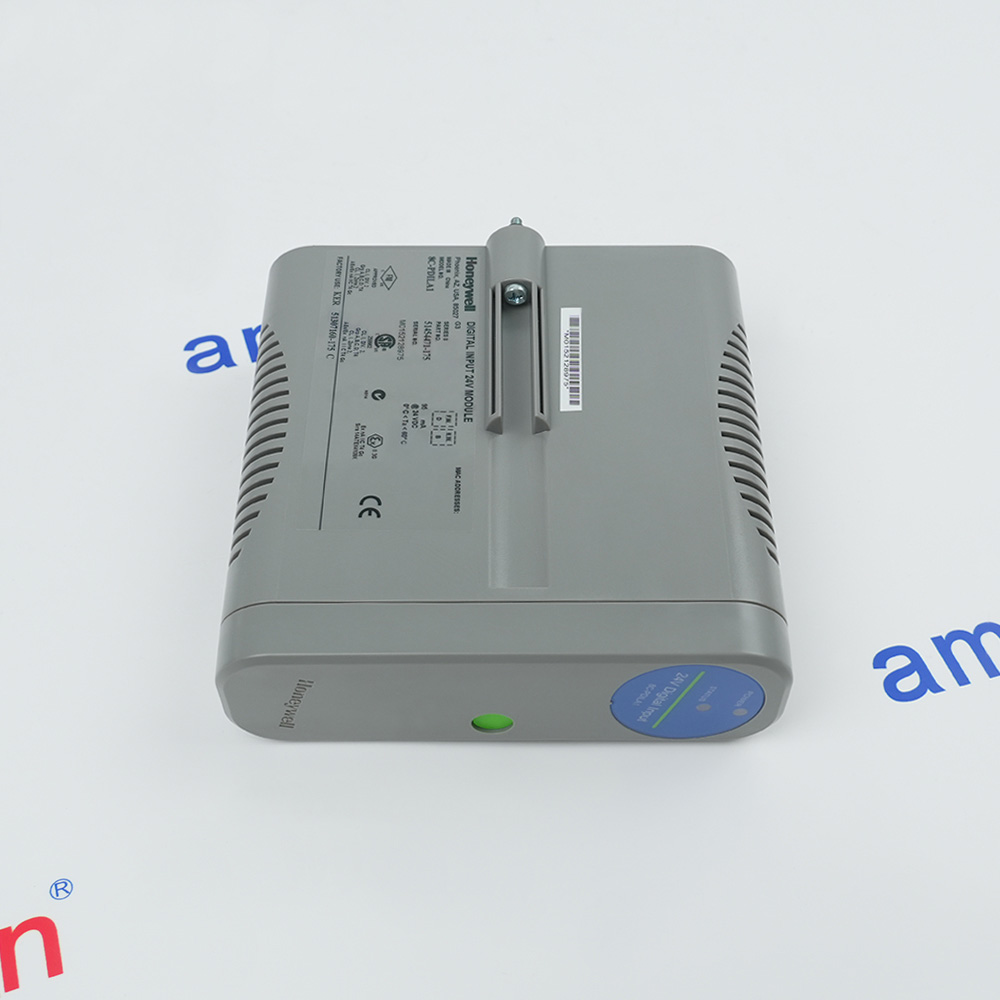

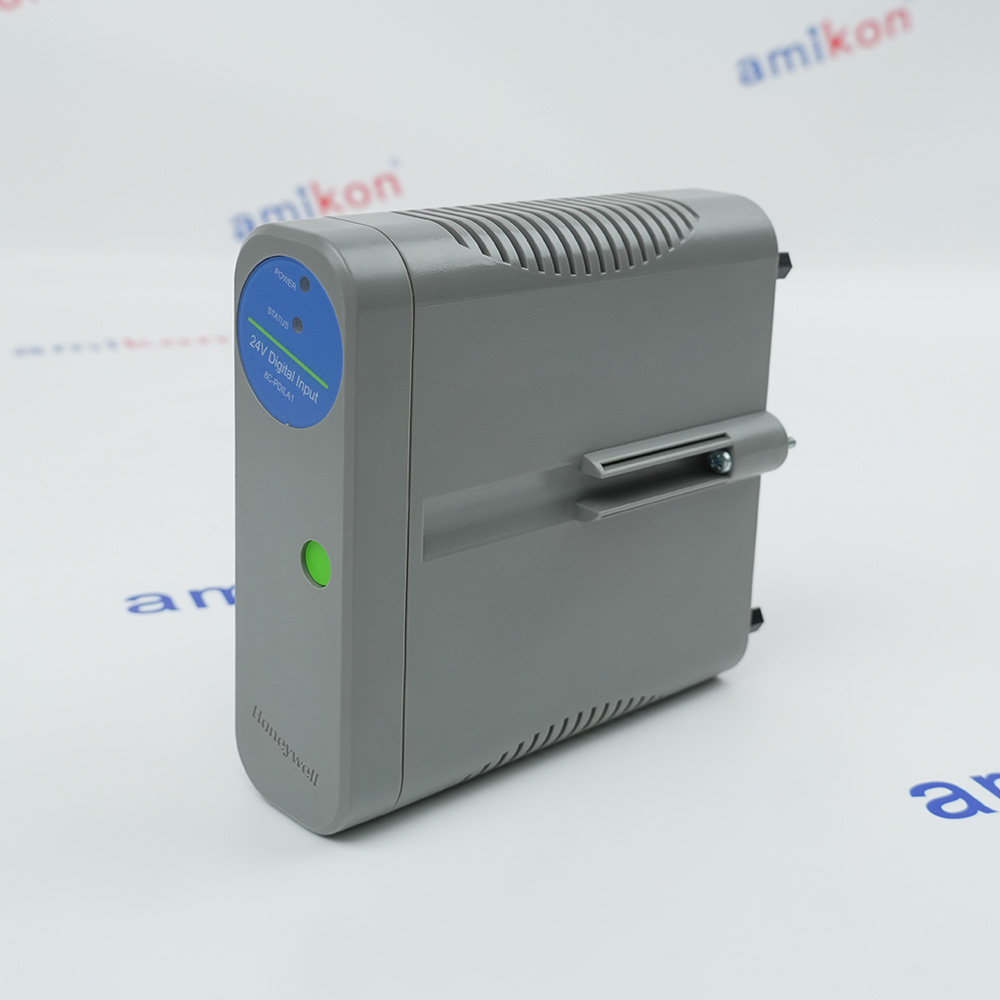

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8C-PDILA1 51454471-175
-
Product Model8C-PDILA1 51454471-175
-
Product ParametersS8 DI 24V IOM (32), COATED
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x15.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.3 kg
-
Input Channels32
-
Galvanic Isolation1000 VAC RMS or ±1500 VDC for System
-
Isolation TechniqueOptical (In IOM)
-
Voltage Rating24 VDC
-
DI Power Voltage Range18-30 VDC
-
Module current rating95 mA
-
DI Power Voltage Range18 to 30 VDC
-
ON Sense Voltage/Current13 VDC (min) or 3 mA (min)
-
OFF Sense Voltage/Current5 VDC (max) or 1.2 mA (max)
-
Input Impedance4.2 KΩ
-
Absolute Delay Across Input Filter andIsolation5 ms ± 20%
-
Field Resistance for Guaranteed ONCondition300 Ω max @ 15 VDC
-
Field Resistance for Guaranteed OFFCondition30 KΩ min @ 30 VDC
Description
The Honeywell 8C-PDILA1 is a Digital Input 24VDC module in the Honeywell Series 8 I/O family. The Honeywell 8C-PDILA1 accepts 24VDC signals as discrete inputs. The Honeywell 8C-PDILA1 is a coated module, indicated by the "8C" prefix in the model number. Conformal coating material is applied to the electronic circuitry of the Honeywell 8C-PDILA1 for protection against moisture, dust, chemicals, and temperature extremes.
The Honeywell 8C-PDILA1 incorporates extensive internal diagnostics for data integrity. The Honeywell 8C-PDILA1 supports optional redundancy. Redundancy for the Honeywell 8C-PDILA1 is accomplished directly on the IOTA without any external cabling or redundancy control devices, by simply adding a second IOM to an IOTA.
The Honeywell 8C-PDILA1 incorporates extensive internal diagnostics for data integrity. The Honeywell 8C-PDILA1 supports optional redundancy. Redundancy for the Honeywell 8C-PDILA1 is accomplished directly on the IOTA without any external cabling or redundancy control devices, by simply adding a second IOM to an IOTA.
Alternative Names
8C PDILA1 51454471 175
8C-PD1LA1 5I45447I-175
8C PD1LA1
5I45447I-175
8C-PO1LA1
Information
Overview
Manuals
Engineering Considerations
Product Applications
Physical Mounting & Integration
Features:
- 32-Point Digital Input for 24VDC Signals
- Extensive Internal Diagnostics for Data Integrity
- Optional Redundancy Without External Cabling
- Internal or External Field Power Selection
- Galvanic Isolation with External User-Supplied Power
The Honeywell 8C-PDILA1 is plugged into the IOTA to eliminate the need for a separate chassis to hold the electronics assemblies. The Honeywell 8C-PDILA1 plugs into the Input Output Termination Assembly (IOTA). The IOTA for the Honeywell 8C-PDILA1 holds the module and the connections for field wiring. The Honeywell 8C-PDILA1 receives power from the IOTA. Field power for the Honeywell 8C-PDILA1 is supplied through the IOTA, with no need for extra power supplies to power the field devices and the associated craft wired marshalling.
The 8C-PDILA1 51454471-175 HoneywellDigital Input 24VDC may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-PDILA1 51454471-175 Digital Input 24VDC Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell 8C-PDILA1 uses two-level detachable terminals for landing the field wiring in the enclosure. These terminals on the Honeywell 8C-PDILA1 provide easier plant installation and maintenance. The Honeywell 8C-PDILA1 is mounted vertically, allowing for more effective wiring since most field wiring applications require entry from the top or bottom of the systems cabinet.
The Honeywell 8C-PDILA1 has 32 points. A discrete module on the Honeywell 8C-PDILA1 resides on a 9-inch (228 mm) IOTA for non-redundant applications and a 12-inch (304 mm) IOTA for redundant applications. The Honeywell 8C-PDILA1 field connectors accept up to 12 AWG / 2.5 mm² stranded wire.
- Oil Refining & Petrochemicals:Valves/ESD interlocks in flammable zones
- Power Generation:Breaker/utility status & generator states
- Chemical Manufacturing:Pipeline states & batch limits
- Water & Wastewater Treatment:Pump/tank/flow contacts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the IOTA Base: Fasten the non-redundant 8C-TDILA1 IOTA base onto the carrier channel rail assemblies inside the control enclosure. Ensure the standard 6-inch base is locked firmly to prevent mechanical vibration.
Handle with ESD Precautions: Ground yourself using an anti-static wrist strap before removing the 8C-PDILA1 module from its protective shielding.
Seat the Module: Align the alignment pins on the back of the 8C-PDILA1 module with the receptacle sockets on the 8C-TDILA1 IOTA. Push straight down firmly until the connectors latch securely.
Technical notes
The Honeywell 8C-PDILA1 supports internal or external field power selection. The Honeywell 8C-PDILA1 provides galvanic isolation. The galvanic isolation on the Honeywell 8C-PDILA1 is System to Field only with external user supplied power. When internal power is used, the isolation on the Honeywell 8C-PDILA1 is not present.
FAQs
-
What is the difference between the 8C-PDILA1 and similar part numbers (like 8C-TDILA1)?+The 8C-PDILA1 refers specifically to the Input/Output Module (IOM) containing the active electronics. It requires a companion IOTA (such as the 8C-TDILA1 for non-redundant or 8C-TDILB1 for redundant setups) to physically mount the module and terminate field wiring
-
Does the module provide field power?+No, the module requires an external, user-supplied 24V DC power source for field excitation.
-
What are the electrical operating ranges?+The module operates on a 24 VDC nominal field voltage. The power supply voltage range spans from 18V to 30V DC
-
What are the signal threshold levels?+An ON sense requires at least 13V DC (min 3 mA). An OFF sense requires less than 5V DC (max 1.2 mA). The module has an internal input impedance of 4.2 KΩ.
