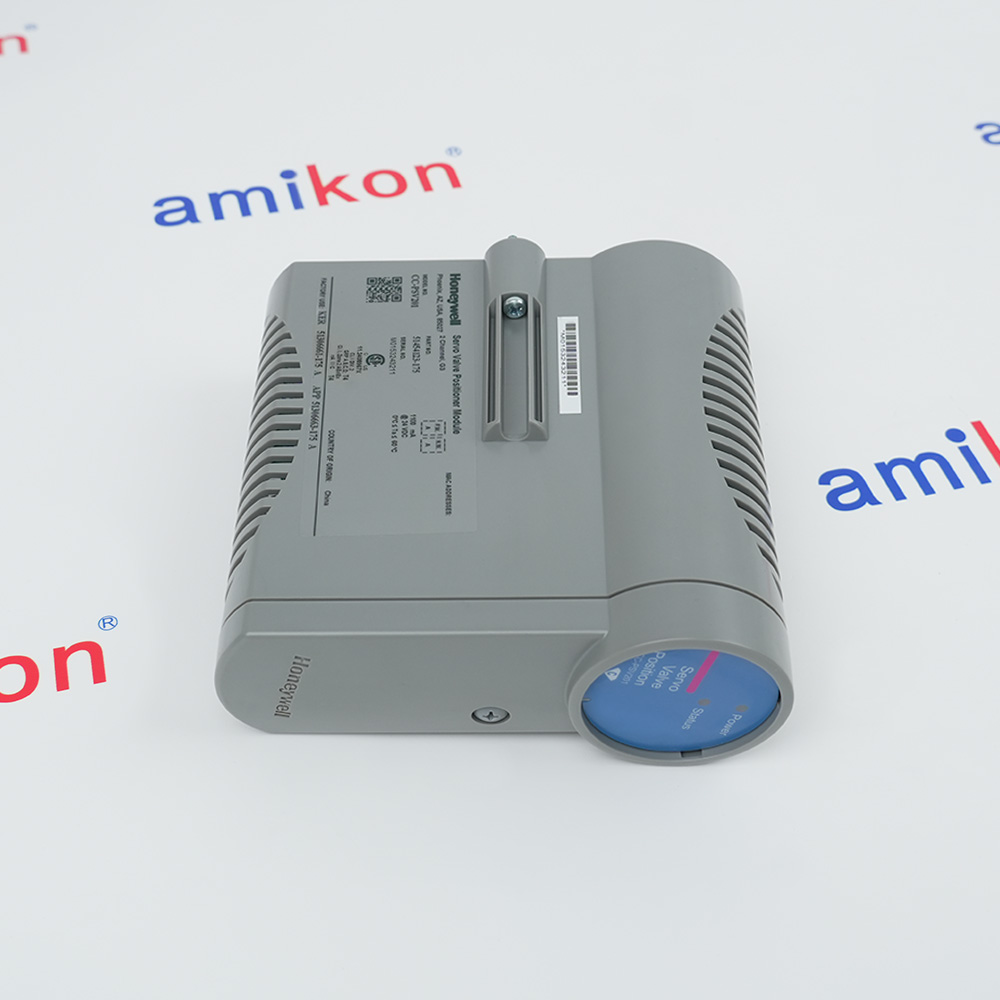

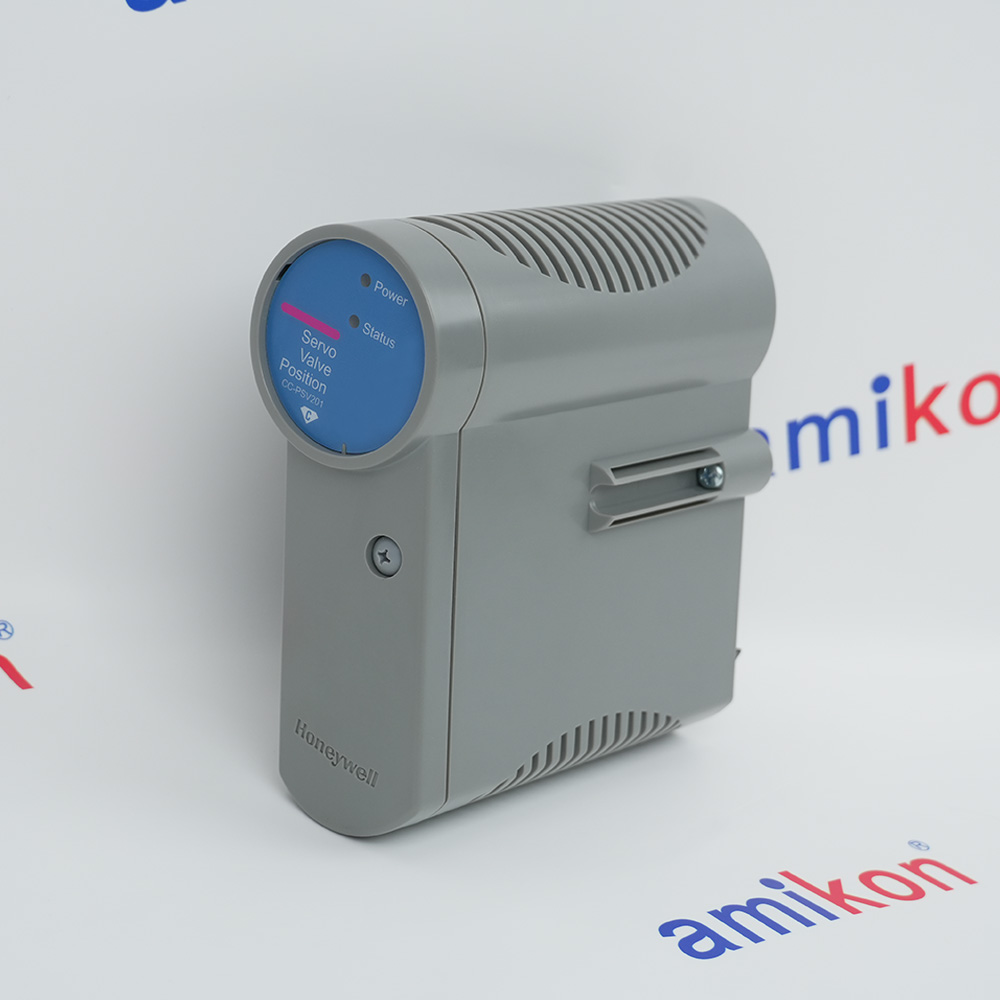

- CC-PSV201 51454123-175
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-PSV201 51454123-175
-
Product ModelCC-PSV201 51454123-175
-
Product ParametersServo Valve Positioner Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x15.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.45 kg
-
Output Channels2
-
Dither0-10% of FS, 25-60 Hz
-
Output Temperature Drift300 ppm per deg C
-
Output Current Linearity0.325%
-
Resolution16-bit DAC
-
Maximum Open Circuit Voltage±14 V
-
Gap (0 mA) of Output to Field on Switchover15 mS maximum
-
Excitation8 V RMS max, 2.5-3.2 KHz
Description
CCPSV201
SERVO VALVE POSITIONING MODULE
I/O PLANNING AND DESIGN MODULE
8-CHANNEL
SVP IOM BLOCK NAME
SERVO VALVE POSITIONING MODULE
I/O PLANNING AND DESIGN MODULE
8-CHANNEL
SVP IOM BLOCK NAME
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Connectivity
Features:
- HW/SW diagnostics - PV qualification for AI & DI
- Supplies non-incendive field power
- Supports redundant solution
- Point processing at 2.5 mS and 10 mS period for pulse and analog inputs, respectively
- Provides one analog output signal
- Accepts up to eight analog input signals
The CC-PSV201 51454123-175 Honeywell Servo Valve Positioner Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PSV201 51454123-175 Servo Valve Positioner Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell CC-PSV201 is a Series C Servo Valve Positioner Module (SVPM) designed for high-precision control in industrial turbomachinery and process control applications within the Experion PKS environment. It functions by executing an onboard PID loop to precisely position servo valves based on feedback from LVDT/RVDT sensors.
- Steam Turbines:Speed governing & extraction control; replaces hydraulics with servo
- Gas Turbines:Fuel flow & VIGV control to optimize EGT & prevent overspeed
- Centrifugal Compressors:Anti-surge & capacity control high-speed actuation
- Expanders & Companders:Vane & Joule-Thompson control for API 617 expander-recompressors
- Power Recovery Trains:Hot gas expanders: regulates catalyst regenerator mode transitions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Requires 24 VDC power, typically delivered through the IOTA from the Series C power system.
Field Side Terminations:
Servo Outputs: Supports two channels for bipolar or unipolar current outputs to drive servo coils.
Feedback Inputs: Terminals for LVDT, RVDT, or 4-20 mA position feedback signals (supports 3, 4, 5, or 6-wire LVDT configurations).
Control Link: Connects to the C300 controller via the I/O Link for high-speed (20ms) data execution.
FAQs
-
What is CC-PSV201?
+The Honeywell CC-PSV201 is a Series C Servo Valve Positioner Module (SVPM) designed for precise control in turbomachinery applications, featuring high-speed I/O and direct, ruggedized connection to valve actuators. -
Why is there no voltage adjustment screw?
+The CC-PSV201 lacks a voltage adjustment knob to prevent accidental setpoint changes during operation. -
What is the function of the CC-PSV201?
+It serves as a Servo Valve Positioner Module (SVPM) within the Series C I/O family, specializing in controlling hydraulic or pneumatic servo valves. -
What type of terminal base does it use?
+It operates within the Series C modular environment, utilizing specialized terminal bases for field wiring in turbomachinery applications.
