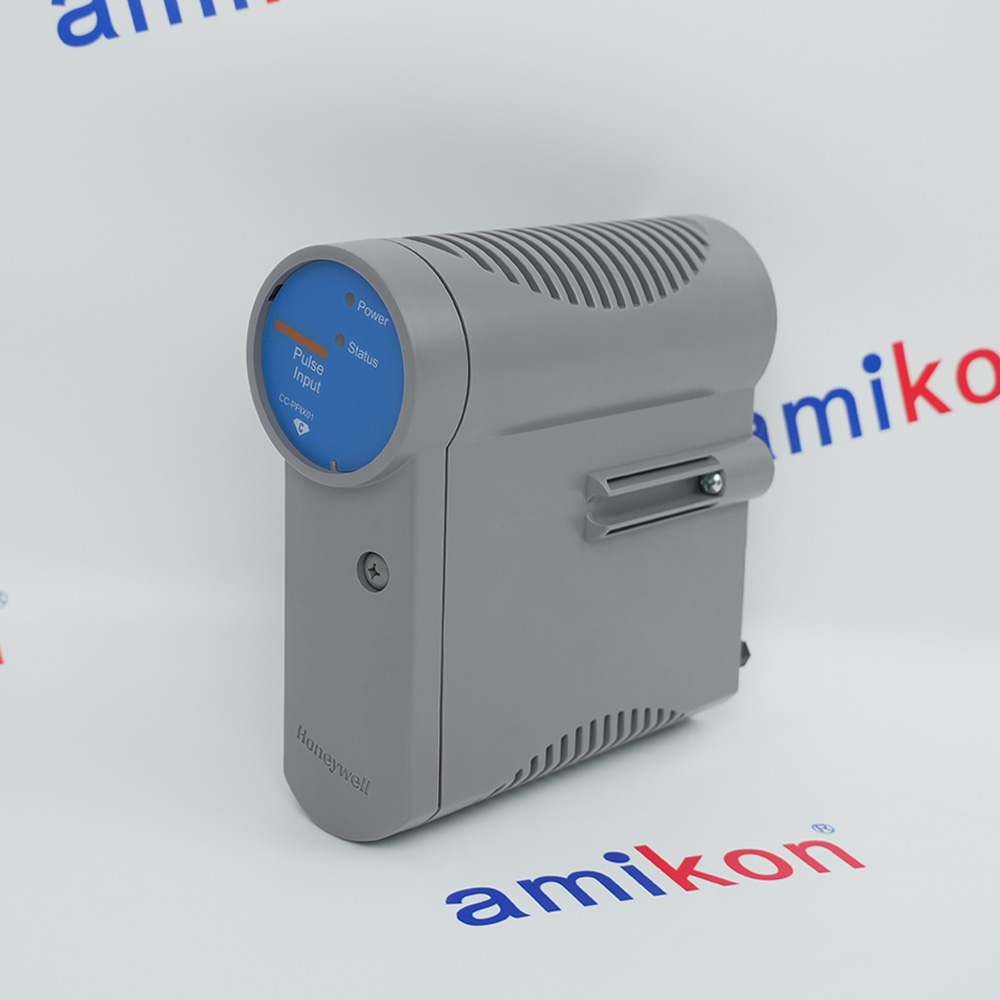

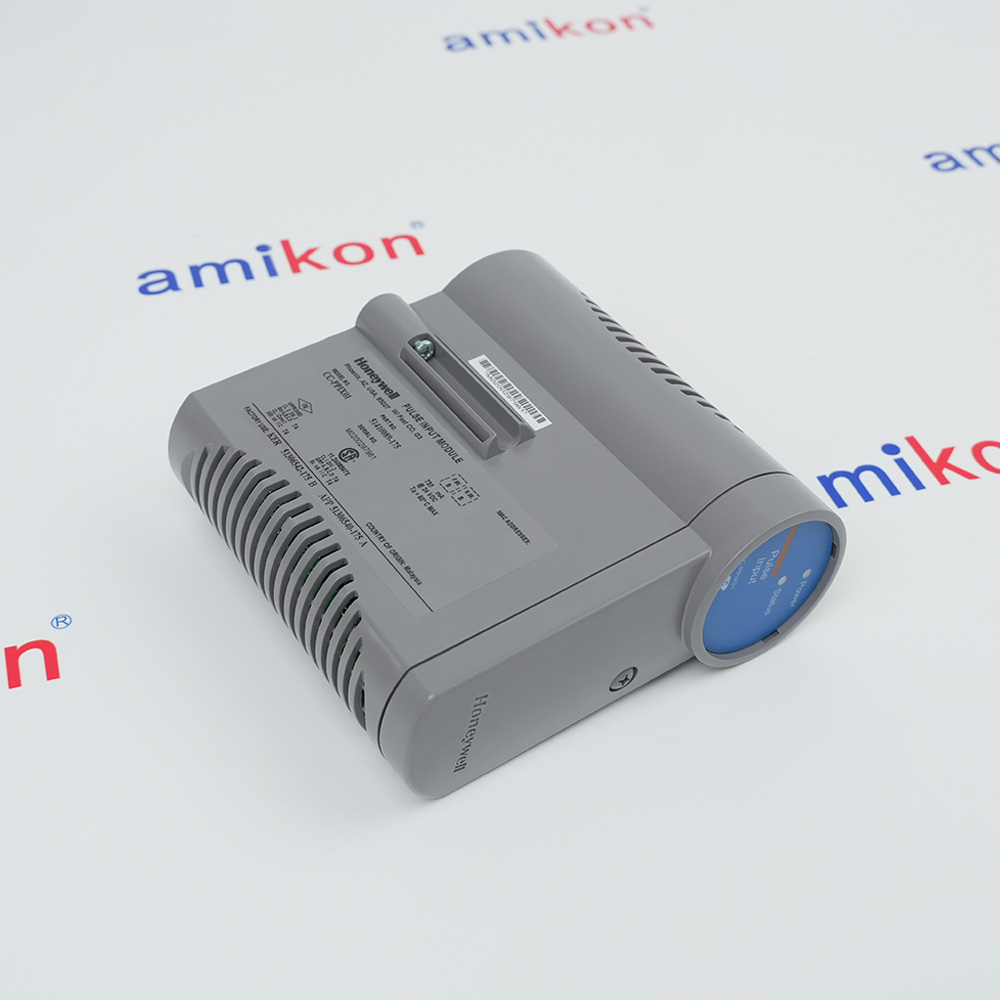

- CC-PPIX01 51410089-175
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-PPIX01 51410089-175
-
Product ModelCC-PPIX01 51410089-175
-
Product ParametersPulse Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x15.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Number of Inputs8 (Single) or 4 (Dual)
-
Number of Outputs2
-
Frequency Range0 - 100 KHz Single Channel0 – 10 KHz Dual Pulse Channel
-
Frequency Accuracy+/- 0.001% of Reading
-
Input Voltage0 to 35 VDC
-
ConfigurableRising Edge (Default) or Falling Edge
-
Channel Input ImpedanceGreater than 70 K Ohms
-
Fast Cutoff Latency1ms (max)
-
Voltage5V to 60VDC
-
Current0.001A to 2A
Description
CC-PPIX01
51410089-175
Pulse Input Module
Extensive self-diagnostics
Optional redundancy
Supports the MeterSuite Application
51410089-175
Pulse Input Module
Extensive self-diagnostics
Optional redundancy
Supports the MeterSuite Application
Information
Overview
Manuals
Technical notes
Product Applications
Mounting and Hardware Assembly
Features:
- Extensive self-diagnostics
- Optional redundancy
- High Accuracy Frequency, Period and Pulse WidthMeasurement
- Supports the MeterSuite Application
- ISO 6551 Fidelity
The CC-PPIX01 51410089-175 Honeywell Pulse Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PPIX01 51410089-175 Pulse Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell CC-PPIX01 is a high-precision Pulse Input Module (PIM) for the Experion Series C I/O architecture, commonly used with the C300 Controller for industrial automation. It is primarily engineered for flow measurement, event counting, and metering/custody transfer applications requiring accurate pulse data.Supports 8 single-channel (up to 100 kHz) or 4 dual-channel (up to 10 kHz) pulse inputs, with ISO 6551 Level A compliance.Features high accuracy (±0.001% of reading) with optical isolation (1000 VDC), 0-35 VDC input range, and configurable edge detection.
- Oil & Gas: For upstream and downstream metering and custody transfer of petroleum products
- Power Generation: Monitoring high-speed turbines and other critical rotating equipment
- Chemical Processing: managing precise batching and continuous flow operations
- Water & Wastewater Treatment: Tracking large-volume flow and dosing chemicals for treatment
- Pulp & Paper: Integrated into the automated control of large-scale manufacturing machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
IOTA Installation: The module must be mounted on its corresponding Input Output Termination Assembly (IOTA), specifically model CC-TPIX11.
IOTAs are typically 12 inches (304 mm) in size and are designed for vertical mounting to facilitate better heat management and cabling entry from the top or bottom of the cabinet.
DIN Rail Mounting: The IOTA is designed to mount onto a standard DIN rail within a control cabinet.
Module Insertion: The CC-PPIX01 module is plugged directly into the IOTA. This integrated design eliminates the need for separate electronic chassis and reduces the overall footprint.
FAQs
-
What is CC-PPIX01?
+The Honeywell CC-PPIX01 (51410089-175) is a Series C Pulse Input Module (PIM) for use with the Experion C300 controller. -
What is the frequency range of the CC-PPIX01 51410089-175 module?
+Single-channel input frequency range is 0 to 100 kHz, dual-pulse channel input frequency range is 0 to 10 kHz. -
How many input channels does CC-PPIX01 have?
+This module has 8 single-channel or 4 dual-channel inputs and supports mixed combinations of single and dual channels. -
What type of excitation power supply does CC-PPIX01 require?
+It supports an internal 24V operating voltage or a user-supplied +5 to +30 VDC external excitation voltage.
