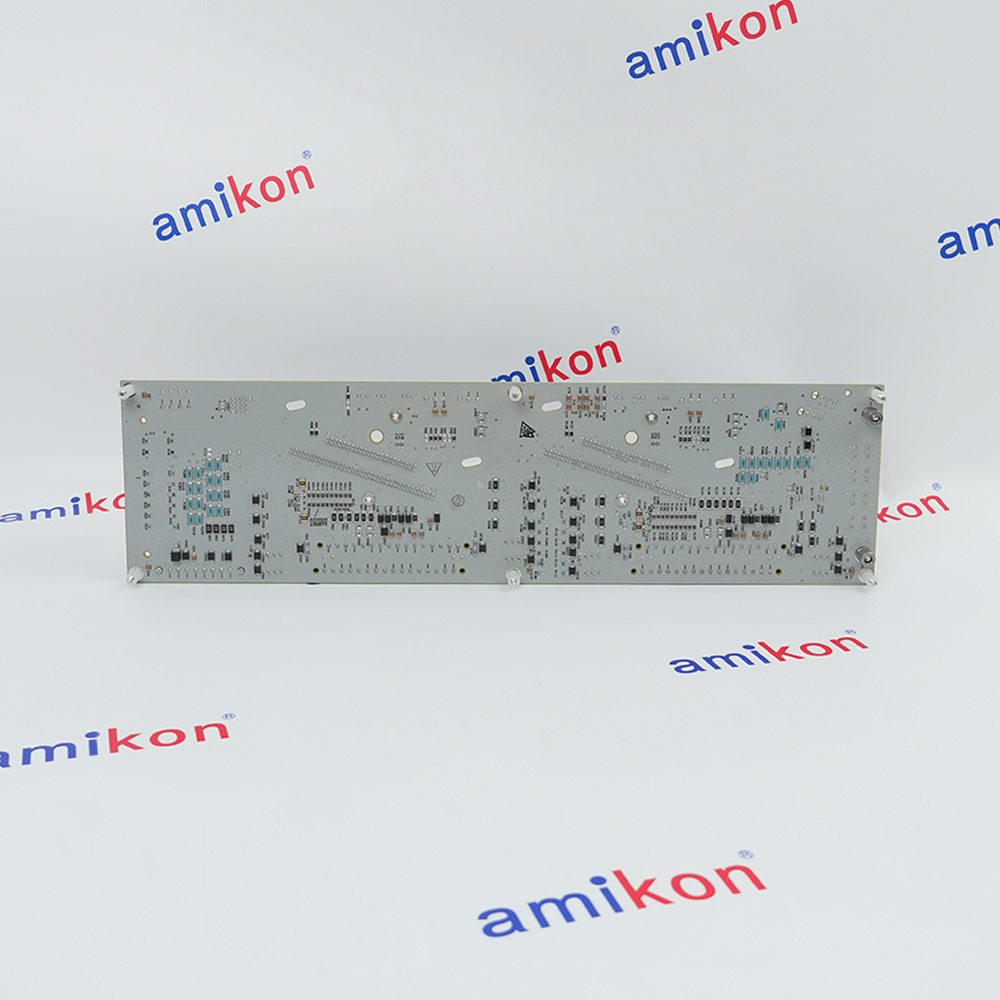

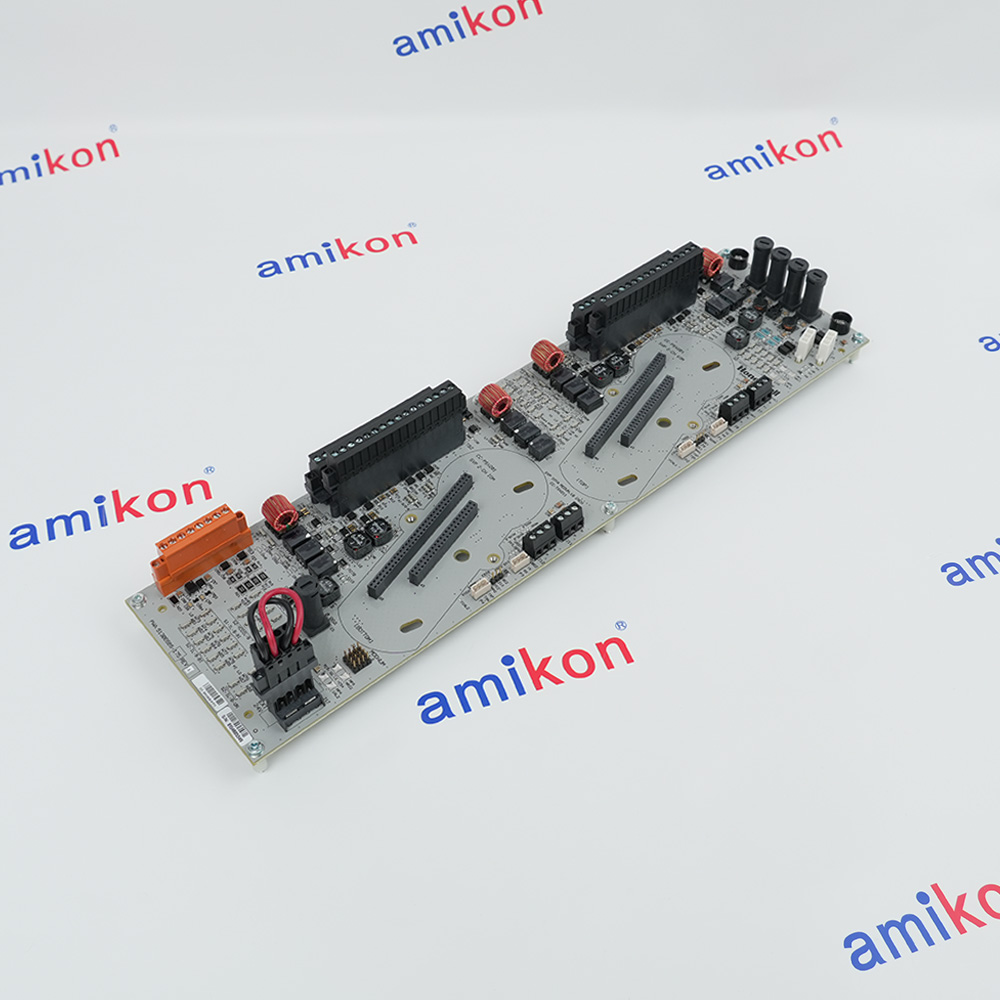

- CC-TSV211 51306665-175
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-TSV211 51306665-175
-
Product ModelCC-TSV211 51306665-175
-
Product ParametersServo Valve Positioner Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size44.3x12x7.5cm
-
ManufacturerHoneywell
-
Weight0.7 kg
-
Output Channels2
-
Resolution16-bit DAC
-
Maximum Open Circuit Voltage±14 V
-
Galvanic Isolation±500 VDC
-
Input/Output Range8 V RMS max., 2.5–3.2 kHz
-
Input Impedance> 25 kΩ
-
Input Scan Rate2.5 ms
-
Common Mode Voltage (DC to 60 Hz)-6 to +5 V peak
Description
Servo Valve Positioner Module
2 Output Channels
16-bit DAC Resolution
2.5 ms Input Scan Rate
±500 VDC Galvanic Isolation
2 Output Channels
16-bit DAC Resolution
2.5 ms Input Scan Rate
±500 VDC Galvanic Isolation
Information
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- Dual-Channel LVDT Feedback
- Direct Servo Coil Drive
- Series C Vertical Design
- High-Speed Processing Loop
- Comprehensive Fault Diagnostics
- Redundancy Support
This Series C I/O module provides an onboard PID positioning loop for positioning a servo valve typically used in aturbomachinery control application. It can accept LVDT/RVDT/4-20 mA position feed back signals from the control valve,receive a control valve demand remote set point from a C300-20msCEE controller and execute onboard PID positioning loopto issue current output to servo valve coil to control the control valve position.
The CC-TSV211 51306665-175 Honeywell Servo Valve Positioner Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-TSV211 51306665-175 Servo Valve Positioner Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The CC-TSV211 is engineered to handle the harsh electrical and thermal conditions typical of power generation and heavy processing plants. By integrating both the position controller and the servo driver into a single, compact Series C module, Honeywell effectively reduces wiring complexity and minimizes potential points of failure. This integration, combined with its hot-swappable (RIUP) capability and robust diagnostic suite, provides a reliable solution for mission-critical applications that demand both extreme speed and uncompromising precision in valve modulation.
- Turbomachinery Control:Controls steam/gas turbines, compressors & pumps in power plants
- Precise Servo Valve Positioning:High-accuracy hydraulic servo control
- Oil & Gas Industry:Critical valve control in refineries & upstream processes
- Chemical/Heavy Industry:Complex fast-acting control loops in manufacturing
- Safety Shutdown Systems:Safe-state to pre-set position upon error detection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety Check: Ensure all field wiring is de-energized before beginning installation to prevent damage to the module.
Mounting: Mount the CC-TSV211 IOTA on a standard 35mm DIN rail within the Series C cabinet.
Wiring: Connect the 2-channel servo valve wiring to the designated terminals on the IOTA board. It is crucial to follow the specific wiring diagram in the Series C I/O User's Guide (document EP03-540-511 or similar) to differentiate between standard and specialized transmitter wiring.
Module Insertion: Insert the CC-TSV211 positioner module securely into the mounted IOTA.
FAQs
-
What is the input impedance of CC-TSV211 51306665-175?
+The module has an input impedance greater than 25 kΩ to minimize signal loading effects. -
How many output channels does CC-TSV211 51306665-175 have?
+The CC-TSV211 51306665-175 has 2 output channels for driving servo valve coils. -
What feedback signals does CC-TSV211 51306665-175 support?
+It supports LVDT, RVDT, and 4–20 mA position feedback signals. -
What is the temperature drift of CC-TSV211 51306665-175?
+The output temperature drift is 300 ppm/°C, ensuring stable control performance. -
What is the output current linearity of CC-TSV211 51306665-175?
+The output current linearity is 0.325%, ensuring high control accuracy.
