- DWR06 785-DWR06

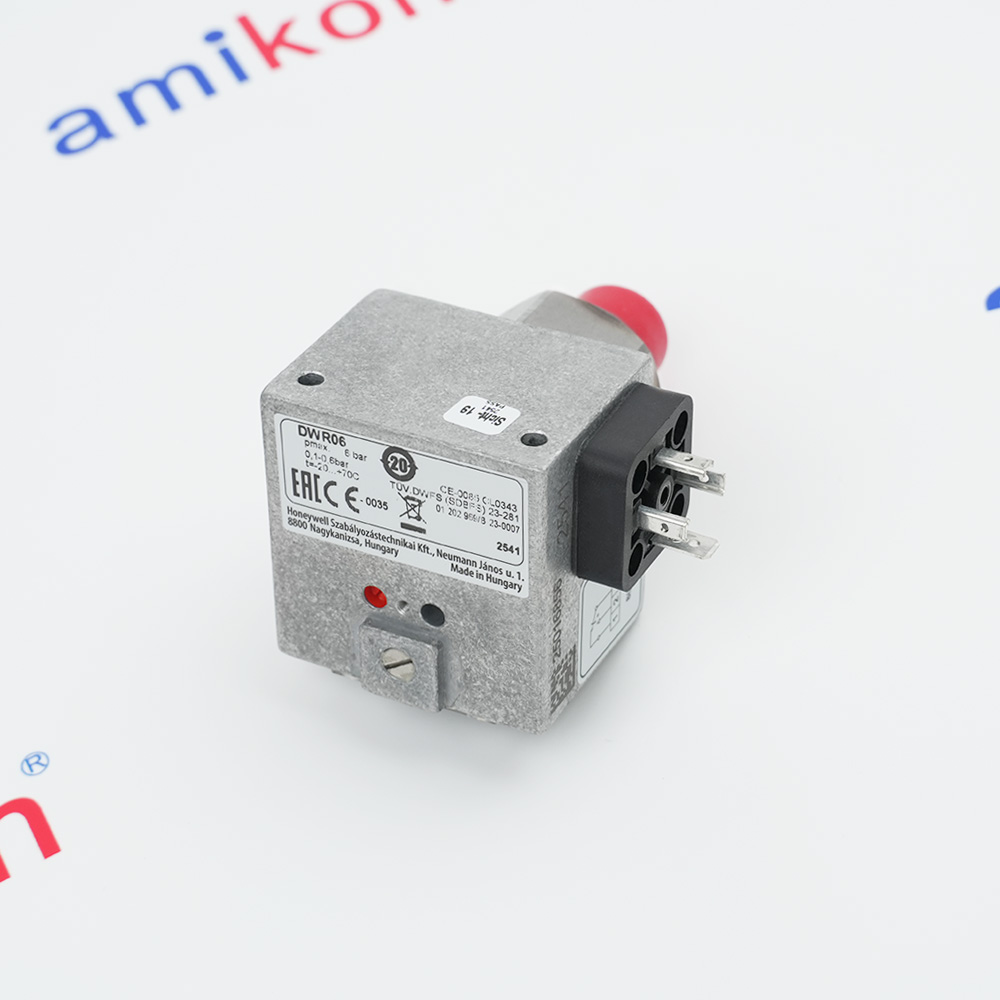

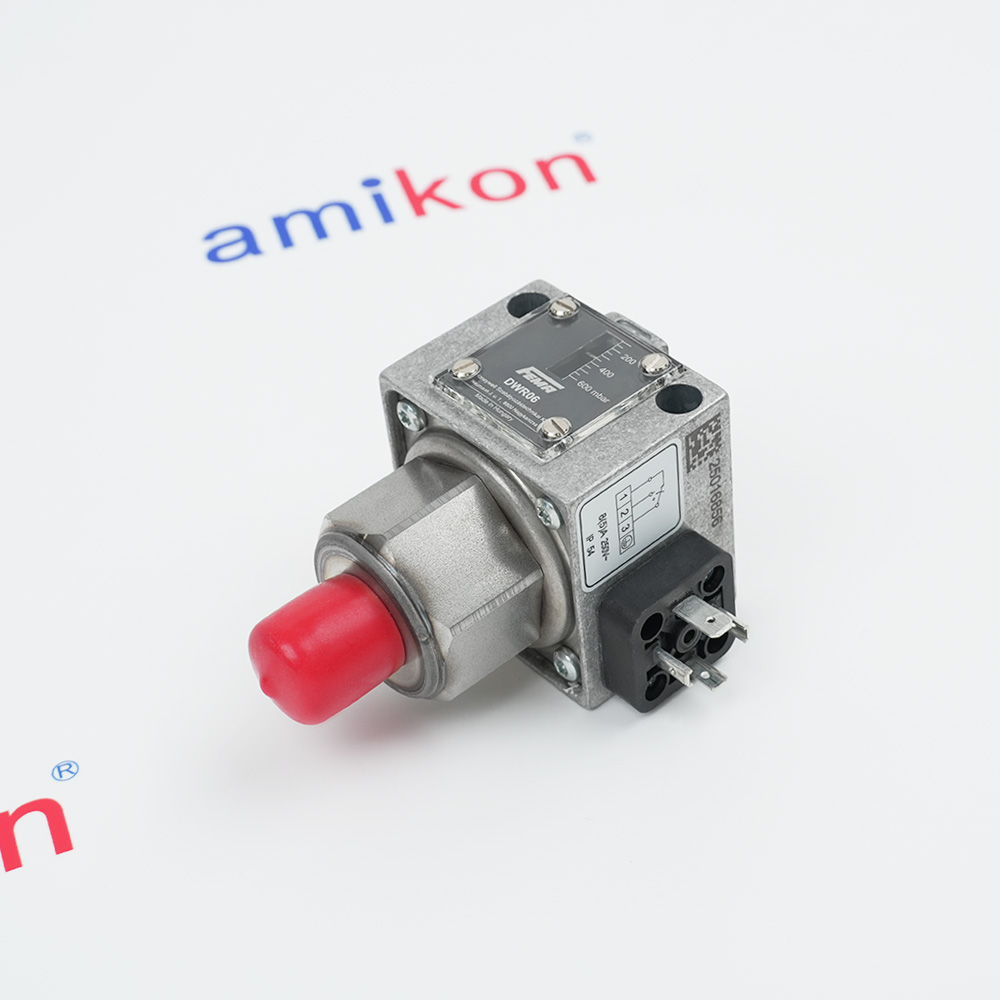

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DWR06 785-DWR06
-
Product ModelDWR06 785-DWR06
-
Spare ModelDWR06
-
Product ParametersPressure Sensors
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size8.2x6.3x10.6cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Operating Pressure0.1 bar to 0.6 bar
-
Pressure TypeDifferential
-
Accuracy1 %
-
Port SizeG 1/2, G 1/4
-
Mounting StylePanel Mount
-
Operating Supply Voltage250 VAC
-
Country of AssemblyNot Available
-
Maximum Operating Temperature+ 70 C
-
Operating Supply Current8 A
Description
EXDWR06
Pressure Sensors
785-DWR06
Pressure Sensors
785-DWR06
Information
Overview
Manuals
Technical notes
Product Applications
Line break & short circuit monitoring
Features:
- Self monitoring sensors
- Positive opening microswitches
- Gold plated contacts
- TÜV, DVGW component tests
Pressure limiters "of special construction" (DBS) must fulfil additional safety requirements, i.e. breakageor leakage in the mechanical part of the sensor must lead to shutdown to the safe side. The pressurelimiter must respond as if the system pressure had already exceeded the maximum limit. The controlcircuit for the pressure limiter must also be considered from the point of view of safety, as short circuitsin the supply lines or other faults in the control current circuit can lead to dangerous conditions.
The DWR06 785-DWR06 Honeywell Pressure Sensors may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell DWR06 785-DWR06 Pressure Sensors Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
In many aspects, safety engineered pressurelimiters offer a higher degree of safety comparedwith normal pressure switches and are thereforeespecially suitable for chemical processengineering and thermal installations in whichsafety is an especially critical factor in pressuremonitoring. Pressure switches can also be usedin Ex- zones (zone 0, 1, 2 and 20, 21, 22) and,in all cases, require an isolating amplifier.The isolating amplifier is also responsible formonitoring lines for short circuit and linebreak and therefore offers an additional safetyadvantage – even in non Ex-zones. ForEx-applications, the isolating amplifier must beinstalled outside the Ex-zone. The lines betweenthe isolating amplifier and the pressure switchare monitored for short circuit and line break.
- Steam and Hot Water Systems:Pressure limiter for boilers, compliant with DIN EN12828 & EN12952-11
- Fuel and Gas Monitoring:Monitors burnable gases (DVGW G 260) & liquid fuels like fuel oil
- Industrial Pressure Control:Max/min pressure monitoring with high precision & repeatability
- Seawater Environments:Seawater-resistant die-cast aluminum housing for maritime/coastal use
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The resistor connected in series with the switching contact limits the current to a defined value with theswitch closed. In the event of short circuit in the area between the isolating amplifier and the seriesresistor, the current rises above the predetermined limit value, the relay of the isolating amplifier dropsout, the output current circuit is interrupted and thus the safe condition is achieved. In the event of a linebreak, the current flow is interrupted, the relay drops to the safe side and interrupts the output currentcircuit (safety sequence). Furthermore, the isolating amplifier is designed so that, if faults occur in theelectronics (conductor interruption, component defect etc.) and in the resulting situations, the safeshutdown condition is assured. These characteristics of the safety engineered isolating amplifier,including line break and short circuit monitoring, satisfy the requirements of DIN/VDE 0660, Part 209.
FAQs
-
What is the Honeywell DWR06?
+It is a FEMA mechanical pressure switch/monitor used to monitor maximum and minimum pressure, designed for applications like hot water, steam, fuel gases, and liquid fuels. -
What does DWR stand for?
+The DWR series is calibrated for rising pressure, meaning the adjustable switching pressure on the scale corresponds to the switching point at rising pressure. -
What is the maximum medium temperature?
+It is designed for hot water/steam, with short-term permissible temperatures up to 85°C. -
What is the bursting pressure?
+The bursting pressure is ≥ 100 bar, verified by TÜV testing. -
What should I do if the ambient temperature is below 0°C?
+At ambient temperatures at or below 0°C, it is crucial to ensure that no condensation occurs in the sensor or the switching device.
