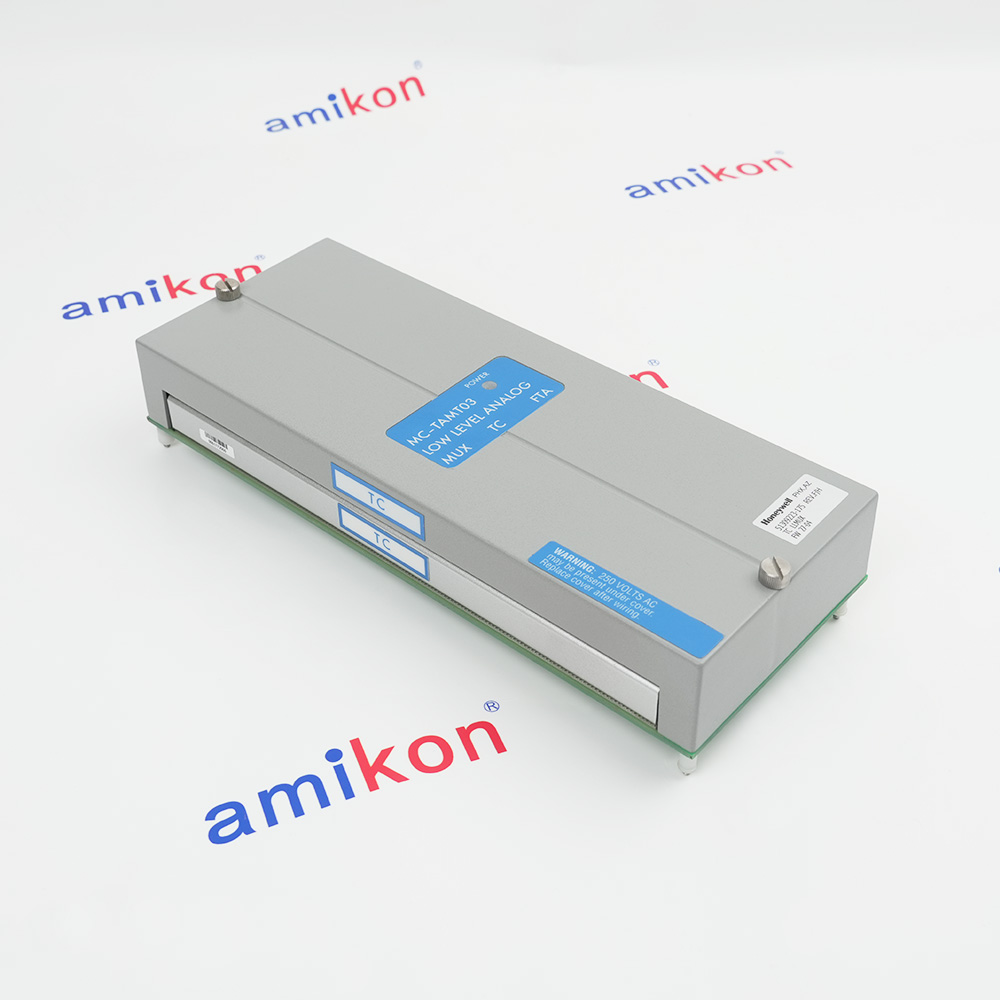

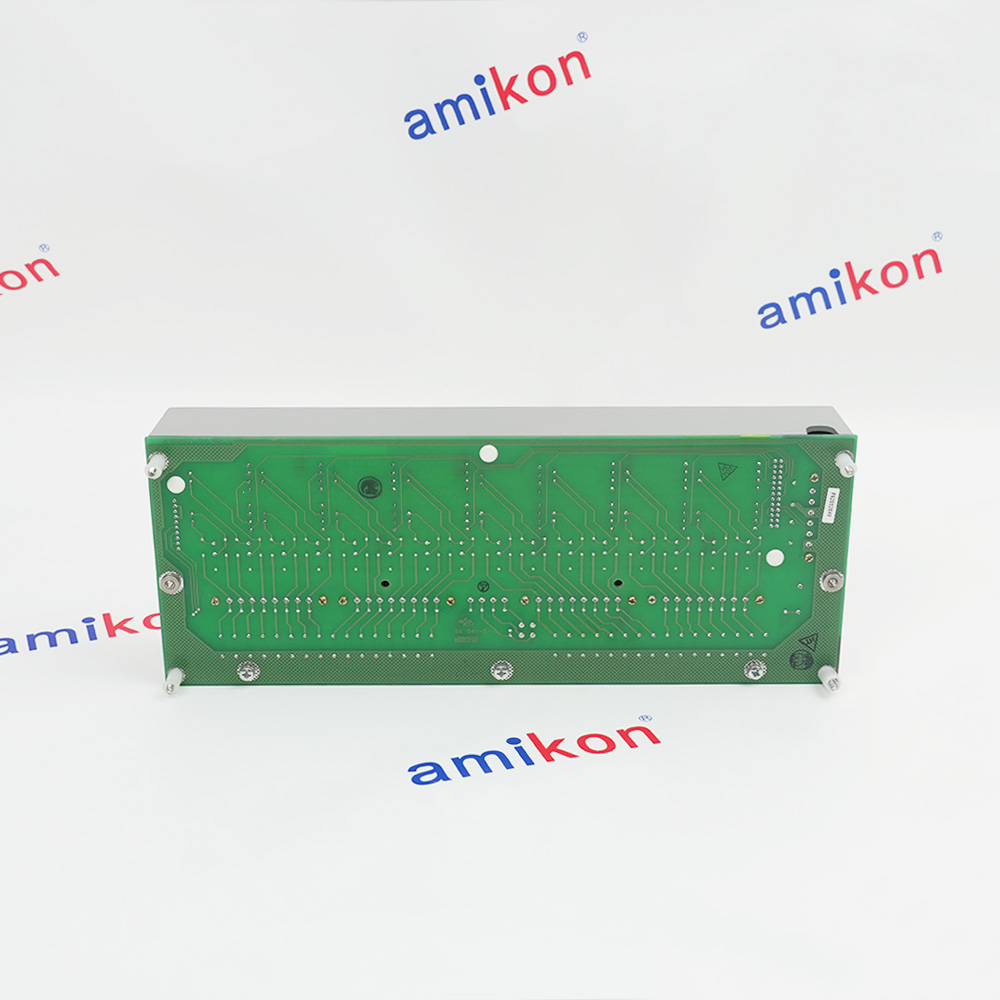

MC-TAMT03 51309223-175
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
LOW LEVEL THERMOCOUPLE MUX MODULE
MC-TAMT03
TC LLMUX
SIZE B
LOCAL CJR
16 INPUT CHANNELS
COMPRESSION TEMINALS
MC-TAMT03
TC LLMUX
SIZE B
LOCAL CJR
16 INPUT CHANNELS
COMPRESSION TEMINALS
Technical specifications for MC-TAMT03 51309223-175
-
Product ModelMC-TAMT03 51309223-175
-
Product ParametersLOW LEVEL THERMOCOUPLE MUX MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size30.5x12x7cm
-
ManufacturerHoneywell
-
Weight1.1 kg
-
Input TypeThermocouple, RTD, and linear millivolts
-
Input Channels32 galvanically isolated
-
A/D Converter Resolution14 bits
-
CMV, dc to 60 Hz250 Vac Peak or ±250 Vdc
-
Crosstalk, dc to 60 Hz120 dB
-
Maximum Normal Mode Continuous Input-1 V to 10 V
-
Input Scan Rate32 samples per second
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the MC-TAMT03?+It is a Honeywell Low Level Analog Input Multiplexer TC FTA (Field Termination Assembly) with Remote CJR (Cold Junction Reference). It is used for handling thermocouple inputs in TPS Process Manager systems.
-
What is the function of the MC-TAMT03?+It is a Low-Level Analog Input Multiplexer FTA that acts as a field termination point, connecting up to 32 analog input signals (such as thermocouples) to a Low-Level Analog Input Processor (LLMUX).
-
Does it support CJR (Cold Junction Reference)?+Yes, the MC-TAMT03 supports Remote Cold Junction Reference (Remote CJR) for accurate thermocouple measurements.
-
Which thermocouple types are supported?+The module supports a wide range of types, including ANSI J, K, E, T, B, S, R, and Japan Type R.
Get a quick price fo MC-TAMT03 51309223-175
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Physical Mounting & Orientation
Features:
- 32-point input capability
- Low-level analog signals, including thermocouple inputs
- Multiplexes low-level analog signals
The MC-TAMT03 51309223-175 HONEYWELL Low Level Analog Input Multiplexer Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL MC-TAMT03 51309223-175 Low Level Analog Input Multiplexer Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell MC-TAMT03 (51309223-175) is a Low-Level Analog Multiplexer (LLMUX) Field Termination Assembly (FTA) primarily used for thermocouple and millivolt signal processing within the TDC 3000 and TPS systems.Compatible with ANSI types J, K, E, T, B, S, R and Japan Type R.Supports signals from -20 to +100 millivolts.The MC-TAMT03 features a Local Cold Junction Reference to ensure high-accuracy temperature readings by compensating for the temperature at the connection point.
- Power Generation:Monitors boiler, turbine exhaust & steam line heat
- Petrochemical & Oil & Gas:Manages high-temp reactors, distillation & refineries
- Metals & Mining:Critical for furnace control in steel & smelting
- Chemical Manufacturing:Precise thermal profiles for batch/continuous reactors
- Pulp & Paper:Digesters & recovery boilers requiring consistent heat
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Upright Position Only: This module must be mounted in a vertical (upright) position. This ensures that the mercury inside the multiplexing relays maintains the correct contact orientation. If mounted horizontally or upside down, the mercury can cause permanent short circuits or erratic signal readings.
Location: It is a Size B FTA and can be mounted in standard Honeywell High-Performance Process Manager (HPM) or Advanced Process Manager (APM) cabinets.
Remote Mounting: The FTA can be located up to 1,000 feet (300 meters) away from the I/O processor using suitable interconnecting cabling (typically 16-gauge twisted pair).
