Technical specifications for FC-TSDO-04UNI
-
Product ModelFC-TSDO-04UNI
-
Product ParametersSafe Digital Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.2x7.1x5.8cm
-
ManufacturerHoneywell
-
Weight0.12 kg
-
ApprovalsCE, UL, TUV, CSA
-
Number of channels4
-
Maximum voltage36 V DC – IEC 1010 (1990)
-
Maximum continuous current per channel4 A
-
Max. wire diameter2.5 mm⊃ 2; (AWG 14)
-
Strip length7 mm (0.28 in)
Description
Safe digital output FTA
24/48/110 V DC
4 channels
Safe Digital Output Module
24/48/110 V DC
4 channels
Safe Digital Output Module
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Guidelines
Features:
- Universal Voltage Compatibility
- 4-Channel Fail-Safe Digital Output Interface
- Line Monitoring Capability
- Universal DIN Rail Mounting
- Robust Screw Terminal Field Wiring
The FC-TSDO-04UNI Honeywell Field termination assembly module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-TSDO-04UNI Field termination assembly module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

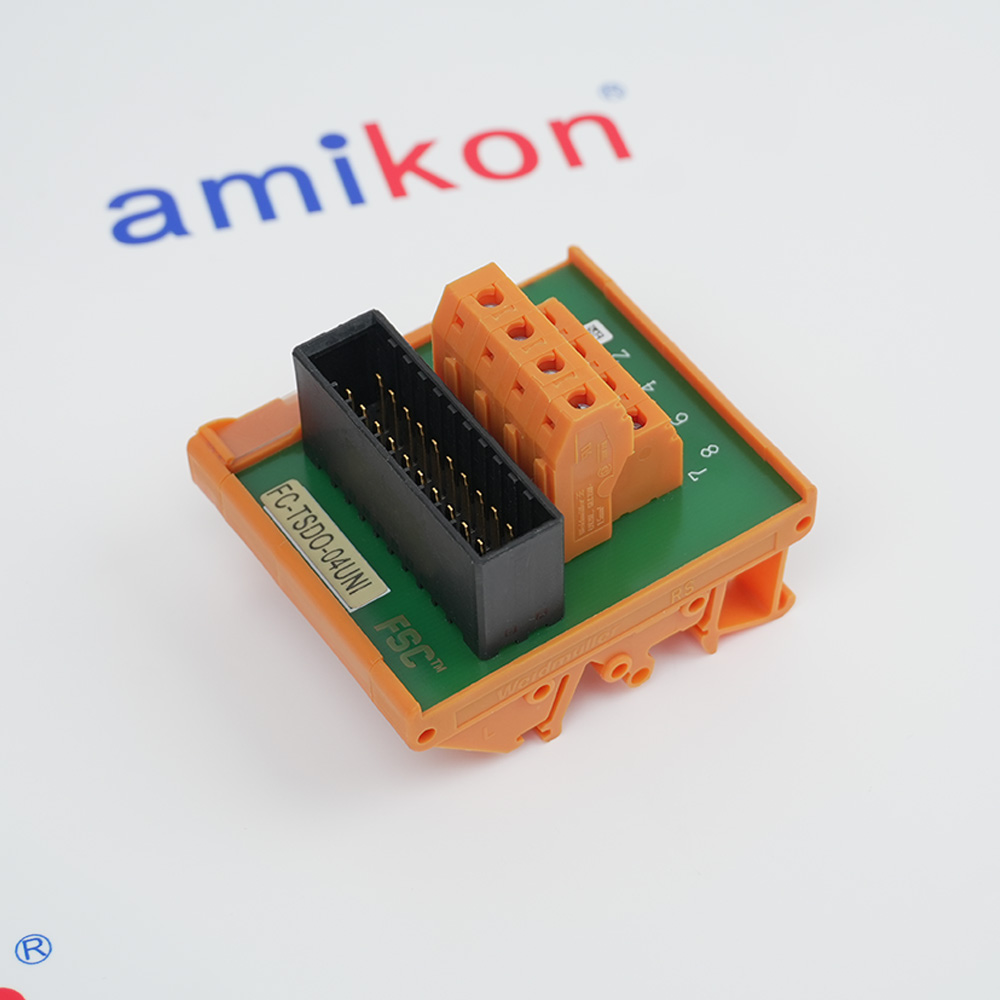

The Honeywell FC-TSDO-04UNI (also referred to as FS-TSDO-04UNI) is a field termination assembly (FTA) designed for high-integrity safety applications within the Honeywell Safety Manager system.Interfaces with Safety Manager output modules (like SDO-0424 or SDOL-0424) via a SICC-0001/Lx system interconnection cable. The "FC-" prefix indicates the module is conformal coated for protection against harsh or corrosive environments, whereas "FS-" denotes the non-coated version
- Oil & Gas:Petrochemical plants & pipeline safety monitoring
- Power Generation:Process safeguarding, BMS & boiler control
- Chemical Processing:Safety-critical automation for complex control
- Marine Automation:Automated safety systems in marine environments
- Emergency Shutdown Systems (ESD):Automatically shuts down processes to prevent hazards
- Fire & Gas Detection:Controls output signals for detection & response
- Turbomachinery Control:Safeguards turbines/compressors from failure/damage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Wire Specifications: Use wires with a maximum diameter of 2.5 mm² (AWG 14).
Stripping & Torque: Strip the insulation back by 7 mm (0.28 inches) and tighten the screws to a torque of 0.5 Nm (0.37 ft-lb).
Channel Routing: Each of the 4 channels can be connected to external field wiring directly through these screw terminals.
FAQs
-
What is the FC-TSDO-04UNI?
+It is a Safety Digital Output module designed to handle high-reliability output, suitable for 24/48/110Vdc applications -
What is the maximum voltage of FC-TSDO-04UNI?
+Up to 150 Vdc (IEC 1010 Overvoltage Category 2) or 50 Vdc (Overvoltage Category 3). -
What is the function of the FTA?
+It acts as a bridge between the field wiring and the Safety Manager system, providing safe isolation and signal management. -

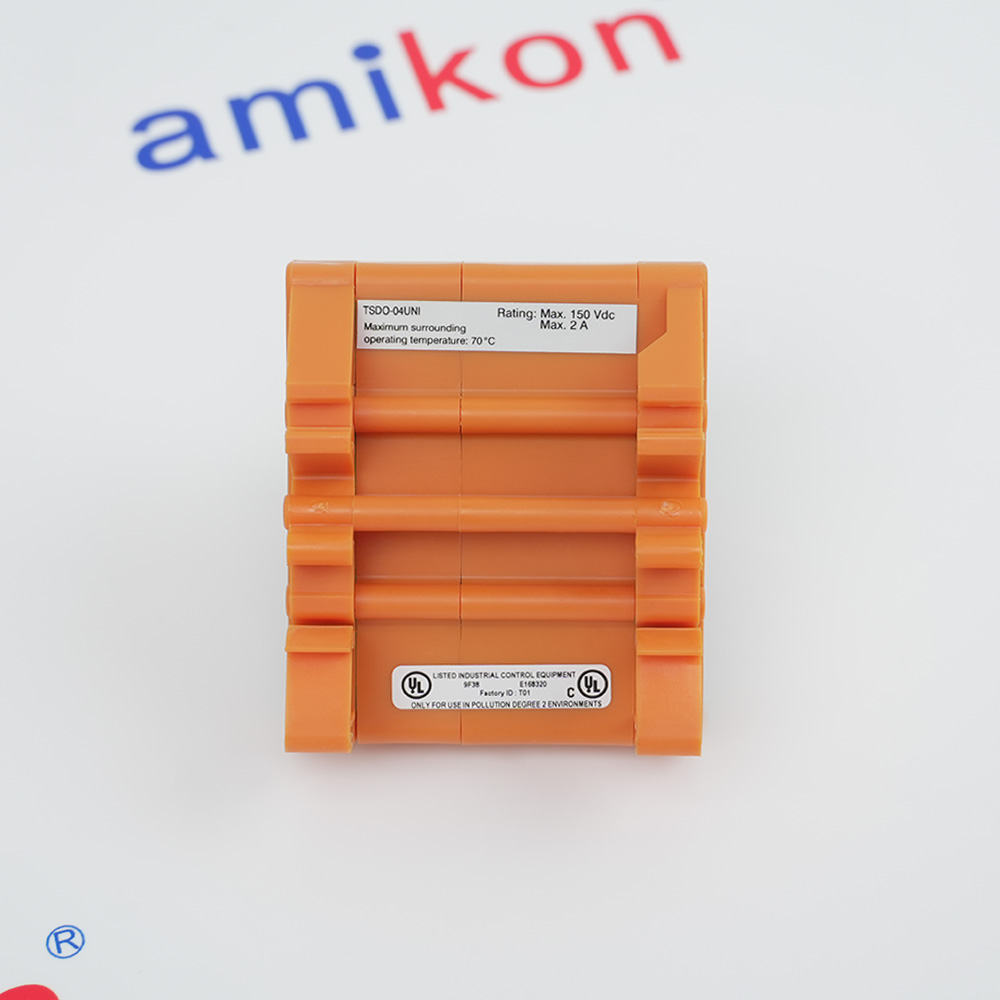

What is the FC-TSDO-04UNI maximum voltage rating?
+It has a dual rating based on IEC 1010 (1990) standards: up to 50 Vdc for Overvoltage Category 3 (fixed installations) and up to 150 Vdc for Overvoltage Category 2 (less severe transients). -
What is the FC-TSDO-04UNI current capacity per channel?
+The module supports a maximum continuous current of 2 A per channel.
