PRODUCT DESCRIPTION
Fault-tolerant communication between the expander bus and chassis

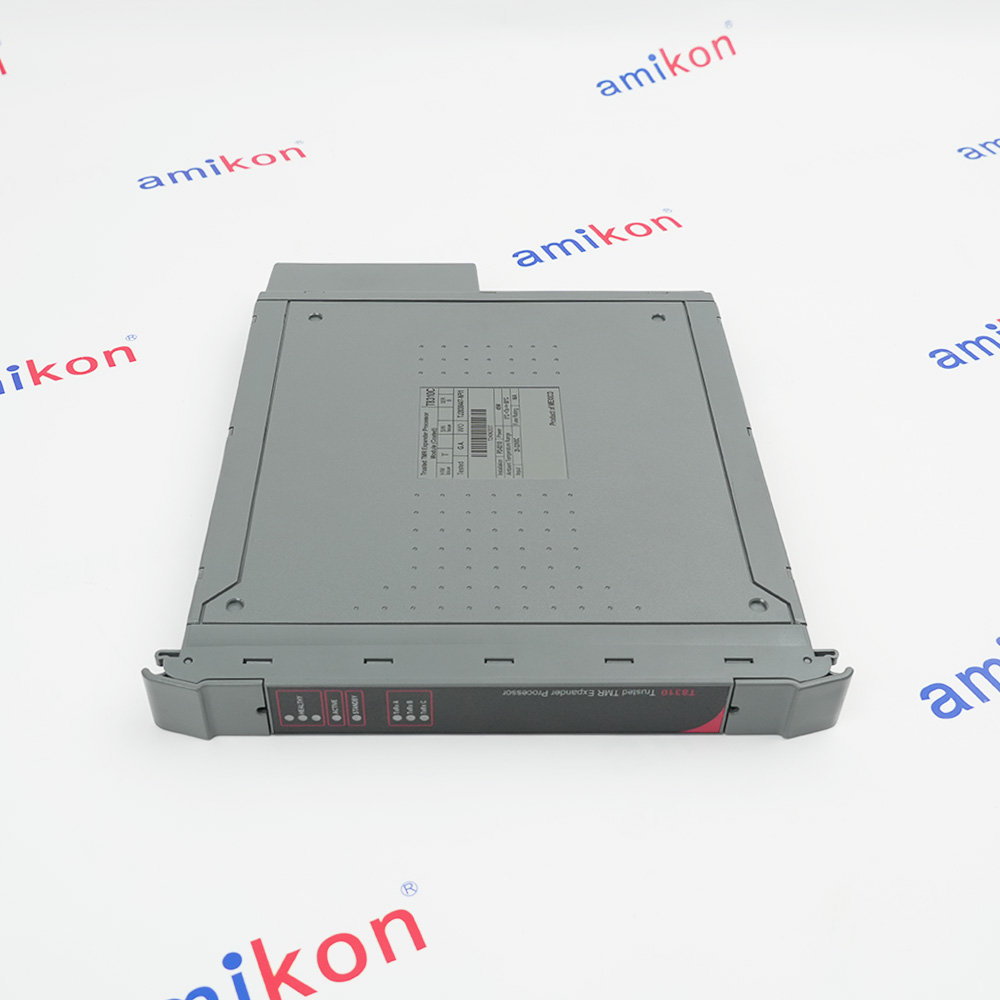

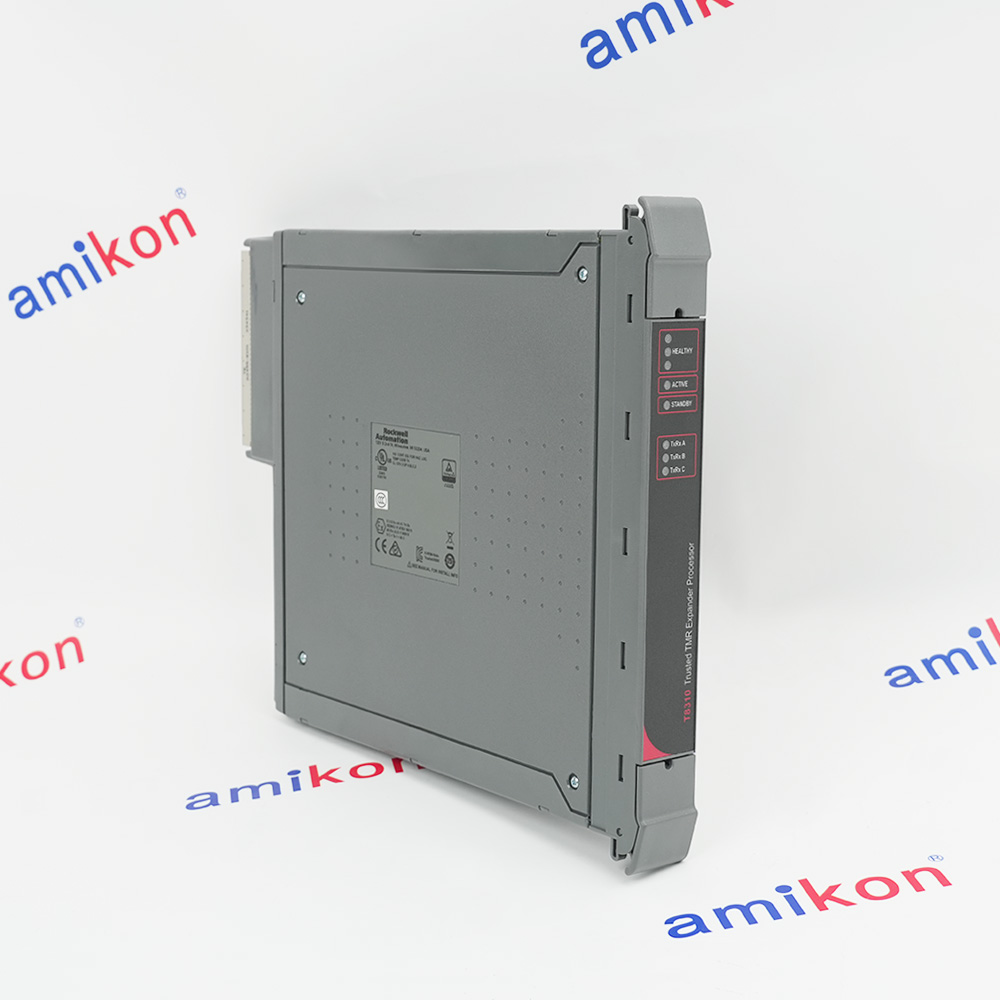

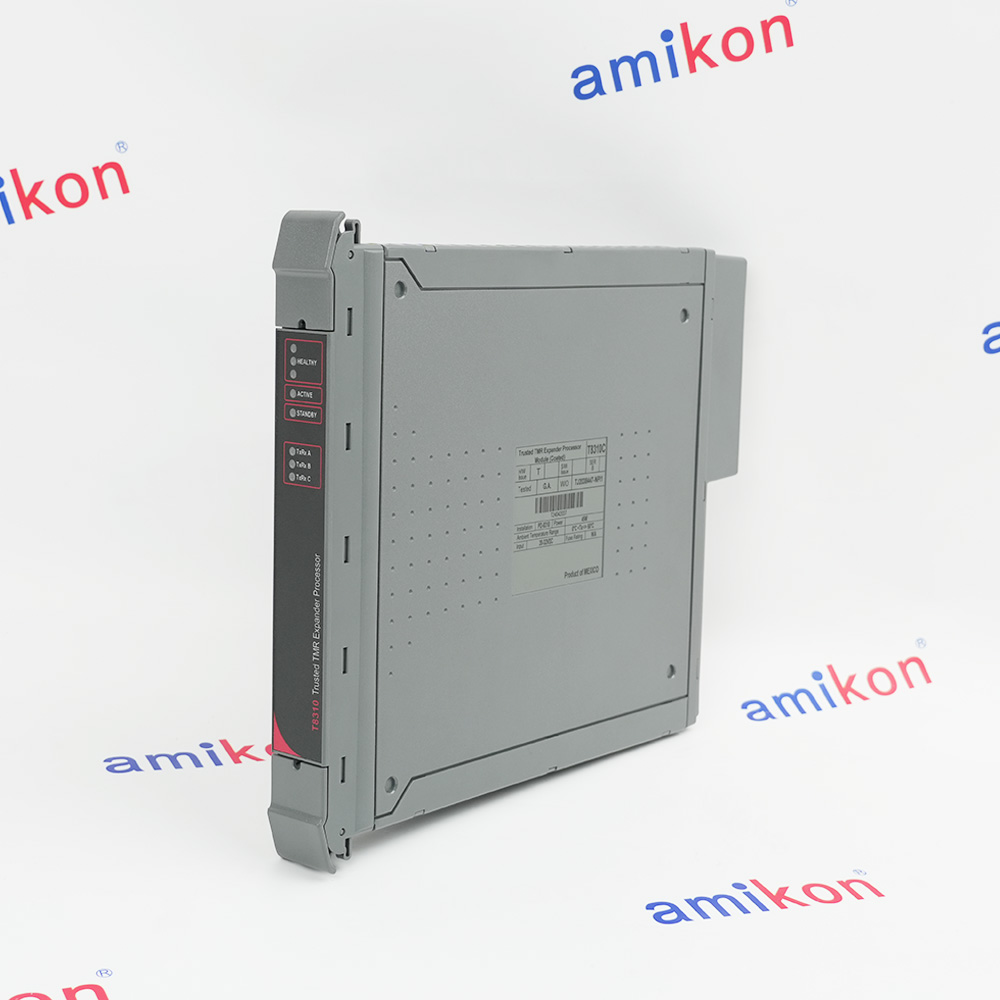

ICS Triplex T8310C is a Trusted TMR expander processor installed in the dedicated processor positions of an expander chassis. It links the triplicated expander bus to the chassis backplane and forwards communications between the controller and expansion modules.
The module uses hardware-implemented TMR fault tolerance to contain faults within the expander bus, processor or chassis. Hardware and software diagnostics identify faults, while front-panel indicators show operating condition. Configured standby and spare-module arrangements support continued availability.
The module uses hardware-implemented TMR fault tolerance to contain faults within the expander bus, processor or chassis. Hardware and software diagnostics identify faults, while front-panel indicators show operating condition. Configured standby and spare-module arrangements support continued availability.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8310C Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · WATER & WASTEWATER
Water Supply Operations and Public Wastewater Treatment Facilities
Water supply operations with treatment equipment and pumping assets.Public wastewater treatment facilities with aeration tanks and screening. -
02 · CHEMICAL PROCESSING
Chemical Production Facilities and Industrial Feedstock Handling Plants
Chemical production facilities with batch vessels and transfer equipment.Industrial feedstock handling plants with storage and blending operations. -
03 · OIL & GAS
Petroleum Processing Sites and Natural Gas Transmission Facilities
Petroleum processing sites with separation equipment and transfer stations.Natural gas transmission facilities with compression and metering equipment.
Technical specifications for T8310C
-
Product ModelT8310C
-
Product ParametersTrusted TMR expander processor
-
ManufacturerICS Triplex
-
Backplane supply20 to 32 Vdc
-
Internal supply arrangementDual redundant nominal 24 Vdc feeds from the expander backplane
-
Documented power ratingSeries B: 45 W; Series C: 20 W in PC002G; confirm actual hardware series
-
Permitted locationT8300 expander processor slots PL1 or PL2 only
-
ArchitectureHIFT TMR; three main fault containment regions
-
Companion-slot linkDouble-width cable hood connects the two processor positions
-
Copper expander distanceUp to 30 m using the documented TC-301 arrangement
-
Optical expander distanceUp to 10 km using the documented T8314 fibre arrangement
-
IMB connector SK1185-way DIN 41642 type
-
Internal fusingNot user serviceable
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10-95%, noncondensing
-
Equipment dimensions266 x 31 x 303 mm (H x W x D)
-
Equipment mass1.33 kg in PD-T8310; not shipping gross weight
View all additional
Alternative Names
T8310C Trusted TMR expander processor
ICS Triplex T8310C Trusted expander processor module
T8310C Trusted expander chassis communications processor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8310C to the documented Trusted configuration
T8310C connects the expander bus to the expander chassis IMB. It is not the main controller processor or a general Ethernet interface. Use the two designated processor positions, their common cable hood and the approved local or optical expander route.
Use expander processor slots PL1 or PL2; other module positions are prohibited. Check dual backplane feeds, actual series power rating and the approved thermal arrangement.
Verify chassis address and I/O Connection table; never remove a module indicating ACTIVE.
Features:
- Triplicated expander bus connection
- Dedicated expander processor positions
- Active and standby companion slots
The ICS Triplex T8310C trusted tmr expander processor requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T8310C identity and compare its hardware revision with the installed item. Preserve T8310C and verify the actual series, revision and certified release. The order suffix does not identify the hardware series. Do not substitute a main processor, expander interface or differently suffixed order by appearance alone.
Use expander processor slots PL1 or PL2; other module positions are prohibited. Verify chassis address and I/O Connection table; never remove a module indicating ACTIVE.
Use the controlled manufacturer procedure and the approved maintenance plan. Never remove a module indicating ACTIVE: expansion modules may enter their default shutdown state. Confirm the companion module and approved changeover sequence first.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T8310C trusted tmr expander processor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8310C trusted tmr expander processor must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8310C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this module the main Trusted controller processor?
No. It connects the expander bus to the expander chassis backplane. The main controller and expander interface perform different roles; a similar front panel does not establish interchangeability. -
Does the C in the order number mean hardware Series C?
No. Preserve the full order number and inspect the separate series and revision markings. The current catalogue gives different power ratings for Series B and Series C; the order suffix alone is not a thermal-design basis. -
Which chassis positions are permitted?
Only the two dedicated processor positions PL1 and PL2 in the expander chassis. The manual prohibits installation in other module locations because damage may result. -
Can a module showing ACTIVE be removed during replacement?
No. Complete the manufacturer changeover and confirm that the original module is in Standby and the replacement is Active. Removing an active module can cause expansion modules and the process program to enter shutdown states. -
Does module hot replacement permit cable-hood replacement online?
No. The manufacturer requires shutdown for replacement of the complete cable assembly and requires the associated chassis positions to be unoccupied. These are separate procedures. -
How are local and optical expansion connected?
The local arrangement uses TC-301 through T8312. The remote optical arrangement uses T8314 with TC-302 on the interface side and TC-303 on the expander side. Match the full route, hardware and documented distance limits. -
Why can the standby module have no transmit indication?
The manual states that no red transmit activity is observed in standby. Green indicates receive activity. Confirm healthy indicators, the intended operating state and diagnostic information before treating this as a fault. -
Do the listed equipment measurements describe the shipment?
No. The manual gives a 266 x 31 x 303 mm equipment outline and 1.33 kg mass. These do not establish packed dimensions or gross shipping weight.
