PRODUCT DESCRIPTION

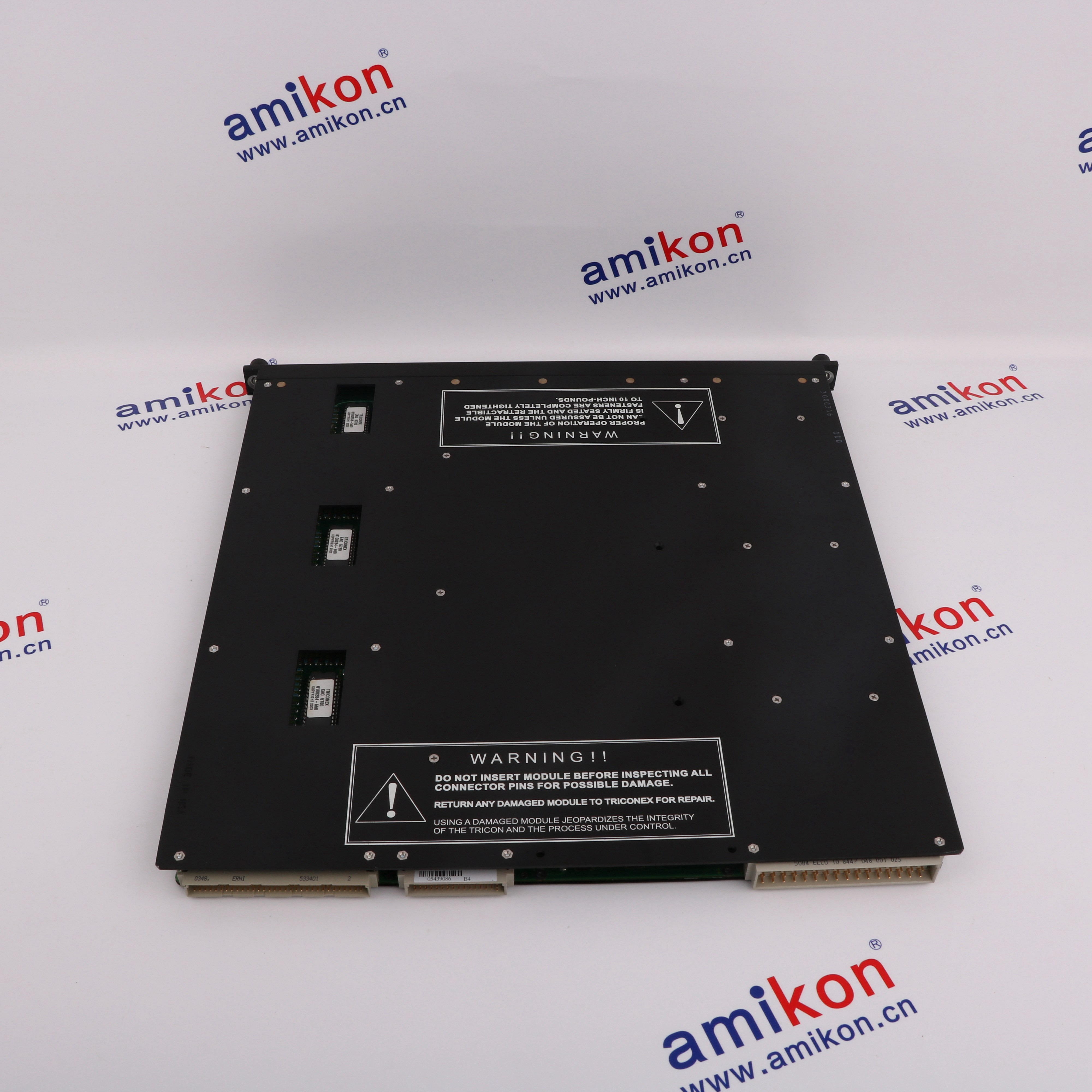

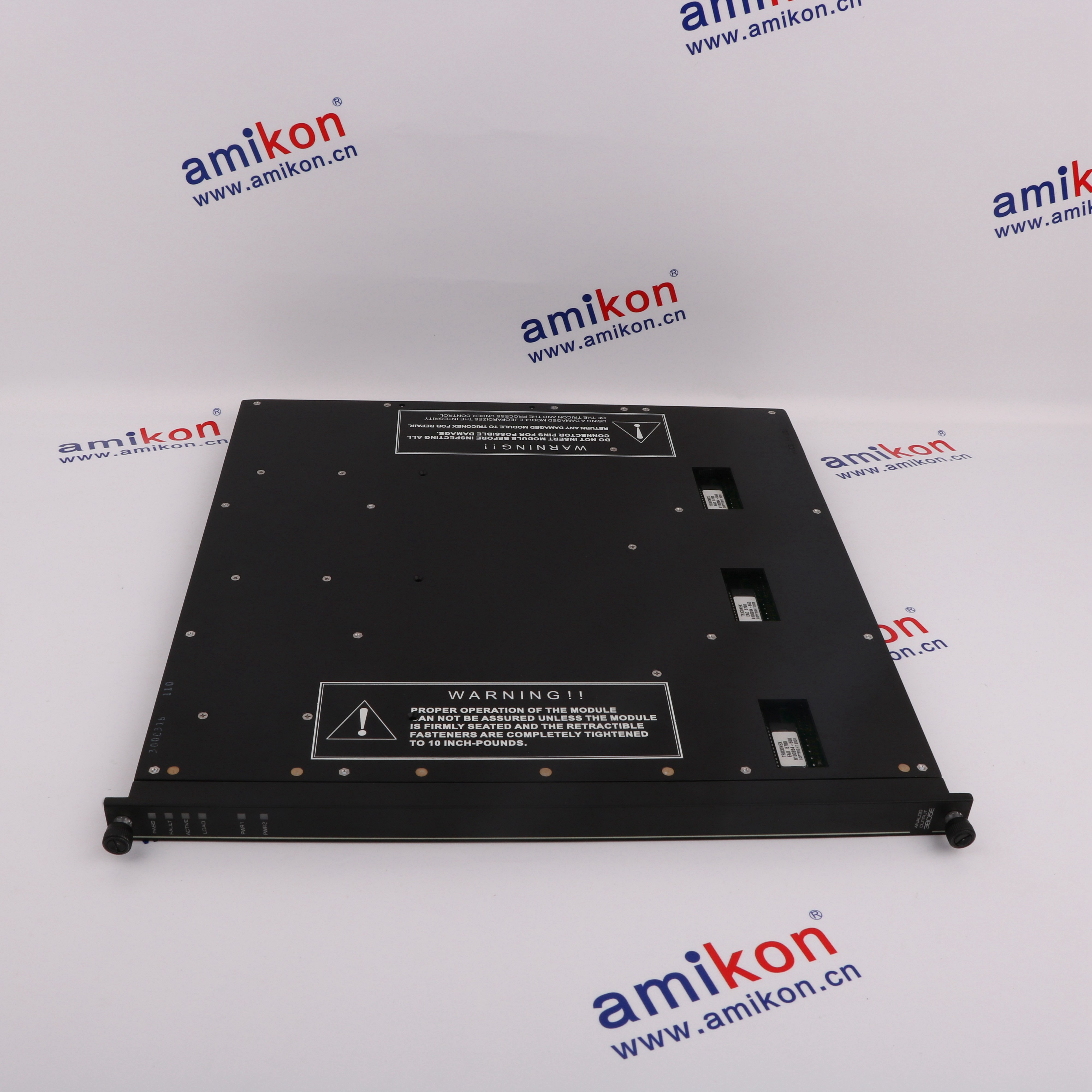

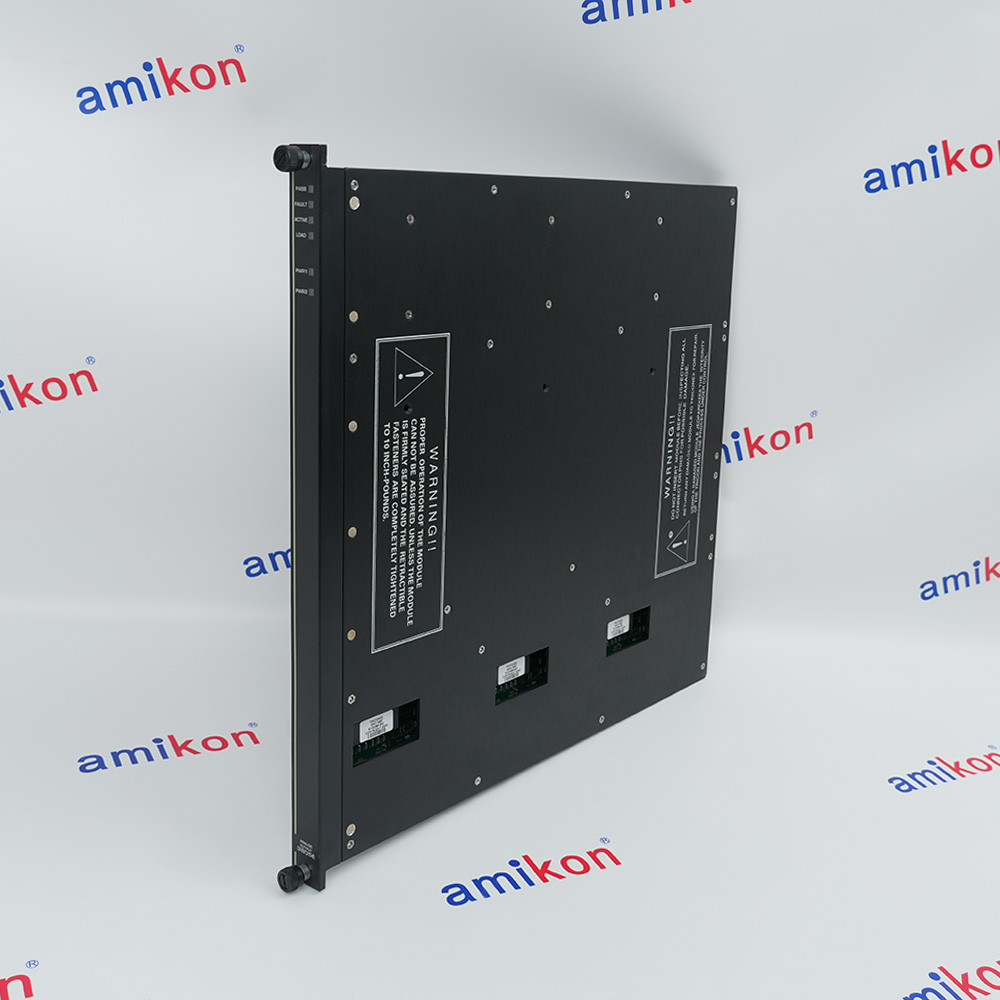

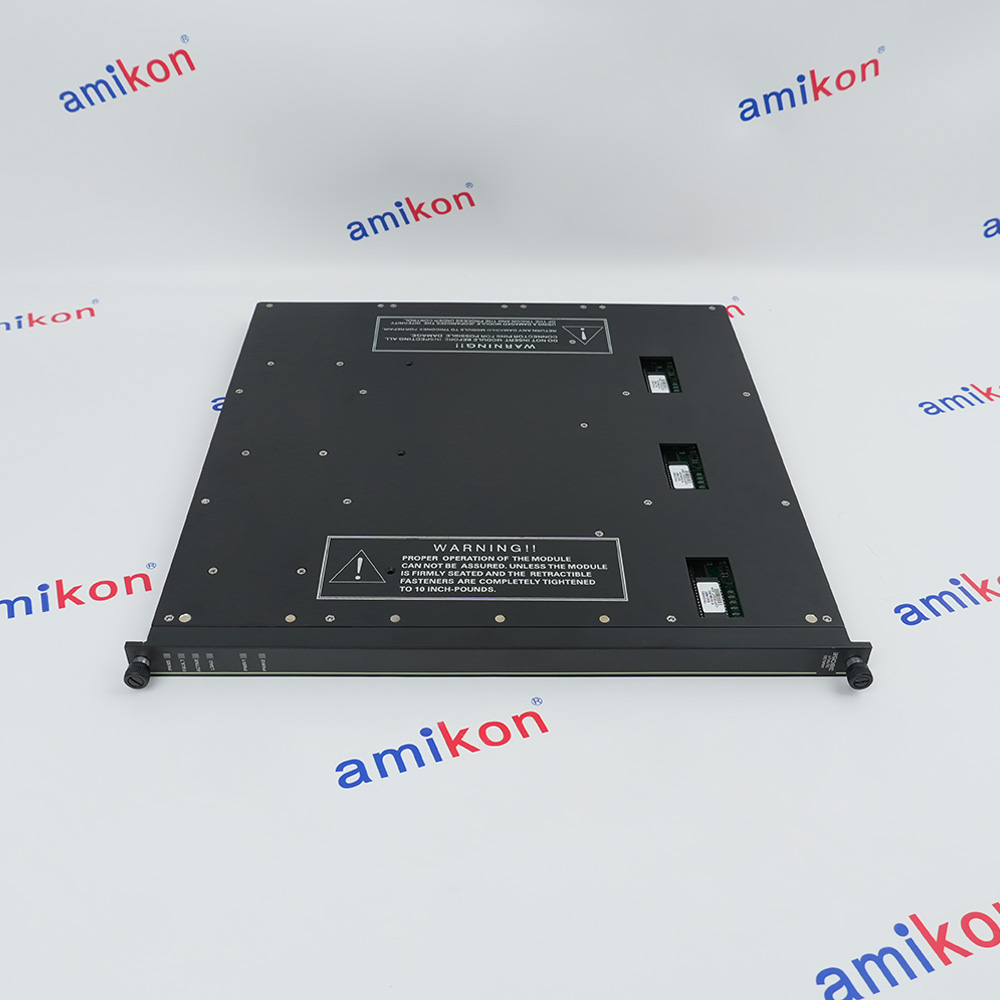

3805E - TMR Analog Output Module
Triconex 3805E provides eight DC-coupled analog outputs with a commoned return. Its 12-bit output stage supplies the documented 4-20 mA operating range, with a 2-21.2 mA over-range capability and external field-loop power.
Size loop power for the actual load: the manufacturer specifies progressively higher supply voltages as resistance increases. Pwr1 and Pwr2 indicate the presence of more than 20 VDC, but do not establish adequate voltage for the attached load. Check loop voltage, current and termination before service.
Size loop power for the actual load: the manufacturer specifies progressively higher supply voltages as resistance increases. Pwr1 and Pwr2 indicate the presence of more than 20 VDC, but do not establish adequate voltage for the attached load. Check loop voltage, current and termination before service.
BEFORE YOU BUY
Check the complete installed configuration
ACTUAL APPLICATIONS
Where 3805E supports current-loop control
The manufacturer documents the following circuit functions. Validate the complete safety function and field wiring before service.
-
01 · CURRENT COMMANDS
Drive an engineered analog demand
Command a connected 4-20 mA receiving device through the selected output channel. Verify commanded and actual current at low, middle and high operating points against the approved control scaling. -
02 · LOOP POWER
Maintain external loop-power paths
Connect the documented redundant loop-power sources at the termination panel. Check each source against the total loop resistance and required current, rather than relying only on a lit Pwr indicator. -
03 · OUTPUT DIAGNOSTICS
Investigate missing load current
Use the Load indication together with measured loop voltage and current to locate an open or undrivable output circuit. The module monitors both the analog signal and actual selected-channel current.
Technical specifications for 3805E
-
Product Model3805E
-
Product ParametersTMR Analog Output Module
-
In stock1 unit
-
ManufacturerInvensys
-
Output points8
-
Return arrangementCommoned return, DC-coupled
-
Output resolution12 bits
-
Nominal output current4-20 mA
-
Extended output capability2-21.2 mA
-
Output accuracyLess than 0.25% of 0-21.2 mA FSR, within 4-20 mA, 0-60 degrees C
-
External loop voltage24 VDC nominal; 42.5 VDC maximum; reverse-voltage protected
-
Loop voltage versus load250 ohm: >20 V; 500 ohm: >25 V; 750 ohm: >30 V; 1000 ohm: >35 V
-
Specified loop-supply current1 A minimum for the tabulated load cases
-
Output over-range protection42.5 VDC continuous; 0 VDC continuous
-
Channel-failure switch time10 ms typical; 20 ms maximum
-
Loop-power indicationPwr1 and Pwr2 detect presence above 20 VDC, not load adequacy
-
Load alarm conditionUnable to drive current from an output, for example an open load
-
Per-point loopback monitoringTwo independent circuits: signal verification and selected-channel current verification
-
Logic powerLess than 15 W
View all additional
Alternative Names
3805E
Tricon Current Output Module
3805E TMR AO
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed field I/O arrangement
Triconex 3805E provides eight DC-coupled analog outputs with a commoned return. Its 12-bit output stage supplies the documented 4-20 mA operating range, with a 2-21.2 mA over-range capability and external field-loop power.
Size loop power for the actual load: the manufacturer specifies progressively higher supply voltages as resistance increases. Pwr1 and Pwr2 indicate the presence of more than 20 VDC, but do not establish adequate voltage for the attached load. Check loop voltage, current and termination before service.
Document field wiring and the approved application settings before exchange. Use the complete Tricon system installation procedure and verify affected circuits after replacement.
Features:
- Eight common-return current outputs
- 12-bit output conversion
- Externally powered 4-20 mA loops
The 3805E requires configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Preserve the exact 3805E identity and the installed field termination. A similar Tricon module number does not establish interchangeability.
Size loop power for the actual load: the manufacturer specifies progressively higher supply voltages as resistance increases. Pwr1 and Pwr2 indicate the presence of more than 20 VDC, but do not establish adequate voltage for the attached load. Check loop voltage, current and termination before service.
Retain the validated safety logic and proof-test records. Recommission affected channels under the approved site procedure.
Features:
- Eight common-return current outputs
- Externally powered 4-20 mA loops
- Separate Pwr1 and Pwr2 indications
The 3805E requires replacement verification of field wiring, load or signal limits, termination and configured diagnostics before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.Features:
- Sources: Invensys Tricon v9-v10 Planning and Installation Guide, 9720077-012, February 2009
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 3805E is supplied here as a technical-data extract; confirm manual availability in the written quotation.
