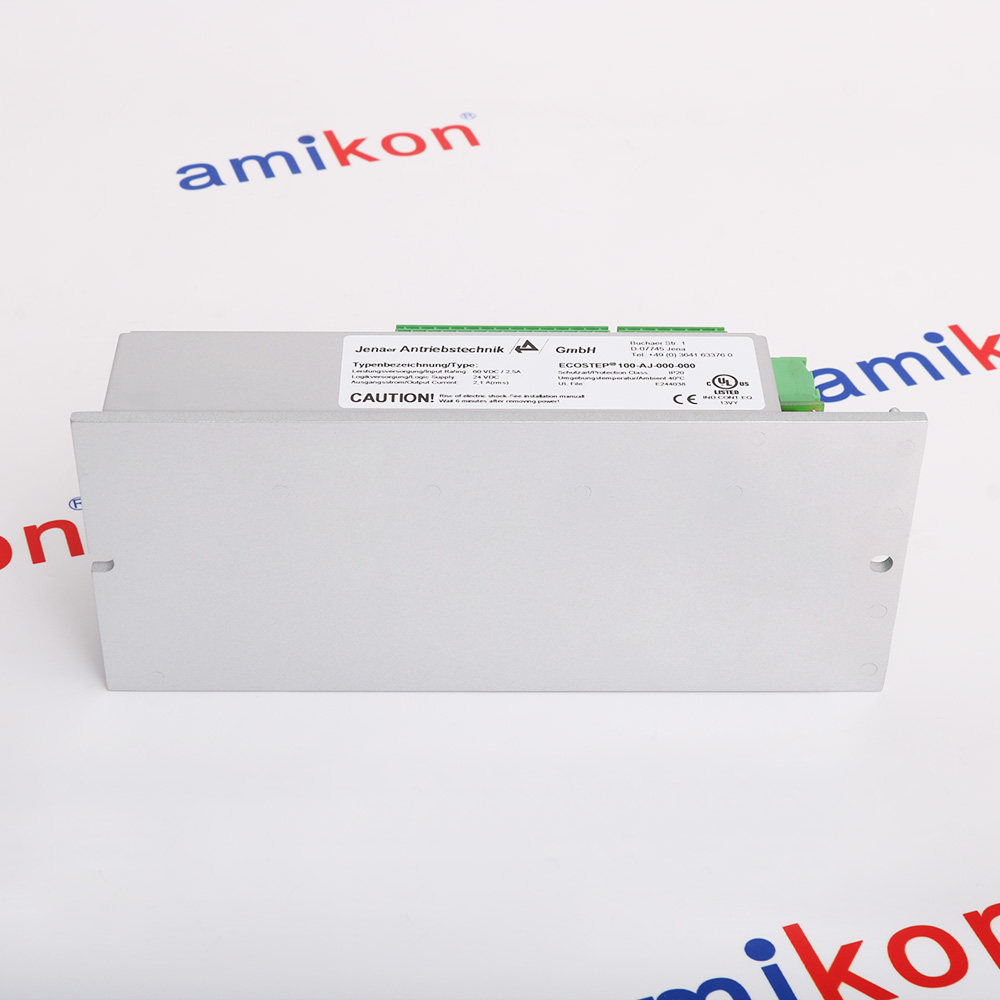

- ECOSTEP 100-AJ-000-000
In Stock
Ships by Wednesday, July 1
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for ECOSTEP 100-AJ-000-000
-
Product ModelECOSTEP 100-AJ-000-000
-
Product ParametersServo Amplifi ers
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20x8.7x5.3cm
-
ManufacturerJENAER ANTRIEBSTECHNIK
-
Weight0.64 kg
-
Power supply24 ... 70VDC
-
Recommended fuse for power supply10A (slow)
-
Logic supply24 (18-30) VDC
-
Maximum effective current per phase5.6 ARMS
-
Maximum phase current8 ADC
-
Rated output current4.2 ARMS
-
Maximum output voltage70VDC
-
Rated output voltage60VDC
-
Minimum inductivity of motor winding0.5mH
-
Maximum length of motor cable10m
-
Frequency of output current ripple16.4kHz
-
Output voltage24VDC
-
Output voltage reduced12VDC
-
Output current 100 ms/permanent0.8 / 0.5A
Description
The ECOSTEP 100-AJ-000-000 is a Jenaer Antriebstechnik servo amplifier designed for precise motion control in industrial automation applications. The ECOSTEP 100-AJ-000-000 supports multiple communication protocols including CANopen, PROFIBUS DP, RS232, and RS485, enabling flexible integration with various industrial control systems and fieldbus networks.
The ECOSTEP 100-AJ-000-000 can operate multiple motor types including 2-phase brushless synchronous motors, 2-phase synchronous linear motors, brushed DC servo motors, and stepper motors, providing versatility for diverse motion control applications. The ECOSTEP 100-AJ-000-000 features digital speed and position control with position, speed, and torque limiting, plus parameterizable velocity profiles with jerk limiting for smooth and precise motion control.
The ECOSTEP 100-AJ-000-000 can operate multiple motor types including 2-phase brushless synchronous motors, 2-phase synchronous linear motors, brushed DC servo motors, and stepper motors, providing versatility for diverse motion control applications. The ECOSTEP 100-AJ-000-000 features digital speed and position control with position, speed, and torque limiting, plus parameterizable velocity profiles with jerk limiting for smooth and precise motion control.
Alternative Names
ECOSTEP-100-AJ-000-000
ECOSTEP 100-AJ-000-00O
ECOSTEP 100-AJ-000-0O0
ECOSTEP 100-AJ-0O0-OOO
ECOSTEP I00-AJ-000-000
EC0STEP 100-AJ-000-000
ECOSTEP I00-AJ-000-000
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connection Best Practices
Features:
- Digital speed and position control with position, speed, and torque limiting
- Digital filter functions effective on resonant loads
- Parameterisable velocity profiles with jerk limiting
- Parameterisation via RS232, RS485, CANopen, or Profibus DP
- Scalable analogue input for any setpoint
The ECOSTEP 100-AJ-000-000 supports positioning control on field bus with point-to-point control and path interpolation via CANopen, as well as master/slave positioning with parameterisable electric gearbox. The ECOSTEP 100-AJ-000-000 includes 256 motion profiles storable for positioning with digital I/O interface, and supports joystick operation with parameterisable joystick table for speed or position with 256 entries.
The ECOSTEP 100-AJ-000-000 JENAER ANTRIEBSTECHNIK Servo Amplifiers may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
JENAER ANTRIEBSTECHNIK ECOSTEP 100-AJ-000-000 Servo Amplifiers Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

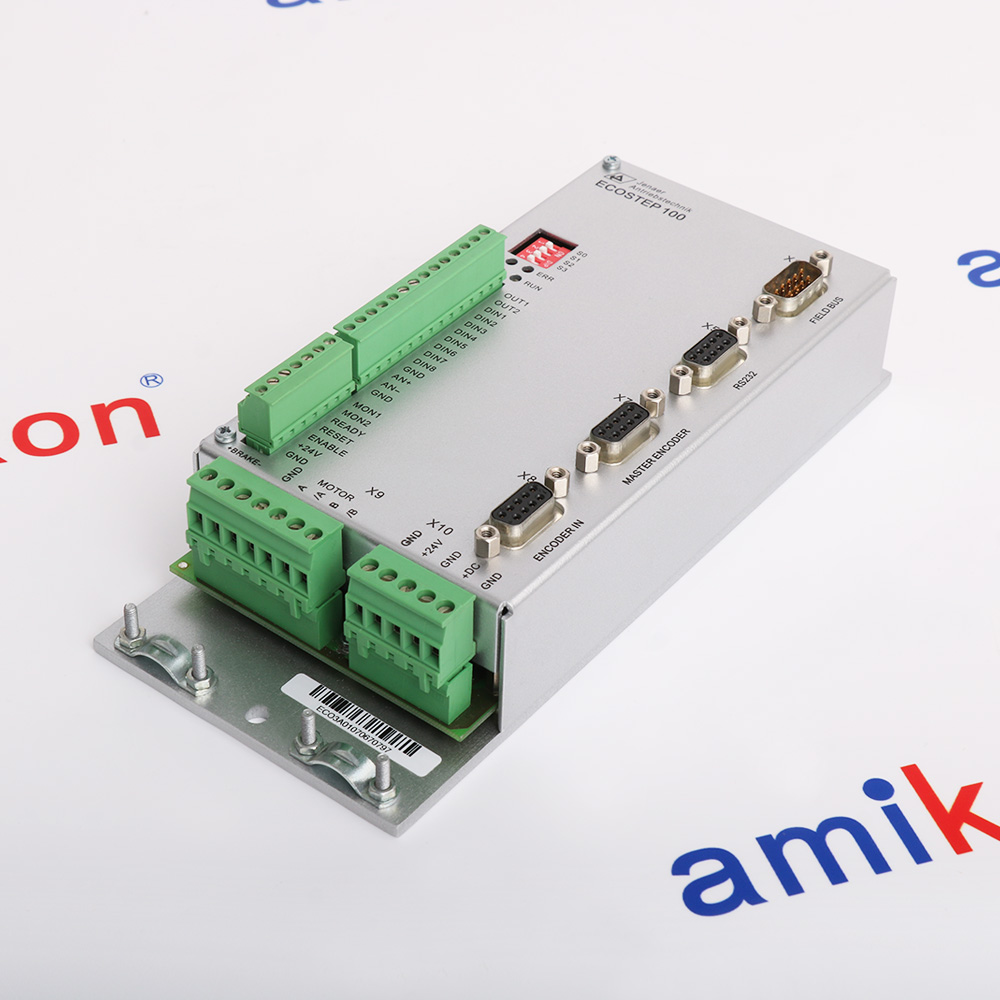

The unit provides 10 digital inputs (8 programmable) and 3 digital outputs (2 programmable) for limit switches, reference sensors, powerstage enabling, error reset, and readiness indication. Two encoder inputs accept incremental quadrature signals at up to 2 MHz for motor commutation, current, speed, and position feedback, as well as for master/slave gearing applications. An intelligent brake control circuit supplies 24 V or 60 V with automatic voltage reduction for holding brake management.
Comprehensive protection circuitry monitors short-circuit conditions, DC bus overvoltage and undervoltage, powerstage temperature, encoder integrity, tracking error, and motor thermal load via I²t calculation. The device status is indicated through four front-panel LEDs (24 V, BUS, ERR, RUN), and the field bus node address is set via a 4-pole DIP switch.
- Industrial Automation: Central motor controller for assembly, packaging, and material handling with precise synchronization
- Robotics: Drives joints and actuators in industrial robots, Cartesian systems, and pick-and-place mechanisms
- CNC Machinery: Controls milling, lathe, router, and engraving axes with zero-backlash precision
- Industrial Laser Systems: Handles micro-positioning for laser cutters, welders, and marking components
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Motor & Cable Constraints: The maximum motor cable length is 10m. You must use manufacturer-supplied cables to avoid functional errors.
EMC-Compliance: Ensure a proper EMC-compliant installation by correctly screening, earthing, and filtering cables.
Inputs/Outputs: The unit features RS232/RS485/CANopen communication interfaces, 10 digital inputs, and quadrature encoder inputs.
Technical notes
The ECOSTEP 100-AJ-000-000 provides 10 digital inputs (8 programmable) and 3 digital outputs (2 programmable), along with 2 encoder inputs (incremental) for comprehensive I/O capability and feedback control. The ECOSTEP 100-AJ-000-000 includes comprehensive protection and monitoring functions including short-circuit, voltage, temperature, encoder, tracking error, and I²xt monitoring, with intelligent control of a holding brake featuring automatic voltage reduction.
FAQs
-
What are the input power requirements?
+The unit operates on a 24V DC to 70V DC main power supply and requires a dedicated 24V DC logic supply (acceptable range 18-30V DC) -
What are the recommended fuses?
+The recommended protection is a 10 A time-lag (AT) fuse for the main power supply and a 3 A time-lag (AT) fuse for the logic supply. -
What is the maximum current output of the power stage?
+The amplifier delivers a maximum RMS phase current of 5.6 Arms (8 ADC peak) and has a rated continuous output current of 4.2 Arms -
What communication and fieldbus options are supported?T
+The amplifier includes RS232 and RS485 serial interfaces. Depending on factory configurations or software options, it utilizes CANopen or Profibus DP communication protocols.
