Technical specifications for EX-416
-
Product ModelEX-416
-
Product ParametersInductive Gauging Sensor
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.2x10.7x3cm
-
ManufacturerKEYENCE
-
Weight0.1 kg
-
ControllerEX-V05
-
Measuring range0 to 5 mm 0.20
-
Display range-19999 to 19999
-
Linearity±0.3% of F.S.
-
Resolution1 µm
-
Sampling rate40000 samples max./sec
-
Display rate20/sec
-
Display character7-segment 2-color LED
-
Tolerance settingUpper/lower 2-level setting x 4 sets
-
Response time0.075 ms
-
Output voltage±5 V
-
Impedance100 Ω
-
Response time0.075 ms
-
Temperature fluctuation0.07% of F.S./°C
-
Power supply24 VDC±10%, Ripple (P-P): 10% max
-
Current consumption240 mA max
Description

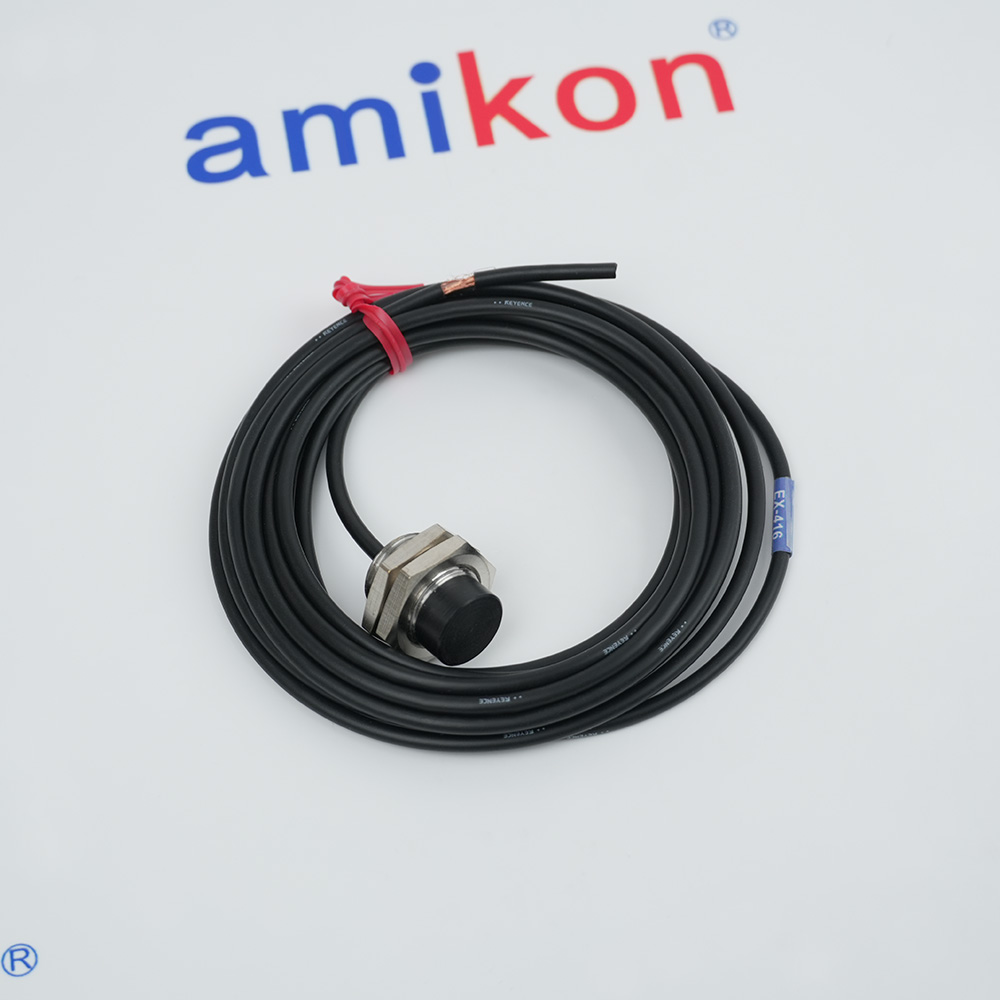

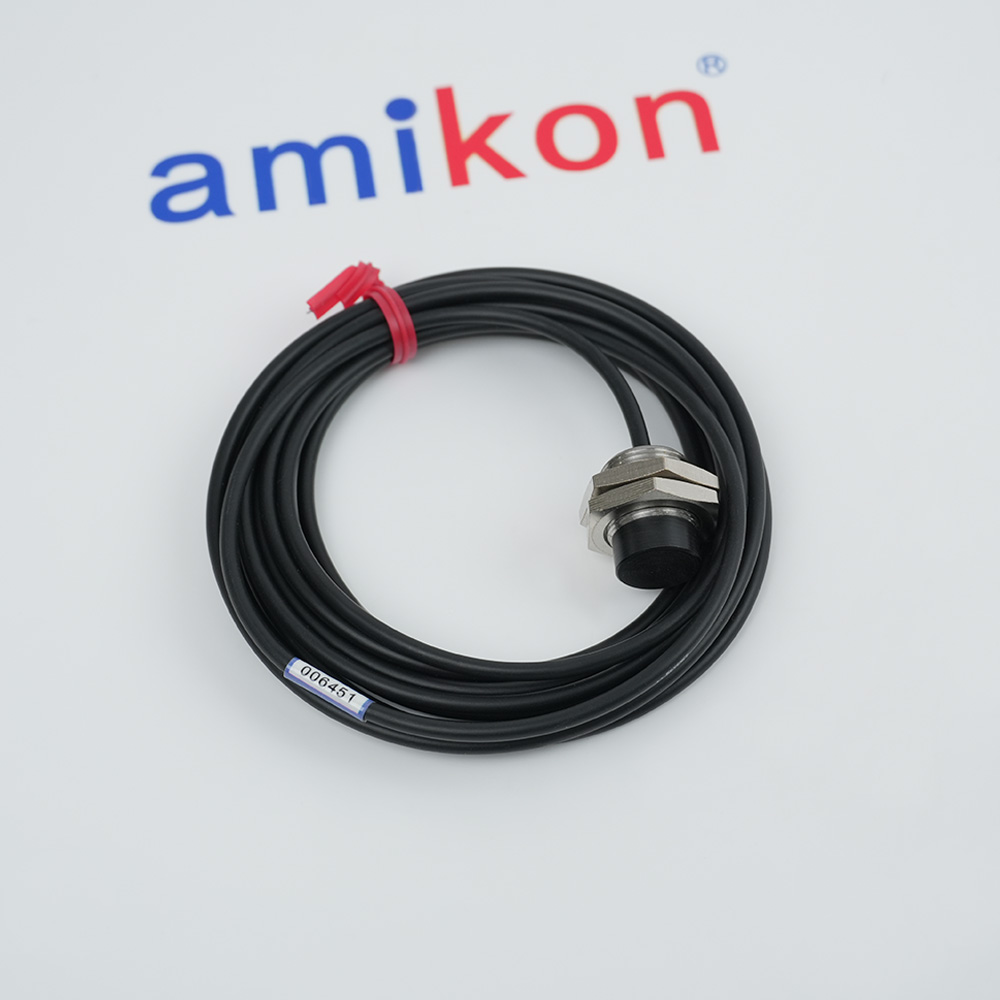

The KEYENCE EX-416 is an inductive gauging sensor head from the KEYENCE EX-200 series, manufactured by KEYENCE Corporation. It is designed for non-contact displacement measurement using eddy current technology, providing reliable and accurate position sensing in industrial automation applications.
This sensor head features a cylindrical threaded body with a 14.5 mm diameter and M16 mounting thread, offering a measuring range of 0 to 5 mm. The sensor operates on the eddy current principle, detecting changes in the electromagnetic field caused by the proximity of a conductive target. Factory calibration is performed on steel targets (S45C, SS41, 1 mm thickness), with the capability to recalibrate for aluminium, copper, and stainless steel targets.
This sensor head features a cylindrical threaded body with a 14.5 mm diameter and M16 mounting thread, offering a measuring range of 0 to 5 mm. The sensor operates on the eddy current principle, detecting changes in the electromagnetic field caused by the proximity of a conductive target. Factory calibration is performed on steel targets (S45C, SS41, 1 mm thickness), with the capability to recalibrate for aluminium, copper, and stainless steel targets.
Alternative Names
EX 416
EX416
EX-416v
EX-4i6
EX4i6
EX 4I6
Information
Overview
Manuals
Application Notes
Product Applications
Electrical & Wiring Guidelines
Features:
- Non-contact displacement measurement
- 0 to 5 mm measuring range
- High-speed response up to 13 kHz
- Analog voltage and current outputs
- Compact M16 threaded cylindrical housing
The sensor provides a measurement range of 0 to 5 mm and supports both 0–5 V voltage output and 4–20 mA current output. With a resolution of 0.04% of full scale and response frequencies up to 13 kHz, the EX-416 is capable of capturing rapid positional changes while maintaining stable measurement accuracy. Additional functions include automatic zero adjustment, response frequency selection, and disconnection alarm output for system diagnostics.
The EX-416 KEYENCE Inductive Gauging Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
KEYENCE EX-416 Inductive Gauging Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The sensor offers selectable response frequencies: HIGH mode at 13 kHz (-3 dB) for fast-moving targets, and LOW mode at 1.3 kHz (-3 dB) for higher resolution on slower applications. A disconnection alarm output (normally closed NPN) provides 100 mA at 40 V maximum with 1 V residual voltage, alerting the system to cable or sensor faults.
Built-in functions include auto-zero for quick calibration and response frequency selection for optimizing performance based on application requirements. The sensor head is rated IP67, providing protection against dust and water ingress in harsh industrial environments.
- Automotive Manufacturing:Engine/transmission thickness & alignment
- Semiconductor & Electronics:PCB, wafer stage & metal casing gagingr
- Machining & Metalworking:Tool wear, lathe runout & part tolerances
- Robotics & Assembly:Grip distance & part seating verification
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Integrity: Keep the standard 3-meter (9.8') sensor head cable at its factory length. Cutting or manually extending this sensor-head-to-amplifier line shifts electrical impedance and invalidates calibrated characteristics.
Noise Countermeasures: Route your wiring and connection lines completely separate from high-voltage or power cables.
Analog Outputs: Use a 1-core shielded cable for the output line when pairing with analog input equipment. Keep analog voltage signal runs under 10 meters; if a longer distance is mandatory, convert the voltage signal to a current signal.
Technical notes
The EX-416 provides both voltage output (0 to 5 V with 100 Ω output impedance) and current output (4 to 20 mA with applicable load of 0 to 350 Ω), enabling flexible integration with various control systems and data acquisition equipment. Resolution is 0.04% of full scale in LOW response frequency mode, with linearity of ±1% of full scale.
FAQs
-
What type of target material is required?
+The official specifications are calibrated using a steel target (S45C, SS41) -
What are its standard outputs?
+It features a 0 to 5 V analog voltage output, a 4 to 20 mA analog current output, and an NPN open-collector disconnection alarm output. -
What type of targets can it detect?
+It is an inductive sensor designed to detect ferrous metals (e.g., iron, steel S45C/SS400). Non-ferrous targets like aluminum or copper will severely reduce the maximum detection range. -
What is EX-416 frequency response?
+The frequency can be toggled between HIGH (13 kHz) and LOW (1.3 kHz) settings.
