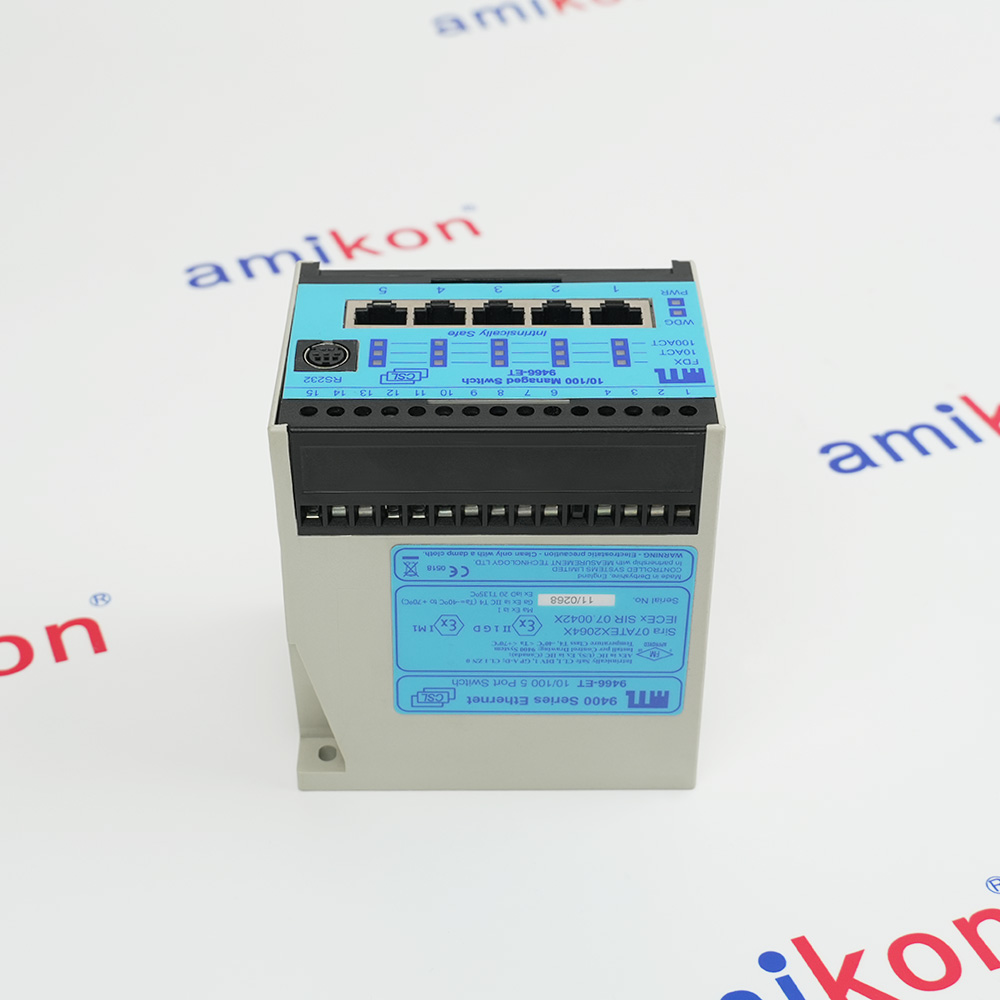

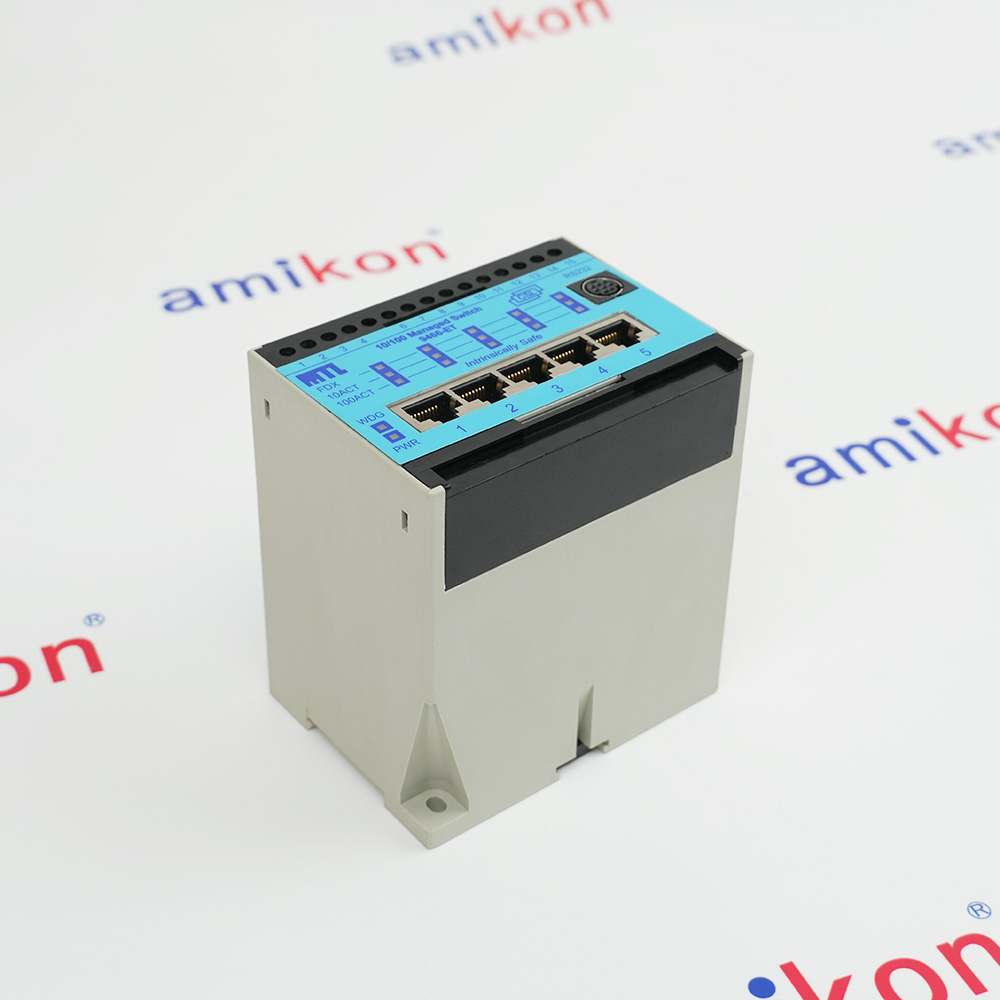

9466-ET
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
5-port 10/100Mbps links
Zone 1, Division 1 mountable insuitable enclosure
Broadcast “storm” protection
Intelligent Routing
Programmable Management
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +70°C
Half/Full Duplex
Power source for PoEx™ Power overIS Ethernet
Status LEDs to show activity
Zone 1, Division 1 mountable insuitable enclosure
Broadcast “storm” protection
Intelligent Routing
Programmable Management
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +70°C
Half/Full Duplex
Power source for PoEx™ Power overIS Ethernet
Status LEDs to show activity
Technical specifications for 9466-ET
-
Product Model9466-ET
-
Product ParametersIntrinsically Safe ManagedEthernet Switch
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size10x11x7.5cm
-
ManufacturerMTL Insturments Group
-
Weight1.2 kg
-
Input voltage12V DC (10–15.4V)
-
Input current200mA
-
Input protectionFuse + supply reversal diode
-
Ports5
-
ConnectorRJ45
-
Connector Type8-pin mini-DIN
-
Baudrate115K2baud
-
Operating–40°C to +70°C
-
Storage–40°C to +70°C
-
Relative Humidity5 to 95% RH (non-condensing)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 9466-ET?+The MTL 9466-ET is a 5-port, Layer 2 Industrial Ethernet Switch designed to provide Intrinsically Safe (IS) connectivity in hazardous environments (Zone 1/Div 1). It allows the safe routing of Ethernet networks and supports Power over Intrinsically Safe Ethernet (PoEx™) to compatible field devices
-
What is the default operating mode of the 9466-ET?+By default, it operates as a 5-port, unmanaged switch with auto-negotiation, automatically handling connections between 10Mbps and 100Mbps networks
-
Can it be converted into a managed switch?+Yes. The onboard EEPROM memory can be configured to support advanced features such as VLANs, rate limiting, and forced speed/duplex settings. This is done via the RS232/TTL serial port or an Ethernet Gateway.
-
Does the 9466-ET require a dedicated power cable for every connected device?+No. It supports PoEx™ (Power over Intrinsically Safe Ethernet), allowing it to deliver both data and power over a single Cat5e or Cat6 cable to compatible devices in the hazardous area
Get a quick price fo 9466-ET
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- 5-port 10/100Mbps links
- Zone 1, Division 1 mountable insuitable enclosure
- Broadcast “storm” protection
- Intelligent Routing
- Programmable Management
- ATEX / IECEx certified
- FM / FMC approved
- Half/Full Duplex
- Power source for PoEx™ Power overIS Ethernet
- Status LEDs to show activity
With the 9466-ET switch each connection is effectively a 'point-topoint' network segment unlike the older generation hubs that weresimple 'dumb' repeaters. The old hubs needed to impose a limit onoverall network length to ensure proper collision detection; this limit isovercome by the 9466-ET. Broadcast “storm” protection is also providedto eliminate network overload due to excessive 'broadcast' & 'multicast'packets.
The 9466-ET MTL Intrinsically Safe ManagedEthernet Switch may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
MTL 9466-ET Intrinsically Safe ManagedEthernet Switch Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 9466-ET switch can also distribute power to compatible devicesconnected to each of its five ports via the RJ45 Cat5e cables (PoEx).This method eliminates the separate power supply cable to the devicesimplifying installation and maintenance.The 9466-ET is designed for hazardous-area mounting inside a suitableenclosure with intrinsically safe Zone 1, ATEX and IECEx certificationand Division 1 FM USA and Canada approvals. The ATEX and IECExapprovals cover both surface industry and mining applications.The default mode of operation is a 5-port, unmanaged switch with autonegotiation. However the onboard EEPROM memory can be configuredvia the serial RS232/TTL port either in the safe area, using a PC, or inthe hazardous area using the 9461-ET Ethernet Gateway as its hostprocessor.
- Petrochemical & Oil Refineries:Zone 1 networking for distillation, tanks & cracking plants
- Underground & Surface Mines:Group I M1 for coal/metal mine ventilation & heavy machinery
- Chemical Processing Plants:Connects sensors in volatile vapor environments
- Pharmaceutical Manufacturing:Hazardous clean rooms with solvents for drug synthesis
- Food & Beverage Facilities:Combustible dust areas: grain elevators, flour mills, sugar refineries
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module uses a standard "snap-fit" mechanism for TS35 DIN rails. Tilt the module to engage the top clips, then rotate it downward and press until the lower spring clip locks.Power Connection: Connect a 12V DC nominal (10 – 15.4V) intrinsically safe power supply to the module's screw terminals. A common setup uses the MTL 9491-PS, which converts a 24V DC safe-area supply into the required 12V IS output.
