Technical specifications for MVME5100
-
Product ModelMVME5100
-
Product ParametersSingle Board Computer
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x18.8x26.1cm
-
ManufacturerMotorola VME
-
Weight0.4 kg
-
PCI Bus Clock33 MHz
-
Secondary Cache2MB
-
Interface Speed10/100Mb/s
-
Signaling5V
-
Oscillator Clock Rate10 MHz/5 MHz
-
Vibration2 Gs RMS, 20–2000 Hz random
-
Operating Humidity5% to 90%
-
Extended Operating Temperature–20° C to +71° C
Description

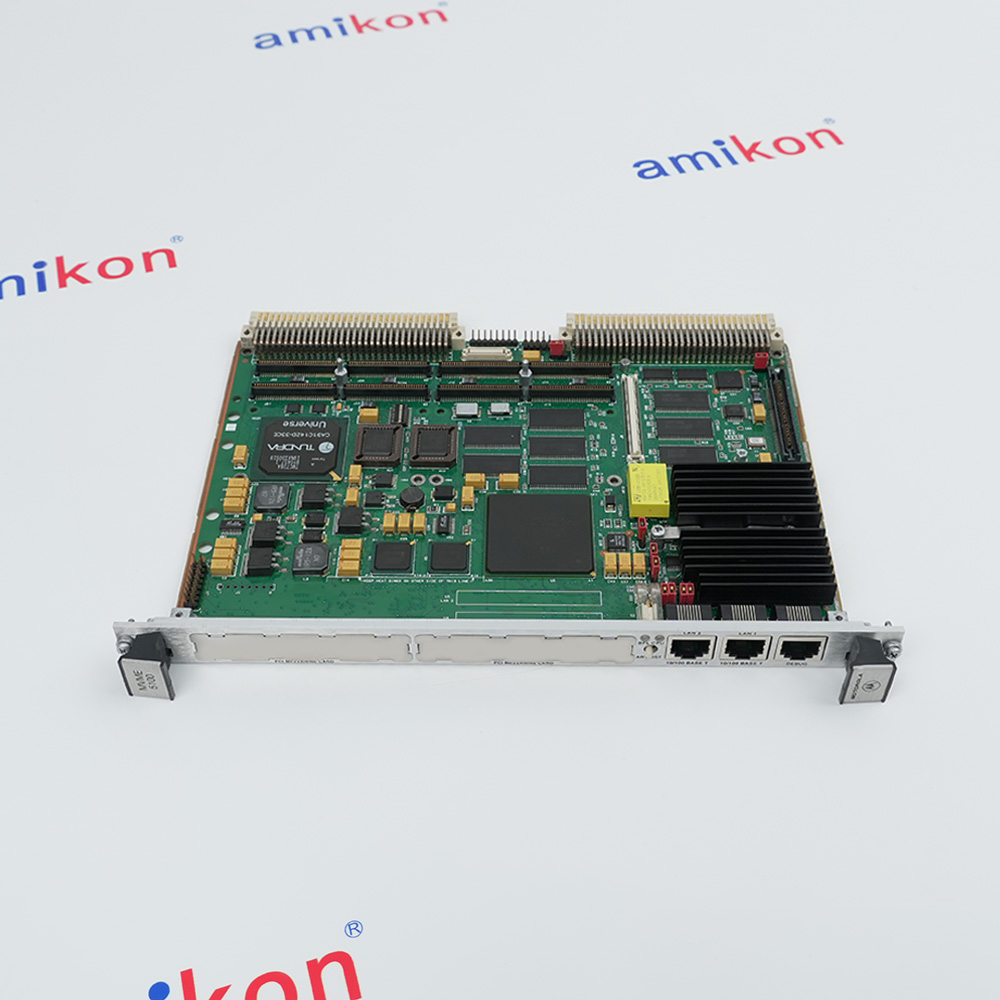

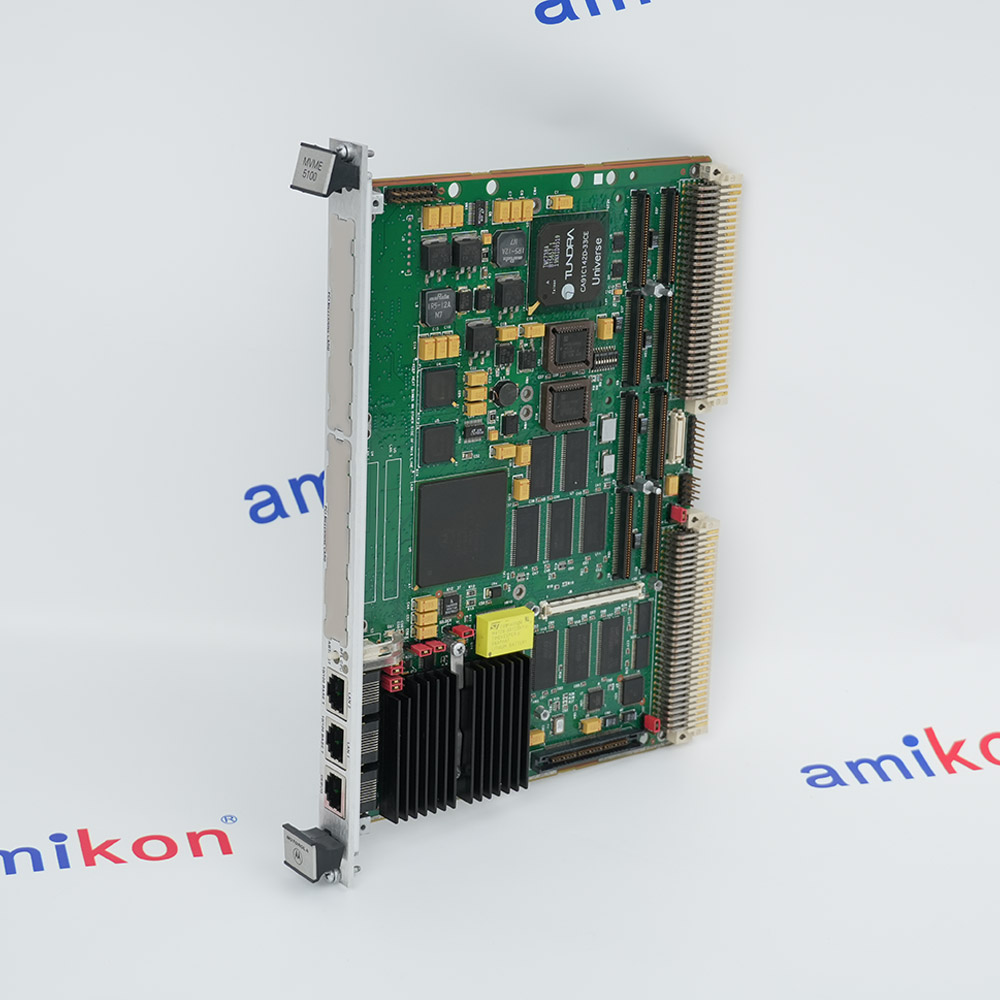

MVME5100
PC BOARD
SINGLE BOARD COMPUTER
MPC7410 PROCESSOR 500 MHZ
MEMORY 512 MB SDRAM
IEEE 1101 FRONT PANEL HANDLES
PC BOARD
SINGLE BOARD COMPUTER
MPC7410 PROCESSOR 500 MHZ
MEMORY 512 MB SDRAM
IEEE 1101 FRONT PANEL HANDLES
Information
Overview
Manuals
Technical notes
Product Applications
Pre-Installation and Safety
Features:
- MPC7410, MPC750 or MPC755 class microprocessorwith 32KB/32KB L1 cache
- Up to 2MB of secondary backside cache
- 100 MHz front-side bus
- Up to 512MB of on-board ECC SDRAM—expandableup to 1GB with optional RAM500 memory expansionmodules
- 17MB Flash memory
- Dual IEEE P1386.1 compatible 32/64-bit PMCexpansion slots
- 64-bit PCI expansion mezzanine connector allowingup to four more PMCs
- 32KB NVRAM and time-of-day clock with replaceablebattery backup
- On-board debug monitor
The MVME5100 Motorola Single Board Computer may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Motorola MVME5100 Single Board Computer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Historically, Motorola has offered two tracks in itsPowerPC Architecture VME portfolio. The first track(which includes the MVME2600/2700) provides typicalsingle-board computer I/O features including Ethernet,SCSI, multiple serial ports, a parallel port and a singlePMC slot. The on-board I/O is routed to P2 and madeavailable to the user via Motorola MVME761 orMVME712M transition boards. The second track (whichincludes the MVME2300/2400) offers limited on-boardI/O (Ethernet and a single serial port both via the frontpanel) but provides dual PMC slots enabling maximumuser I/O customization.The MVME5100 merges the best features of both tracksenabling the OEM to support varying I/O requirementswith the same base platform, simplifying part numbermaintenance, technical expertise requirements andsparing.
- Defense and Aerospace:Shipborne ruggedized high-reliability environments
- Industrial Automation:Process control & automated assembly lines
- Medical Instrumentation:Imaging and diagnostic equipment
- Physics Control Systems:VME IOC for beam diagnostics & RF (PEFP linac)
- Telecommunications:Network management in data-intensive environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety Warning: Ensure the VME crate is powered off. Disconnect power to avoid dangerous voltages.
ESD Precautions: Use a wrist strap connected to the chassis ground to prevent static damage.
Environmental: The unit must be installed in a shielded, UL-recognized 94V-0 chassis to maintain EMI shielding.
FAQs
-
What is the interface speed of MOTOROLA MVME5100 Processor Module?
+The MOTOROLA MVME5100 Processor Module supports a 10/100 Mb/s Ethernet interface. -
What is the vibration specification of MOTOROLA MVME5100 Processor Module?
+The MOTOROLA MVME5100 Processor Module withstands 2 G RMS vibration (20–2000 Hz random). -
What is the oscillator clock rate of MOTOROLA MVME5100 Processor Module?
+The MOTOROLA MVME5100 Processor Module has oscillator clock rates of 10 MHz and 5 MHz. -
What is the MOTOROLA MVME5100 Processor Module?
+The MOTOROLA MVME5100 Processor Module is an industrial-grade processor module based on the VME architecture for embedded control and industrial automation systems. -
What is the PCI bus clock of MOTOROLA MVME5100 Processor Module?
+The MOTOROLA MVME5100 Processor Module has a PCI bus clock of 33 MHz.
