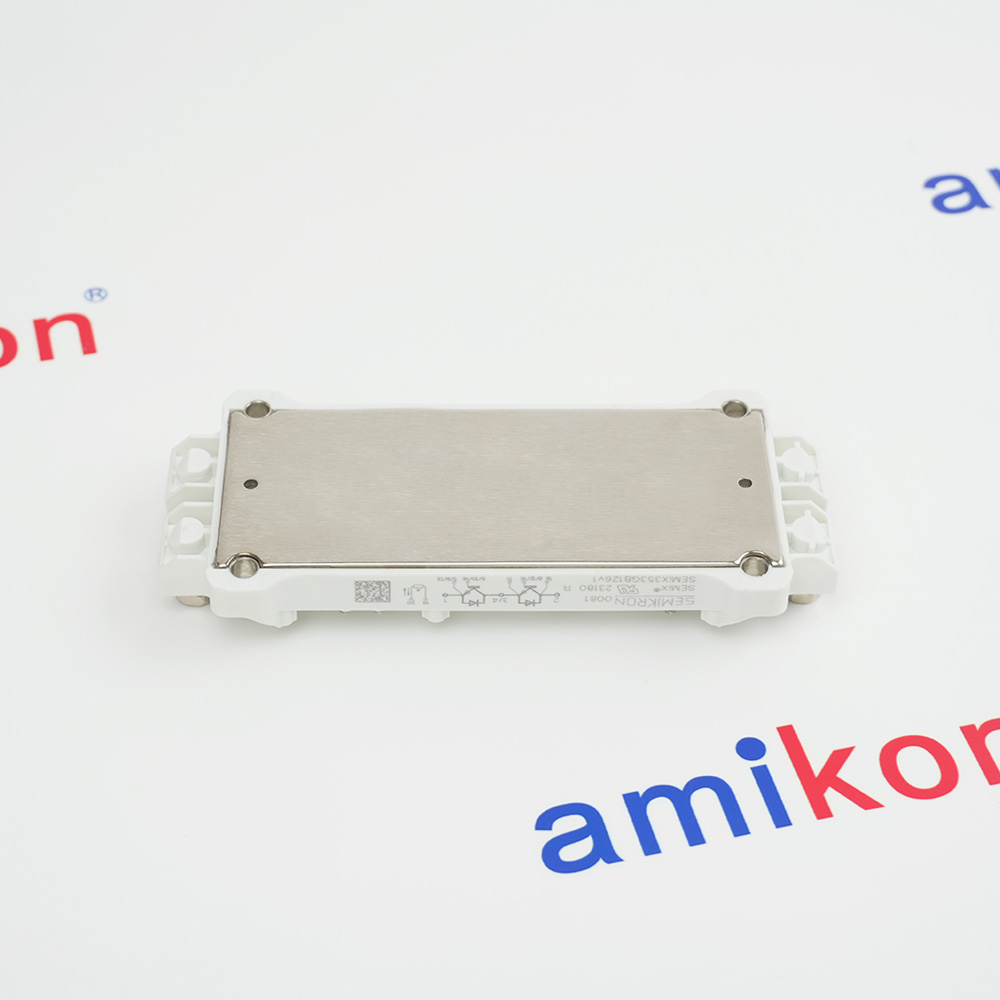

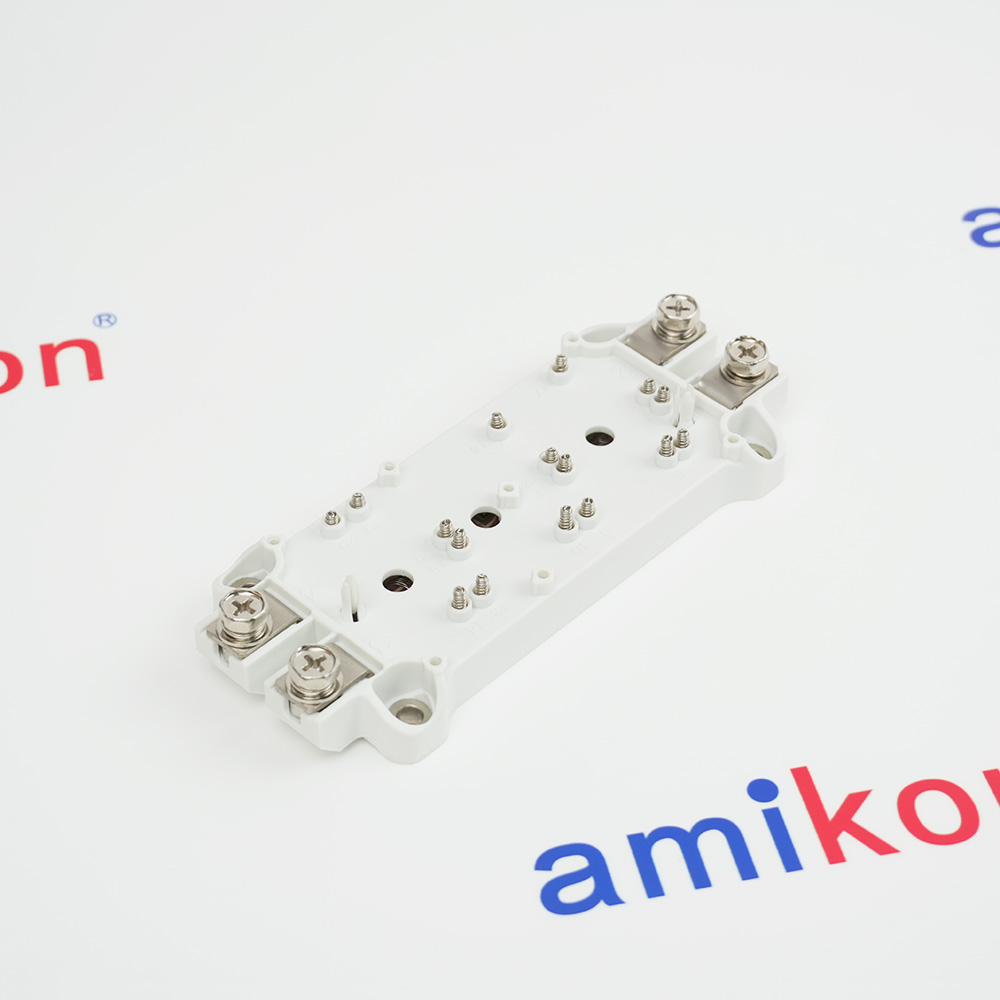

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for SEMIX353GB126V1
-
Product ModelSEMIX353GB126V1
-
Product ParametersTrench IGBT Modules
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size15x6.3x2.3cm
-
ManufacturerSEMIKRON
-
Weight0.3 kg
-
Collector-Emitter Voltage1200V
-
Nominal Current350A
-
Max Collector Current700A
-
Gate-Emitter Voltage±20V
-
Operating Temperature-40°C to +150°C
-
Storage Temperature-40°C to +125°C
Description
Homogeneous Si
Trench = Trenchgate technology
VCE(sat) with positive temperaturecoefficient
High short circuit capability
UL recognised file no. E63532
AC inverter drives
Trench = Trenchgate technology
VCE(sat) with positive temperaturecoefficient
High short circuit capability
UL recognised file no. E63532
AC inverter drives
Information
Overview
Manuals
Technical notes
Product Applications
Thermal Interface Material (TIM) Application
Features:
- Homogeneous Si
- Trench = Trenchgate technology
- VCE(sat) with positive temperaturecoefficient
- With step-less current limiting used, therectifiers feature high precision batter
- High short circuit capability
- UL recognised file no. E63532
The SEMIX353GB126V1 Semikron Insulated Gate Bipolar Transistor Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Semikro SEMIX353GB126V1 Insulated Gate Bipolar Transistor Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Semikron SEMIX353GB126V1 technical notes highlight its role as a robust half-bridge Trench IGBT module with a 1200V rating and nominal current of 350A. Engineered with 7th-generation Trench Stop™ technology and ultra-thin wafers, it is designed for medium-power industrial converters (75–150 kW) where efficient switching and high power density are required.
Gate Driver Requirements: The module supports a standard gate-emitter voltage range of 20V. It is highly recommended to use SKYPER 42 or equivalent plug-and-play drivers that provide reinforced isolation and multi-failure management.
Switching Frequency: While Trench IGBTs balance conduction and switching losses, this class is typically optimized for frequencies between a few kHz up to 20 kHz.
- Pumps & Compressors: Speed control for high-power industrial fluid and air systems
- Conveyor Systems: Managing high continuous load currents in large-scale slat or belt conveyors
- Cranes & Hoists: Handling the high start-up surges required for lifting heavy industrial loads
- Solar Inverters: Commercial-scale power conversion for grid-tied solar farms
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thickness: A uniform layer of 50 µm to 100 µm is recommended.Method: Stencil printing is the preferred method for high-volume production to ensure reproducibility. Avoid using a brush or spatula, as they create uneven layers that can lead to air pockets and hotspot destruction.Pre-applied TIM: Check if your module version has pre-applied thermal paste, which eliminates the manual application step.
FAQs
-
What is the SEMIX353GB126V1？
+The SEMiX353GB126V1 is a 1200V, 350A Trench Gate IGBT module manufactured by SEMIKRON, primarily designed for medium-power industrial applications, such as inverters, motor drives, and solar converters. -
What are the main electrical ratings of the SEMIX353GB126V1?
+This module has a rated maximum voltage of 1200V and a collector current of 350A. It uses trench gate IGBT technology to balance conduction losses and switching losses. -
Can it handle high-frequency switching?
+Yes, it is suitable for switching frequencies typically ranging from a few kHz up to 15-20 kHz, depending on thermal conditions. -
Does this module require soldering?
+No. The SEMiX353GB126V1 uses a spring-contact interface for both gate driver and power connections, which eliminates soldering and reduces assembly time. -
How is the module mounted?
+The module uses a spring-contact interface for gate driver and power connections, which removes the need for soldering.
