Technical specifications for SKKH330/16
-
Product ModelSKKH330/16
-
Product ParametersTHYRISTOR/DIODE MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size11.3x5x6cm
-
ManufacturerSEMIKRON
-
Weight0.7 kg
-
Repetitive Peak Off-State Voltage (VDRM)1600 V
-
Repetitive Peak Reverse Voltage (VRRM)1600 V
-
Average On-State Current (ITAV)305 A
-
RMS On-State Current (IT(RMS))510 A
-
Peak On-State Voltage (VTM)1.4 V max
-
On-State Threshold Voltage (VT(TO))0.9 V (typical); 1.65 V (maximum)
-
On-State Slope Resistance (rT)≤ 2.0 mΩ
-
Junction Temperature (Tvj)-40°C to +130°C
-
Storage Temperature (Tstg)-40°C to +130°C
Description

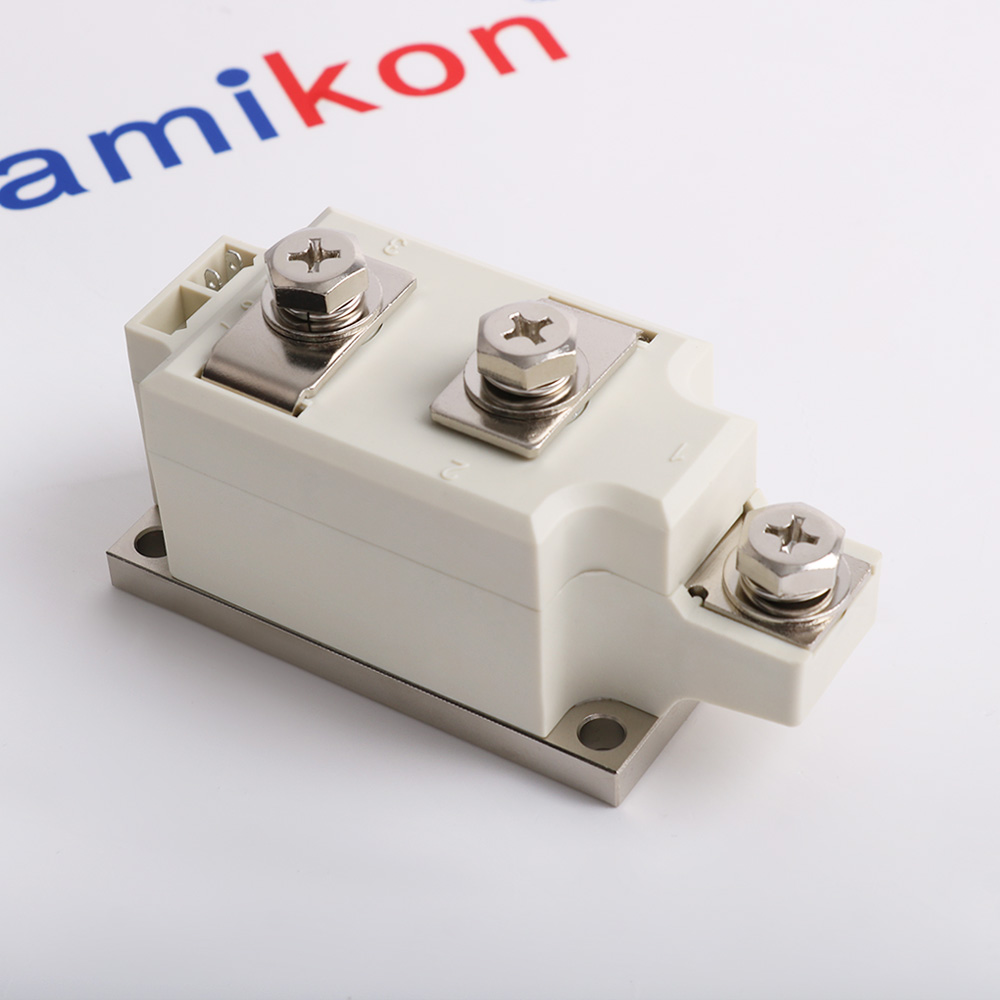

The SKKH330/16 is a half-controlled thyristor/diode module from the SEMIKRON SKKH series, manufactured by Semikron-Danfoss in Slovakia. It is housed in the SEMIPACK 3 package (A76b case style) and rated for 330 A average on-state current with 1600 V repetitive peak blocking voltage.
The module contains a thyristor (SCR) and a diode in a half-controlled bridge configuration. The thyristor provides controlled conduction through gate triggering, while the diode provides freewheeling or rectification function. The thyristor features an amplifying gate structure for reliable triggering under all operating conditions.

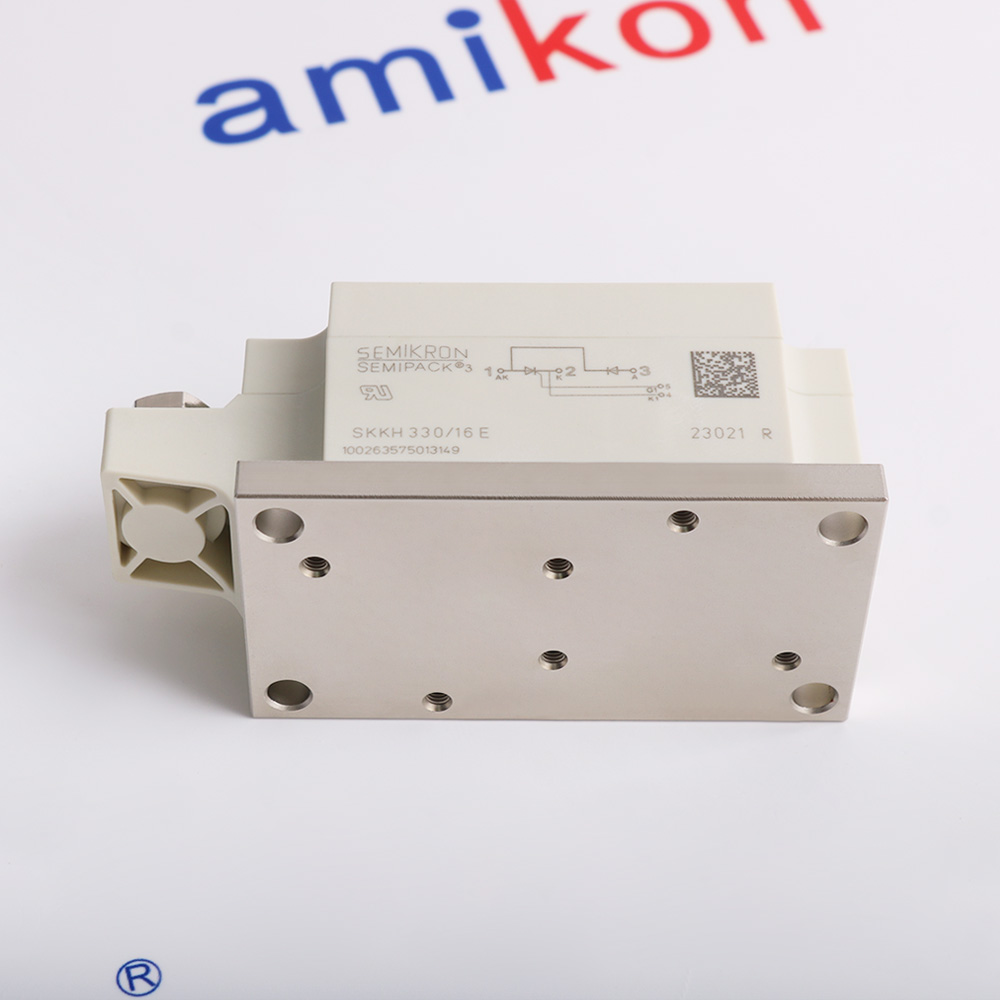

Heat transfer is achieved through an aluminium nitride (AlN) ceramic isolated copper baseplate, providing both high thermal conductivity and 3600 V AC electrical isolation from the heatsink. Precious metal pressure contacts ensure long-term reliability and low contact resistance. All internal joints are hard-soldered to withstand thermal cycling stress.
The module contains a thyristor (SCR) and a diode in a half-controlled bridge configuration. The thyristor provides controlled conduction through gate triggering, while the diode provides freewheeling or rectification function. The thyristor features an amplifying gate structure for reliable triggering under all operating conditions.
Heat transfer is achieved through an aluminium nitride (AlN) ceramic isolated copper baseplate, providing both high thermal conductivity and 3600 V AC electrical isolation from the heatsink. Precious metal pressure contacts ensure long-term reliability and low contact resistance. All internal joints are hard-soldered to withstand thermal cycling stress.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion (Mounting)
Features:
- Aluminum Nitride Ceramic Isolated Metal Baseplate
- Precious Metal Pressure Contacts for High Reliability
- Thyristor with Amplifying Gate
- High Current Rating (330A Average / 510A RMS)
The SEMIKRON SKKH330/16 features heat transfer through an aluminum nitride ceramic isolated metal baseplate, providing excellent thermal conductivity while maintaining electrical isolation between the semiconductor junctions and the heatsink. The SKKH330/16 uses precious metal pressure contacts for high reliability, ensuring stable electrical performance and low contact resistance under demanding operating conditions.
The SKKH330/16 SEMIKRON Thyristor/Diode Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SEMIKRON SKKH330/16 Thyristor/Diode Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Electrical ratings include a repetitive peak off-state voltage of 1600 V and repetitive peak reverse voltage of 1600 V. The average on-state current is 305 A at a case temperature of 85°C, reducing to 225 A at 100°C case temperature. The RMS on-state current is 510 A. Non-repetitive surge on-state current capability is 8000 A for 10 ms (sinusoidal waveform) at a junction temperature of 130°C, with an I²t value of 320,000 A²·s.
On-state characteristics include a threshold voltage of 0.9 V typical (1.65 V maximum) and a slope resistance not exceeding 2.0 mΩ at 130°C junction temperature. The maximum on-state voltage drop is 1.4 V. Off-state leakage current is limited to 20 mA at rated voltage and 130°C junction temperature.
Gate trigger requirements are 3 V minimum gate trigger voltage and 200 mA gate trigger current at 25°C. The critical rate of rise of on-state current is 150 A/µs, and the critical rate of rise of off-state voltage is 1000 V/µs. Holding current is 150 mA.
- Electric Arc Furnaces: Regulates high-current power flow for melting scrap metal
- Conveyor Systems: Drives long-distance, high-torque bulk material handling belts
- Crushers & Grinders: Manages soft-starting for high-inertia rock processing equipment
- Pipeline Pumping: Runs high-capacity pumps for crude oil and gas transport
- Electrochemical Cells: Provides stable rectification for high-power chemical separation processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Surface Preparation: Ensure the heatsink surface and the module's baseplate are completely clean and free of particles. Wipe with an alcohol cleaner, like isopropanol.
Thermal Paste: Apply a thin, even layer of high-quality thermal conductive paste to the module baseplate.
Mounting Screws: Use M5 screws for the mounting holes at the corners of the SEMIPACK 3 housing.
Torque Rating: Tighten the module to the heatsink with a mounting torque (\(M_{S}\)) of 4 to 6 Nm.
Alternative Names
SKKH330/I6
SKKH33O/16
SKKH330-16
SKKH330-I6
SKKH33O-16
SKKH330 16
SKKH330 I6
SKKH33O 16
Technical notes
The SEMIKRON SKKH330/16 has thermal resistance values of 0.116 K/W (junction-to-case per thyristor) and 0.058 K/W (junction-to-case per module), with case-to-heatsink thermal resistance of 0.04 K/W (per thyristor) and 0.02 K/W (per module) with thermal compound. The SKKH330/16 operates over a junction temperature range of -40°C to +130°C.
FAQs
-
What is the SKKH330/16 ?
+The SEMIKRON SKKH330/16 is an industrial-grade 330A, 1600V thyristor/diode module used in controlled three-phase rectifiers, DC motor controls, and soft starters. -
What is the internal topology of the SKKH 330/16?
+The "SKKH" designation indicates a common cathode thyristor-diode module. It houses two semiconductor switches: one thyristor and one diode housed in the industry-standard SEMIPACK 3 package -
What are the recommended mounting torques?
+Proper clamping pressure is critical for heat dissipation and electrical contact. According to official guidelines, the recommended mounting torque for the main M6 power terminals is 4.5 Nm, and for securing the M10 mounting bolts of the module to the heatsink, it is 20 Nm. -
Where is this module typically applied?
+It is primarily used in line-commutated converters, industrial DC motor controls, professional light dimming systems, chemical process temperature control, and soft starters.
