PRODUCT DESCRIPTION

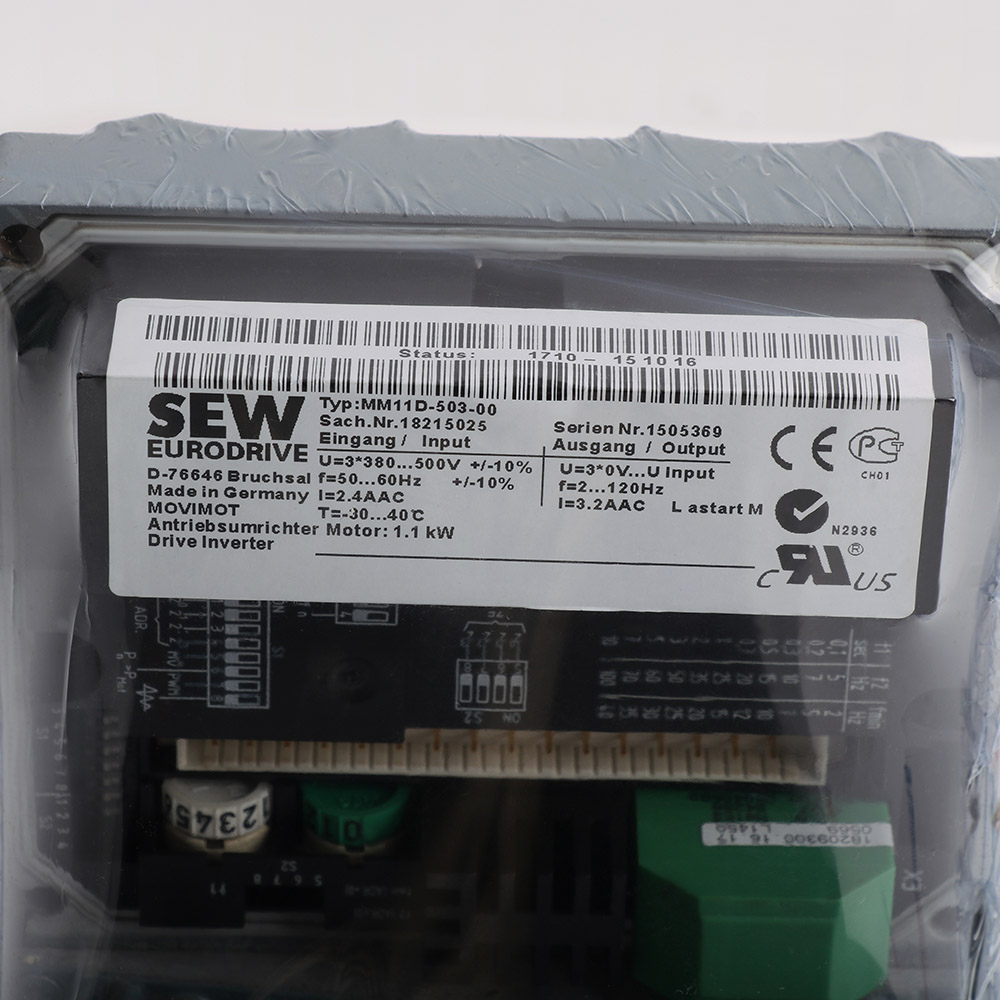

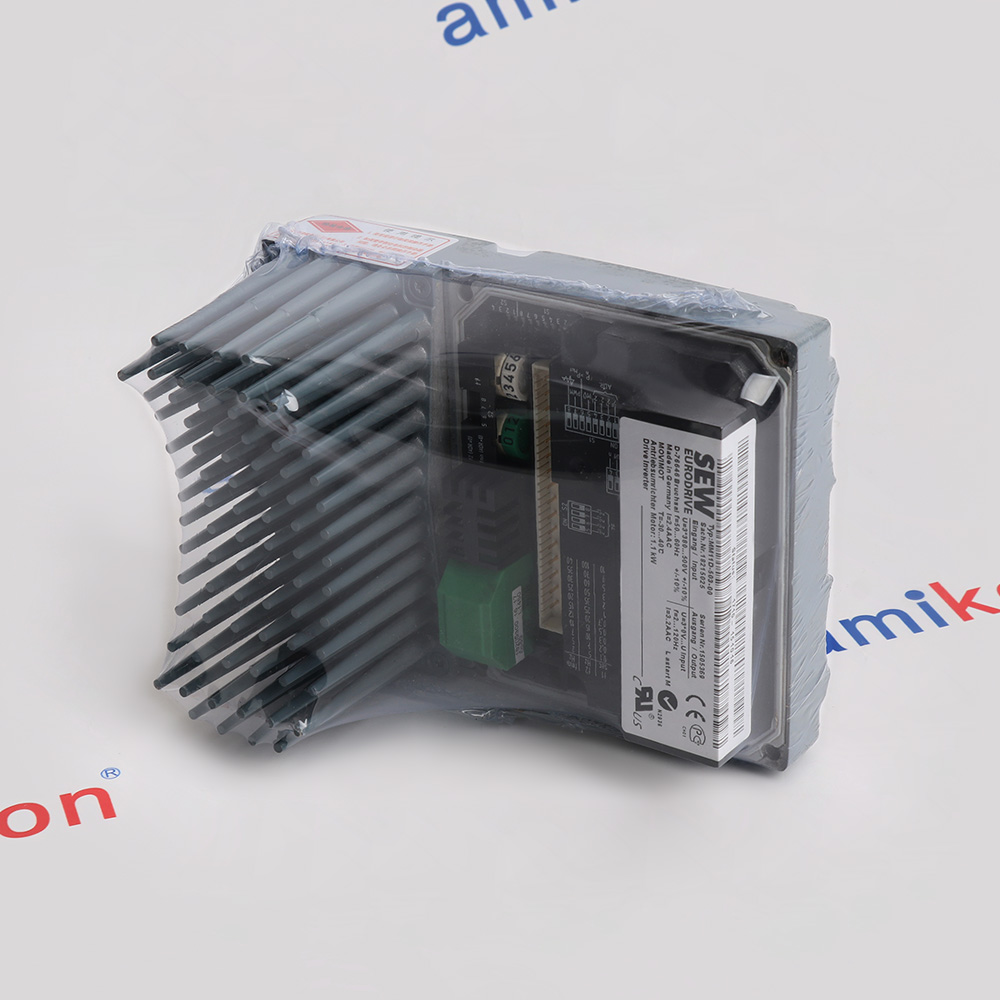

MM11D-503-00 Decentralized AC Drive Inverter
SEW MM11D-503-00 is a MOVIMOT MM..D decentralized frequency inverter for compatible AC motors. It belongs to the three-phase 380–500 V supply class and provides a 1.1 kW S1 motor-power rating at the documented 400 V operating point, supporting distributed motor-driven production and handling.
The inverter provides variable-frequency three-phase motor output, selectable PWM operation and current limiting. The documented nominal output current is 3.2 A, with output frequency adjustable from 2 to 120 Hz. Motor assignment, the drive identification module and the installed control interface must match the complete MOVIMOT configuration.
The inverter provides variable-frequency three-phase motor output, selectable PWM operation and current limiting. The documented nominal output current is 3.2 A, with output frequency adjustable from 2 to 120 Hz. Motor assignment, the drive identification module and the installed control interface must match the complete MOVIMOT configuration.
BEFORE YOU BUY
Confirm the complete decentralized ac drive inverter
ACTUAL APPLICATIONS
Application context for MM11D-503-00
MM11D-503-00 supplies variable-speed power to compatible MOVIMOT AC motors. Its host drives serve material handling, packaging and food production. The 1.1 kW inverter uses a three-phase 380–500 V mains supply; motor assignment and the complete decentralized control configuration determine suitability.
-
01 · MATERIAL HANDLING
Material Handling and Distribution Logistics
Warehouse Material HandlingManufacturing Material Flow -
02 · PACKAGING
Packaging and Consumer Goods Production
Consumer Goods Packaging ProductionFood and Beverage Packaging -
03 · FOOD & BEVERAGE
Food Processing and Beverage Production
Food Production and ProcessingBeverage Production and Bottling
Technical specifications for MM11D-503-00
-
Product ModelMM11D-503-00
-
Product ParametersDecentralized AC Drive Inverter
-
In stock3 units
-
ManufacturerSEW
-
S1 motor power at 400 V1.1 kW
-
Apparent output power2.2 kVA
-
Mains connection3 × 380 to 500 V AC
-
Permitted mains voltage tolerance380 V -10% to 500 V +10%
-
Line frequency50 to 60 Hz ±10%
-
Nominal line current at 400 V2.4 A
-
Nominal output current3.2 A
-
Output voltage0 to mains voltage
-
Output frequency2 to 120 Hz
-
Frequency resolution0.01 Hz
-
Power factor0.99
-
PWM frequencies4 / 8 / 16 kHz
-
Current limitation160% of nominal output current
-
Motor cable length for close mounting15 m maximum with SEW hybrid cable
-
Cooling methodNatural cooling
View all additional
Alternative Names
MM11D-503-00
MOVIMOT 1.1 kW decentralized inverter
MM..D three-phase motor frequency converter
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate MM11D-503-00 decentralized ac drive inverter
MM11D-503-00 must be paired with the motor and drive-identification module specified for the MOVIMOT MM..D configuration. The 400 V table assigns 1.1 kW S1 motor power and 3.2 A nominal output current to this inverter.
Provide the documented three-phase supply and separate control-voltage arrangement. Account for the 2.4 A nominal mains current at 400 V, motor-cable limits and braking configuration before selecting protection and wiring.
Match the installed binary or serial control arrangement, DIP switch settings and startup mode. Verify motor rotation, configured output frequency, braking response and fault behavior before releasing the drive.
Features:
- 1.1 kW S1 motor power at the 400 V operating point
- 3.2 A nominal output with 2–120 Hz frequency range
- Compatible motor assignment and drive identification module
The MM11D-503-00 decentralized ac drive inverter requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify MM11D-503-00 decentralized ac drive inverter
Check the complete MM11D-503-00 identity and connected motor nameplate. A similar MOVIMOT housing or different MM..D power rating does not establish a suitable replacement.
Preserve the drive-identification module, switch settings, motor connections and brake arrangement. Compare the 2.2 kVA apparent-output rating and 3.2 A nominal output rating against the installed drive.
After fitting, restore the documented configuration and test the drive at a controlled operating point. Record frequency, motor direction, current and the configured response to enable and fault signals.
Features:
- Exact MM11D-503-00 power-class identity
- Retained control switches, brake and motor connections
- 2.2 kVA apparent output matched to the installed motor
The MM11D-503-00 decentralized ac drive inverter requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- SEW 33953961/EN exact MM..D rating columns
- 400 V and 460 V operating-point tables
- PWM, current-limit and motor-cable reference conditions
Documentation for the MM11D-503-00 decentralized ac drive inverter must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size18 × 10.5 × 13.6cm
-
Shipping weight1.30kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504409999
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about MM11D-503-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What motor rating belongs to the MM11D 400 V operating point?
The SEW table gives 1.1 kW S1 motor power for MM11D-503-00 at 400 V. The connected motor and drive-identification module must match the documented combination. -
What is the MM11D nominal output current?
It is 3.2 A. The apparent output power is 2.2 kVA in the documented 380–500 V supply class. -
Which mains voltages are supported by the 503 version?
The three-phase nominal connection class is 380–500 V AC. The manual permits 380 V -10% through 500 V +10%, with line frequency 50–60 Hz ±10%. -
How finely can the MM11D output frequency be set?
The documented output-frequency range is 2–120 Hz with 0.01 Hz resolution. -
How does high-frequency PWM operation affect the inverter?
The manual lists 4, 8 and 16 kHz PWM operation. At 16 kHz the inverter may step down its switching frequency according to heatsink temperature and load. -
What cable boundary applies to motor-adjacent mounting?
The specified maximum motor cable length is 15 m when using the documented SEW-EURODRIVE hybrid cable and mounting the inverter close to the motor. -
What should be supplied to select an MM11D spare?
Provide MM11D-503-00, the motor nameplate, drive-identification module details, switch settings, brake configuration, quantity and destination. -
Which visible parts should be checked when MM11D arrives?
Compare the model label, power class, connector arrangement and housing condition. Confirm the retained identification module and motor configuration before fitting.
