PRODUCT DESCRIPTION

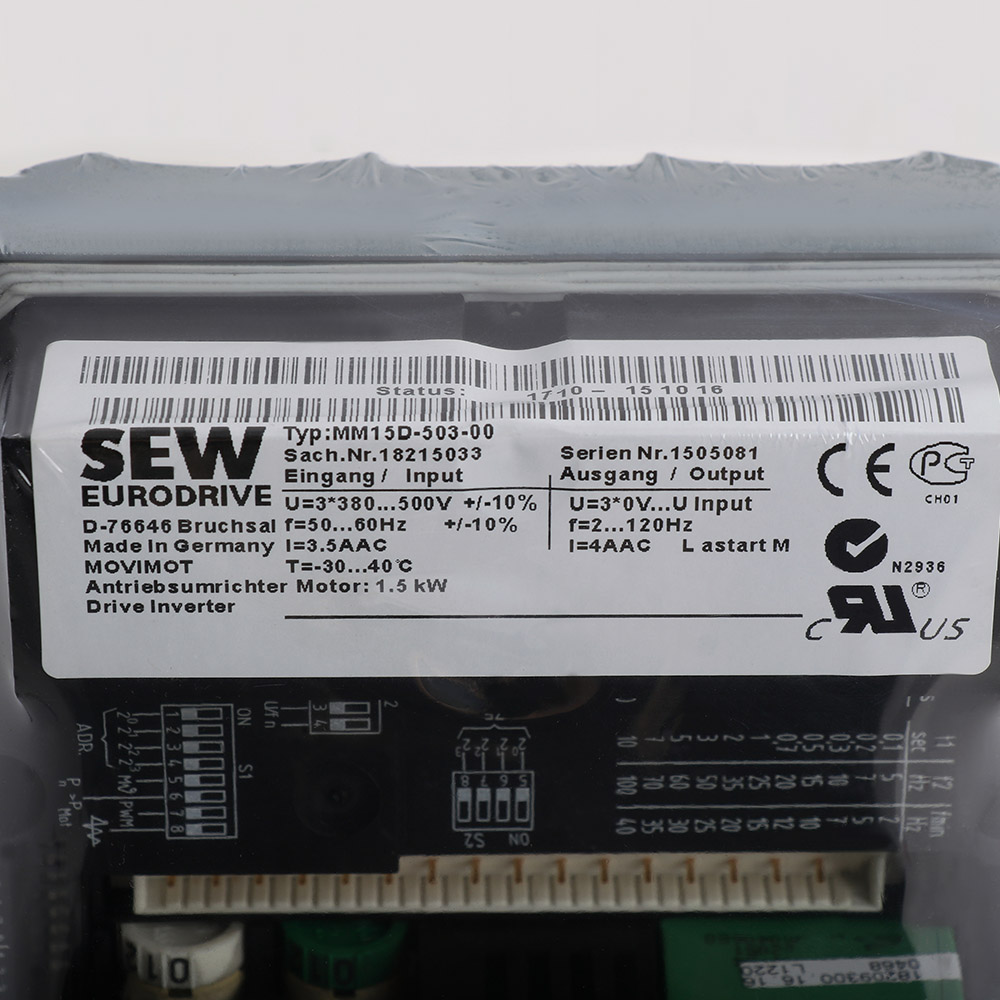

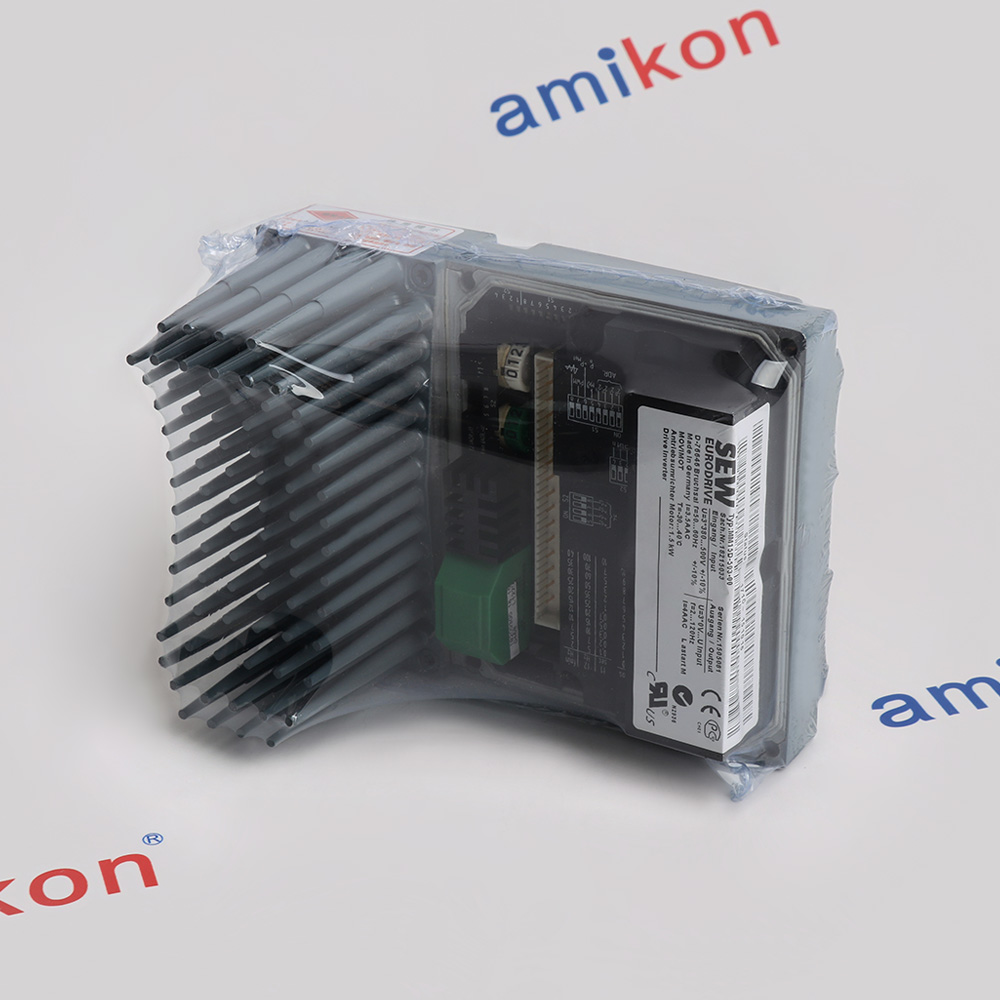

MM15D-503-00 Decentralized AC Drive Inverter
SEW MM15D-503-00 is a MOVIMOT MM..D decentralized frequency inverter for compatible AC motors. It belongs to the three-phase 380–500 V supply class and provides a 1.5 kW S1 motor-power rating at the documented 400 V operating point, supporting distributed motor-driven production and handling.
The inverter provides variable-frequency three-phase motor output, selectable PWM operation and current limiting. The documented nominal output current is 4.0 A, with output frequency adjustable from 2 to 120 Hz. Motor assignment, the drive identification module and the installed control interface must match the complete MOVIMOT configuration.
The inverter provides variable-frequency three-phase motor output, selectable PWM operation and current limiting. The documented nominal output current is 4.0 A, with output frequency adjustable from 2 to 120 Hz. Motor assignment, the drive identification module and the installed control interface must match the complete MOVIMOT configuration.
BEFORE YOU BUY
Confirm the complete decentralized ac drive inverter
ACTUAL APPLICATIONS
Application context for MM15D-503-00
MM15D-503-00 supplies variable-speed power to compatible MOVIMOT AC motors. Its host drives serve material handling, packaging and food production. The 1.5 kW inverter uses a three-phase 380–500 V mains supply; motor assignment and the complete decentralized control configuration determine suitability.
-
01 · MATERIAL HANDLING
Material Handling and Distribution Logistics
Warehouse Material HandlingManufacturing Material Flow -
02 · PACKAGING
Packaging and Consumer Goods Production
Consumer Goods Packaging ProductionFood and Beverage Packaging -
03 · FOOD & BEVERAGE
Food Processing and Beverage Production
Food Production and ProcessingBeverage Production and Bottling
Technical specifications for MM15D-503-00
-
Product ModelMM15D-503-00
-
Product ParametersDecentralized AC Drive Inverter
-
In stock7 units
-
ManufacturerSEW
-
S1 motor power at 400 V1.5 kW
-
Apparent output power2.8 kVA
-
Mains connection3 × 380 to 500 V AC
-
Permitted mains voltage tolerance380 V -10% to 500 V +10%
-
Line frequency50 to 60 Hz ±10%
-
Nominal line current at 400 V3.5 A
-
Nominal output current4.0 A
-
Output voltage0 to mains voltage
-
Output frequency2 to 120 Hz
-
Frequency resolution0.01 Hz
-
Power factor0.99
-
PWM frequencies4 / 8 / 16 kHz
-
Current limitation160% of nominal output current
-
Motor cable length for close mounting15 m maximum with SEW hybrid cable
-
Cooling methodNatural cooling
View all additional
Alternative Names
MM15D-503-00
MOVIMOT 1.5 kW decentralized inverter
MM..D three-phase motor frequency converter
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate MM15D-503-00 decentralized ac drive inverter
MM15D-503-00 must be paired with the motor and drive-identification module specified for the MOVIMOT MM..D configuration. The 400 V table assigns 1.5 kW S1 motor power and 4.0 A nominal output current to this inverter.
Provide the documented three-phase supply and separate control-voltage arrangement. Account for the 3.5 A nominal mains current at 400 V, motor-cable limits and braking configuration before selecting protection and wiring.
Match the installed binary or serial control arrangement, DIP switch settings and startup mode. Verify motor rotation, configured output frequency, braking response and fault behavior before releasing the drive.
Features:
- 1.5 kW S1 motor power at the 400 V operating point
- 4.0 A nominal output with 2–120 Hz frequency range
- Compatible motor assignment and drive identification module
The MM15D-503-00 decentralized ac drive inverter requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify MM15D-503-00 decentralized ac drive inverter
Check the complete MM15D-503-00 identity and connected motor nameplate. A similar MOVIMOT housing or different MM..D power rating does not establish a suitable replacement.
Preserve the drive-identification module, switch settings, motor connections and brake arrangement. Compare the 2.8 kVA apparent-output rating and 4.0 A nominal output rating against the installed drive.
After fitting, restore the documented configuration and test the drive at a controlled operating point. Record frequency, motor direction, current and the configured response to enable and fault signals.
Features:
- Exact MM15D-503-00 power-class identity
- Retained control switches, brake and motor connections
- 2.8 kVA apparent output matched to the installed motor
The MM15D-503-00 decentralized ac drive inverter requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- SEW 33953961/EN exact MM..D rating columns
- 400 V and 460 V operating-point tables
- PWM, current-limit and motor-cable reference conditions
Documentation for the MM15D-503-00 decentralized ac drive inverter must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size18 × 13.6 × 10.8cm
-
Shipping weight1.35kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504409999
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about MM15D-503-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What distinguishes MM15D from the smaller MM11D power class?
At the documented 400 V operating point MM15D-503-00 provides 1.5 kW S1 motor power, 2.8 kVA apparent output and 4.0 A nominal output current. -
How much mains current does MM15D draw at nominal 400 V?
The documented nominal mains current is 3.5 A. Final protection and supply selection must also follow the complete SEW installation requirements. -
Is the MM15D output voltage fixed at 400 V?
No. The output voltage spans 0 to the applied mains voltage, within the supported three-phase supply class and configured operating conditions. -
What current limit does SEW specify for this MM15D class?
The manual specifies 160% of nominal output current for motoring and regenerative operation. It is not a replacement for the full motor-protection configuration. -
Does MM15D require a separate forced-cooling fan?
The product table specifies natural cooling. Keep the permitted mounting and ambient conditions required by the complete MOVIMOT assembly. -
Can another motor be fitted just because it has a 1.5 kW label?
No. SEW defines motor assignment by voltage, operating point and the drive-identification module. Verify the complete motor/inverter combination. -
What identifies the MM15D version needed for a purchase?
Send the complete MM15D-503-00 label together with the motor and brake labels, control-interface details, existing settings and required quantity. -
What receipt checks matter for the 1.5 kW MOVIMOT inverter?
Inspect the power-class marking, connection contacts, housing and evidence of handling damage. Compare the supplied identity with the existing motor-drive configuration before exchange.
