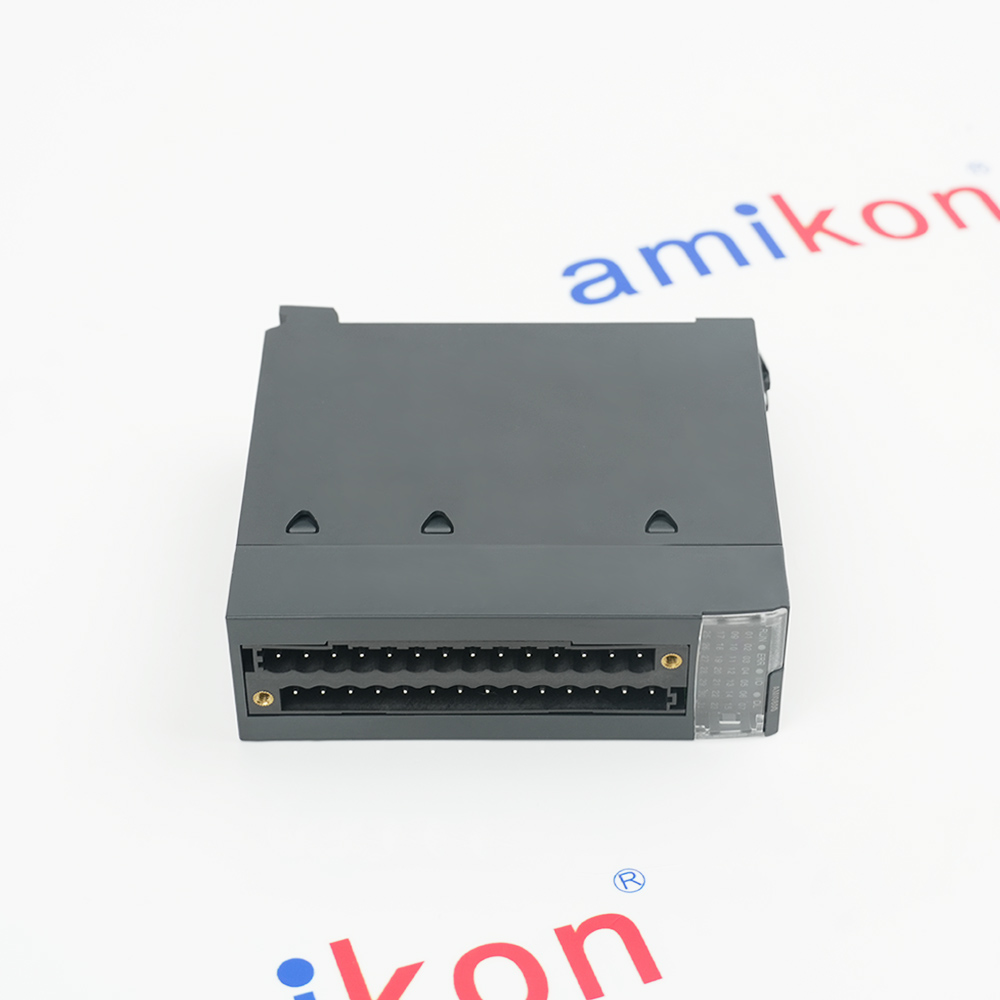

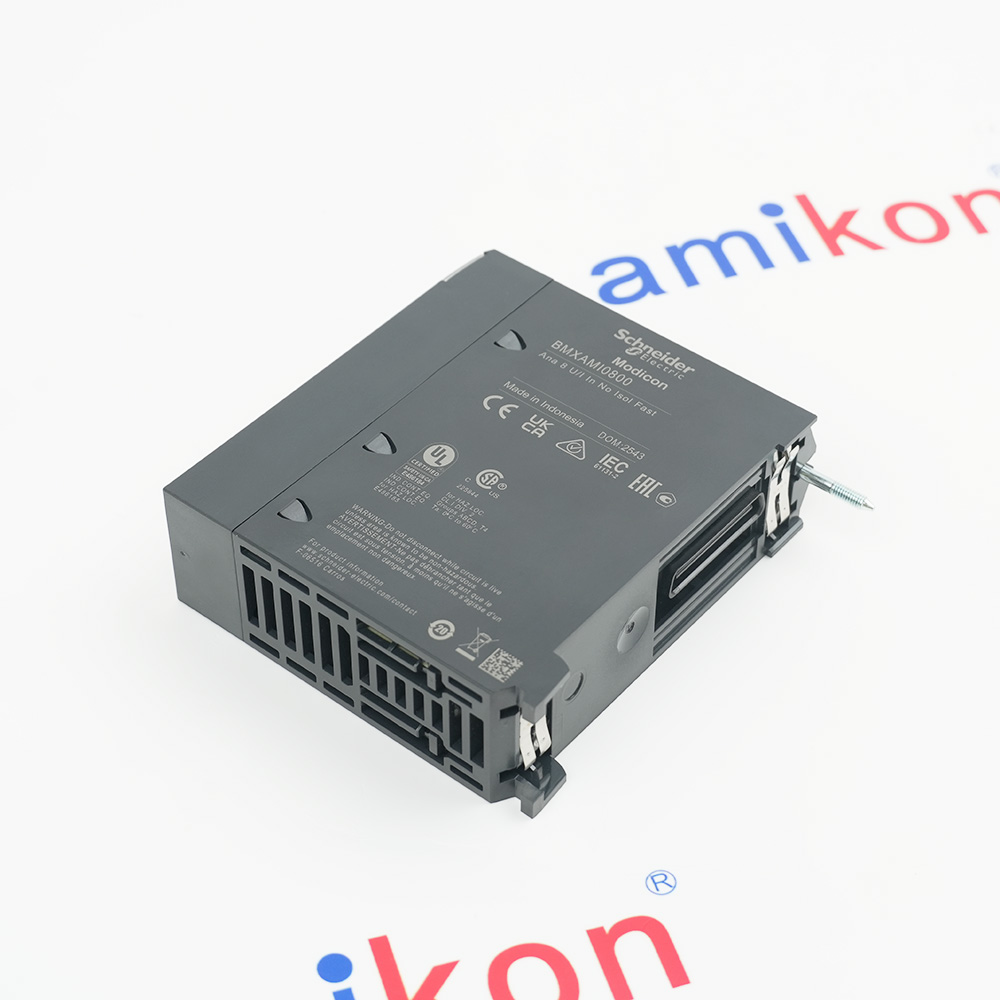

Technical specifications for BMXAMI0800
-
Product ModelBMXAMI0800
-
Product ParametersAnalog Input Module
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.2x9.8x10.3cm
-
ManufacturerSchneider Electric
-
Weight0.15 kg
-
Range of productModicon X80
-
Product or component typeAnalog input module
-
Electrical connection28 ways 1 connector
-
Isolation between channelsNon isolatedInput level High level
-
Analogue input number8
-
Analog/Digital conversion16 bits
-
Analogue input resolution15 bits + sign
-
Input impedance10 MOhm
-
Internal conversion resistor250 Ohm
-
Ambient air temperature for storage-40…85 °C
-
Ambient air temperature for operation0…60 °C
Description
INPUT MODULE
ANALOG
NON-ISOLATED
MODICON X80
8 INPUTS
FAST SPEED
50-1400 VDC
-40 TO +85 DEGREES C
IP20
ANALOG
NON-ISOLATED
MODICON X80
8 INPUTS
FAST SPEED
50-1400 VDC
-40 TO +85 DEGREES C
IP20
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Specifications
Features:
- Analog non isolated high level input module
- Modicon X80
- 8 outputs
- 0 to 20mA, 4 to 20mA
- 10V positive or negative
The BMXAMI0800 Schneider Electric ANALOG INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric BMXAMI0800 ANALOG INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This product is robust, high quality and based on the latest innovative technology. There is no isolation between channels. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
- Water and Waste Water:Monitors tank levels, flow rates & pressure
- Manufacturing and Consumer Packaged Goods (CPG):Process control & monitoring on production lines
- Mining, Minerals, and Metals:Sensor data acquisition in harsh mining environments
- Power Generation, Energies, and Chemicals:Monitors temperature, pressure & chemical concentrations
- Transportation:Infrastructure monitoring
- Data Centers:Environmental monitoring systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Non-Isolated Design: All 8 channels share a common internal ground (COMx- terminals).
Voltage Wiring: Connect the positive lead to VIx+ and the negative to COMx-.
Current Wiring: For current signals (0–20mA, 4–20mA), bridge the IIx and VIx+ terminals to utilize the internal 250 Ω precision resistor.
FAQs
-
What is the BMXAMI0800 ？+The Schneider Electric BMXAMI0800 is a 8-channel analog high-level input module from the Modicon X80 range, compatible with Modicon M580 and M340 PLCs.
-
Does the module provide loop power for 4-20mA signals?+No. The BMXAMI0800 does not provide power for 4-20mA current loops; an external 24V DC loop supply is required.
-
What BMXAMI0800 wiring terminals are compatible?+It uses a 28-way connector. Compatible terminal blocks include the 28-pin removable caged (BMXFTB2800) or spring (BMXFTB2820) terminal blocks.
-
What BMXAMI0800 cables can be used?+Shielded cord sets, such as the 3-meter (BMXFTW308S) or 5-meter (BMXFTW508S) 28-way terminal-to-flying-leads cables, are available.
-
Is the module isolated BMXAMI0800 ?+The BMXAMI0800 is a non-isolated analog input module.
-
How long can BMXAMI0800 withstand maximum isolation voltage?+There is no time limit; the module can withstand maximum isolation voltage indefinitely.
