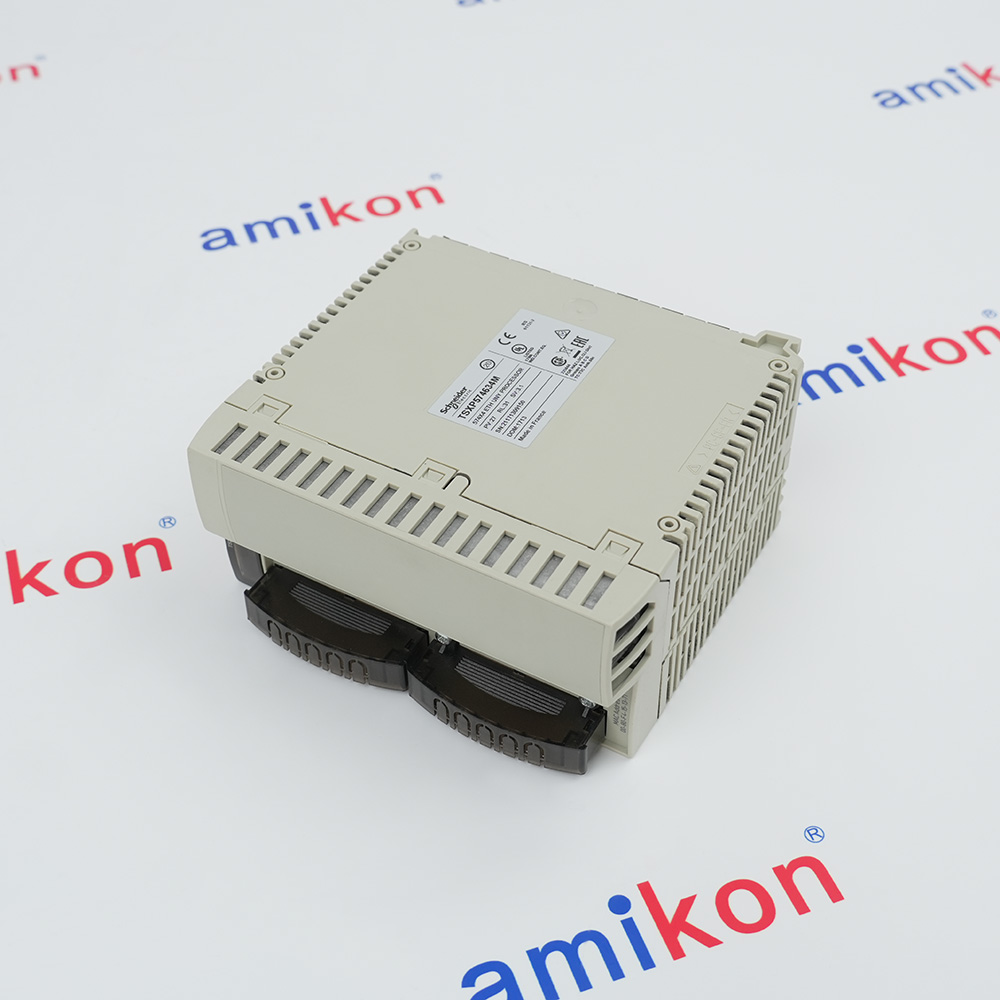

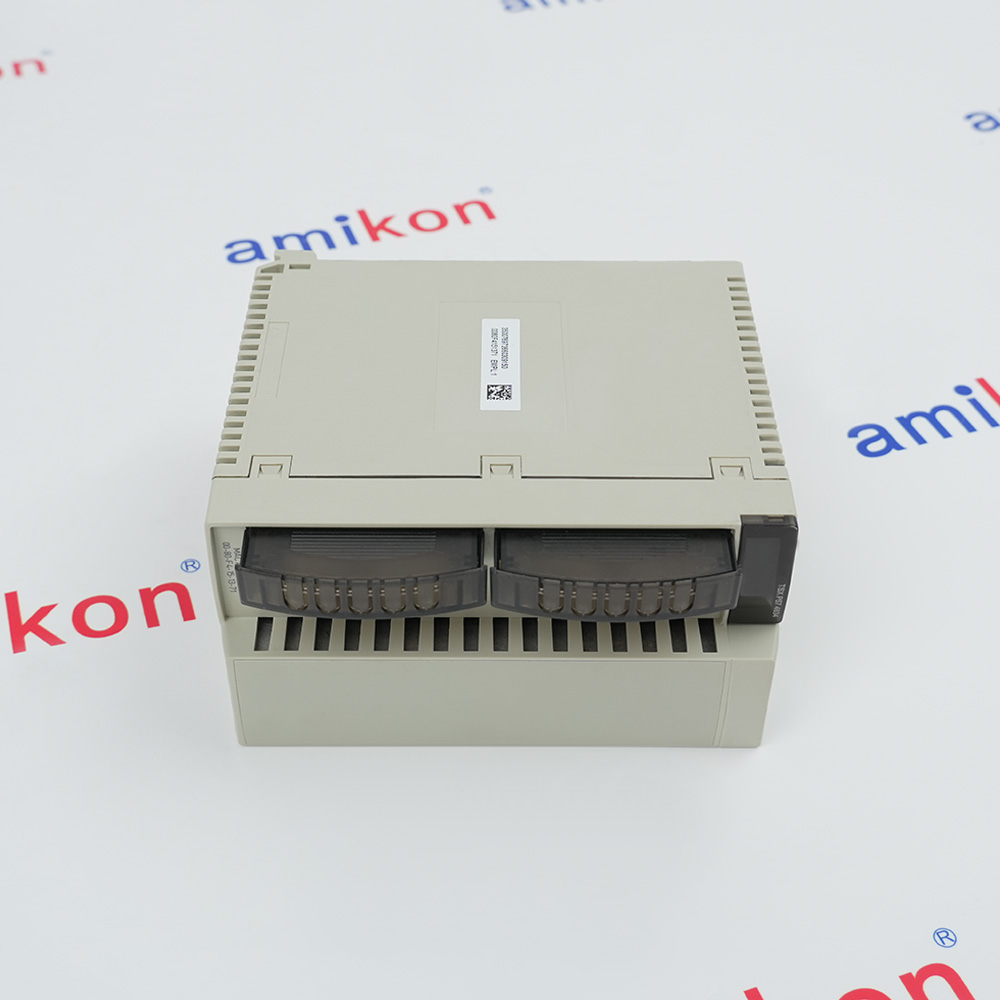

Technical specifications for TSXP574634M
-
Product ModelTSXP574634M
-
Product ParametersModicon Premium Unity processor
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.3x14.7x15cm
-
ManufacturerSchneider Electric
-
Weight0.85 kg
-
Number of racks16 4/6/8 slots
-
Discrete I/O processor capacity2040 I/O
-
Analogue I/O processor capacity256 I/O
-
Number of application specific channel64
-
Number of process control channel20 up to 60 simple loops
-
Ambient air temperature for operation0…60 °C
-
Ambient air temperature for storage-25…70 °C
Description
The SCHNEIDER ELECTRIC TSXP574634M is a Unity Pro Processor for the Modicon Premium automation platform, providing high-performance control and communication capabilities for industrial automation applications. The TSXP574634M was discontinued on December 2, 2020, with end-of-service scheduled for December 31, 2026, and is replaced by the BMEP583020 processor module M580 Level 3 Distributed.
The TSXP574634M features 440 kB internal RAM for program and data storage when used without a PCMCIA card. With a PCMCIA card installed, the TSXP574634M expands to 2048 kB program memory and 440 kB data memory, with PCMCIA cards providing up to 16384 kB of additional data storage. This flexible memory architecture of the TSXP574634M accommodates complex automation programs and extensive data logging requirements.
The TSXP574634M provides integrated communication interfaces including a non-isolated serial link via female mini DIN RS485 connector operating at 19.2 kbit/s, an Ethernet TCP/IP RJ45 port supporting 10BASE-T/100BASE-TX, and a USB port operating at 12 Mbit/s. These communication capabilities of the TSXP574634M enable seamless integration with HMI systems, SCADA platforms, programming workstations, and other networked devices.
The TSXP574634M features 440 kB internal RAM for program and data storage when used without a PCMCIA card. With a PCMCIA card installed, the TSXP574634M expands to 2048 kB program memory and 440 kB data memory, with PCMCIA cards providing up to 16384 kB of additional data storage. This flexible memory architecture of the TSXP574634M accommodates complex automation programs and extensive data logging requirements.
The TSXP574634M provides integrated communication interfaces including a non-isolated serial link via female mini DIN RS485 connector operating at 19.2 kbit/s, an Ethernet TCP/IP RJ45 port supporting 10BASE-T/100BASE-TX, and a USB port operating at 12 Mbit/s. These communication capabilities of the TSXP574634M enable seamless integration with HMI systems, SCADA platforms, programming workstations, and other networked devices.
Information
Overview
Manuals
Application Notes
Product Applications
Mounting & Rack Configuration
Features:
- Unity processor
- 8 racks (12 slots) / 16 racks(4/6/8 slots)
- 1880 mA, 5 V DC
The TSXP574634M Schneider Electric UNITY PROCESSOR may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric TSXP574634M UNITY PROCESSOR Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The TSXP574634M incorporates the Transparent Ready concept, ensuring compatibility and interoperability with other Schneider Electric devices and systems. The TSXP574634M features comprehensive local signaling with 10 diagnostic LEDs: green LEDs for Ethernet TCP/IP port ready (RUN) and processor running (RUN); red LEDs for collision detection (COL), Ethernet TCP/IP port fault (ERR), I/O module or configuration fault (I/O), and processor or system fault (ERR); and yellow LEDs for activity on TER or AUX terminal port (TER), Ethernet link diagnostics (STS), reception activity (RX), and transmission activity (TX).
- Automotive Industry:Production lines, robot coordination & assembly
- Food and Beverage Manufacturing:Packaging lines, bottling & batch processing
- Water Treatment Facilities:Pump control, filtration & distribution networks
- Logistics & Material Handling:Conveyors, sorting & warehouse automation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Rack Compatibility: The processor is designed for TSX RKY racks. It supports configurations up to 16 racks (4/6/8 slots) or 8 racks (12 slots).
Slot Placement: The processor must be installed in the main rack, which also houses the power supply module. In a standard setup, the power supply occupies the leftmost slot, and the CPU follows.
Technical notes
The TSXP574634M operates with a current consumption of 1880 mA at 5 V DC in a double module format with a net weight of 0.61 kg. Environmental specifications for the TSXP574634M include an operating temperature range of 0 to 60°C, storage temperature of -25 to 70°C, relative humidity of 10–95% without condensation for operation, and operating altitude up to 2000 m. The TSXP574634M carries IP20 protection rating with pollution degree 2 and protective treatment TC.
FAQs
-
What is TSXP574634M ?
+The Schneider Electric TSXP574634M is a high-capacity Unity processor from the Modicon Premium automation platform -
What is the processor capacity and I/O limit?
+It features 440 kB of data RAM and is capable of handling up to 2,040 discrete I/O and 256 analog I/O. It can support up to 16 racks (depending on slot configuration). -
What communication interfaces are built-in?
+The processor includes integrated USB, RS485 (mini-DIN), and 10BASE-T/100BASE-TX Ethernet (RJ45) ports for transparent ready communication. -
Does the TSXP574634M support timer events?
+No. While it supports a master task and fast tasks, its supported events are strictly limited to I/O events. It does not allow you to configure or create a
