Technical specifications for XKBA34207
-
Product ModelXKBA34207
-
Spare ModelXKB-A34207
-
Product ParametersJOYSTICK CONTROLLER
-
Tariff Code8537101190
-
Country of originFrance
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size14x10.8x23cm
-
ManufacturerSchneider Electric
-
Weight1.15 kg
-
Protective treatmentTC
-
Ambient air temperature for storage-40…70 °C
-
Ambient air temperature for operation-20…70 °C
-
Device short nameXKB
-
Fixing collar materialMetal
Description

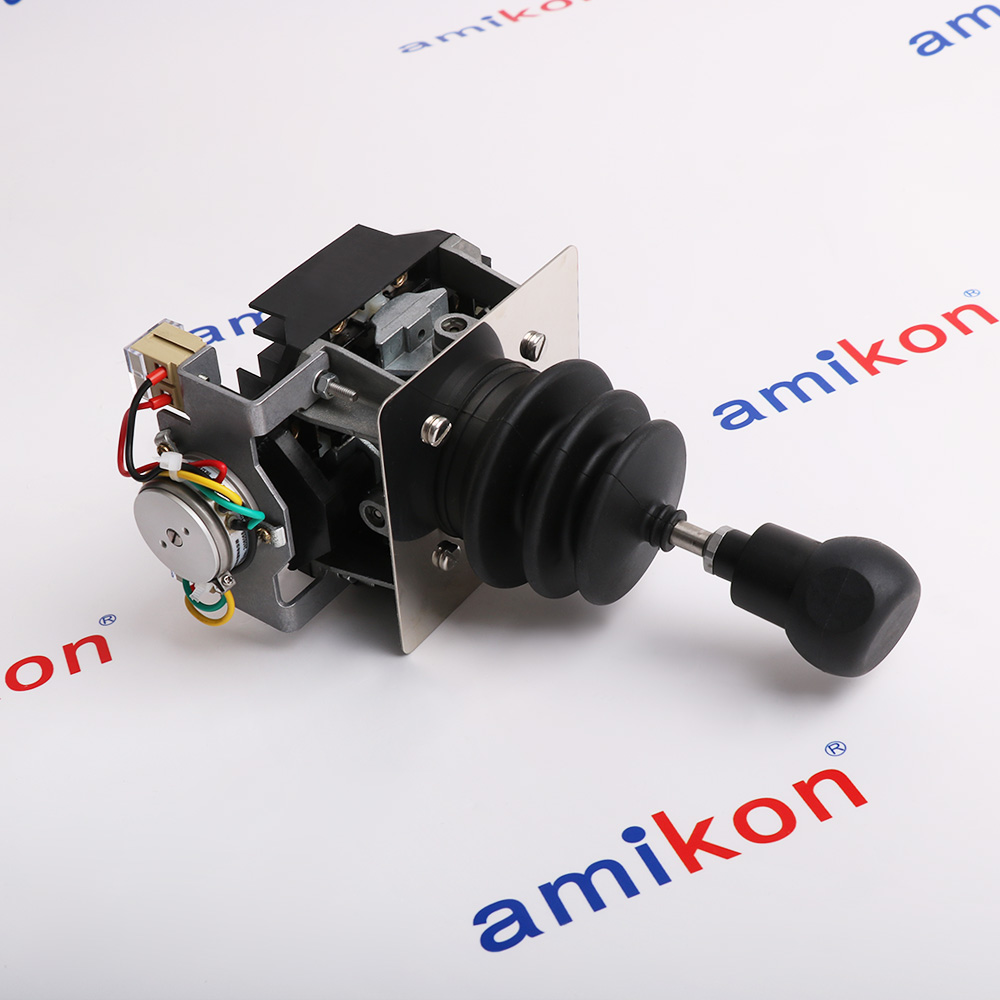

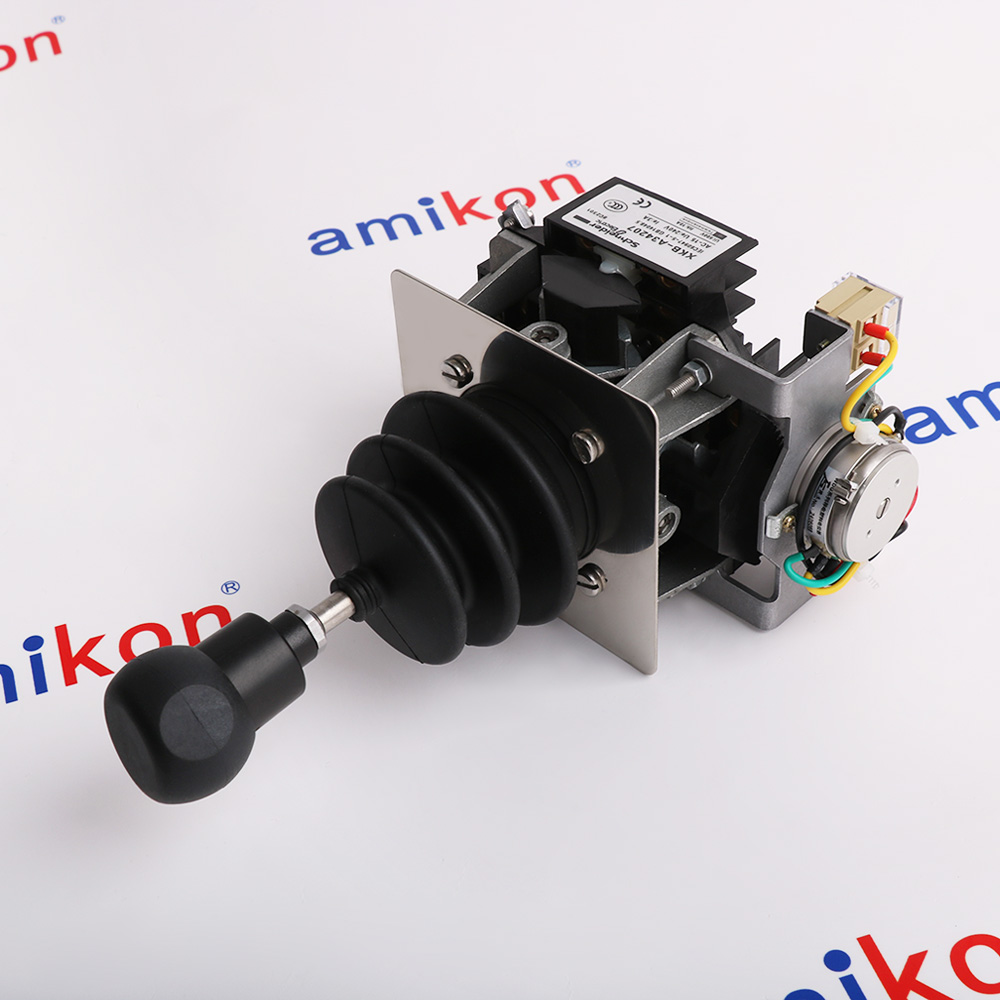

The XKBA34207 is a complete joystick controller from the Schneider Electric Harmony XK product family, designated for the XKBA light-duty application range. It is configured as a 2-axis, 4-direction joystick with pre-defined cam switching.
The controller provides two independent movements with four directional positions: up, down, left, and right. Each movement actuates four contacts rated at 10 A, with an additional central position contact. The contact code designation is A300 Q300, with a rated insulation voltage of 500 V and short-circuit protection via a 10 A cartridge fuse.
The joystick handle incorporates a mechanical return-to-center mechanism with a zero-position mechanical interlock. This ensures the actuator automatically returns to the neutral center position upon release, maintaining safe stopping and preventing unintended directional commands. The ergonomic handle is designed for light-duty industrial operation.
The controller provides two independent movements with four directional positions: up, down, left, and right. Each movement actuates four contacts rated at 10 A, with an additional central position contact. The contact code designation is A300 Q300, with a rated insulation voltage of 500 V and short-circuit protection via a 10 A cartridge fuse.
The joystick handle incorporates a mechanical return-to-center mechanism with a zero-position mechanical interlock. This ensures the actuator automatically returns to the neutral center position upon release, maintaining safe stopping and preventing unintended directional commands. The ergonomic handle is designed for light-duty industrial operation.
Alternative Names
XKB-A342O7
XKB-A34Z07
XKB-A3A207
XKB A34207
XKB A342O7
XKB A34Z07
XKB A3A207
XKBA34207
XKBA342O7
XKBA34Z07
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connection & Wiring
Features:
- 2-Axis Joystick with 4-Way Directional Movement
- Handle with Zero-Position Mechanical Interlock
- Contact Code Designation A300 Q300
- IP54 Ingress Protection Rating
The SCHNEIDER XKBA34207 features a handle with a zero-position mechanical interlock that ensures the joystick returns to the neutral center position when released. The XKBA34207 provides reliable operator feedback and prevents unintended movement by automatically centering the control handle.
The XKBA34207 SCHNEIDER Complete joystick controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SCHNEIDER XKBA34207 Complete joystick controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The joystick handle incorporates a mechanical return-to-center mechanism with a zero-position mechanical interlock. This ensures the actuator automatically returns to the neutral center position upon release, maintaining safe stopping and preventing unintended directional commands. The ergonomic handle is designed for light-duty industrial operation.
The XKBA range utilizes pre-defined cam configurations assembled at the factory, providing fixed switching points for each directional movement. This contrasts with the XKBE range which offers variable cam composition for custom switching sequences
- Light Hoisting: Controls overhead cranes, gantry systems, and hoisting winches
- Material Handling: Operates conveyor feeds, transfer cars, and sorting systems
- Machine Control: Manages X-Y positioning tables and mechanical alignment arms
- Harsh Environments: Standard panel installation for vibration, dust, or water exposure
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
De-energize System: Isolate all power sources before touching any internal electrical components.
Terminal Access: Locate the screw-clamp terminal blocks situated beneath the joystick head mechanism.
Wire Stripping: Strip the insulation back approximately 7–10 mm on your control cables.
Ferrule Crimping: Use insulated wire ferrules on stranded copper wires to prevent fraying strands.
Screw Fastening: Insert wires into the clamps and torque screws firmly to ensure low resistance.
Technical notes
Operating temperature range is -20°C to +70°C. The controller is compatible with Harmony XKJC controller stations and seated controller desks for integrated crane and hoist control systems. Optional accessories include protective bellows for dust and debris protection, alternative handle styles, legend plates for function identification, and potentiometers for analog speed control integration.
FAQs
-
What is the XKB-A34207 ?
+The Schneider XKB-A34207 (also known as part number XKBA34207) is a heavy-duty, 4-direction joystick controller from the Harmony XK range. -
What applications are best for this joystick?
+It is primarily used in industrial automation, crane controls, hoists, lifting systems, and driving master controllers in manufacturing or construction environments. -
What are the primary electrical ratings?
+The controller is rated for a operational voltage of 500 V and a conventional thermal current of 10 A.
