Technical specifications for C98043-A7009-L1/6RY1703-0GA01
-
Product ModelC98043-A7009-L1/6RY1703-0GA01
-
Spare Model6RY1703-0GA01
-
Product ParametersREAR BACKPANEL
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.2x4x1.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Output Channels4–12 relay channels
-
Current Handling10 A per channel continuous
-
Operating Temp-25°C to +60°C (industrial standard)
-
Humidity Tolerance≤95% non-condensing
-
Contact Rating5‒10 A @ 24–230 V AC/DC
-
Isolation Class24 V AC/DC isolation
-
Power CircuitUp to 690 V AC three-phase
Description

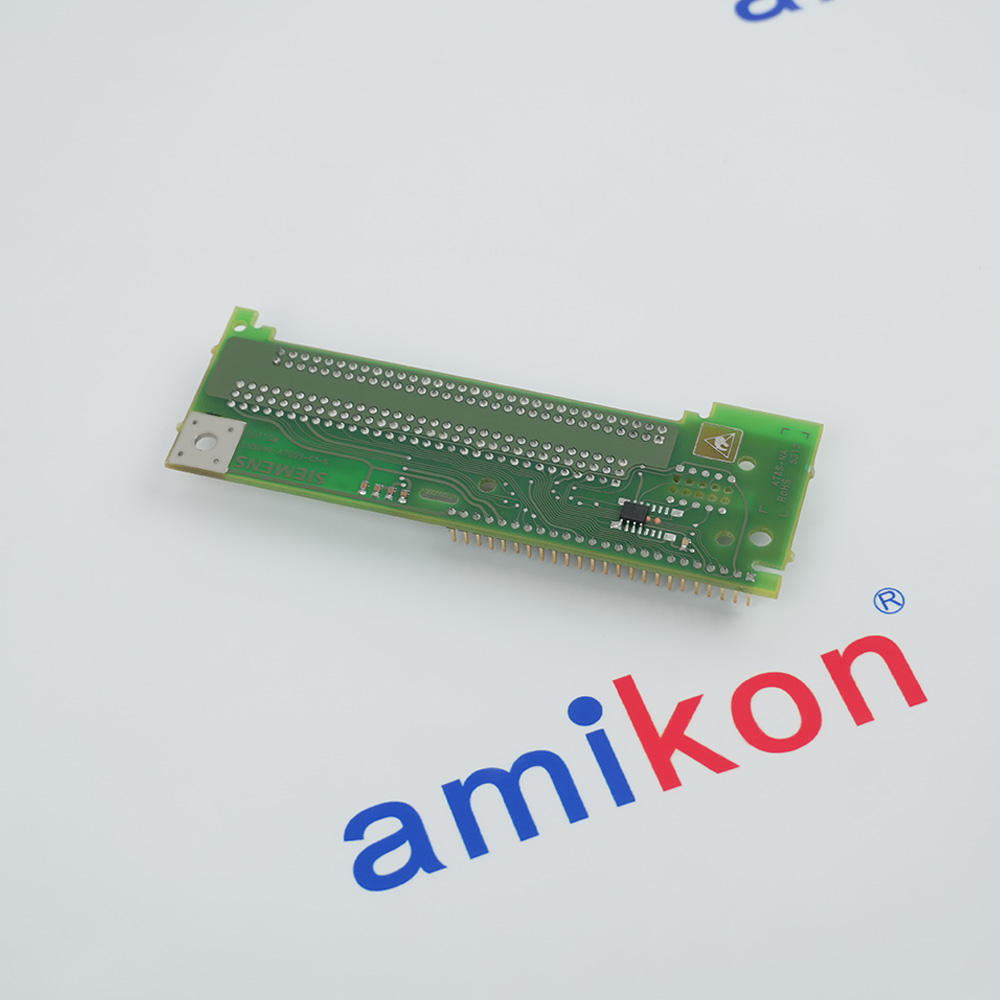

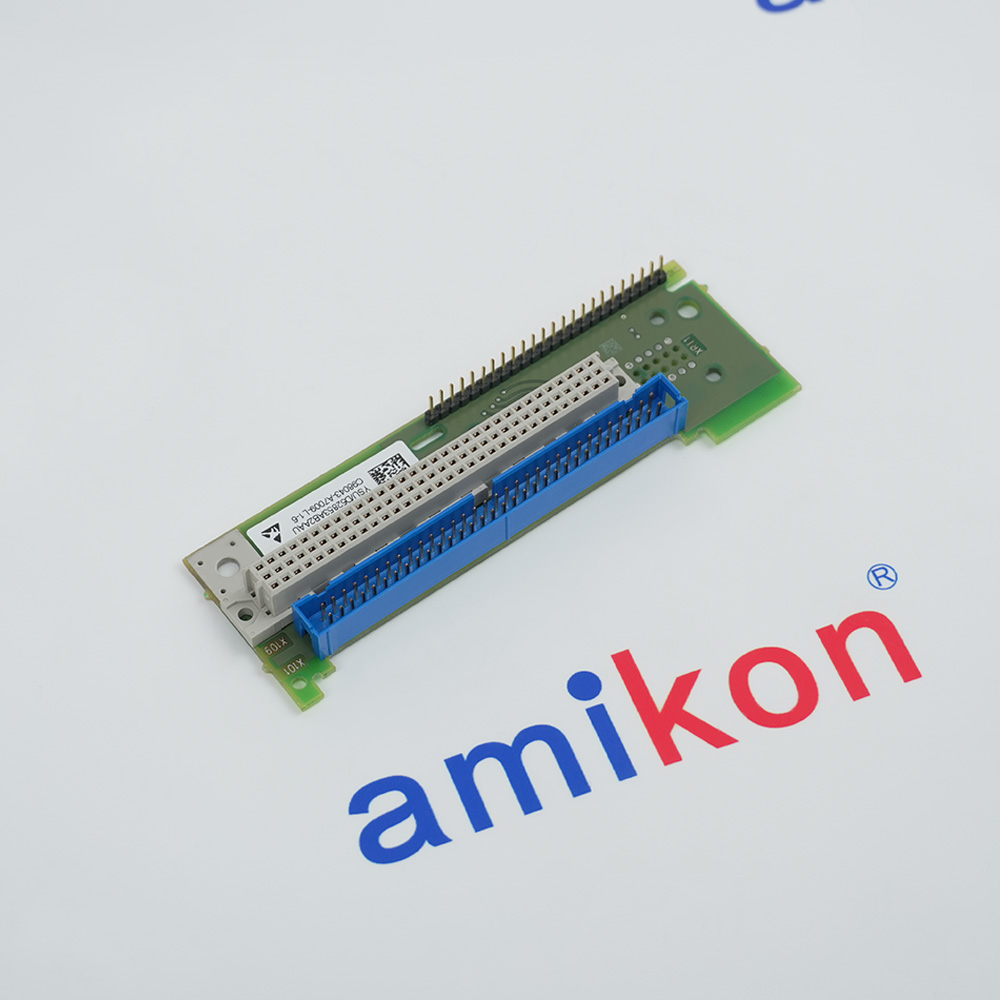

The Siemens C98043-A7009-L1, also identified by part number 6RY1703-0GA01, is a Rear Backpanel (Rear Panel Wiring Module) used in SIMOREG DC-MASTER (6RA70 Series) DC drive systems. The module serves as the rear wiring and interface assembly that provides terminal connections and signal routing between the drive control electronics and external field wiring. It forms part of the internal control architecture of SIMOREG DC drives and supports communication, feedback, control, and interface signal distribution.
The backpanel is installed behind the control electronics and provides connection points for analog inputs, digital inputs, RS232/RS485 communications, tachometer feedback, motor temperature monitoring, enable signals, and drive control interfaces. It is commonly used in steel mills, paper machines, crane systems, mining equipment, rolling mills, and other heavy industrial DC motor applications.
The backpanel is installed behind the control electronics and provides connection points for analog inputs, digital inputs, RS232/RS485 communications, tachometer feedback, motor temperature monitoring, enable signals, and drive control interfaces. It is commonly used in steel mills, paper machines, crane systems, mining equipment, rolling mills, and other heavy industrial DC motor applications.
Alternative Names
C98043-A7009-L1 6RY1703-0GA01
6RYI703-OGAOI
C98043-A7009-LI 6RY1703-0GA01
C98O43-A7OO9-LI
C98043 A7009 L1
C98O43-A7OO9-L1
C98043 A7009 LI 6RY1703 0GA01
C98043 A7009 LI 6RY1703 0GAO1
Information
Overview
Manuals
Application Notes
Product Applications
Critical Safety Precautions
Features:
- SIMOREG DC-MASTER compatible
- Rear panel wiring assembly
- Integrated signal routing functions
- Supports analog and digital I/O
- RS232 and RS485 communication interfaces
This backplane module, designated internally as PCB-A7009-L1, is a fundamental component of the SIMOREG DC Master 6RA70 architecture. It is installed at the rear of the drive unit and provides the physical and electrical interface for connecting the power interface board, electronics board, field supply board, operator panel, and other internal modules. The module is used across the 6RA70 frame size range from 70/13 to 70/95.
The C98043-A7009-L1 / 6RY1703-0GA01 SIEMENS Rear backpanel may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS C98043-A7009-L1 / 6RY1703-0GA01 Rear backpanel Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When ordering the C98043-A7009-L1 as a spare part, it is mandatory to provide the factory serial number and the complete MLFB (machine-readable product designation, e.g., 6RA70xx-xxxxx-x) of the original drive unit. This information is required because the manufacturer must pre-load the replacement backplane with the specific device data, parameters, and PIN codes from the original unit before delivery. Without this data transfer, the replacement module cannot function correctly in the target drive.
The 6RY1703-0GA01 order number corresponds to the standard version of the backplane. A conformal coated variant (6RY1703-0GA21) is available for applications in harsh environments requiring additional protection against moisture, dust, and chemical contaminants.
- Material Handling Systems:Controlled accel/decel for conveyors/sorters
- Cranes and Hoists:Precise vertical movement & heavy-load safety
- Machine Tools:High-precision heavy machinery & milling cells
- Pumps and Fans:Velocity & efficiency for large pumps
- Paper and Printing Mills:Web tension control & motorized roller sync
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolate Electrical Power: Completely disconnect and lock out the main AC power supply before opening any chassis panels. Verify that both the motor and the converter are fully discharged, as hazardous residual voltages persist even when the drive contactor is open.
Implement ESD Safeguards: The circuit board contains sensitive electronic components vulnerable to Electrostatic Discharge (ESD). Always handle the card by its edges, stand on an insulating surface, and wear a properly grounded ESD wrist strap.
Remove Jewelry: Take off all watches, rings, and jewelry from your hands and wrists before interacting with internal electronics.
Technical notes
A critical function of the C98043-A7009-L1 is the integration of an EEPROM (Electrically Erasable Programmable Read-Only Memory), which serves as the non-volatile storage for all device-specific data. This includes the complete set of drive parameters, configuration settings, and the PIN code required for enabling the S00 technological software option. The S00 software provides advanced control functions including free function blocks, technology controller, and additional communication capabilities.
FAQs
-
What is C98043-A7009-L1 / 6RY1703-0GA01?
+The Siemens C98043-A7009-L1 / 6RY1703-0GA01 is a critical interface and power board primarily used in older SIMOREG DC Master (6RA70) drive systems. -
What is the primary function of the C98043-A7009-L1?
+It acts as a back panel / interface board that securely houses the main microprocessor board (CUD1) in the SIMOREG 6RA70 DC drive. It routes signals, power gating pulses, and manages connections between the control electronics and the power section -
Which drive models use this board?
+It is specifically for the Siemens SIMOREG 6RA70 digital chassis converters. It serves models ranging from standard applications to high-performance drives handling large DC currents.
