- 6EP3134-0TA00-0AY0
In Stock
Ships by Tuesday, July 14
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6EP3134-0TA00-0AY0
-
Product Model6EP3134-0TA00-0AY0
-
Product ParametersPSU3400 POWER SUPPLY
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4cm x15.3cm x6.8cm
-
ManufacturerSiemens
-
Weight2 kg
-
InputDC voltage
-
Supply voltage at DC24 ... 24 V
-
Input voltage at DC14 ... 32 V
-
Mains buffering at Iout rated, min5 ms; at Vin = 24 V
-
Switch-on current limiting (+25 °C), max15 A
-
Rated voltageVout DC 24 V
-
Residual ripple peak-peak, max150 mV
-
Residual ripple peak-peak, typ30 mV
-
Spikes peak-peak, max. (bandwidth: 20 MHz)250 mV
-
Spikes peak-peak, typ. (bandwidth: 20 MHz)50 mV
-
Adjustment range24 ... 28 V
-
Efficiency at Vout rated, Iout rated, approx93 %
-
Power loss at Vout rated, Iout rated, approx20 W
-
Power loss [W] during no-load operation maximum1.5 W
Description

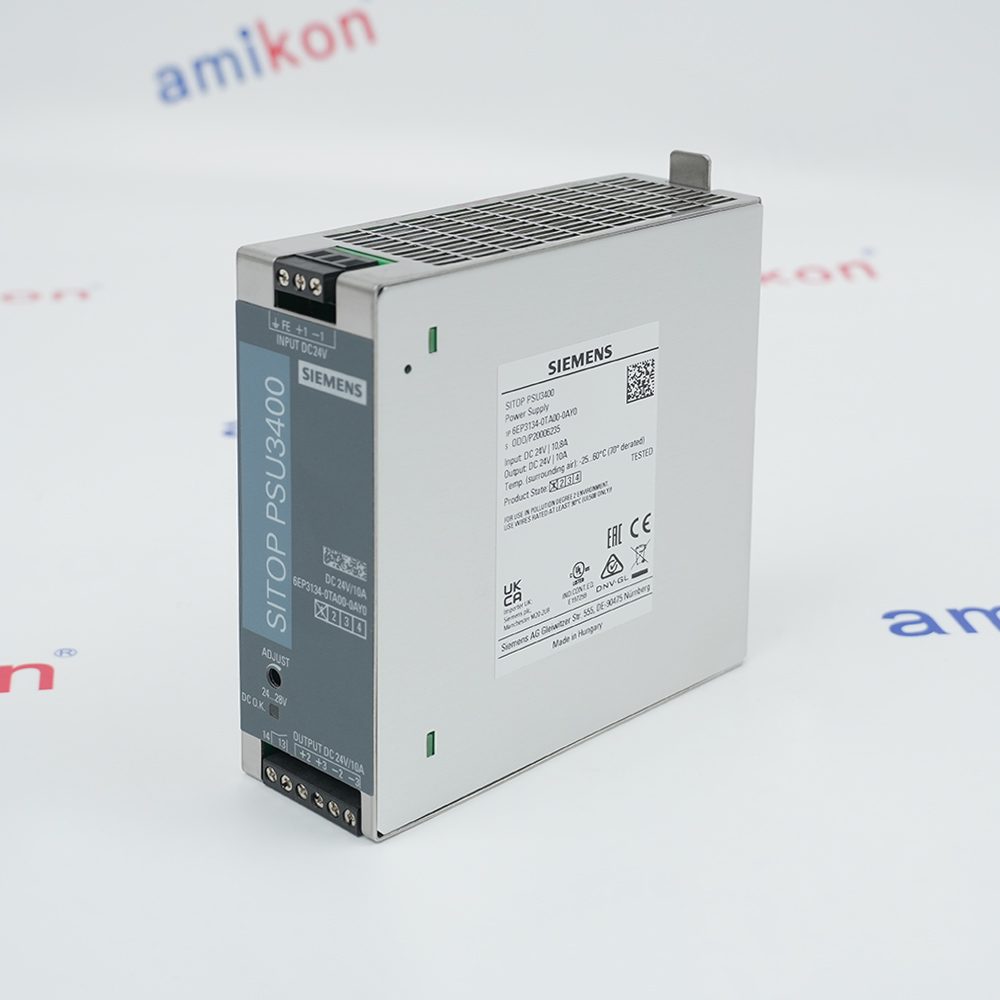

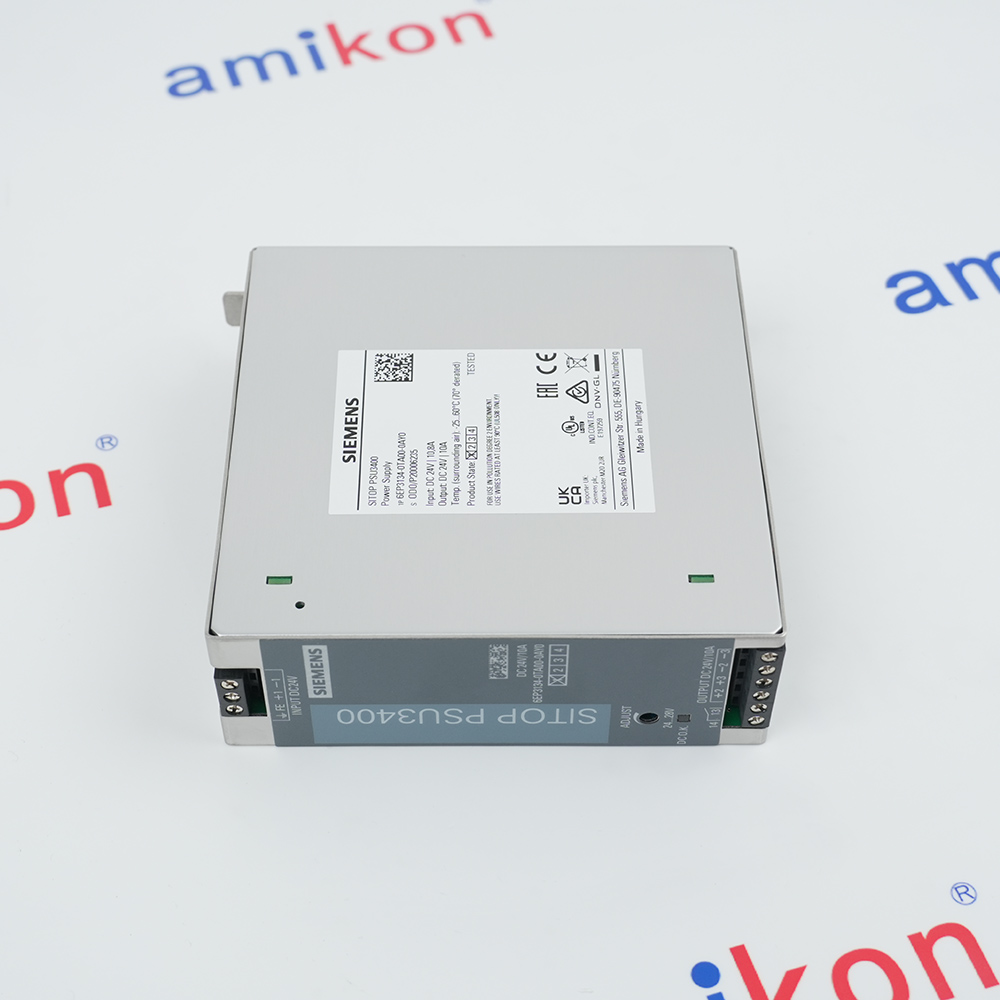

The SIEMENS 6EP3134-0TA00-0AY0 is a SITOP PSU3400 24 V/10 A stabilized power supply for industrial automation applications requiring reliable DC voltage conversion and regulation. The 6EP3134-0TA00-0AY0 accepts DC input voltage of 24V with a wide input range of 14V to 32V DC, with startup beginning at 18V and derating necessary for input voltages between 14V and 18V DC. The 6EP3134-0TA00-0AY0 is not a wide-range input device but is specifically designed for 24V DC industrial power systems.
The 6EP3134-0TA00-0AY0 delivers a controlled, isolated DC output voltage of 24V with exceptional voltage stability. The 6EP3134-0TA00-0AY0 achieves a total static tolerance of ±1%, static mains compensation of approximately 0.1%, and static load balancing of approximately 0.3%. The 6EP3134-0TA00-0AY0 maintains residual ripple peak-to-peak at maximum 150 mV (typical 30 mV) and spikes peak-to-peak at maximum 250 mV (typical 50 mV) with 20 MHz bandwidth. The 6EP3134-0TA00-0AY0 features an adjustable output voltage range of 24V to 28V set via potentiometer, allowing fine-tuning of output voltage to match specific application requirements
The 6EP3134-0TA00-0AY0 delivers a controlled, isolated DC output voltage of 24V with exceptional voltage stability. The 6EP3134-0TA00-0AY0 achieves a total static tolerance of ±1%, static mains compensation of approximately 0.1%, and static load balancing of approximately 0.3%. The 6EP3134-0TA00-0AY0 maintains residual ripple peak-to-peak at maximum 150 mV (typical 30 mV) and spikes peak-to-peak at maximum 250 mV (typical 50 mV) with 20 MHz bandwidth. The 6EP3134-0TA00-0AY0 features an adjustable output voltage range of 24V to 28V set via potentiometer, allowing fine-tuning of output voltage to match specific application requirements
Alternative Names
6EP3134-0TA00-0AYO
6EP3134-0TA00-OAY0
6EP3134-0TA0O-0AY0
6EP3134-0TAO0-0AY0
6EP3134-OTA00-0AY0
6EP3I34-0TA00-0AY0
6EP3134 0TA00 0AY0
6EP3134 0TA00 0AYO
6EP3134 0TA00 OAY0
6EP3134 0TAOO 0AY0
6EP3134 OTA00 0AY0
6EP3I34 0TA00 0AY0
6EP31340TA000AY0
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Connection Steps
Features:
- DC/DC Stabilized Power Supply with 24V Input/Output
- High Efficiency of 93% with Low Power Loss
- Adjustable Output Voltage with Soft Start
- Comprehensive Protection and Monitoring
The 6EP3134-0TA00-0AY0 accepts an input voltage range of 14 V to 32 V DC, with startup from 18 V and derating required between 14 V and 18 V DC. The input current of the 6EP3134-0TA00-0AY0 at rated input voltage (24 V) is 10.8 A, with a maximum inrush current limitation of 15 A at 25°C. The 6EP3134-0TA00-0AY0 includes internal fuse protection of 25 A (not accessible) with 300 A breaking capacity, and recommends a 16 A miniature circuit breaker with characteristic B or C in the feeder line.
The 6EP3134-0TA00-0AY0 Siemens PSU3400 POWER SUPPLY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6EP3134-0TA00-0AY0 PSU3400 POWER SUPPLY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
For output performance, the 6EP3134-0TA00-0AY0 delivers a controlled, isolated DC voltage with a rated output of 24 V DC at 10 A. The output voltage of the 6EP3134-0TA00-0AY0 is adjustable from 24 V to 28 V via a potentiometer, enabling compensation for voltage drops across long supply cables. The 6EP3134-0TA00-0AY0 maintains excellent voltage regulation with a relative overall tolerance of 1%, input voltage regulation precision of 0.1%, and load regulation precision of 0.3%. The 6EP3134-0TA00-0AY0 achieves residual ripple of maximum 150 mV (typical 30 mV) and voltage peaks of maximum 250 mV (typical 50 mV).
The 6EP3134-0TA00-0AY0 features soft-start behavior with no overshoot of Vout during power-on, a maximum response delay of 0.5 seconds, and typical voltage rise time of 10 ms (maximum 20 ms). The output current of the 6EP3134-0TA00-0AY0 is rated at 10 A with an extended range of 0–12.5 A, though derating of 2% per Kelvin applies for temperatures between +60°C and +70°C. The 6EP3134-0TA00-0AY0 delivers typical active power of 260 W.
- Thermocouple Compensation: Integrated sensor provides cold-junction compensation to prevent ambient drift/error
- Kilns/Ovens: Monitors high-temperature zones in heavy manufacturing
- Chemical/Pharma: Ensures tight temperature regulation for mixers, columns, and reactors
- Decentralized Cabinets: 15mm width maximizes rail space, reducing sensor cabling
- Conveyor/Handling: Links proximity sensors, limit switches, and starters to central PLC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the wire: Strip the insulation to the proper length (7 - 8 mm) to ensure the bare copper is fully seated in the terminal block but does not leave excess exposed wire.
Loosen the terminal: Insert the screwdriver into the terminal screw head and turn counter-clockwise.Insert the wire: Fully insert the stripped wire into the open terminal hole.
Tighten the terminal: Turn the screw clockwise to clamp the wire securely. Gently pull on the wire to ensure it does not slip out.
Earth connection: Always connect the Functional Earth (FE) terminal first for safety before powering up the device.
Technical notes
The 6EP3134-0TA00-0AY0 operates within an ambient temperature range of -25°C to +70°C during operation with natural convection cooling, -40°C to +85°C during transport, and -40°C to +85°C during storage. The 6EP3134-0TA00-0AY0 meets humidity class 3K3 according to EN 60721 with no condensation. The 6EP3134-0TA00-0AY0 carries CE mark, cULus-Listed certification (UL 508, CSA C22.2 No. 107.1, File E197259), and CB approval, with marine approval in process for DNV GL and ABS. The 6EP3134-0TA00-0AY0 meets EMC requirements with emitted interference per EN 61000-6-3 and noise immunity per EN 61000-6-2.
FAQs
-
What is the rated output voltage of the Siemens 6EP3134-0TA00-0AY0 power supply?
+The Siemens 6EP3134-0TA00-0AY0 power supply provides a rated output voltage of 24 V DC. -
What is the allowable DC input voltage range for the Siemens 6EP3134-0TA00-0AY0?
+The Siemens 6EP3134-0TA00-0AY0 supports a DC input voltage range from 14 V to 32 V DC. -
How are the 6EP3134-0TA00-0AY0 packaged?
+6EP3134-0TA00-0AY0 packaging generally involves multiple layers of protection to ensure safe transit. -
What is the warranty period for 6EP3134-0TA00-0AY0?
+A standard one-year warranty is typically offered for new and original items.
