Technical specifications for 330130-040-01-00
-
Product Model330130-040-01-00
-
Product Parameters3300 XL Standard Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size30.5x30.5x4cm
-
ManufacturerBently Nevada
-
Weight0.54 kg
-
Cable Length Option4.0 meters (11.5 feet)
-
Connector Protector and Cable OptionArmored cable
-
Agency Approval OptionNot required
-
Output Resistance50 Ω
-
Extension Cable Capacitance69.9 pF/m (21.3 pF/ft)typical
Description

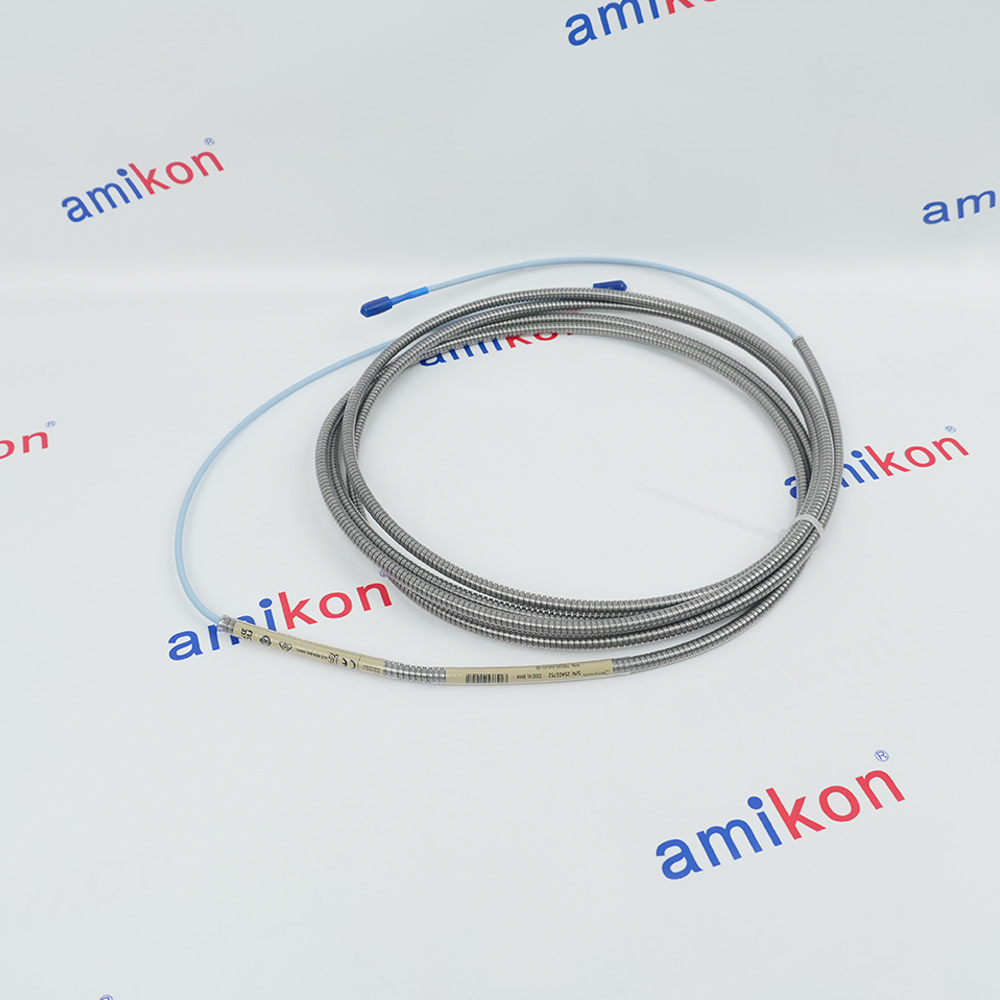

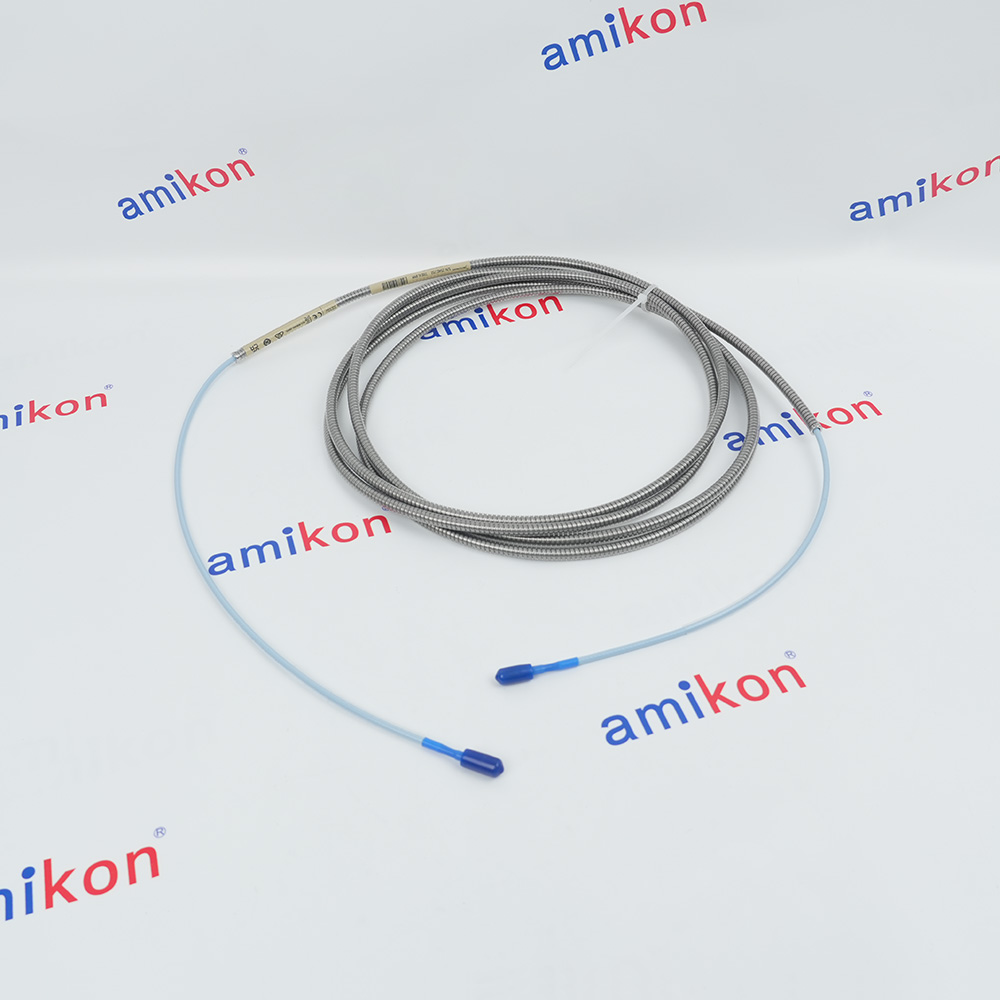

The Bently Nevada 330130-040-01-00 3300 XL Standard Extension Cable is a critical component of the 3300 XL 8mm Proximity Transducer System, designed to connect 3300XL 8mm proximity probes to 3300XL Proximitor Sensors in machinery condition monitoring applications. 330130 provides the electrical pathway that carries the eddy current signal from the probe tip to the Proximitor Sensor, where it is converted into a voltage proportional to the distance between the probe and the observed conductive surface.
330130-040-01-00 is a 75 Ω coaxial extension cable specifically engineered for use with 3300XL Proximitor Sensors and 3300XL 8mm probes. The electrical characteristics of 330130-040-01-00 are precisely matched to the system requirements, ensuring that the combined probe, extension cable, and Proximitor Sensor deliver accurate and stable measurements. When using 330130-040-01-00 with XL components, system performance will be limited to the specifications for the non-XL 3300 system if mixed with non-XL components.
330130-040-01-00 is a 75 Ω coaxial extension cable specifically engineered for use with 3300XL Proximitor Sensors and 3300XL 8mm probes. The electrical characteristics of 330130-040-01-00 are precisely matched to the system requirements, ensuring that the combined probe, extension cable, and Proximitor Sensor deliver accurate and stable measurements. When using 330130-040-01-00 with XL components, system performance will be limited to the specifications for the non-XL 3300 system if mixed with non-XL components.
Alternative Names
330130-040-01-OO
330130-040-0I-00
330130-040-O1-00
330130-04O-01-00
330130-O40-01-00
33013O-040-01-00
330I30-040-01-00
33O130-040-01-00
330130 040 01 00
330130 040 01 OO
330130 040 0I 00
330130 040 O1 00
330130 O4O 01 00
33013O 040 01 00
330I30 040 01 00
33O130 040 01 00
Information
Overview
Manuals
Application Notes
Product Applications
Insertion and Mechanical Setup
Features:
- M10 × 1 Metric Thread with 8 mm Tip Diameter
- Patented TipLoc Molding for Robust Probe Tip Bond
- 2.0 mm (80 mil) Linear Measuring Range
- Wide Temperature Range (-51°C to +177°C)
- Complete Interchangeability with 3300XL System Components
This extension cable is 4.0 metres (13.1 feet) in length and is constructed with 75 Ω triaxial cable using Fluoroethylene Propylene (FEP) insulation. The cable carries a typical capacitance of 69.9 pF/m (21.3 pF/ft). It is configured as an armored cable (option code 01) without a connector protector, and carries no hazardous area approvals (option code 00).
The 330130-040-01-00 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-040-01-00 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The armor consists of a flexible stainless steel braid that provides mechanical protection for the cable in harsh industrial environments where abrasion, crushing, or rodent damage may occur. The armor covers the entire cable length except for the terminal 300 mm (11.8 in) at each end to allow connector access. The armored cable has an outside diameter of 7.67 mm (0.302 in) maximum, with armor ferrules measuring 10.2 mm (0.40 in) maximum in diameter. The armored cable weighs 64 g/m (0.7 oz/ft).
The 3300 XL 8 mm system fully complies with the American Petroleum Institute (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
- Oil/Gas/Petrochemical: Monitors critical machinery processing volatile hydrocarbons in hazardous explosive zones
- Power Generation: Tracks turbine/generator shaft movements in thermal, nuclear, and hydro plants
- Chemical Processing: Resists corrosive vapors with PPS thermoplastic housing
- Water/Wastewater: Operates reliably in moisture/humidity/outdoor spaces with IP66 washdown protection
- Mining/Heavy: Withstands dust, abrasive particles, and extreme mechanical vibration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread Connection: Route the extension cable carefully to avoid sharp bends and keep it at least 12 inches (305 mm) away from AC power cables and high-voltage wiring to prevent EMI.Connector Mating: The cable utilizes gold-plated, corrosion-resistant ClickLoc connectors. Align the connectors, push them together, and tighten finger-tight until you hear or feel them "click" into a locked position. No special crimping or tightening tools are required for the connectors.Connector Protection: Although the ClickLoc design locks the connection, you should slide the included connector protectors over the mated joints for environmental sealing.
Technical notes
330130 operates over a wide temperature rang e from -51°C to +177°C (-60°F to +351°F) for standard extension cables. This temperature capability of 330130 ensures reliable signal transmission in harsh industrial environments including cold climates and high-temperature machinery locations. The cable construction of 330130 is designed to withstand the thermal cycling and mechanical stresses typical of industrial rotating machinery installations.
FAQs
-
What is the 330130-040-01-00?
+The Bently Nevada 330130-040-01-00 is a 4-meter, standard armored extension cable used in the 3300 XL 8 mm Proximity Transducer System. -
Can I use this extension cable with older systems like the 3300 NSv?
+No. This extension cable is designed exclusively for the 3300 XL series. It is not compatible with other Bently Nevada proximity systems (like the NSv) due to distinct impedance and connector matching requirements. -
Why does the cable option specify -01 (Armored)?
+The -01 option adds a flexible, stainless steel armor over the cable sheath. It provides superior protection against physical wear, cuts, abrasive industrial environments, and accidental mechanical stress. -
What is the rule regarding system electrical lengths?
+You must maintain consistent electrical lengths across the entire transducer loop. The electrical length of the proximity probe plus the electrical length of the extension cable must perfectly match the electrical length required by the Proximitor sensor
