· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6AV2124-0JC01-0AX0
-
Product Model6AV2124-0JC01-0AX0
-
Product ParametersComfort CE6.0 9" TFT 16:9
-
Tariff Code8537101190
-
Country of origingermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size27.4x18.8x7cm
-
ManufacturerSiemens
-
Weight1.88 kg
-
Product type designationTP900 Comfort
-
Design of displayTFT
-
Screen diagonal9 in
-
Horizontal image resolution800 pixel
-
Vertical image resolution480 pixel
-
MTBF backlighting80 000 h
-
Active power input, typ18 W
-
Memory available for user data12 Mbyte
Description
6AV21240JC010AX0
OPERATOR INTERFACE
9 INCH WIDESCREEN TFT DISPLAY
SIMATIC HMI TP900 COMFORT
COMFORT PANEL
TOUCH OPERATION
24 VDC
PROFINET INTERFACE
MPI/PROFIBUS DP INTERFACE
OPERATOR INTERFACE
9 INCH WIDESCREEN TFT DISPLAY
SIMATIC HMI TP900 COMFORT
COMFORT PANEL
TOUCH OPERATION
24 VDC
PROFINET INTERFACE
MPI/PROFIBUS DP INTERFACE
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Grounding
Features:
- 9-Inch Widescreen TFT Display with 16 Million Colors
- Analog-Resistive Touchscreen with Gloved-Hand Operation
- Comprehensive Multi-Protocol Communication Interfaces
- Advanced Software Functionality via WinCC Comfort
- Rugged IP65 Front & Global Hazardous Location Certifications

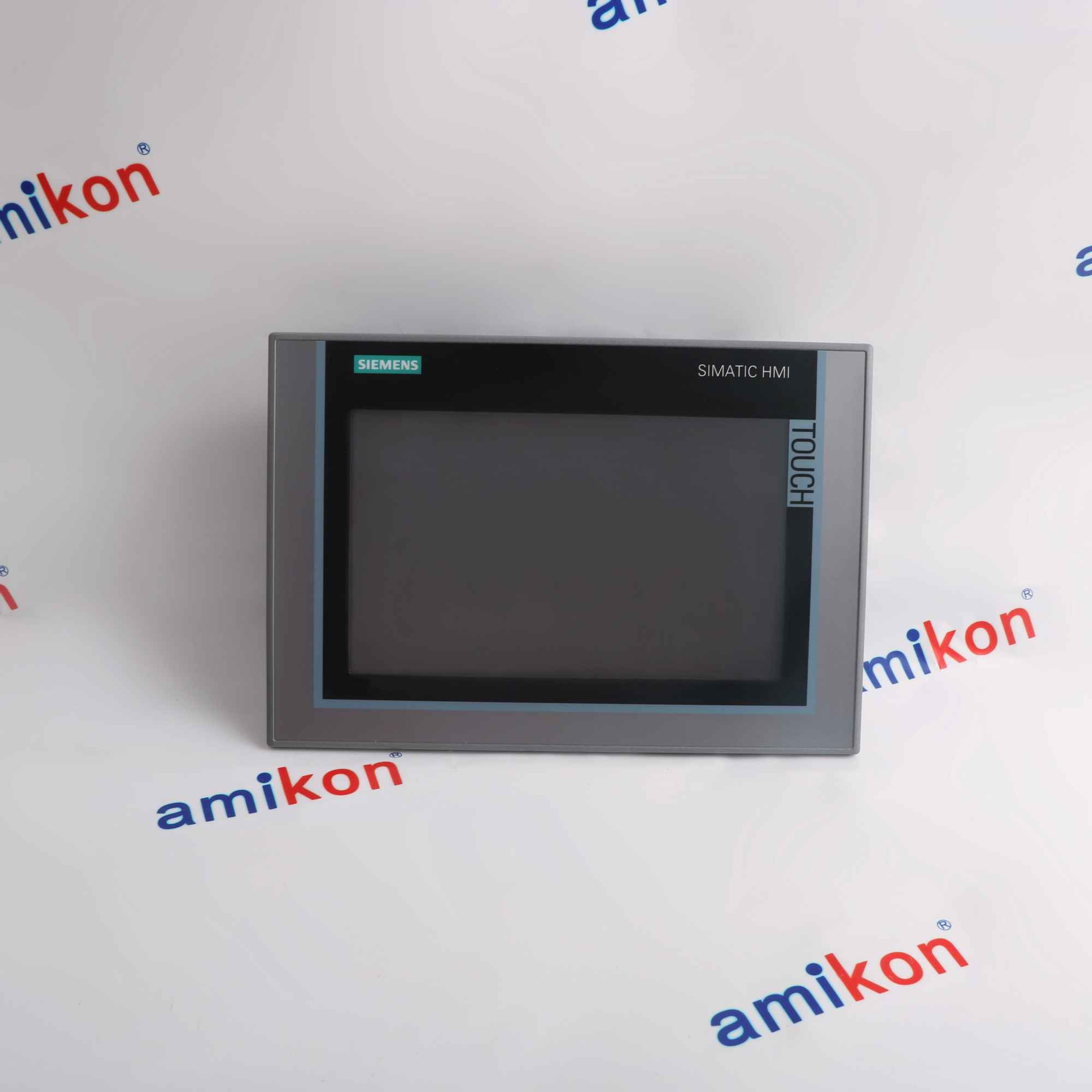

At the heart of the panel is a 9-inch (195 mm × 117 mm active area) widescreen TFT display delivering 800 × 480 pixel resolution and a palette of 16.7 million colors for photorealistic process graphics, trend curves, and alarm displays. The LED backlight achieves an 80,000-hour MTBF at 25°C and is continuously dimmable via software or the control panel, allowing operators to optimize visibility for ambient lighting conditions while significantly extending backlight longevity.
The 6AV2124-0JC01-0AX0 Siemens OPERATOR INTERFACE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV2124-0JC01-0AX0 OPERATOR INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

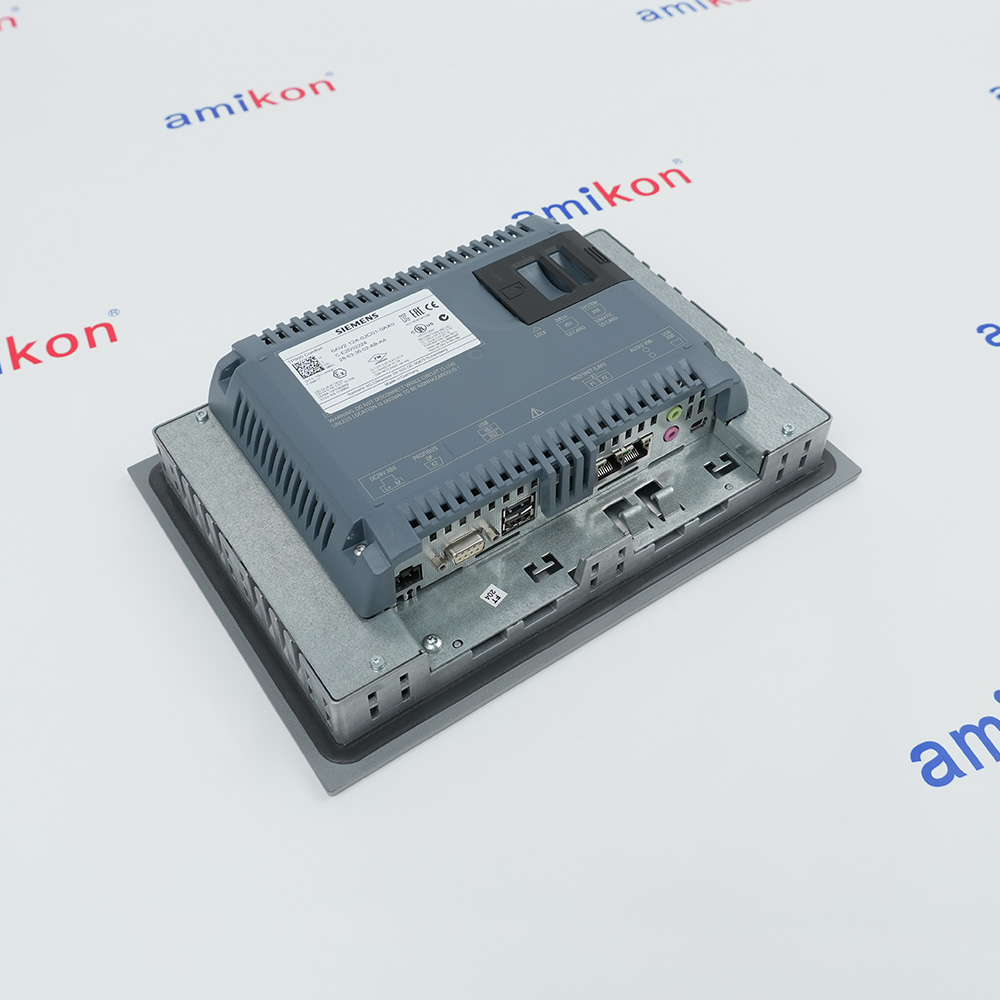

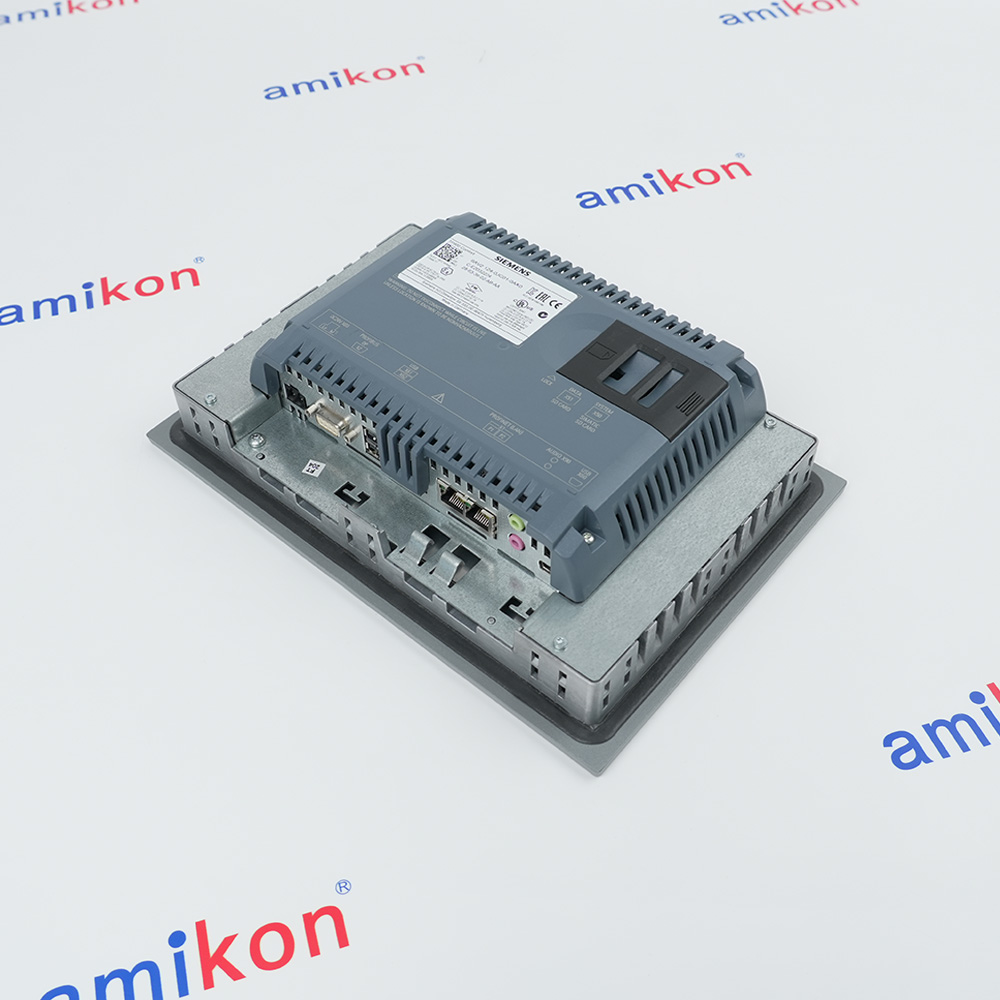

Communication versatility is a defining strength. The TP900 Comfort integrates a dual-port PROFINET switch (one industrial Ethernet interface with two RJ-45 ports) that allows daisy-chain networking without external switches, reducing cabling and infrastructure cost. A combined RS-485/RS-422 serial port supports MPI, PROFIBUS DP, and PPI protocols for legacy Siemens controller connectivity. Two USB 2.0 host ports accommodate USB flash drives, keyboards, mice, or barcode scanners, while a 5-pin USB Mini-B device port facilitates direct PC connection for project transfer and servicing. Dual SD card slots support memory cards up to 2 GB for data logging, recipe backup, project archiving, and firmware updates. Protocol support extends beyond Siemens-native stacks to include EtherNet/IP for Allen-Bradley integration, Modbus TCP/IP for Modicon devices, Mitsubishi MC TCP/IP, and OPC UA Client/Server for Industry 4.0 data exchange—making the TP900 a genuinely multi-vendor HMI platform.
- Status Monitoring:Real-time process values, temps, pressures & health
- Parameter Setting:Target variables, setpoints & recipe entry
- Machine-Level Operation:Simple HMI for conveyors, pumps & material handling
- Light Manufacturing:Assembly, pick-and-place & automated testing
- Food & Beverage / Packaging:Product changeovers, fill quantities & belt speeds
- Water/Wastewater:Lift stations & filtration: flow rates & valve states
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connect a 24V DC power supply to the terminal block. Ensure the polarity is correct
Equipotential Bonding: Connect a grounding cable to the functional earth/ground terminal to prevent electromagnetic interference and static discharge.
FAQs
-
What is the 6AV2124-0JC01-0AX0?
+The Siemens 6AV2124-0JC01-0AX0 is a SIMATIC HMI TP900 Comfort panel. It features a 9 -
What power supply is required?
+A stable 24V DC supply is required -
What ports are available?
+It includes PROFINET and MPI/PROFIBUS DP interfaces, as well as USB ports for connecting compatible input/storage devices. -
What are the screen dimensions and display capabilities?
+It features a 9-inch resistive touchscreen display with a resolution of 800 x 480 pixels and supports up to 16 million colors. -
How much configuration memory is available?
+The unit features 12 MB of built-in configuration flash memory running on the Windows CE 6.0 operating system.
